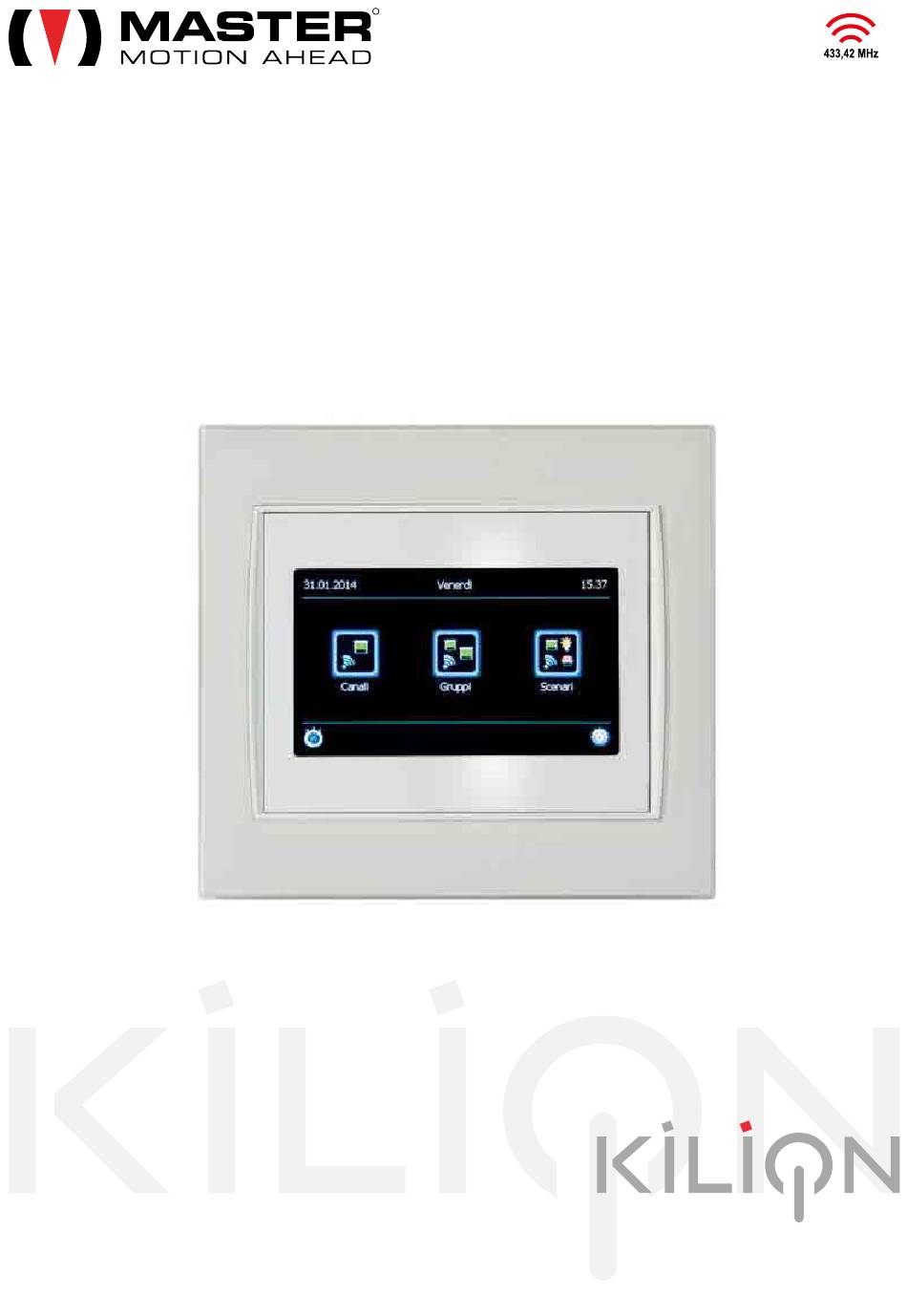

- Page 1 INSTRUCTION MANUAL FOR USE AND MAINTENANCE Kilion rev01 del 17.04.15...
-
Page 3: Table Of Contents
Dear Customer, we would like to thank you for purchasing a product by MASTER S.p.A. This quick guide contains all the information you will need concerning the use of this product. Read the instructions carefully and keep them for further consultation. The transmitter KILION was specifically designed to control roller shutters, awnings, skylights, screens, doors, arbours, lighting systems, irrigation systems, gates, garage doors. -
Page 4: Packed Items
03. PACKED ITEMS no.1 Kilion with universal mounting no.1 Front plate no.1 Spacer no.1 Rear cover no.2 Table supports no.1 Power cable cover no.1 12V power unit no.4 Plastic anchors with screws n°4 Button head screws no.4 Countersunk head no.4 Button head screws... -
Page 5: Mounting
04. MOUNTING Flush mounting to wall Wall mounting... - Page 6 Table mounting...
-
Page 7: Description Of Main Icons
05. DESCRIPTION OF MAIN ICONS 05.1 MAIN SCREEN 05.2 SETTINGS SCREEN Click the SETTINGS shortcut on the bottom right of the screen to access the menu where the device operating parameters are set up. -
Page 8: Main Icons
05.3 MAIN ICONS CHANNELS: GROUPS: it is used to use one or it is designed to engage SCENARIOS: several channels of the one or several groups of it is designed to selected application(e.g. the selected application enable a scenario. roller shutters, awnings) (e.g. - Page 9 06.3 CHANNELS press SETTINGS. press Channels. Select the desired channel (e.g. channel 01). ENABLED: press + or - to enable/disable channel. During normal operation the channel must be enabled for access. APPLICATION: press + or - to select the application. DESCRIPTION: enter channel...
- Page 10 06.4 GROUPS press SETTINGS. press Groups. Select the desired group (e.g. group 01). ENABLED: press + or - to enable/disable the group. During normal operation access to the group is only possible if the group is enabled and populated with one active channel.
- Page 11 06.5 SCENARIOS press SETTINGS. press Scenarios. Select the desired scenario (e.g. scenario 01). ENABLED: press + or - to enable/disable the scenario. During normal operation access to the scenario is only possible if the scenario is enabled and populated with one active channel.
- Page 12 06.6 TIMERS press SETTINGS. press Timers. Select the desired timer (e.g. timer 01). ENABLED: press + or - to enable/disable the timer (the TIMER function must be enabled in the main screen of the device - ref. to sect. 7.4 “Timer function”).
-
Page 13: System Info
06.7 ADVANCED press SETTINGS. press Advanced. SEQUENCER DELAY: this is the time elapsing between transmission from a channel and that from the next channel. Press + or - to select the desired value. The default value set in the factory is 1 second. BACKLIGHT: it is used to set whether the backlight must be “always on”, must fade after 30 seconds or must switch off after 30... - Page 14 07. HOW TO TUNE A RECEIVER The devices manages up to 40 separate radio channels. Each radio channel can be tuned with a receiver (e.g. a motor with a built-in radio system, an external receiver for motor start-up, lights, irrigation systems, etc.).
-
Page 15: Device Operation
08. DEVICE OPERATION 08.1 CHANNEL ACTIVATION CHANNELS: it is used to use one or several channels of the selected application (e.g. roller shutters, awnings, etc.). LIGHT/AUTOMATIC LOWERING FUNCTION If the receiver associated with the radio channel is equipped with the “light” or the “automatic lowering” function, it is possible to enable or disable the function directly from the transmitter. - Page 16 08.2 GROUP ACTIVATION GROUPS: it is used to use one or several groups of the selected application (e.g. roller shutters, awnings, etc.). Select Groups. Select an application. The list of groups belonging to the selected application appears. If the user wants to select: single group: press the description of the desired group;...
-
Page 17: Timer Function
08.3 SCENARIO ACTIVATION SCENARIOS: it is used to activate a scenario. Select Scenarios. Press the description of the desired scenario. Press GO (or STOP). Press HOME or BACK to stop transmissions: the system goes back to the previous page or to the main page. 08.4 TIMER FUNCTION TIMERS ON/OFF: it is used to enable or disable the TIMER function. -
Page 18: Troubleshooting
09. RESTORING FACTORY CONDITIONS (RESET) WARNING: this procedure resets the device to the factory settings. This procedure must only be carried out by qualified technical staff. After carrying out the reset procedure, the qualified technician must promptly carry out all the installation operations described in section 5 “First installation”. - Page 20 The manufacturer shall not be liable for damage resulting from unsuitable, incorrect or unreasonable use. MASTER hereby declares that the device complies with the fundamental requirements and other provisions of Directive 1999/5/EC.
