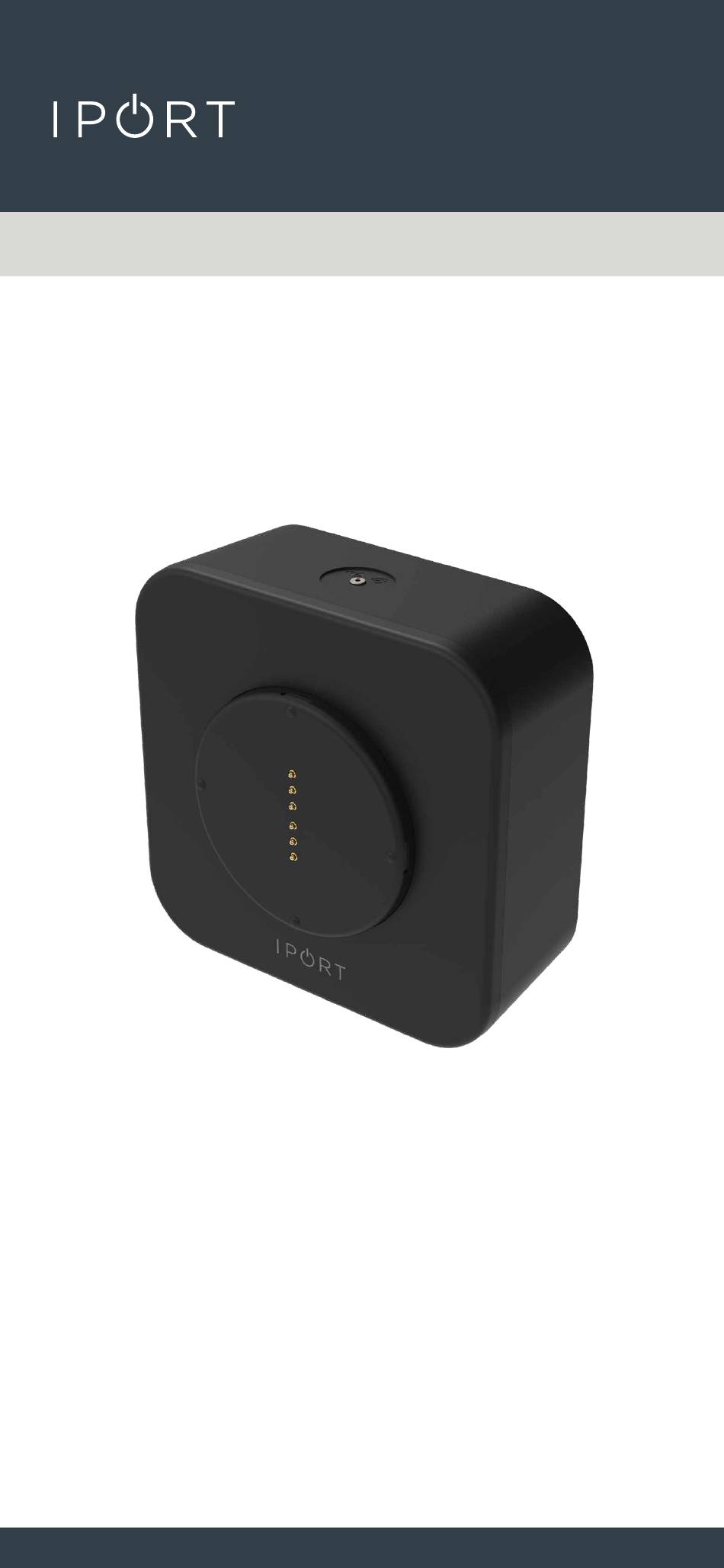

- Page 1 CONNECT V ESA STAT I ON 72357 - CONNECT PRO VESA Station BLK 72358 - CONNECT PRO VESA Station WHT...
- Page 2 PRO VESA Station consisting of the Station, Cover and screws. • Station Cover - The thin plastic cover around the round charging portion of the VESA Station. • IPORT Security Tool - The orange handled 1.5mm hex tool used for locking and unlocking IPORT Products.
- Page 3 CONNECT V ESA STAT I ON 1. The IPORT CONNECT VESA Station is designed to conform to MIS-D standard and will work with most 75 mm x 75mm and 100mm x 100mm VESA mounts. 2. The IPORT CONNECT VESA Station...
- Page 4 CONNECT V ESA STAT I ON 3. Remove the 4ea M4x10mm Screws from the back of the VESA Station.
- Page 5 CONNECT V ESA STAT I ON 4. Install the Screws through the appropriate holes for your mount and screw into the back of the VESA Mount.
- Page 6 CONNECT V ESA STAT I ON 5. Remove the orange adhesive tabs holding the VESA Station together and separate the two halves.
- Page 7 CONNECT V ESA STAT I ON 6. Remove the rubber plug from the bottom of the VESA Station and set aside for later.
- Page 8 CONNECT V ESA STAT I ON 7. Place the Rubber grommet around the 24V Power Supply cable with the hook of the grommet facing towards the barrel connector.
- Page 9 CONNECT V ESA STAT I ON 8. Reinstall the grommet and barrel connector through the VESA Station making sure to fully seat the grommet back into place.
- Page 10 CONNECT V ESA STAT I ON 9. Attach the barrel connector to the back of the VESA station.
- Page 11 CONNECT V ESA STAT I ON 10. Remove the VESA Station top cover from the VESA Station using the provided IPORT Tool to separate the top cover.
- Page 12 CONNECT V ESA STAT I ON 11. Place the VESA Station onto the back box ensuring proper orientation facing up. Use the provided 4 flathead screws to secure the two parts together.
- Page 13 CONNECT V ESA STAT I ON 12. Reinstall the top cover pressing firmly around the perimeter ensuring all tabs are snapped into place.
- Page 14 V ESA STAT I ON 13. Place the iPad in a CONNECT PRO Case onto the VESA Station and use the provided IPORT Tool to lock the Case onto the VESA Station. Plug in the Power Adapter and verify every thing is charging.
