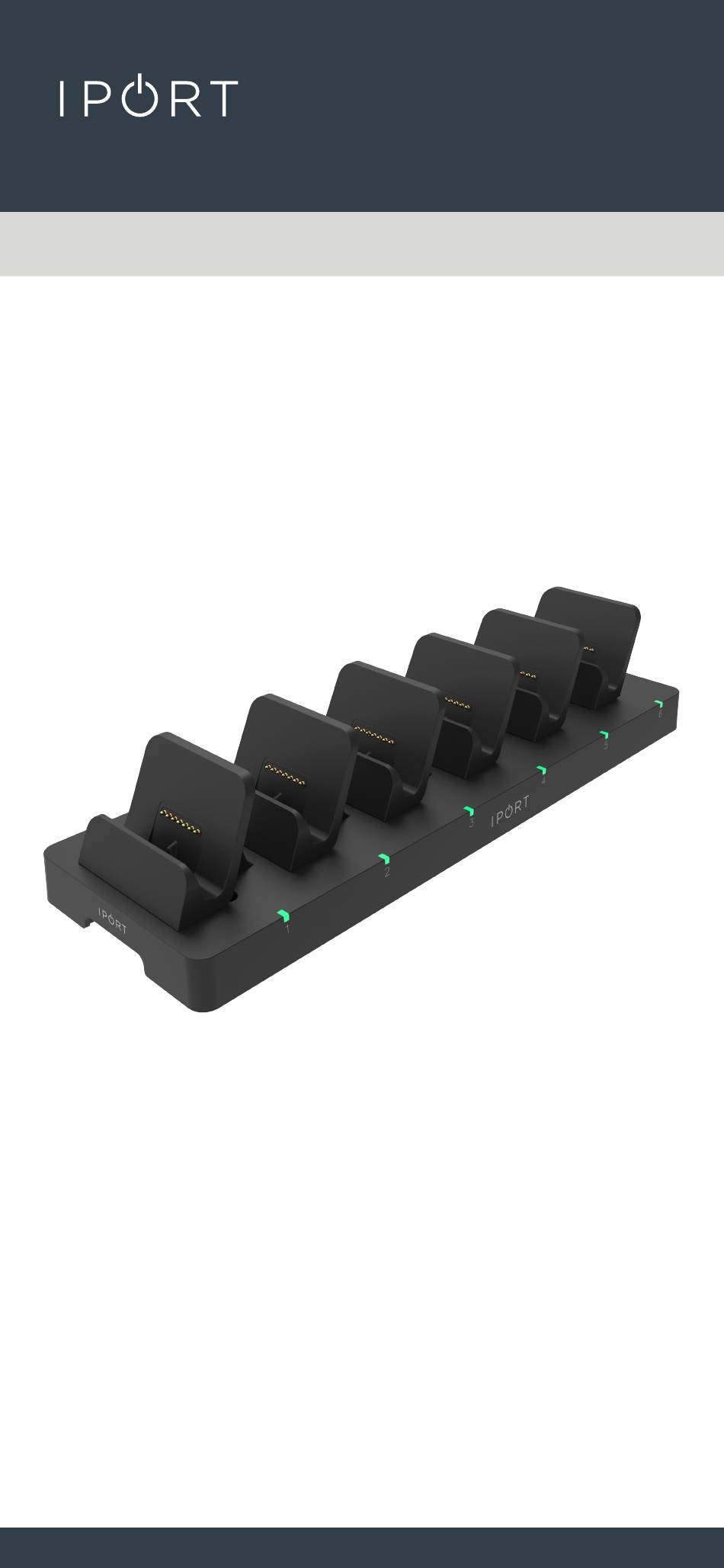

- Page 1 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC 72308 - CONNECT Multidock 6 72309 - CONNECT Multidock 6 SYNC...
- Page 2 Thank you for purchasing the IPORT CONNECT Platform. We hope you enjoy this revolutionary new system and if at any time you need assistance, please contact IPORT Tech Support via Online chat or through our online help desk. - IPORT Team...
- Page 3 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC Remove the Multidock and Power Supply from the box and place on a table. Insert the DC Power plug into the bottom of the MultiDock and press the cable into the cable retention holders.
- Page 4 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC 3. Optional for 72300 - MultiDock SYNC 6: To enable syncing, con nect one end of a USB-C cable to the USB-C port on the MultiDock and the other end to a computer.
- Page 5 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC Additionally use the second USB-C Port to plug in a second 72309 to link the two together. You can link up to 3 additional MultiDocks.
- Page 6 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC Optional - to securely mount MulitDock to a desk or table, remove the first and last charging cradles (see step 6), insert the provided screws through the four openings on the MultiDock and hand tighten with a screwdriver.
- Page 7 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC To remove or change the charging cradle, slide the cradle towards the front of the Multidock then pull up.
- Page 8 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC 7. To reinstall the charging cradle, place the cradle into the two holes in front of the dock and slide backward until the cradle snaps into place.
- Page 9 CONNECT M U LTIDO C K 6 AN D M U LTI D OCK 6 SY NC 8. Place the iPad facing forward into one of the 6 charging cradles. Make sure the cradle’s alignment tab engages with the recess on the case to en sure proper alignment.
