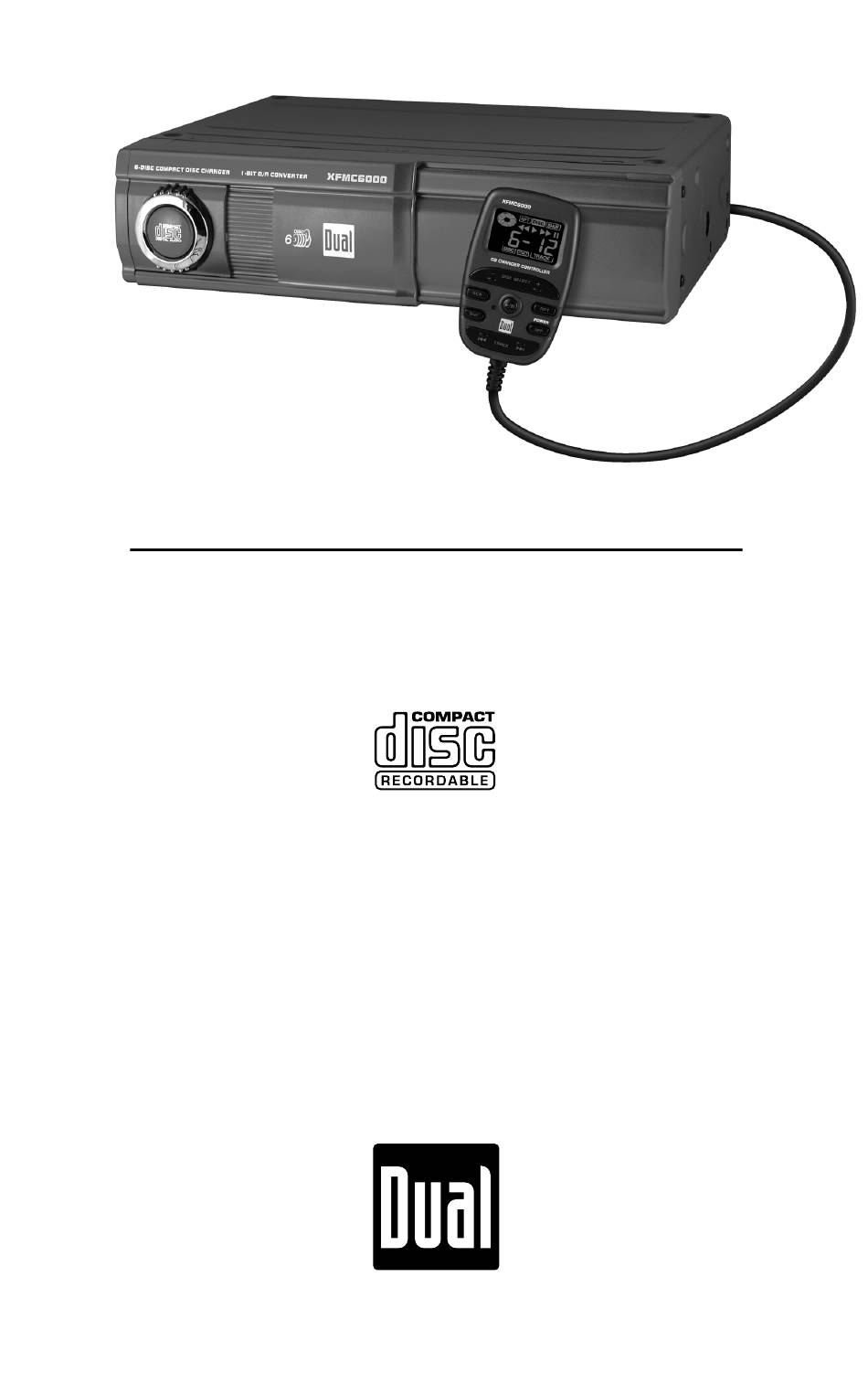

- Page 1 XFMC6000 INSTALLATION/OWNERS MANUAL 6-Disc Changer with FM Modulator/Controller...
-
Page 2: Installation
XFMC6000 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the CD changer where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Horizontal Mount
XFMC6000 INSTALLATION CD Changer Mounting • Attach mounting brackets to the changer using the supplied machine screws (fine thread). Brackets are labeled “L” and “R” for easy identification. • Position changer in the desired mounting location. Mark location of mounting screws and drill 4 holes. -
Page 4: Wiring Diagram
Using an incorrect fuse • Route the CD changer DIN cable and connect to the modulator. could damage the unit. The XFMC6000 uses one • Route the controller cable and connect to the modulator. 2 amp AGC fuse (Ignition) • Connect existing vehicle antenna to the female ANTENNA and one 5 amp AGC fuse connector. -
Page 5: Operation
XFMC6000 OPERATION Control Locations Disc Select Up/Down Track Up/Down Power On/Play/Pause CD Shuffle CD Repeat Reset Power Off CD Scan FM Modulator Adjustment The modulator frequency can be set to 88.7 MHz or 89.1 FM Modulator Frequency MHz. Use a small screwdriver to adjust the slide switch located on the side of the modulator. -
Page 6: General Operation
XFMC6000 OPERATION General Operation Press / II to turn the unit on. Press OFF to turn the unit Power On/Off off. To prevent reduced FM sensitivity, make sure the unit is turned off during normal tuner operation. Press and hold for more than 2 seconds to RESET the... -
Page 7: Specifications
XFMC6000 OPERATION General Operation Gently pull on the tab of each CD magazine tray to release it. Load/Unload Discs Load discs into tray with label side facing down. Push trays back into magazine to complete the loading process. With the label facing up, insert the magazine into the CD Load Magazine changer. -
Page 8: Limited One-Year Warranty
What to do? If the product requires warranty service, you must prepay the initial shipping Namsung America agrees, at our option, during charges. DUAL will pay the return shipping the warranty period, to repair any defect in charges if the product is returned to an address material or workmanship or to furnish an equal within the USA. - Page 9 DUAL XFMC6000 Troubleshooting Guide Installation/Operation Problem Cause Action Unit will not turn on (no power) Yellow wire not connected or incorrect voltage Check connections for proper voltage Red wire not connected or incorrect voltage (11~16VDC) Black wire not connected Check connection to chassis ground...
