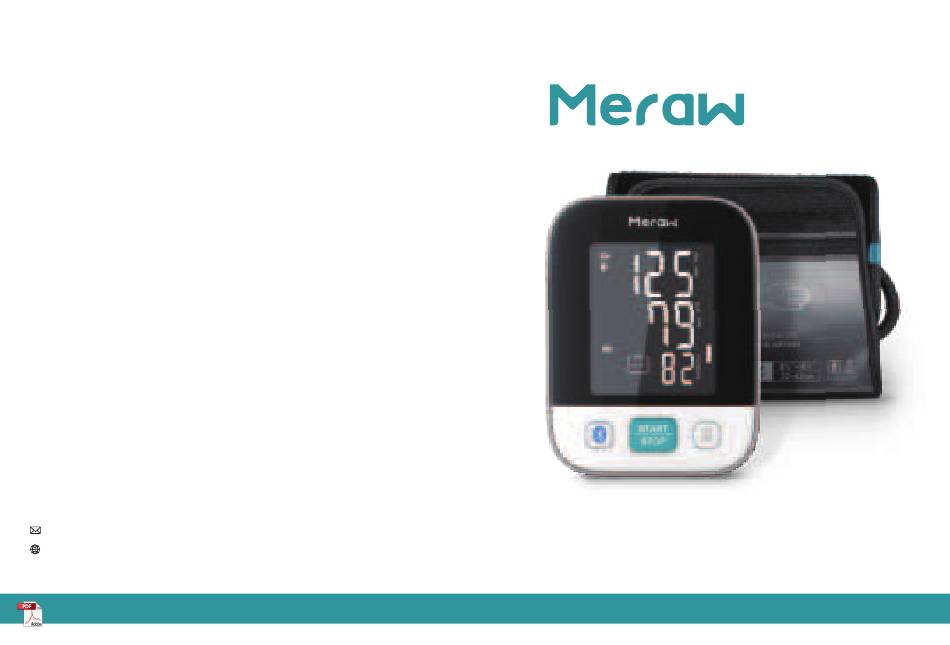

- Page 1 Cedar Global Customer Service support@merawlabs.com Arm Blood Pressure Monitor www.merawlabs.com V1.0...
-
Page 2: Table Of Contents
Table of Contents Device Overview Device Set Up Measurement Cedar Bluetooth & App Data Management About Blood Pressure Information For Users Compliance... -
Page 3: Device Overview
Indications for Use This Blood Pressure Monitor TMB-2084 is a digital monitor intended for use in measuring blood pressure and heartbeat rate with arm circumference ranging from 22 cm to 42 cm (about 8¾˝-16½˝). It is intended for indoor, Device Overview adult use only. -
Page 4: Monitor Components
Monitor Components Refer to instruction manual/booklet Symbol for “Type BF To signify that the instruction applied part” manual/booklet must be read. The symbol indicates Caution Indicates that caution is that the product necessary when operating the should not be device or control close to where discarded as unsorted the symbol is placed, or that the waste but must be sent... - Page 5 Component list of pressure measuring List system: 1. Cedar Blood Pressure Monitor 1. Cuff 2. Air pipe 3. PCBA 4. Pump 5. Valve BATTERY COMPARTMENT 2. Cuff (22-42cm/8 ’’) 4. Micro USB 3. 4 x AAA Alkaline batteries 5. User manual...
-
Page 6: Lcd Display
LCD Display SYMBOL DESCRIPTION EXPLANATION Systolic blood The high pressure measured. pressure Diastolic blood The low pressure measured. pressure Measurement Unit of the blood mmHg pressure. Average value Displays average of last 3 readings. PULSE/min Pulse display Pulse in beats per minute. Heartbeat dectetion during Heartbeat measurement. -
Page 7: Device Set Up
Power Supply AC adapter 1. Battery powered mode: 6V DC 4× AAA batteries 2. AC adapter powered mode: 5V USB cable CAUTION Device Set Up In order to get the best effect and protect your monitor, please use the right batteries and special power adapter which complies with local safety standard. -
Page 8: Setting Date And Time
Setting Date and Time It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. (year: 2022—2050 Time format: 12H/24H) Auto Setting Once connected to smartphone App via Bluetooth, date 3.When you get the right year, press the “START / STOP”... -
Page 9: Measurement
5.Repeat steps 2 and 3 to set the time format. Measurement Tie the cuff Sit correctly Start the measurement 7.After the minute is set, the LCD will display “do nE” and then it will turn off. Measurement tips... -
Page 10: Tie The Cuff
Tie The Cuff 1. Insert the air plug into the air jack 3. Secure closed with the fabric fastener. 2. Wrap the arm cuff firmly in place around your left upper arm. NOTES • When you take a measurement on the right arm, the air tube will be at the side of your elbow. - Page 11 Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under com- fortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking, exercis- ing or eating 30 minutes before taking a measurement. • Sit in a chair with your legs uncrossed and feet flat on the floor.
-
Page 12: Start The Measurement
Start The Measurement Measurement Tips Notes: To help ensure an accurate reading, follow -To stop the measurement, press the these directions: START/STOP button once to defalte the arm • Stress raises blood pressure. Avoid taking cuff. measurements during stressful times. -Remain still and quiet while taking a mea- •... -
Page 13: Bluetooth & App
Download App Meraw Health app is available both on Google play and App Store, search and download. Make sure your phone has enough storage and meet lowest system version requirement before downloading Bluetooth & App Download App Add My device... - Page 14 Add My Device Step 1. Add device Step 2. Choose device After opening Meraw Choose Meraw App for the first time, Cedar and continue. it will guide you to add new device. Meraw Aspen...
- Page 15 Step 3. Start Step 4. Connection Connection successfuly Follow the The connection instruction and process will complete start connection. automatically.
-
Page 16: View Data
View Data All synced data will be Some factors may listed by month, and influence the accuracy show brief information of measurement,click a including: data and add remark on it. -Blood pressure level -SYS 操作 -DIA -measured time... -
Page 17: Data Management
Recall the records 1.When the monitor is off, press"RECORD" button, the display will show the average value of the latest three records first. Data Management 2.When the memory record is less than three groups, the display will show the latest record(memory record 01) Recall the records Sync the records... - Page 18 Sync the records 1.Turn on Bluetooth and open App on your smartphone before you sync the records. 2. Each time you complete a measurement, 2. Press “Record” or “Bluetooth” button to get data will be synced to App automatically, the record you want. will blink during uploading and turn solid on after uploading successful.
-
Page 19: Delete The Records
Delete the records 3. If you data is not synced to App, will show in data page, indicating the record is not If you did not get the correct measurement, you can uploaded to App. delete results by following steps below. A: To delete a single measurement: 1. - Page 20 B: To delete all measurements: 1. Enter the memory recall mode as described in section [Recall the Records]. 2. Press and hold “BLUETOOTH” and “RECORD” button for 5 seconds, and the display will show a blinking “dEL ALL” along with the user ID. 3.
-
Page 21: About Blood Pressure
Systolic pressure and diastolic pressure When ventricles contract and pump blood out of the heart, the blood pressure reaches its maximum value in the cycle, which is called systolic pressure. When the ventricles relax, the blood pressure reaches its minimum value in the cycle, which is called diastolic pressure. -
Page 22: Irregular Heartbeat Detector
Irregular Heartbeat Detector An irregular heartbeat is detected when a heartbeat rhythm varies while the unit is measuring the systolic and diastolic blood pressure. During each measurement, the monitor records all the pulse intervals and calculate the average; if there are two or more pulse intervals, the difference between each interval and the average is more than the average value of ±25%, or there are Grade 3 hypertension(severe) four or more pulse intervals, the difference between each interval and the... - Page 23 Different blood pressure at home compared to the hospital What you need to pay attention to when you measure your blood pressure Information at home: The blood pressure is If the cuff is tied properly. different even through- If the cuff is too tight or too Trouble Shooting out the day due to loose.
-
Page 24: Troubleshooting
Trouble Shooting Specifications If any abnormality arises during use,please check the following points: Battery powered mode: 6V DC 4× AAA batteries Power supply AC adapter powered mode: 5V PROBLEM SYMPTOM CHECK THIS REMEDY (Please only use the recommended AC adapter). Batteries are Replace with new batteries. - Page 25 Product Maintainance CAUTION CAUTION * This device is intended for indoor, home use. * Report any unexpected operation or events to the manufacturer. * This device is not intended for public use. Do not apply the cuff on an arm that has an intravenous drip or a blood * This device is portable, but it is not intended for use during patient transfusion attached.
- Page 26 CAUTION CAUTION * Warning: This device is not AP/APG equipment. Do not use the device * Warning: Only use accessories approved by manufacturer. Using where flammable anesthetic are present, or in environments mixture unapproved accessories might cause damage to the unit and injure users. with air of with oxygen or nitrous oxide.
-
Page 27: Fcc Statement
FCC Statement FCC ID: OUT9TMB2080-B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 28: Emc Guidance
EMC Guidance Technical description The ME EOUIPMENT or ME SYSTEM is suitable for home 1. All necessary instructions for maintaining BASIC healthcare environments. SAFETY and ESSENTIAL PERFORMANCE with regard to electromagnetic disturbances for the excepted service Warning:Don't be near the active He surgical equipment life. - Page 29 IEC61000-4-3 Distributor & Address 80% AM at 1 kHz 80% AM at 1 kHz Meraw Labs Inc. 4500 Great America Parkway, Suite 1023, Santa Clara, CA 95054 NOTE UT is the a.c.mains voltage prior to application of the test level.
