Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, No.105, Dongli Road, Torch Development District,
528437 Zhongshan, Guangdong, China
Distributor & Address
Meraw Labs Inc.
4500 Great America Parkway, Suite 1023, Santa Clara, CA 95054
Global Customer Service
support@merawlabs.com
www.merawlabs.com
V1.0
Aspen

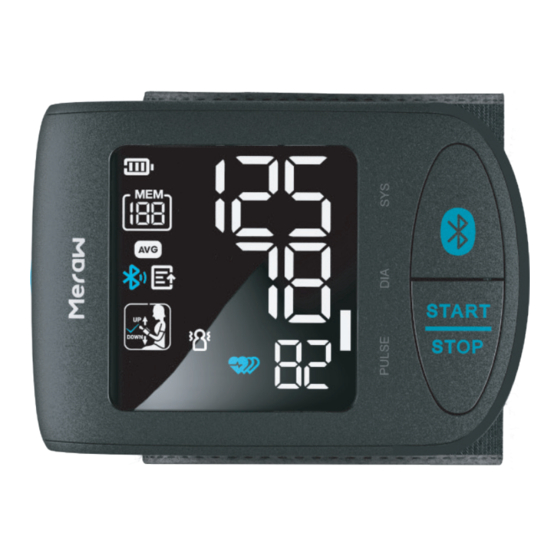

Wrist Blood Pressure Monitor
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Meraw Aspen
Summary of Contents for Meraw Aspen
- Page 1 Guangdong Transtek Medical Electronics Co., Ltd. Aspen Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China Distributor & Address Meraw Labs Inc. 4500 Great America Parkway, Suite 1023, Santa Clara, CA 95054 Global Customer Service support@merawlabs.com www.merawlabs.com Wrist Blood Pressure Monitor V1.0...
-
Page 3: Table Of Contents
Table of Contents Device Overview Device Set Up Measurement Bluetooth & App Aspen Data Management About Blood Pressure Information For Users Compliance... -
Page 4: Device Overview
Indications for Use This Blood Pressure Monitor Meraw aspen is a digital monitor intended for use in measuring blood pressure and heartbeat rate with wrist circumference ranging from Device Overview 5 / ˝-8½˝(13.5 cm to 21.5 cm) . It is intended for indoor, adult use only. - Page 5 Safety Information Measurement Principle The signs below might be in the user This product uses the Oscillometric manual, labeling or other component. They are the requirement of standard and Measuring Method to detect blood using. pressure. Before every measurement, the Refer to instruction manual/booklet unit establishes a “zero point”...
- Page 6 Monitor Components Component list of pressure measuring system: 1. PCBA; 2. Air Pipe; 3. Pump; 4. Valve; 5. Cuff. START STOT CUFF (Type BF applied part) BATTERY COMPARTMENT List LCD DISPLAY 1. Blood Pressure Monitor TMB-2085-K 2. 2× AAA Batteries 3.
- Page 7 LCD Display SYMBOL DESCRIPTION EXPLANATION Systolic blood The high pressure measured. pressure Diastolic blood The low pressure measured. pressure Measurement Unit of the mmHg mmhg blood pressure PULSE Pulse display Pulse in beats per minute. /min Displays average of last 3 Average value readings.
-
Page 8: Device Set Up
SYMBOL DESCRIPTION EXPLANATION The bluetooth transfer icon Bluetooth blinks when the bluetooth transfer icon is working. Battery Indicate the current battery. indicator Appears when talking, Device Set Up moving, or hand shaking is detectedduring the Excessive Body measurement. NOTE: The Motion Power supply measured blood... - Page 9 Power Supply Battery powered mode: 3V DC 2× AAA 3.Close the battery cover. batteries Replace the batteries if: • The low battery symbol appears on the display. CAUTION • When any button is pressed and nothing is displayed on In order to get the best effect and protect your monitor, please use the right batteries which complies with local the screen.
- Page 10 Setting Date and Time It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. Auto Setting Once connected to smartphone App via 2.
- Page 11 3.When you get the right year, press the 5.Repeat steps 2 and 3 to set the time “START / STOP” button to confirm the year. format. The screen will then show a blinking number representing the [MONTH]. 6.Repeat steps 2 and 3 to set the [HOUR] and [MINUTE].
- Page 12 Note: When the Wrist Positioning Guide is OFF, the instruction will not appear at the start of the measurement. 8.After confirming the [Wrist Positioning Guide],the LCD will display"donE"and then the monitor will turn off. Move your wrist up. Move your wrist down. WRIST POSITIONING GUIDE When using wrist blood pressure monitor, it is important to take the measurement while relaxing your wrist at heart...
- Page 13 Put on device Remove all accessories (watch, bracelet,etc) from your wrist. If your physician has diagnosed you with poor circulation in your wrist, use the other one. Roll or push up your sleeve to expose the skin. Measurement Apply the cuff to your wrist with your palm facing up. Put on device Position the edge of the cuff about 1cm~2cm from wrist Sit correctly...
- Page 14 Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking, exercising or eating 30 minutes before taking a measurement. • Keep palm relaxed during measurement •...
- Page 15 Start The Measurement Measurement Tips Notes: Patients with Hypertension: -To stop the measurement, press the START/STOP button The middle of the cuff should be at the level of the right once to defalte the arm cuff. atrium of the heart; Before starting measurement, please sit -Remain still and quiet while taking a measurement.
-
Page 16: Bluetooth & App
Download App Meraw Health app is available both on Google play and App Store, search and download. Make sure your phone has enough storage Bluetooth & App and meet lowest system version require- ment before downloading. Download App Add My device... - Page 17 Add My Device Step 1. Add device Step 2. Choose device After opening Meraw Choose Meraw App for the first time, Aspen and continue. it will guide you to add new device.
- Page 18 Step 3. Start Step 4. Connection Connection successfuly Follow the The connection instruction and start process will complete connection. automatically.
- Page 19 View Data All synced data will be Some factors may listed by month, and influence the show brief information accuracy of measure- including: ment,click a data and add remark -Blood pressure level on it. -SYS -DIA -measured time...
-
Page 20: Data Management
Track Trends Data Management View your blood Recall the records pressure in trend, clear at a glance Sync the records Delete the records... - Page 21 Recall the records 1.When the monitor is off, press"Bluetooth" button, the display will show the average value of the latest three records first. 2.When the memory record is less than three groups, the display will show the latest record(memory record 01) 2.
- Page 22 Sync the records 3. If you data is not synced to App, will show in data page, indicating the record is 1.Turn on Bluetooth and open App on your not uploaded to App. smartphone before you sync the records. 2. Each time you complete a measurement, 4.
- Page 23 Delete the records If you did not get the correct measurement, If “dEL yES” is selected, the unit will delete you can delete results by following steps the record and display “dEL do nE” along below. with the memory number of the reading. After then it will return to last memory A: To delete a single measurement: record and All the records are pushed...
- Page 24 B: To delete all measurements: 1. Enter the memory recall mode as described in section [Recall the Records]. 2. Press and hold “BLUETOOTH” and “RECORD” button for 5 seconds, and the display will show a blinking “dEL ALL” along with the user ID. 3.
-
Page 25: About Blood Pressure
Systolic pressure and diastolic pressure When ventricles contract and pump blood out of the heart, the blood pressure reaches its ABOUT BLOOD maximum value in the cycle, which is called systolic pressure. When the ventricles relax, the PRESSURE blood pressure reaches its minimum value in the cycle, which is called diastolic pressure. - Page 26 Irregular Heartbeat Detector Standard blood pressure classification The blood pressure classification published An irregular heartbeat is detected when a heartbeat rhythm varies while the unit is measuring the systolic and diastolic by AAC/AHA in 2017 is as follows: blood pressure. During each measurement, the monitor records all the pulse intervals and calculate the average;...
- Page 27 Blood pressure fluctuate What you need to pay attention to when you measure your blood pressure at home: throughout the day If the cuff is tied properly. 1. Individual blood pressure varies multiple If the cuff is too tight or too loose. times everyday.
- Page 28 Trouble Shooting If any abnormality arises during use,please check the following points: PROBLEM SYMPTOM CHECK THIS REMEDY Batteries are Replace with new Information exhausted. batteries. No power Batteries are Trouble Shooting Insert the batteries inserted correctly. incorrectly. Specification bAt Lo Batteries are Please replace Product Maintainance...
- Page 29 IP22: The first number 2: Protected against solid foreign objects of 12,5mm Ф and greater. The second number: NOTE: If the product still does not work, contact Meraw Protected against vertically falling water drops when enclosure IP Classification Customer Service.
- Page 30 Product Maintainance CAUTION CAUTION * The ACCOMPANYING DOCUMENT shall disclose that the SPHYGMOMANOMETER was clinically investigated according to the requirements of ISO 81060-2:2018. * This device is intended for adult use in homes only. * To verify the calibration of the AUTOMATED SPHYGMOMANOMETER, please contact the * The device is not suitable for use on neonatal patients, pregnant women,patients with implanted, manufacturer.
- Page 31 CAUTION CAUTION * If the cuff pressure reaches 40 kPa (300 mmHg), the unit will automatically deflate. Should the cuff * At least 30 min required for ME equipment to warm from the minimum storage temperature between not deflate when pressure reaches 40 kPa (300 mmHg), detach the cuff from the wrist and press the uses until it is ready for intended use.
- Page 32 FCC Statement FCC ID: OU9TMB2085-K This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 33 EMC Guidance 1. All necessary instructions for maintaining BASIC SAFETY and ESSENTIAL PERFORMANCE with regard to The ME EOUIPMENT or ME SYSTEM is suitable for home electromagnetic disturbances for the excepted service healthcare environments. life. Warning:Don't be near the active He surgical equipment and the RF shielded room of an me system for magnetic 2.
- Page 34 Table 2 Table 3 Guidance and manufacturer’s declaration Guidance and manufacturer’s declaration – electromagnetic Immunity - electromagnetic Immunity Compliance IEC 60601-1-2 Test Band Service Modulation Distance Immunity Maximum Compliance level 60601-1-2 level Frequency (MHz) Power Test level Test Test Level (V/m) (MHz) (V/m)
