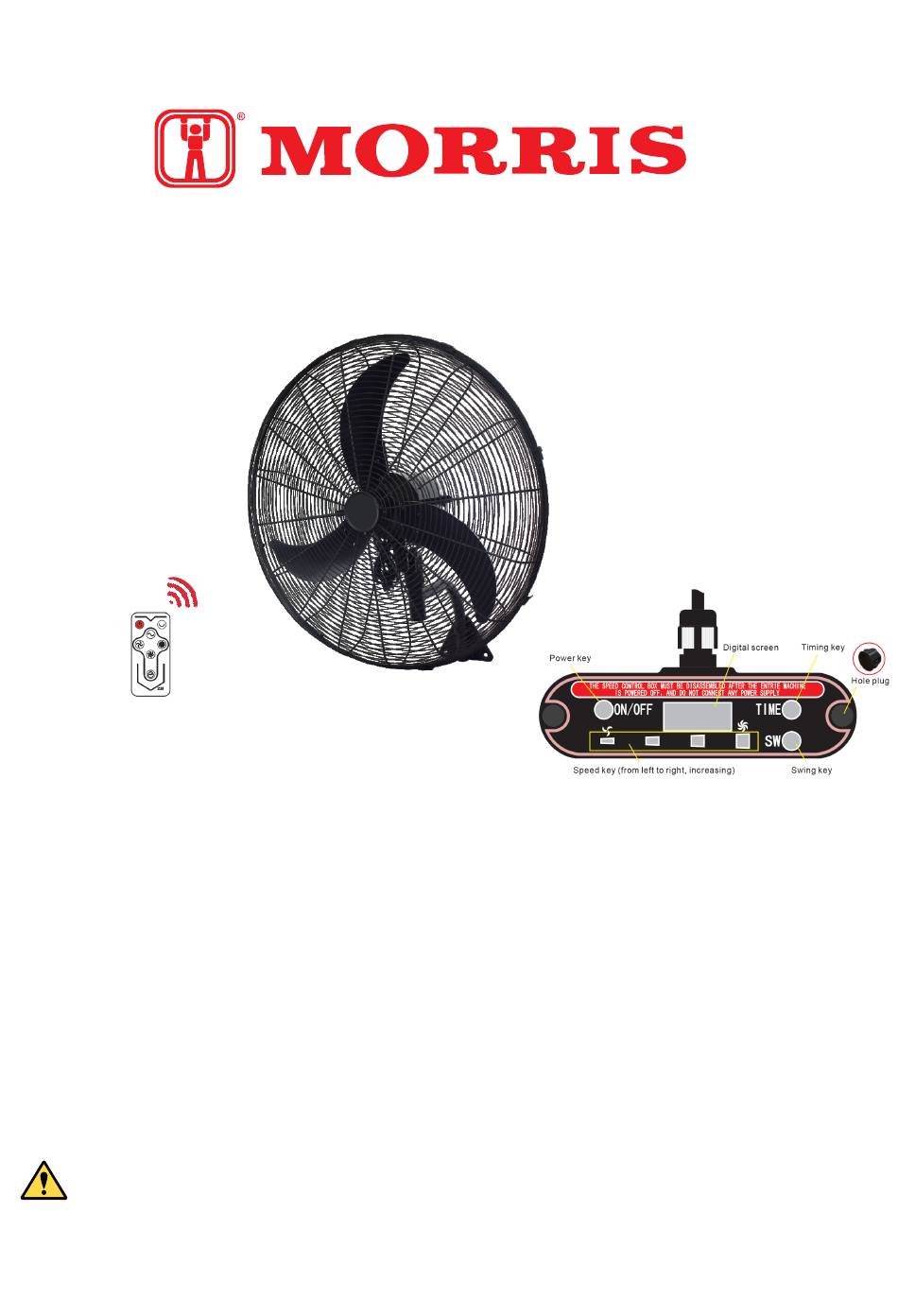

- Page 1 MIFS-20076 / MIFS-26120 USER MANUAL Industrial Wall Fan with remote control Urgent: Do not use this fan for other applications without our agreement. Read and follow these instructions carefully to prevent personal injury and property damage. Keep always this instruction booklet...
-
Page 2: Table Of Contents
Index Installation safety - must be followed ..........Operational safety - must be followed ..........1 Contents of the package ..............Install the wall mount plate............... Mount of the rear guard..............Mount of the blades................Mount of front guard................. Fix the bend tube to the fan............. Place the fan into the wall plate ............ -
Page 3: Installation Safety - Must Be Followed
Installation safety - must be followed 1. The electric installation and the repairs must be done by a professional expert in accordance with all applicable codes and standards. 2. Verify that the power supply is compatible with the rating label markings. 3. -
Page 4: Contents Of The Package
Contents of the package 1 motor with supply cord and with regulator cord 1 wall mount blade 1 front guard 1 blend tube 1 remote control 1 back guard 1 set of blades Install the wall mount plate - Mount the wall mount plate safe with adequate heavy and appropriate mounting material to the wall - Orientation as in the picture, i.e. -
Page 5: Fix The Bend Tube To The Fan
- Join the two guards with the clamps. IMPORTANT: Make sure that all of the clamps grip both guards tightly and securely. If a clamp is loose, the opening width must be closed more tightly with pliers. Fix the bend tube to the fan - Turn the fan so that the guard is on a soft surface and the motor is on top. -
Page 6: Touching Screen
Touching Screen 1. Button (touch type) description i. Power key: - After the fan is powered, the key position shows a steady red light, indicating the fan is in standby mode and not operating. Touch once, and the key position changes to a steady green light, indicating that the fan starts operating (automatically restoring the speed setting from the last shutdown). -
Page 7: Remote Control
ii. Speed key Can be controlled by clicking or sliding the touch. From left to right (facing the display screen), it increases from the 1st speed (minimum wind volume) to the 4th speed (maximum wind volume); when entering the timing time setting, from left to right (facing the display screen), it increases from the 1st speed key (minimum) to the 4th speedkey (maximum);... -
Page 8: Mains Voltage Cable And Controller Cable
Timer: - When the fan is in standby, press once to enter the scheduled startup mode, then press the corresponding key to set the time. If no action is taken within 5 seconds, it will confirm (or click the swing key for quick confirmation); - When the fan is running, press once to enter the scheduled shutdown mode, then press the corresponding key to set the time. -
Page 9: Troubleshooting
Troubleshooting All checks and repairs must be carried out by the manufacturer, his service partner or appropriately qualified persons using original manufacturer parts. Before checking the fan, make sure the power is off at the main WARNING: service panel. Tag it to prevent unexpected power on. Fan will not start. -
Page 10: Maintenance And Clean
- Sort the different kinds of waste of the packaging and the machine and follow the newest disposal technology. - Take care to use authorised disposal and recycling specialists. Technical data MIFS-26120 MIFS-20076 Model no. black Color black Voltage... -
Page 11: Declaration Of Conformity
CE Marking: 93 / 68 / EEC RoHS Directive: 11 / 65 / EU & 15 / 863 / EU The detailed declaration of conformity can be found at www.morris.gr. KALLIOPI KARYDA & CO, LP 87A, 17is Noemvriou str, P.C. 55535, Pylaia, Greece Tel.
