ZooZ ZEN35 800LR User Manual

USER MANUAL
DIMMER & SCENE CONTROLLER
ZEN35 800LR
zooz
smart move
www.getzooz.com
ask@getzooz.com
FEATURES
Switch button: click for on/off control, hold to dim, tap for scenes
Ÿ
4 remote control buttons: trigger scenes and control other
Ÿ
devices in your Z-Wave® network from this switch
NEW 800 series Z-Wave® chip for better range and faster control
Ÿ
Direct 3-Way: works with regular on/off switches in a 3-way
Ÿ
Z-Wave® Long Range for ultra reliable no-mesh communication
Ÿ
Smart bulb mode: disable relay and control lights via Z-Wave®
Ÿ
Adjustable LED indicator in 7 colors and 3 brightness levels
Ÿ
S2 Security and SmartStart for easier inclusion
Ÿ
SPECIFICATIONS
Model Number: ZEN35 800LR
Ÿ
Z-Wave® Region: US/CA/MX
Ÿ
Power: 120 VAC, 60 Hz
Ÿ
Maximum Load: 150W LED , 500W Incandescent, lighting only
Ÿ
(DON'T use with receptacles, motors, fans, or tube lights)
Range: Up to 500 feet line of sight (up to 1300 with ZWLR)
Ÿ
Operating Temperature: 32-104° F (0-40° C)
Ÿ
Installation and Use: Indoor only
Ÿ
CAUTION
This is an electrical device - please use caution when installing and
operating the dimmer and scene controller. Remote control of
appliances may result in unintentional or automated activation of
power. Do not use this Z-Wave device to control electric heaters or other
appliances which produce the risk of fire, burns, or electrical shock
when unattended.
To reduce risk of overheating and possible damage to other equipment,
do not install this unit to control a receptacle; a motor-operated
appliance; a fluorescent lighting fixture; or a transformer-supplied
fixture.
BEFORE YOU INSTALL
This switch is intended for installation in accordance with the
National Electric Code and local regulations. It is recommen-
ded that a licensed electrician perform this installation.
WIRING: READ IT!
1. CHECK THE LOAD: lights only (150W for LED's, 500W for
incandescent), DON'T CONNECT THIS SWITCH TO OUTLETS
OR TUBE LIGHTS. QUALITY LIGHTING FIXTURES ONLY.
2. POWER OFF: turn the circuit power off in the breaker panel
before you start. If installing in a multi-switch box with
multiple circuits, turn power off at all of the circuits.
3. CHECK THE WIRES: mark load (most o en black), line
(most o en black), neutral (most o en white), and ground
(most o en bare). 14 AWG wires only! Don't rely exclusively
on your multimeter to identify the wires!
µ
NOT SURE WHAT YOU'RE SEEING? WE'LL HELP! SUPPORT.GETZOOZ.COM
SEND US PICTURES OF YOUR SET-UP, BEFORE YOU DISCONNECT WIRES.
4. REMOVE THE OLD SWITCH: disconnect the wires and label
them with the included label stickers.
5. CONNECT THE Z-WAVE® SWITCH: follow all installation
steps carefully. Wire the switch EXACTLY like in the diagram.

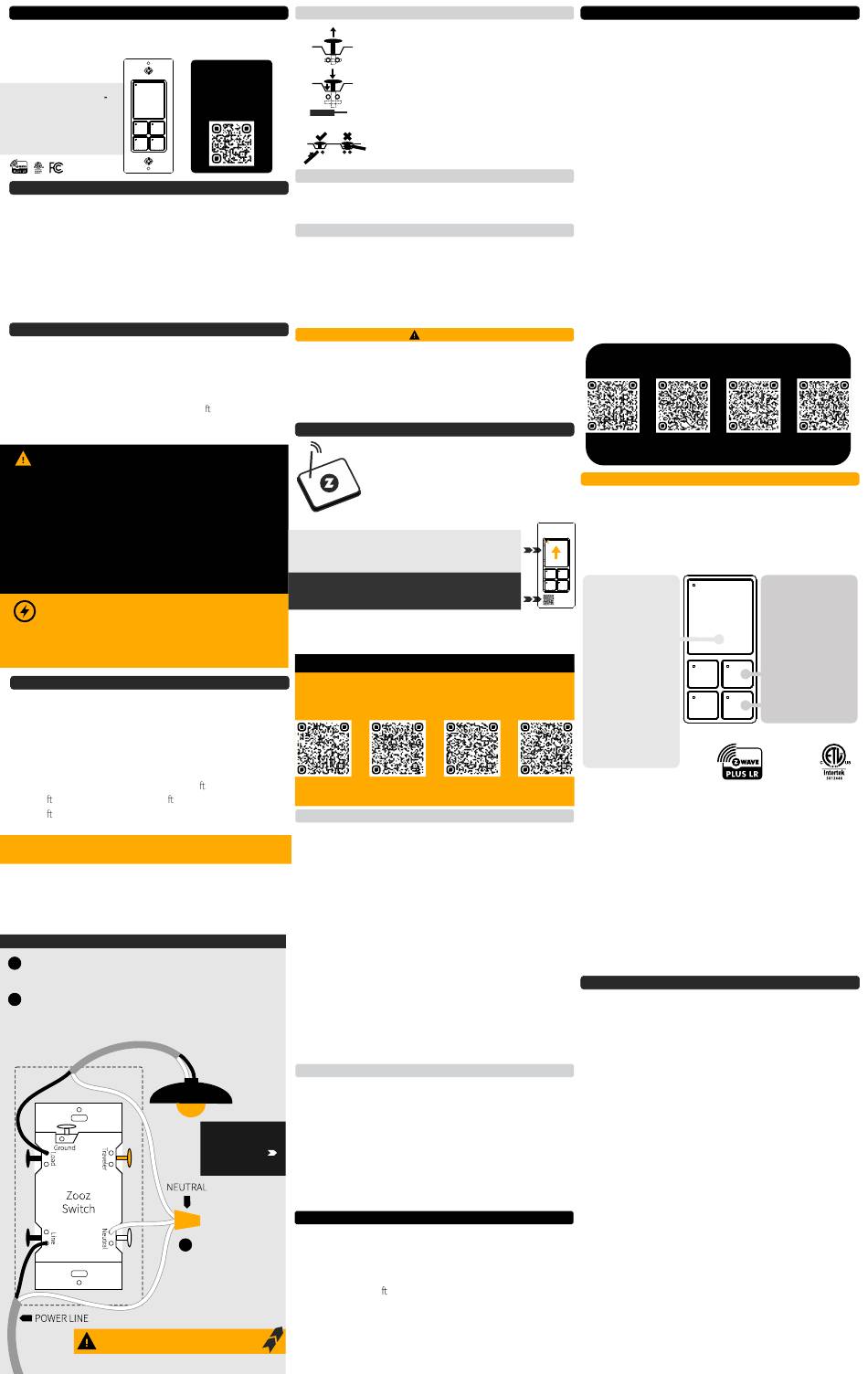

ZEN35 WIRING DIAGRAM FOR SINGLE POLE INSTALLATION
1 Insert the ground (bare) wire into the Ground terminal
(not shown in the diagram)
2 Insert the power source wire to Line terminal and load
wire to Load terminal. Load and line CAN'T be swapped
so make sure you identified them correctly!
DON'T FORCE THE SCREWS. Look up to see
how to install the wires correctly.
PAGE 1
1.
Scan to register
2.
your product for
extended warranty
and direct access to
3.
firmware files.
STRIP WIRE AT 1/2-5/8"
Secure your Z-Wave® switch in the box with mounting screws,
handling the wires with care. Isolate all bare wires and screws with
electrical tape. Install the wall plate and restore power to circuit.
The LED indicator should light up as soon as you turn the power
back on if the switch (light) is OFF. Tap the switch button for ON
and tap it again for OFF. If the test fails, please check that:
power is fully restored to the circuit
Ÿ
wiring matches the instructions exactly
Ÿ
the load isn't too large and overheating the switch causing it to
Ÿ
shut off
This product should be installed indoors upon completion of any building renovations.
Ÿ
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Ÿ
Ÿ Do not install the switch in a place with direct sun exposure, high temperature, or humidity.
Ÿ Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ÿ
Ensure the device is connected to an electric power source that does not exceed the
Ÿ
maximum load power.
No part of the device may be replaced or repaired by the user.
Ÿ
TAP THE SWITCH BUTTON 3 TIMES QUICKLY
SCAN THE QR CODE / ENTER THE 5-DIGIT DSK
The LED indicator will blink blue to signal communication
and turn green for 3 seconds if inclusion is successful or turn
red for 3 seconds if the pairing attempt fails.
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the step-by-step
pairing instructions.
Z-Box Hub
Get more tutorials and helpful tips at ww.support.getzooz.com
The switch won't add to your system? Try this:
1. Initiate EXCLUSION and tap the switch button 3 times
quickly.
2. Tap the switch button 4-5 times quickly when adding it.
3. Bring the gateway controller (hub) closer to the switch, it
may be out of range.
4. Get troubleshooting tips for your hub at
www.support.getzooz.com
The switch won't control the lights manually anymore?
Try this:
1. Turn the power off at the breaker and check if a wire
didn't get loose.
2. Exclude the switch from the hub or reset it in case
manual control was accidentally disabled.
3. The load may be incompatible so try it with a single
incandescent bulb.
EXCLUSION (REMOVING / UNPAIRING DEVICE)
1. Bring your Z-Wave® controller (hub) close to the switch if
possible
2. Put the Z-Wave® hub into exclusion mode (not sure how
to do that? ask@getzooz.com)
SEE BACK PAGE
FOR 3-WAY & 4-WAY 3. Tap the switch button
DIAGRAMS AND
will start blinking blue)
INSTRUCTIONS
4. Your hub will confirm exclusion, the LED indicator on the
switch will turn green for 3 seconds, and the device will
disappear from your controller's device list
If your primary controller is missing or inoperable, you may
3 Run the white
need to reset the device to factory settings. To reset the
jumper (included in
switch, press and hold the switch button for 20 seconds
the box) from the
until the LED indicator turns solid red. Release the button,
bundle of white wires
and immediately a er, tap remote button 1 once to
to the Neutral
complete the reset. The LED indicators on all buttons will
terminal
flash red and cycle through colors for a successful reset.
NOTE: All previously recorded activity and custom settings will be erased from
the device's memory.
HOW TO INSTALL THE WIRES
1. LIFT SCREW: carefully pull the screw away
from the switch to make sure it's loose. DO NOT
force it. NO POWER TOOLS!
2. PRESS DOWN: press the loose screw down
with your finger so it catches the thread.
3. INSERT WIRE: make sure the wire is perfectly
straight, then insert it into the terminal while
holding the screw down. DO NOT wrap wires
around the terminal screws!
4. TIGHTEN: turn the screw clockwise to tighten
the wire. DO NOT OVERTIGHTEN!
COMPLETE INSTALLATION
TEST THE SWITCH
WARNING
Z-WAVE® CONTROL
1. ADD DEVICE to your hub
Initiate inclusion (pairing) in the app (or web interface).
SmartStart enabled products can be added into a Z-Wave®
network by scanning the Z-Wave® QR Code present on the
product with a controller providing SmartStart inclusion. No
further action is required and the SmartStart product will be
added automatically within 10 minutes of being switched on
in the network vicinity.
2. Finalize inclusion at the switch.
if using traditional Z-Wave® inclusion.
if using the new SmartStart method.
NEED SOME HELP? ask@getzooz.com
SmartThings Hubitat
TROUBLESHOOTING
3 times quickly (the LED indicator
FACTORY RESET
PAGE 2
There are 2 ways you can use the buttons on the Scene Controller
to control other Z-Wave® devices in your network:
1. Scene Control:
Great to trigger preset scenes with multiple devices
Ÿ
Perfect for smart bulb control and non Z-Wave® devices
Ÿ
Supports 1-tap, 2-tap, 3-tap, 4-tap, 5-tap, button held, and
Ÿ
button released for each button
2. Direct Association
Great to control other Z-Wave® devices directly
Ÿ
Perfect for Z-Wave® smart bulb control or as a virtual add-on for
Ÿ
existing Z-Wave® switches and dimmers
Use only for Z-Wave® devices included with the same security
Ÿ
level as your Scene Controller
Supports 1-tap for on/off control (Group 2) and button
Ÿ
held/released for dimming (Group 3), working in a sequence:
press once to change state or hold to dim / increase brightness
Programming your Scene Controller using either of the above
methods will depend on the capabilities and interface layout of
your Z-Wave® system.
Scan one of the below QR codes to get step-by-step instructions
for your hub and if it's not listed, get in touch: ask@getzooz.com
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the instructions.
Z-Box Hub SmartThings
Get more tutorials and helpful tips at www.support.getzooz.com
HOW IT WORKS?
SWITCH BUTTON: reports association Group 1 Lifeline to the hub, Group
2 Basic Set, Group 3 Multilevel Set, Group 4 Multilevel Start/Stop; reports
Scene 5 with 7 attributes (actions)
BUTTON 1: Group 5 Basic Set, Group 6 Multilevel; Scene 1 (7 actions)
BUTTON 2: Group 7 Basic Set, Group 8 Multilevel; Scene 2 (7 actions)
BUTTON 3: Group 9 Basic Set, Group 10 Multilevel; Scene 3 (7 actions)
BUTTON 4: Group 11 Basic Set, Group 12 Multilevel; Scene 4 (7 actions)
TAP x 1 for on/off of the
connected load; Scene
5, pressed (or basic set
for association Group 2)
TAP x 2, 3, 4, or 5 for
Scene 5 multi-tap
HOLD to dim the
connected load or for
Scene 5 held (or start
level change);
multilevel to Group 3
RELEASE to stop
dimming the connected
load or for Scene 5,
released (or multilevel
stop level change)
Home Assistant
This product can be included and operated in any Z-Wave®
network with other Z-Wave® certified devices from other
manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters
regardless of vendor to increase reliability of the network.
This product features the latest Security 2 (S2) framework to
remove smart home network hacking risks. This device is
equipped with a unique authentication code for trusted
wireless communication.
This is an ETL certified device. ETL, just like UL, is a
Nationally Recognized Testing Laboratory. The ETL mark is
proof of product compliance with North American safety
standards.
This product is covered under a 1-year limited warranty with
extended 5-year warranty once it's registered. To read the full
warranty policy, register your product, or file a warranty
claim, please go to www.getzooz.com/warranty
IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS,
REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT,
OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND
CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY
LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT
PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED
WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED
FOR DELI-VERY IN THE EVENT OF NONDELIVERY.
FCC NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS ONLY. DO NOT
IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1. This device may not cause harmful interference,
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according
to instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in any given installation.
If this equipment causes harmful interference to radio or television reception, the user may try to correct the
interference by taking one or more of the following measures:
- Reorient or relocate receiving antenna
- Increase the separation between equipment and receiver
- Connect equipment into a separate outlet or circuit from receiver
- Consult the dealer or an experienced radio/TV technician for additional assistance
All brand names displayed are trademarks of their respective holders.
© Zooz 2025
PROGRAMMING
Hubitat Home Assistant
TAP x 1 Scene 1-4
pressed (or basic set for
Group 4, 6, 8, and 10)
SWITCH
TAP x 2, 3, 4, or 5 for
BUTTON
Scene 1-4 multi-tap
HOLD for Scene 1-4 held
(or start level change);
multilevel to Group 5, 7,
1 2
9, and 11
RELEASE for Scene 1-4
released (or multilevel
3 4
stop level change)
S2
WARRANTY
PAGE 3
