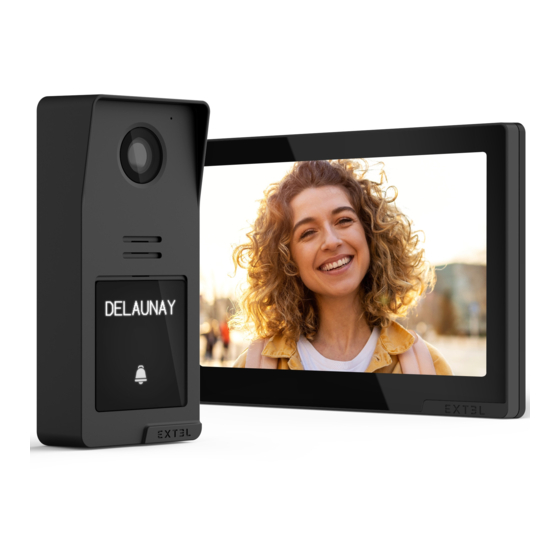

- Page 1 Wired smart videophone With fingerprint reader Ref. 720335 INSTALLATION AND USER MANUAL WARRANTY HOTLINE...
- Page 3 4 - Intercom mode 5 - WiFi menu 6 - Log menu 7 - Advanced settings (other settings menu) - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE..................21 1 - Preparing the videophone 2 - Pairing your doorkeeper with a smartphone...
- Page 4 Thank you for choosing the Extel Digital Connect videophone. en - 4 DIGITAL CONNECT- 720335...
- Page 5 A - KIT CONTENTS Monitor Intercom panel Hexagonal screwdriver 15 mm Screws for attaching the monitor and intercom panel wall bracket Wall plugs 100-240Vac 50Hz – 15Vdc 1.5A mains adapter en - 5 DIGITAL CONNECT- 720335...
- Page 6 Wall bracket connection pins Add A and Add B: Connections to an additional monitor (not supplied, optional) GND and +15Vdc: Connections for the mains power supply supplied Bus A and Bus B: Connections to the intercom panel en - 6 DIGITAL CONNECT- 720335...
- Page 7 Lock A and Lock B: Connection to an electric lock or strike plate (optional, not supplied) Gate A and Gate B: Connection to gate motor drive control contact (optional, not supplied) Bus A and Bus B: Connection to the monitor en - 7 DIGITAL CONNECT- 720335...
- Page 8 Use 2 wires with a cross-section of 1.5 mm² 100 m max between the intercom panel and the monitor. 1 Gate A Gate B 2 3 Lock A Lock B 4 5 Bus A 5 Bus A Bus A Bus B 6 +15Vdc 1.5A en - 8 DIGITAL CONNECT- 720335...
- Page 9 - To prevent risks of interference and malfunction, do not pass the wire for your videophone through the same sheath as the electrical wires. - Keep the connecting wire between the intercom panel and the monitor more than 50cm away from any en - 9 DIGITAL CONNECT- 720335...
- Page 10 Your gate can be connected to the power supply once the defective connection has been repaired. Note: If you are testing the product prior to installing it, it is recommended that you place it on a flat surface. 2 - MONITOR INSTALLATION en - 10 DIGITAL CONNECT- 720335...
- Page 11 7 - Connect the two power supply wires in accordance with the wiring diagram. Note: the polarity of the power supply wires is indicated on the end of the wires: +15Vdc and GND. 8 - Position the monitor on the wall bracket. en - 11 DIGITAL CONNECT- 720335...
- Page 12 2 - Remove the screw under the intercom panel. 3 - Tilt the intercom panel forward. 4 - Remove the protective silicone cover. 5 - Mark the position of the 4 holes on the wall. 6 - Drill. en - 12 DIGITAL CONNECT- 720335...
- Page 13 9 - The connection cables must run through the central hole in the intercom panel and exit through the front. 10 - Connect the two wires from the monitor and, where necessary, connect the electric strike plate and the gate (section 1 - Wiring). en - 13 DIGITAL CONNECT- 720335...
- Page 14 13 - Tighten the tamper-resistant screw underneath the intercom panel, using the tool provided. When screwed in, the screw comes out and locks the front panel. You can now power on the system monitor(s). When the power is switched on, the Extel logo appears on the monitor(s).
- Page 15 SMARTPHONE). Once you have completed (or postponed) these steps, the main screen display appears (current date and time). The Extel Digital Connect monitor screen is touch-sensitive. The settings menus can be accessed by clicking on the main screen: Notification area (network connection...
- Page 16 Electric strike plate control duration. Selects main monitor/secondary monitor if the system features an additional monitor. Resets the photo/video memory or the entire device. Current firmware version en - 16 DIGITAL CONNECT- 720335...
- Page 17 Activates/disables beeps when you click on the screen. 4 - INTERCOM MODE If a secondary monitor is connected, you can call up a monitor using the second monitor from this menu. en - 17 DIGITAL CONNECT- 720335...
- Page 18 Unique product identifier. Unique product QR Code: this QR Code will be requested by the application during set-up using the Extel Connect application. Please note: this QR Code will only appear if the monitor is connected to WiFi and the Internet. If the QR Code is missing from this page, check your network.
- Page 19 The nature of each recording (photo or video) is indicated by the icon. The time and date the photo was taken or the video was recorded are also shown. Click on one of the files to display or play it. en - 19 DIGITAL CONNECT- 720335...
- Page 20 Note: the fingerprint reader and digital name holder on the intercom panel cannot be configured from the monitor. They are configured in the application. en - 20 DIGITAL CONNECT- 720335...
- Page 21 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE 1 - PREPARING THE VIDEOPHONE When connecting for the first time, you need to pair your Extel Digital Connect doorkeeper with your smartphone. When the monitor is switched on for the first time, you will be prompted to do this immediately after selecting the language.
- Page 22 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE 1. In the smartphone app, click on the “+” symbol. Otherwise select “Extel Digital Connect” 2. Select “Mon périphérique est déjà connecté à Internet” (“My device is already connected to the Internet”).
- Page 23 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE If the video doorkeeper is connected to the application for the first time, the application immediately asks you to create a 6 to 16 digit code to secure the connection: 3.
- Page 24 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE 3 - INTERFACE FUNCTIONS Contains the different devices and enables switching to monitoring mode Retrieves intercom activity and calls made “A propos” (About) tells you the application’s software version...
- Page 25 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE 4 - SETTINGS ACCESSIBLE IN THE APPLICATION Many configuration options can be accessed by clicking on the icon at the top right of the live image screen. Allows you to change the name of the videophone in the application Allows you to find the monitor’s UID...
- Page 26 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE Using and operating the digital name holder To set the name to be displayed on the intercom panel’s digital screen, go to the corresponding menu: You can then enter the name to be displayed on the intercom panel. Click on “ Confirmer” (“Confirm”) to confirm and load the desired name onto the intercom panel.
- Page 27 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE Then click on “suivant” (“next”): the application will tell you how to proceed. Go to the intercom panel and place your finger (preferably your index finger) on the fingerprint sensor. A blue circle around the reader indicates a successful reading, a red circle indicates that your fingerprint could not be read.
- Page 28 By default, your videophone has 6 chimes that you can choose from the Chimes menu. You can add 2 customised chimes from the Extel Connect application using the .mp3 file of your choice, then use them on your videophone monitor.
- Page 29 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE B. iOS From your iPhone’s file browser, share a chime or music in .mp3 format with the Extel Connect application. You can share up to 3 files with the application.
- Page 30 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE Creating QR codes to unlock access The QR code creation feature allows you to generate a QR code that you can send to whomever needs to open the electric strike plate in your absence. To access this menu: Start creating a new QR code and give it a name so that you can recognise it later (and delete it if necessary, for example).
- Page 31 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE Permanent: the QR code will be valid 7 days a week, 24 hours a day, until it is deleted from the app. Temporary: allows you to choose when the QR code will be authorised to open access.
- Page 32 F - CONNECTING YOUR EXTEL DIGITAL CONNECT VIDEOPHONE TO YOUR SMARTPHONE After clicking on Suivant (Next), the QR code is created and its summary is displayed: Name, action and type of QR code created Click here to download a copy of the...
- Page 33 Dimensions: 21 cm (H) x 24 cm (W) x 7.8 cm (D) Kit features Weight: 1 kg Standard and certification CE, RoHS, REACH 70% recycled ABS monitor Materials Intercom panel: 70% recycled ABS-PC and 100% recycled aluminium en - 33 DIGITAL CONNECT- 720335...
- Page 34 Contact our after-sales service technicians on : Monday to Friday, 9pm to 12pm, and 2pm to 6pm. 4 - TUTORIALS AND VIDEOS If you have any problems, you can find our tutorials and videos on www.avidsen.com/fr/assistance/tutoriel-sav en - 34 DIGITAL CONNECT- 720335...
- Page 35 This symbol means that devices no longer in use should not be disposed of with household waste. The hazardous substances they may contain can be harmful to health and the environment. Return the equipment to your local distributor or use the recycling collection service provided by your local council. en - 35 DIGITAL CONNECT- 720335...
- Page 36 J - DECLARATION OF CONFORMITY Avidsen, undersigned, states that radio equipment such as the Extel Digital Connect is compliant with directive 2014/53/EU Standards: Directive 2014/35/EU: EN 62368-1:2020+A11:2020 EN 62311:2020 EN 50665:2017 Directive 2014/30/EU: EN 301489-1 V2.2.3 (2019-11) EN 301 489-3 V2.3.2 (2023-01) EN 301 489-17 V3.3.1 (2024-09)
- Page 37 CONNECT DIGITAL 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France www.avidsen.com Photographs and illustrations non-binding/©AdobeStock.com/© Avidsen France 2025...
