Frontgate Holiday 178557 CLE Assembly Instructions

Flocked canterbury fir 7.5'

Advertisement

Quick Links

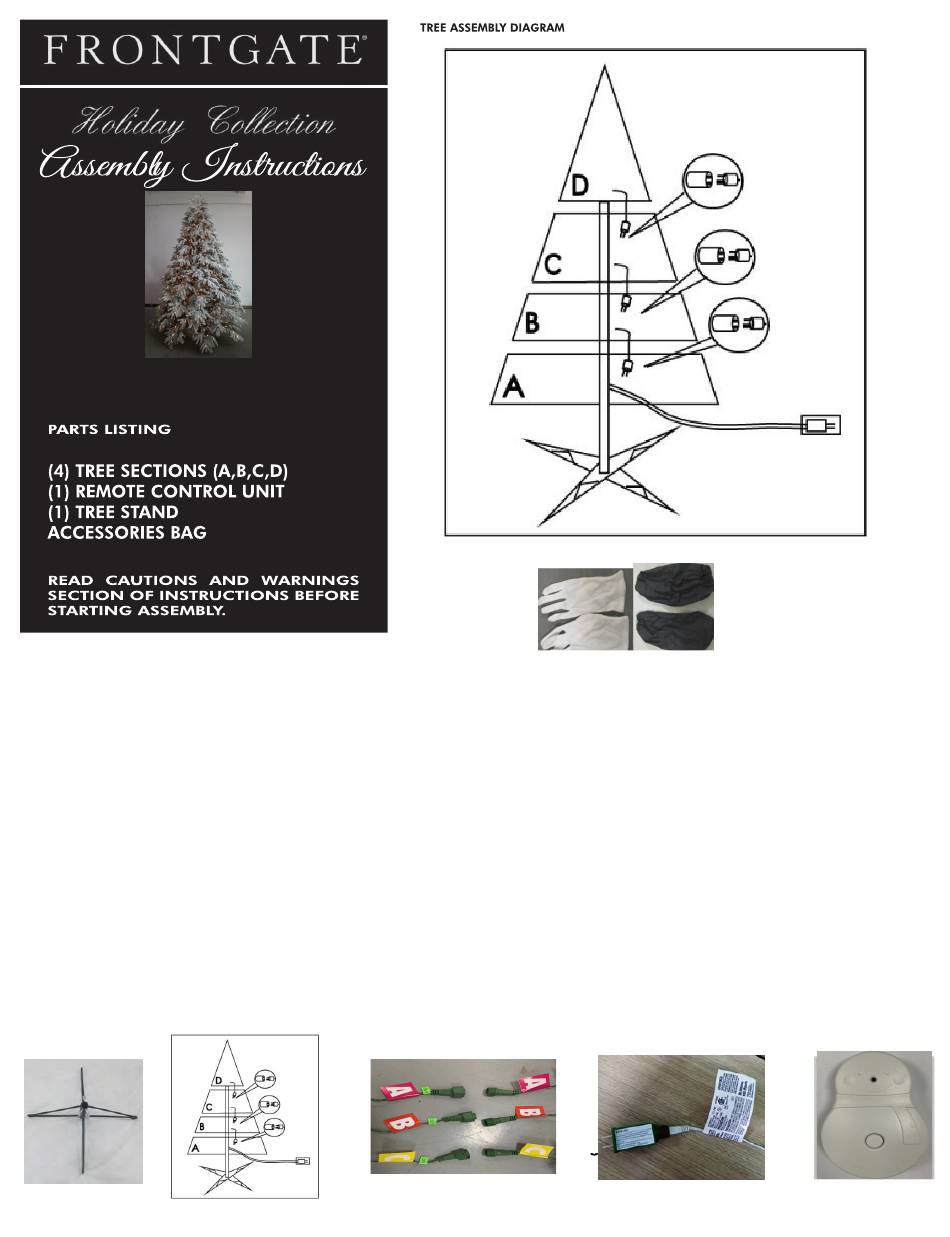

FLOCKED CANTERBURY FIR 7.5'
Item #178557 CLE
EACH FLOCKED CANTERBURY FIR 7.5' CONTAINS:
ASSEMBLY:
2 )
Remove tree from the carton.
3 )
Lay out all tree components on ground.
Each tree section comes wrapped in bubble wrap. Remove bubble wrap before assembly.
4 )
5 )
5 )
Place metal tree stand on a level surface. Open tree stand as per separate instructions
(see protective bag for instructions).
Carefully insert bottom section (FIG A) of tree (bottom section has pointed end of tree pole) into
6 )
metal tree stand
7 )
Make sure pole is firmly inserted into the stand and screws are tightened.
8 )
Locate light set plug that hangs down from section (A) and bring it to floor through branches
at center of tree, plug light set plug into UL approved outlet (see FIG D).
section (B) of tree into bottom section (A) (see FIG B).
9 )
9 )
Insert
10
)
Locate male plug labeled with letter A from section (B) and plug it into female plug labeled with
letter A from section (A). Twist bolt to secure the connection (see FIG C).
11 )
Insert section (C) of tree into section (B) (see FIG B).
FIG A
FIG B
A pair of glove, and a pair of sleeves cover to protect the hands to do assembly
FIG C
FIG D
FIG E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holiday 178557 CLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Frontgate Holiday 178557 CLE

  • Page 1 FLOCKED CANTERBURY FIR 7.5' Item #178557 CLE EACH FLOCKED CANTERBURY FIR 7.5' CONTAINS: A pair of glove, and a pair of sleeves cover to protect the hands to do assembly ASSEMBLY: Remove tree from the carton. Lay out all tree components on ground. Each tree section comes wrapped in bubble wrap.
  • Page 2 FLOCKED CANTERBURY FIR 7.5' Item #178569 CLE Item # 162019 AB CLE, 162029 AB CLE ASSEMBLY CONTINUED: Locate male plug labeled with letter B from section (C) and plug it into female plug labeled with letter B from section (B). Twist bolt to secure the connection (see FIG C). Insert section (D) of ttree into section (C) (see FIG B).
  • Page 3 F R O N GA T E' Technical Manual Remote Control Unit: The Remote Control Unit consists of a transmitter and a receiver. The transmitter should be plugged into a UL approved outlet in good working condition. The Receiver or ‘Remote Control’ employs a simple "ON" button. To change the battery, slide the cover plate off, pull spent battery out and replace with a new 23A 12V, identical battery.
  • Page 4 The device can be used in portable exposure condition FOR ADDITIONAL ASSISTANCE: Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email:ps@frontgate.com. Specialists are available weekdays 8:00AM to 8:00PM EST or Saturdays 9:30AM to 6:00PM.
