Contractor Saw Module
TWX7CS001
Precision contractor saw module designed for use with the Workcentre TWX7, resulting in a full­featured saw table capable of professional results.
Powerful 1800W motor and precision 254mm TCT blade. Accurate 86mm blade height adjustment and 0­45° bevel angle adjustment for performing
complex bevel cuts. Protractor gauge and rip fence for performing rip cuts, cross cuts and mitre cuts. Dust extraction port located below the table
surface for efficient, unobtrusive dust removal. Easy to assemble and configure and fully supported by optional accessories for extending
functionality.
Technical Specification
Product Weight
Power
No Load Speed
Bevel Range
Blade Diameter
Blade Type
Bore Diameter
Cut Capacity ­ Rip
Cut Capacity ­ 45°
Cut Capacity ­ 90°
Table Size
Table Height
What's in the Box
15.2kg
1800W
4500rpm
0­45°
254mm
40TCT ATB,
EN847­1 compliant
Blade ­ 30mm
775mm
59.5mm
86mm
851 x 650mm
900mm
1 x Contractor Saw
TWX7
CS001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWX7CS001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triton TWX7CS001

Summary of Contents for Triton TWX7CS001

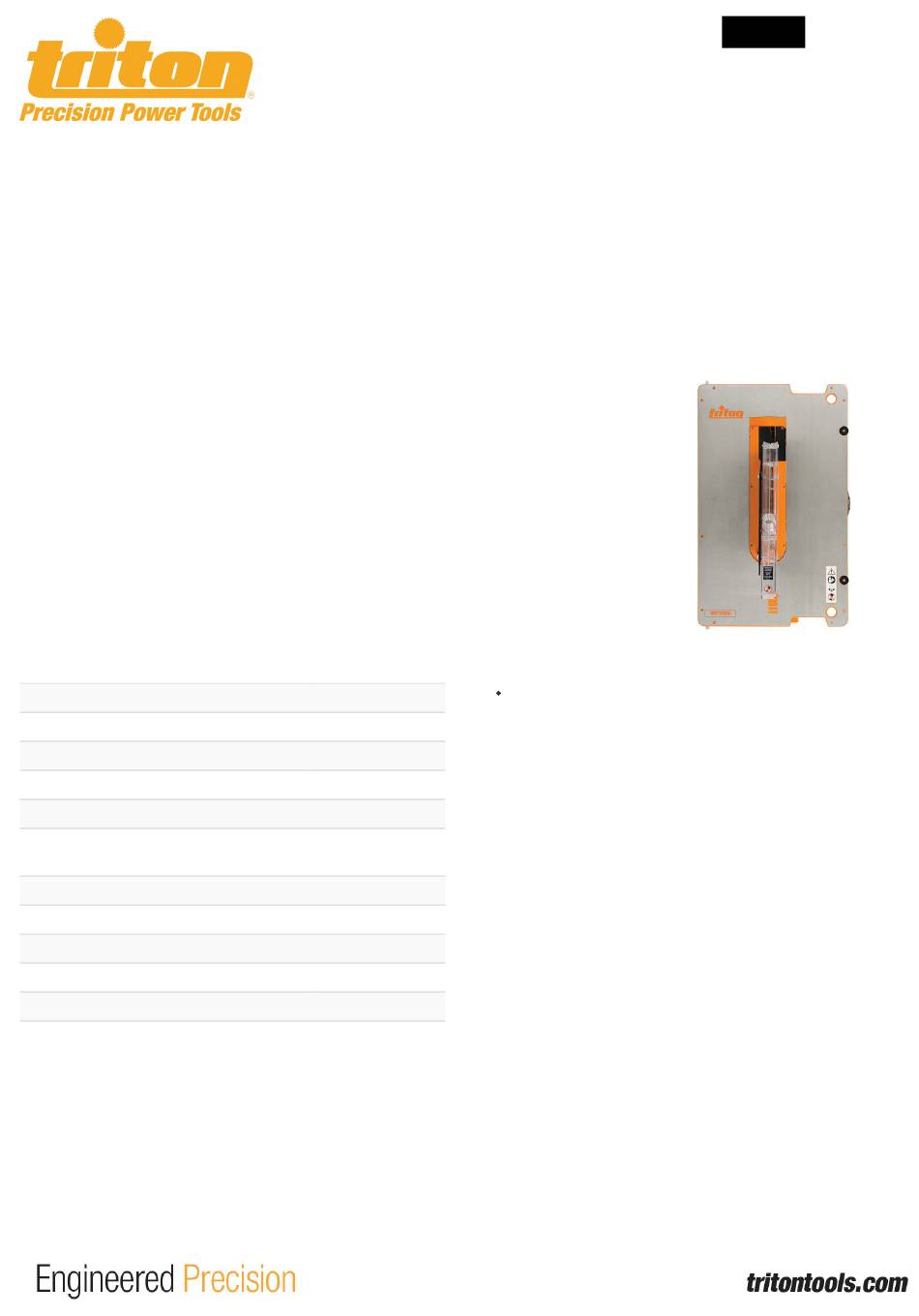

  • Page 1 TWX7 CS001 Contractor Saw Module TWX7CS001 Precision contractor saw module designed for use with the Workcentre TWX7, resulting in a full­featured saw table capable of professional results. Powerful 1800W motor and precision 254mm TCT blade. Accurate 86mm blade height adjustment and 0­45° bevel angle adjustment for performing complex bevel cuts. Protractor gauge and rip fence for performing rip cuts, cross cuts and mitre cuts. Dust extraction port located below the table surface for efficient, unobtrusive dust removal. Easy to assemble and configure and fully supported by optional accessories for extending functionality. Technical Specification What's in the Box 1 x Contractor Saw Product Weight 15.2kg Power 1800W No Load Speed 4500rpm Bevel Range 0­45° Blade Diameter 254mm Blade Type 40TCT ATB, EN847­1 compliant Bore Diameter Blade ­ 30mm Cut Capacity ­ Rip 775mm Cut Capacity ­ 45° 59.5mm Cut Capacity ­ 90° 86mm Table Size 851 x 650mm Table Height 900mm...
