Summary of Contents for Sonos S41

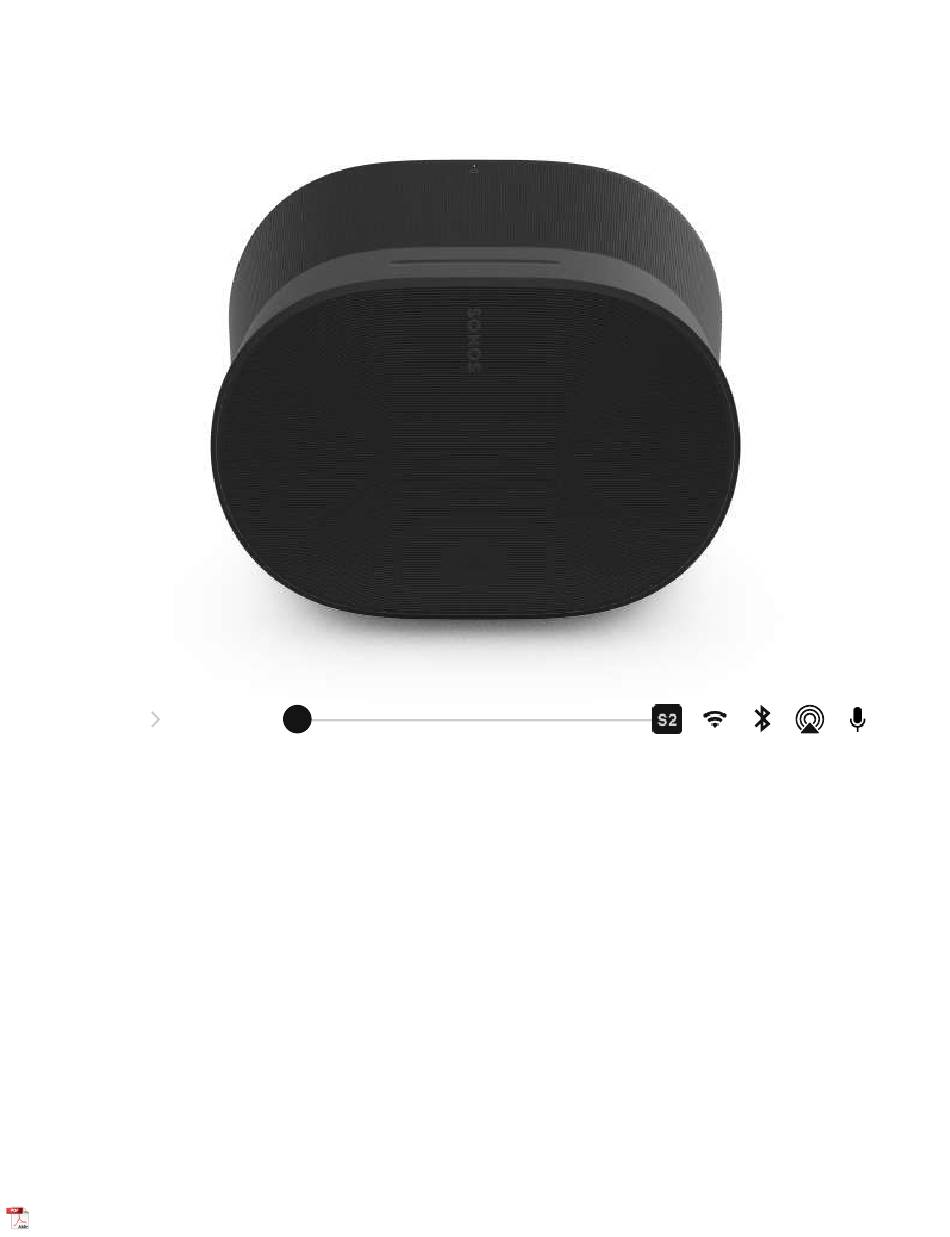

- Page 1 Guides...
- Page 2 Easy voice control with Sonos Voice Control (US and France), Amazon Alexa, and other compatible voice services built right in. Use two S41s as surrounds with a Sonos Arc or Beam (Gen 2), or pair four S41s as front and rear surrounds for the ultimate home theater experience.
-
Page 3: Controls And Lights
Controls and lights Button Control Description Volume up (slide right, or tap + ) Volume down (slide Volume control left, or tap - ) Press and hold + or - to quickly change the volume. Press once to play or pause audio. - Page 4 Press the microphone icon to turn voice services on or off. When the indicator light is on, voice control is available (the Voice services on/off microphone switch on the back must also be on). When the indicator light is off, voice control is off.
-
Page 5: Connector Panel
Connector panel AC power (mains) input Use only the supplied power cord (using a third-party power cord will void your warranty). Note: Insert the power cord firmly until it is flush with the bottom of the speaker. Bluetooth button Press and hold to pair a new device. Press once to reconnect. -
Page 6: Select A Location
S41 sounds great, even when placed next to a wall or on a shelf. For best performance, leave at least 1" (2.5 cm) of space around the back of the speaker. If you’re mounting it within 2 ft (.61 m) of a ceiling, place it upside down for the best sound. -
Page 7: Bluetooth Pairing
A universal microphone switch on the back of S41 turns all microphones on and off. A voice services button on top of S41 turns voice services on and off without affecting the microphones needed for Trueplay and other microphone-dependent features. - Page 8 Trueplay™ Trueplay tuning measures how sound reflects off walls, furnishings, and other surfaces in a room, then fine tunes your Sonos speaker to make sure it sounds great no matter where you place it. During setup, choose the best Trueplay option available to you.
-
Page 9: Set Up Stereo Pair
Set up stereo pair Pair two Sonos speakers in the same room for a wider, stereo experience. One speaker serves as the left channel and one serves as the right channel. Note: The Sonos speakers in a stereo pair must be the same type. - Page 10 Set up surrounds It’s easy to turn two Sonos speakers (same model), or a Sonos Amp and your favorite non- Sonos speakers, into separate right and left channels for your home theater. 1. Place each surround speaker about 10ft from your favorite listening position, angling them toward the seating area.
- Page 11 Note: Some products require a USB-C to 3.5 mm line-in adapter. Learn more Accessories Find the perfect accessory for your Sonos system—tailored to perfectly fit your Sonos products. For a full selection of Sonos-compatible stands, wall mounts, chargers and cables, see...
- Page 12 Indentation in the stem hides the speaker’s power cable for simple cable management. Fixed height, optimal for home theater surrounds. Easy assembly. Note: For the full selection of Sonos-compatible stands, wall mounts, and cables, see Accessories on our website. What's in the box?
- Page 13 Take everything out of the box and place the base in the packaging slot to stabilize it for the next few steps. Thread the end of the Sonos S41 power cord that attaches to the speaker through the opening in the stand base and into the pole channel.
- Page 14 Snap the pole cap onto the top of the pole to hide the power cord. Be careful to not pinch the cable. Then working from top to bottom, neatly press the power cord into the cable channel on the pole. Plug the speaker into a power outlet, then tuck the excess cord under the base.
- Page 15 Speaker can pivot up to 45 degrees. Allows access to ports, buttons, and touch controls. Cleanly routes your speaker’s cables. Important: This mount is intended for use only with Sonos One, One SL, and Play:1. What's in the box? Mount...
- Page 16 Hard wallboard or 5/16” / 8mm bit double board Plaster 5/16” / 8mm bit Concrete or brick 5/16” / 8mm bit...
- Page 17 Set it up Place the wall mount bracket against the wall using a level to make sure it is vertical and mark the screw holes. If you're using wall anchors, use a 5/16" drill bit to drill 2 pilot holes and then insert the wall anchors.
- Page 18 Press the top band down firmly onto the speaker and use a Phillips-head screwdriver to screw in the top band fastener on the back. Slide the Mount down onto the wall bracket. Twist the speaker to position it in place, then turn it right to lock it in securely.
-
Page 19: Specifications
Two woofers maximize low-end output Woofers and are angled left and right to support stereo playback. Add two S41 speakers as surrounds for a Home theater true surround sound experience. Far-field microphone array. You can turn off all microphones using... - Page 20 Sonos product directly to your router if your WiFi is unstable (adapter sold separately). SOFTWARE Set up and control S41 with the latest Sonos S2 generation of the Sonos app. Works with AirPlay 2 on Apple devices Apple AirPlay 2 iOS 11.4 and higher.
- Page 21 This tuning technology uses spatial awareness to smartly adjust the sound for the speaker’s orientation Trueplay™ (vertical/horizontal), location, and the content that’s playing. Works on WiFi and Bluetooth. Microphone switch must be on. Maps specific sounds in 3D space for a Dolby Atmos 360°...
- Page 22 Sonos S41 Package contents power cord * Specifications subject to change without quickstart guide notice. legal booklet...
-
Page 23: Important Safety Information
12. This product does not have any user-serviceable parts. Do not open or disassemble or attempt to repair it or replace any components. Refer all servicing to Sonos qualified service personnel. Servicing is required when the apparatus has been damaged in any...
