PLEASE CALL OUR CONSUMER HOTLINE AT 1-800-9-SPRAYER
Instruction 738-556
H. D. Hudson Manufacturing Company warrants to the original purchaser only that this product will continue to
function as intended if used in accordance with operating instructions (under NORMAL CONSUMER USE) for
one year . If the product fails to function as intended—DO NOT RETURN IT TO THE STORE—call our CONSUMER
SERVICE HOTLINE AT 1-800-9-SPRAYER (toll free) for fast service. We will, at our option, repair or replace any
non-functioning parts without charge (shipping and handling charges will apply) H. D. Hudson Manufacturing
Company shall have the option of requiring the return of the non-functioning product to the address listed below
together with the proof of purchase to establish a claim under this warranty. This warranty does not apply to
damage resulting from accident, misuse, neglect, alterations, operation not in accordance with instructions,
commercial use, or normal wear.
ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR
CONSUMER USE, ARE LIMITED TO THE DURATION SPECIFIED ABOVE. H. D. HUDSON MANUFACTURING
COMPANY'S LIABILITY IS LIMITED SOLELY TO THE REPAIR OR REPLACEMENT OF THE NON-FUNCTIONING
PRODUCT OR PART. H. D. HUDSON MANUFACTURING COMPANY EXCLUDES LIABILITY UNDER THIS WARRANTY
FOR ANY AND ALL INCIDENTAL AND CONSEQUENTIAL LOSS OR DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so these limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may have other rights which vary from state to state.
IF YOU HAVE QUESTIONS OR CONCERNS: PLEASE CALL OUR CONSUMER HOTLINE AT 1-800-9-SPRAYER.
The engine must use mixed fuel. The ratio between gasoline and oil is 25:1. You can use either
leaded or unleaded gasoline. The oil should be for two stroke engines. The engine should run
without load for 3-5 minutes after starting and before stopping. Do not run engine without load at
high speed, it can damage the engine. You may also damage the engine by stopping the engine
at high speeds. Always reduce the engine speed before shutting off the unit. To prevent fire, keep
hot engine away from flammable materials when adding fuel. Smoking is strictly prohibited!
Wear approved, protective clothing, respirator mask and oil-proof gloves to protect operator
from contamination from pesticide. Follow pesticide label directions. In all cases, consider
direction of wind to avoid spray being blown back on operator. Always flush pesticide tank
and supply lines at the end of each period of use. This will help prevent corrosion and damage
to the sprayer and its components. Dispose of pesticide formulations remaining in the tank
and flush the residues in accordance with label directions. Before opening container of
pesticide for use in this sprayer, always read and thoroughly understand directions on its
label. Follow exactly the instructions for mixing, application, disposal and safety. Be sure the
pesticide is appropriate for usage with this sprayer. Keep sprayer and spray material out of
reach of children
IF YOU HAVE ANY QUESTIONS OR CONCERNS, OR ARE MISSING PARTS
DO NOT RETURN SPRAYER TO THE STORE!
Visit us on the Internet:
LIMITED WARRANTY
WARNING!
CAUTION!
www.hdhudson.com

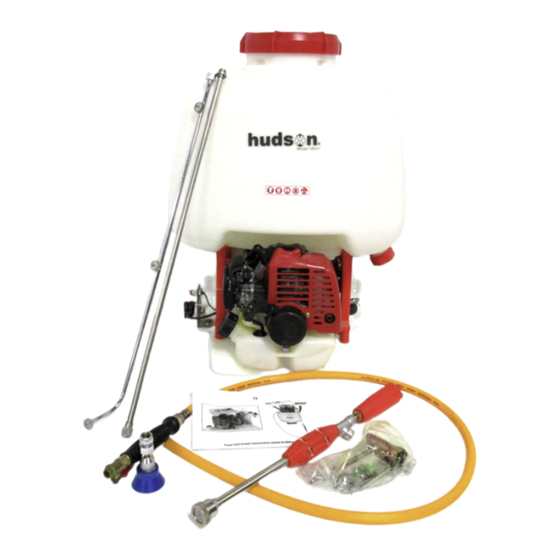

Model 18537
1
(1-800-977-7293)
(1-800-977-7293)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18537 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hudson 18537

  • Page 1 Model 18537 LIMITED WARRANTY H. D. Hudson Manufacturing Company warrants to the original purchaser only that this product will continue to function as intended if used in accordance with operating instructions (under NORMAL CONSUMER USE) for one year . If the product fails to function as intended—DO NOT RETURN IT TO THE STORE—call our CONSUMER SERVICE HOTLINE AT 1-800-9-SPRAYER (toll free) for fast service.
  • Page 2: Names Of Components

    FEATURES Names of components Accessories Nozzle Chemical tank lid Chemical tank Nozzle pipe Spark plug Manual Recoil starter Cylinder fin Wide nozzle Knapsack strap Drain Ball cock Ball Cock Nozzle pipe Throttle lever Grip Spray hose Stop button assembly Fuel tank Wide nozzle Nozzle pipe Ball cock...
  • Page 3: Points For Attention

    POINTS FOR ATTENTION Dilution of chemicals I Charging to the chemical tank Caution: Agricultural chemicals are extremely dangerous, and must be handled with care. Read the chemical instruction carefully before use. Dissolve water dispersible power in a separate container before filling. Be sure not to get foreign material into the chemicals.
  • Page 4: Operation

    OPERATION Pull the recoil starter lightly 2-3 times. Pull the recoil starter strongly to start the engine. If the engine stops after a fe w revolutions, set the choke to half open, and pull the recoil starter rope strongly again to restart it. Note: If the engine does not catch even after the starter is pulled several times, set the choke lever to full open and pull the starter rope.
  • Page 5: Operation And Maintenance

    OPERATION AND MAINTENANCE Stop Temporary halt during operation a) Close the nozzle, and return the throttle lever to low speed. b) Press the engine stop button. c) After the engine stops, set the sprayer down and close the fuel cock. Close Slow running Push...
  • Page 6: Storage And Trouble-Shooting

    STORAGE AND TROUBLE-SHOOTING Plug Remove carbon Proper state Dry plug Width 0.6 mm CJ7Y J8-C Champion CJ7Y Spark Plug J8-C Champion Spark Plug Pull 2-3 times Storage After using the sprayer for the season, store it until the next season of use as follows: a) Drain fuel from the fuel tank and the carburettor.
  • Page 7 TROUBLE-SHOOTING (Con’t) When engine fails to start: Diagnoses Causes Drawing too much fuel. There is fuel, but spark plugs There is po wer al the terminal. Faulty spark plug gap. fail to ignite. Faulty spark plug insulation. Faulty TCl unit or broken wire. No power at the terminal.
  • Page 8: Specification

    SPECIFICATION SPECIFICATION DIMENSION HEIGHT x WIDTH x LENGTH ( MM ) 640 X 350 480 DRY WEIGHT ( LBS/KG ) 20/9 CHENICAL TANK CAPACITY (GAL/L ) 6.5/25 FUEL TANK CAPACITY (GAL/L) .12/0.6 PUMP NORMAL OPERATION PRESSURE ( PSI/MPa ) 145-580/1 ~ 4 SUCTION ( GAL/L PER MIN ) 1.88/7.1 1800...
