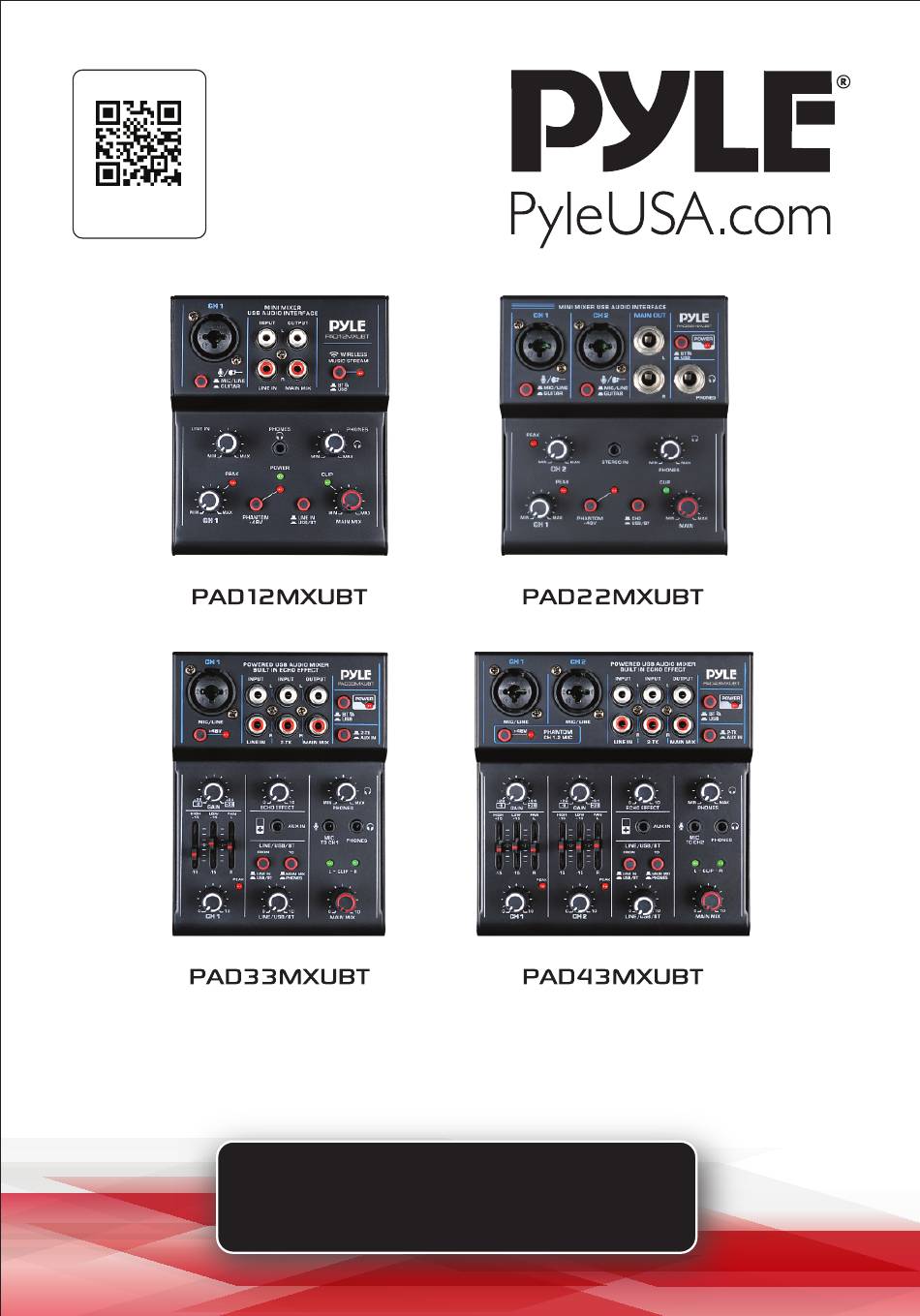

PAD12MXUBT - PAD22MXUBT - PAD33MXUBT - PAD43MXUBT
Wireless BT Streaming Mini Audio Mixer
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAD12MXUBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle PAD12MXUBT

  • Page 1 Visit Our Website SCAN ME PyleUSA.com PAD12MXUBT - PAD22MXUBT - PAD33MXUBT - PAD43MXUBT Wireless BT Streaming Mini Audio Mixer USER GUIDE...
  • Page 2: Model Specific Features

    MODEL SPECIFIC FEATURES: PAD12MXUBT & PAD22MXUBT: • Combo Jack (XLR + 6.35mm) for MIC/LINE/GUITAR Inputs • RCA Jacks for Stereo Input and Output (PAD12MXUBT) • Independent 3.5mm Stereo Input Jack (PAD22MXUBT) • 6.35mm Jacks for Stereo Input and Output (PAD22MXUBT) •...
  • Page 3: Technical Specs

    Voltage: 100/240V • USB Cable Length: 3.94 ft. Model Channels Power Consumption Dimensions (L x W x H) PAD12MXUBT 4.72'' x 3.95'' x 1.38'' PAD22MXUBT 4.80'' x 4.19'' x 1.38'' PAD33MXUBT 5.35'' x 3.95'' x 1.38'' PAD43MXUBT 5.35'' x 5.13'' x 1.38''...
  • Page 4 • Before connecting the computer to the USB 2.0 port, disable any power-saving mode (such as suspend, sleep, or standby). CONTROLS AND FUNCTIONS FOR PAD12MXUBT PAD22MXUBT 1. [MIC/LINE & GUITAR] Input Jack: This combo jack can be used to connect a mono signal, such as an XLR microphone or a 1/4”...
  • Page 5 4. [CH 1/2/3] Controller: Adjusts the volume of signal inputs for CH 1, 2, and 3. 5. [PEAK] LED Indicator Light: Lights up when the input signal is too high. 6. [PHANTOM +48V] Switch: Activates the phantom power supply for the XLR connector, providing +48V phantom power.
  • Page 6 16. [PHONES] Controller: Adjusts the volume of earphones. 17. [AUX IN] 3.5mm Jack: Auxiliary stereo input for connecting various external audio devices. 18. [STEREO IN] 3.5mm Jack: Auxiliary stereo input for external audio devices. The volume can be adjusted through the external audio device or the MAIN controller.
  • Page 7 4. [2-TK] Stereo RCA Input Jacks: Connects an audio source with a line-level signal, such as a recorder or MP3 player. 5. [MAIN MIX] Stereo RCA Output Jacks: Connects to the input of an ampli er or a recorder. 6. [POWER ON] LED: Lights up when the mixer is powered on. 7.
  • Page 8 • When centered, the signal is evenly distributed between L & R. • When turned fully to the left, only Channel L receives the signal. • When turned fully to the right, only Channel R receives the signal. 12. [CH 1/2] Controller: Adjusts the volume of signal input for CH 1/2. 13.
  • Page 9 Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full bene ts of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your Model Number: PyleUSA purchase in perfect condition. PAD12MXUBT PyleUSA.com/pages/register www.PyleUSA.com...
  • Page 10 Questions or Comments? We are here to help! Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
