SMART S Series, S15, S25 Manual

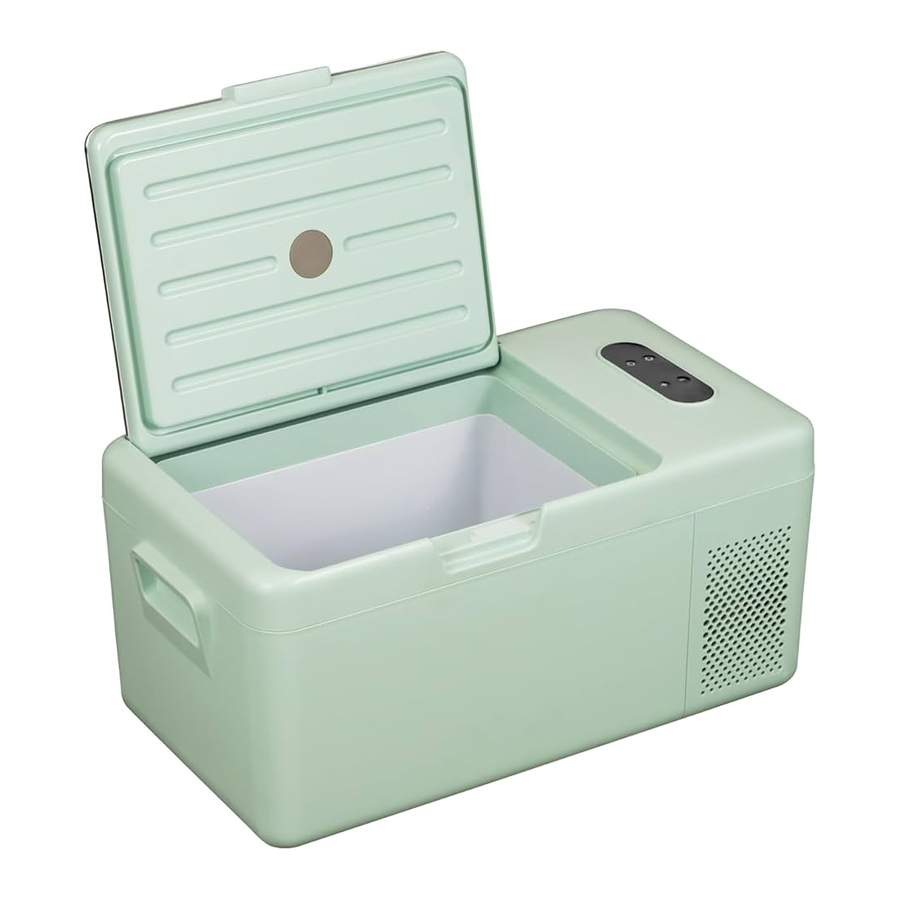

SMART COOLER CAR REFRIGERATOR S SERIES
PRODUCT CHARACTERISTICS
- High efficiency DC compressor and conversion mode.
- CFC-free and excellent thermal insulation.
- The intelligent battery protection system prevents your vehicle from running out of battery.
- Control panel with LED display for temperature setting, double refrigerator and freezer area.
- Easy to install, refrigerator/freezer compartments can be combined, reversible door.
PRODUCT STRUCTURE
Functioning and operation
- Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter).
- Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then enter the normal operating mode.
- Power On/Off: press to switch ON/OFF.
- Temperature Setting: press + or - for temperature setting, the setting will be saved automatically after stopping operating for 3 seconds (Note: the temperature displayed is the current temperature of the compartment, it'll take a while to reach the set temperature.) Temperature setting range: -20~20°C (-4-68°F)
- Cooling Mode: under the running state, press
![]()
to switch MAX(fast cooling) and ECO (Energy saving Mode).("Factory setting is MAX.) - Battery Protection Mode: under the running state, long press
![]()
for three seconds until screen flashes, then press again to select protection mode H(High), M(Medium) and L(Low) ('Factory setting is H).
to switch MAX(fast cooling) and ECO (Energy saving Mode).("Factory setting is MAX.)Voltage Reference
* the voltage is theoretical value, there may be a deviation in different sceneries.
* H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery.
- Temperature Unit Setting: switch off the fridge, long press
![]()
for three seconds until El displays, then switch to E5 by pressing ![]()
again. Under E5 mode, press + or - to select Celsius or Fahrenheit.(*Factory setting is "C.) - Reset: switch off the fridge, long press
![]()
for three seconds until El displays, under E1 mode, long press ![]()
at the same time for three seconds to reset it. - Recommended temperature for common food:
![Recommended temperature for common food]( "SMART - S Series - Recommended temperature for common food")
at the same time for three seconds to reset it.
BLUETOOTH connection
App name:
Before you start scanning your device, make sure you have both Bluetooth and your phone's location enabled.
TECHNICAL INFORMATION
*Due to product improvement, technical information may differ from actual information, please refer to the rating label on the product.
REFRIGERATOR CARE AND MAINTENANCE
Cleaning:
- Turn off and unplug the device first to avoid electric shock.
- Remove the cap and drain it from the hole at the bottom of the device.
- Use a damp cloth to clean the device and wipe it down.
- Do not soak the refrigerator in water or wash it directly.
- Do not use abrasive cleaning agents when cleaning, as they may damage the device.
Storage:
If the device will not be used for a long period of time, please follow the instructions:
- Turn off and unplug the device.
- Remove all items stored in the device.
Defrosting:
Humidity can form frost inside the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in time to avoid this.
- Turn off and unplug the device first to avoid electric shock.
- Remove all items stored in the device.
- Keep the lid open.
- Wipe away the thawed water.
Never use hard or sharp tools to remove ice or loosen objects that have frozen in place.
TROUBLESHOOTING
SAFETY INSTRUCTIONS
ATTENTION
- Do not use the refrigerator if it is visibly damaged.
- Do not block the refrigerator openings with things such as pins, wires, etc.
- Do not expose the device to rain or other wet conditions.
- Do not place the appliance near open flames or other heat sources (heaters, direct sunlight, gas ovens, etc.)
- Do not store explosive substances, such as spray cans with a flammable propellant.
- Make sure the power cord is dry and not trapped or damaged. Do not locate multiple portable sockets or portable power supplies at the rear of the appliance.
- Check that the voltage specification on the type plate corresponds to that of the power source. The appliance must only be used with the power supply unit supplied with the appliance.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Once unpacked and before starting, the appliance must be placed on a flat surface for more than 6 hours.
- Make sure the appliance remains horizontal when operating. The tilt angle should be less than 5° for a long time and less than 45° for a short time.
- Keep the ventilation openings in the unit casing or built-in structure clear of obstructions.
- Keep the device stable on the ground or in the car; Do not drain the device, upside down.
- Repairs may only be carried out by qualified personnel. Incorrect repairs may cause danger. The lamp and power cord must be replaced by the manufacturer or qualified persons.
- Installation of DC power in the boat must be carried out by qualified electricians.
- During use or storage, if you find it getting hot or showing signs of leakage, odor, distortion and other abnormalities, please stop using it immediately and stay away from the battery.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Disconnect the power supply before each cleaning and maintenance and after each use.
- Do not use sharp tools to defrost; Do not damage the refrigerant circuit.
- Child entrapment risk. Before throwing away your old refrigerator or freezer: remove the doors: leave the shelves in place so that children cannot easily climb inside.
- Check whether the cooling capacity of the appliance is suitable for storing food or medicine. Food may only be stored in its original packaging or in suitable containers. If the appliance is left empty for long periods of time, switch off, defrost, clean, dry and leave the door open to prevent mould from forming inside the appliance.
- The appliance is intended for household use and similar applications such as:
- By staff in kitchen areas in shops, offices and other working environments;
- Camping, Farms and by clients in hotels, motels and other residential environments;
- Hostel type environments;
- Catering and similar non-retail applications.
- The information, illustrations and specifications in this manual reflect the latest available at the time of publication, they are subject to change without prior notice.
Please follow local regulations regarding the disposal of the appliance for flammable refrigerant and blowing gas.
