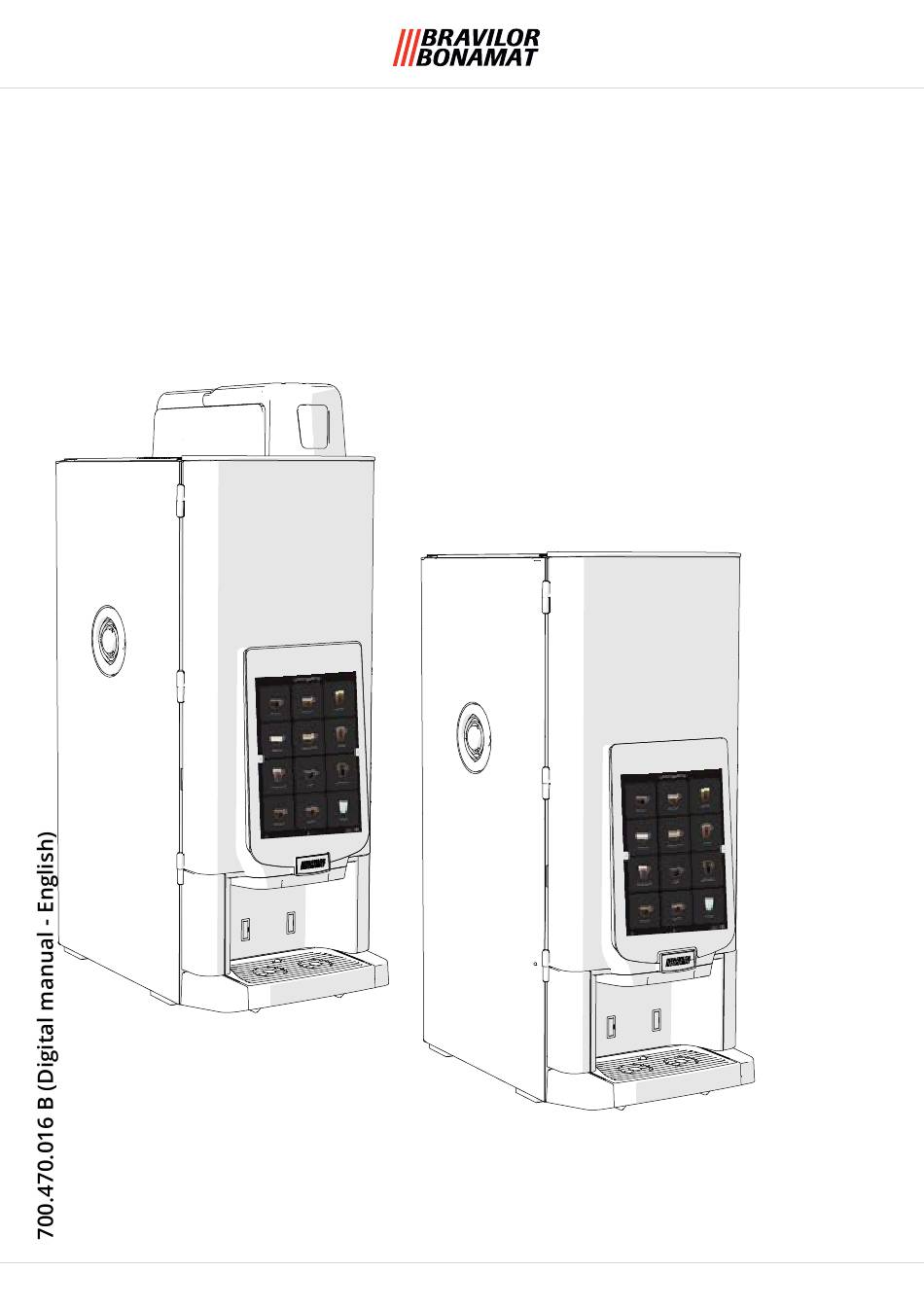

- Page 1 FreshGround (XL) / FreshMore OPERATING MANUAL Model-no: • FRSHN4-501 • FRSHN4-502 • FRSHN4-510 • FRSHN4-511 • FRSHN6-101 Original document by manufacturer version 1.0 | 2025-04-25...
- Page 2 All rights reserved. No part of this document may be copied and/or published by means of printing, photocopying, microfilming or by any other means whatsoever without the prior written consent of the manufacturer. This also applies to the included drawings and/or diagrams. The information in this document is based on data that was available at the time the design, the material characteristics and the operating methods were published, meaning that this document is subject to change.
-
Page 3: Table Of Contents
Table of contents 1. General ..............2. -
Page 5: General
1. General ► Always read the safety instructions (700.403.347). To avoid possible damage, these safety instructions must be read, understood and followed. ► Manuals are subject to change, scan the QR code to retrieve current information. 2. Parts functions ... -
Page 6: Parts Freshmore
2.3 Parts FreshMore 1. canisters for instant ingredients 11. special keys 2. canister outlet 11a. service key (door) 3. mixing system 11b. override key (lid) 4. beverage outlet 12. USB port 5. hot water outlet 13. program button 6. freshbrew coffee canister 14. door key 7. outlet for instant coffee 15. waste bin 8. brewer 16. drip tray with float 9. filter belt 17. -
Page 7: Cleaning
3. Cleaning It is important that the FreshBrew is kept clean, what can be cleaned (period depends on pollution): Daily Frequently Periodically Run the rinse Drip-tray on p.3 Cleaning Brewer (after 5000 cups or program monthly) on p.9 Empty drip tray Mixing system on p.3 Ventilation system on p.12 The outside on p.4 Instant canister and inside on p.12 Waste bin on p.5 Rinse Brewer (after 1200 cups or weekly) on p.6 ► Never clean parts of the FreshBrew in the dishwasher, only if this is explicitly stated. ►... - Page 8 4. remove the mixer 5. clean the indicated parts, using a damp cloth 6. clean the removed parts (dishwasher proof (<65°C)) 7. remount the mixing system in reverse order ► Pay attention to the flat sides of the shaft and the mixer. 8. reconnect the hose to the mixing system and the outlet 9. close the lid and door ► To prevent clogging of ingredient that has fallen into the mixing cup, it is recommended to rinse the machine after the daily cleaning procedure.
- Page 9 Waste bin 1. open the door 2. cut the filter paper at the indicated location 3. turn the bracket of the beverage outlet towards the door 4. remove the waste bin 5. empty the waste bin (recyclable) 6. rinse the waste bin with water, use a brush if necessary...
- Page 10 Rinse Brewer (after 1200 cups or weekly) Necessities: • Small brush (dry cleaning) • Large brush (wet cleaning) • Tube brush • Running water • open the door with • cut/tear the filter the key paper on the left side of the machine (if applicable) • remove the coffee hose from the brewer belt • remove the filter belt • remove the brewer module FreshMore FreshGround • brush off the coffee •...
- Page 11 • remove the filter belt • remove the filter spanner • rinse all parts under the faucet to remove larger coffee residues • brush and rinse the • brush the filter filter belt module belt spanner under under running water running water • rinse the filter under • place the filter by running water placing one end over the roller, then while simultaneously rotating the other roller slowly pull the filter down on the other side with your thumb • place the filter belt •...
- Page 12 • brush and/or rinse • place the brewer cup the air channel of the brewer cup • place the filter belt • place the brewer module hose • place the filter paper if applicable • close and lock the door • remove the key...
- Page 13 Cleaning Brewer (after 5000 cups or monthly) Necessities: • 30 grams Bravilor cleaner, 2 bags (30 gram) • Container with 6 liters of warm water (> 60°C) • Large brush • Gloves and safety goggles • open the door with • cut/tear the filter the key paper on the left side of the machine (if applicable) • remove the hose from the brewer belt • remove the filter belt • remove the brewer module • disassemble the • remove outlet arm, brewer inlet (the inlet coffee hose and hot can be removed by water bypass hose...
- Page 14 • remove the filter belt • remove the filter spanner • rinse all parts under the faucet to remove larger coffee residues • dissolve 30 grams of • place all the Bravilor Cleaner in disassembled brewer 6L. of warm water (> components, , outlet 60°C) arm and hoses fully submerged in the ► Read the solution instructions on • leave the components the sachet of the submerged for a cleaner. maximum of 30 minutes •...
- Page 15 • place the filter belt • place the outlet arm, spanner reconnect the hoses » hot water = top connection » coffee bypass = lower connection • place the brewer inlet • place the brewer cup • place the filter belt • place the brewer module hose • place the filter paper if applicable • close and lock the door • remove the key * Note: If the filter is replaced, reset the filter counter in the GUI.
-
Page 16: Periodic Cleaning (Monthly)
3.2 Periodic cleaning (monthly) Ventilation system 1. switch off the machine 2. open the fan to the back 3. carefully pull the rotor of the motor 4. clean the fan housing and grid, using a damp cloth 5. clean the fan rotor, using hot soapy water 6. dry everything and place the rotor back in place 7. switch the machine back on Instant canister(s) and inside 1. open the door and lid 2. cut the filter paper at the indicated location 3. attach the filter paper holder to the door at the position indicated 4. - Page 17 5. take the canister(s) out of the machine 6. remove the lid 7. pour the ingredients in a dry bowl 8. unlink the outlet from the canister 9. take apart the canister(s) 10. clean the canister and outlet with a brush ► Do not use water to prevent the ingredients from clumping and clogging the canister. 11. clean the inside if the machine with a moist cloth 12. refill the canister(s) 13. replace the canister(s) in its/their correct position 14. open the “yellow” slider of the canister(s) 15.
- Page 18 © 2025-04-25 VHH...
