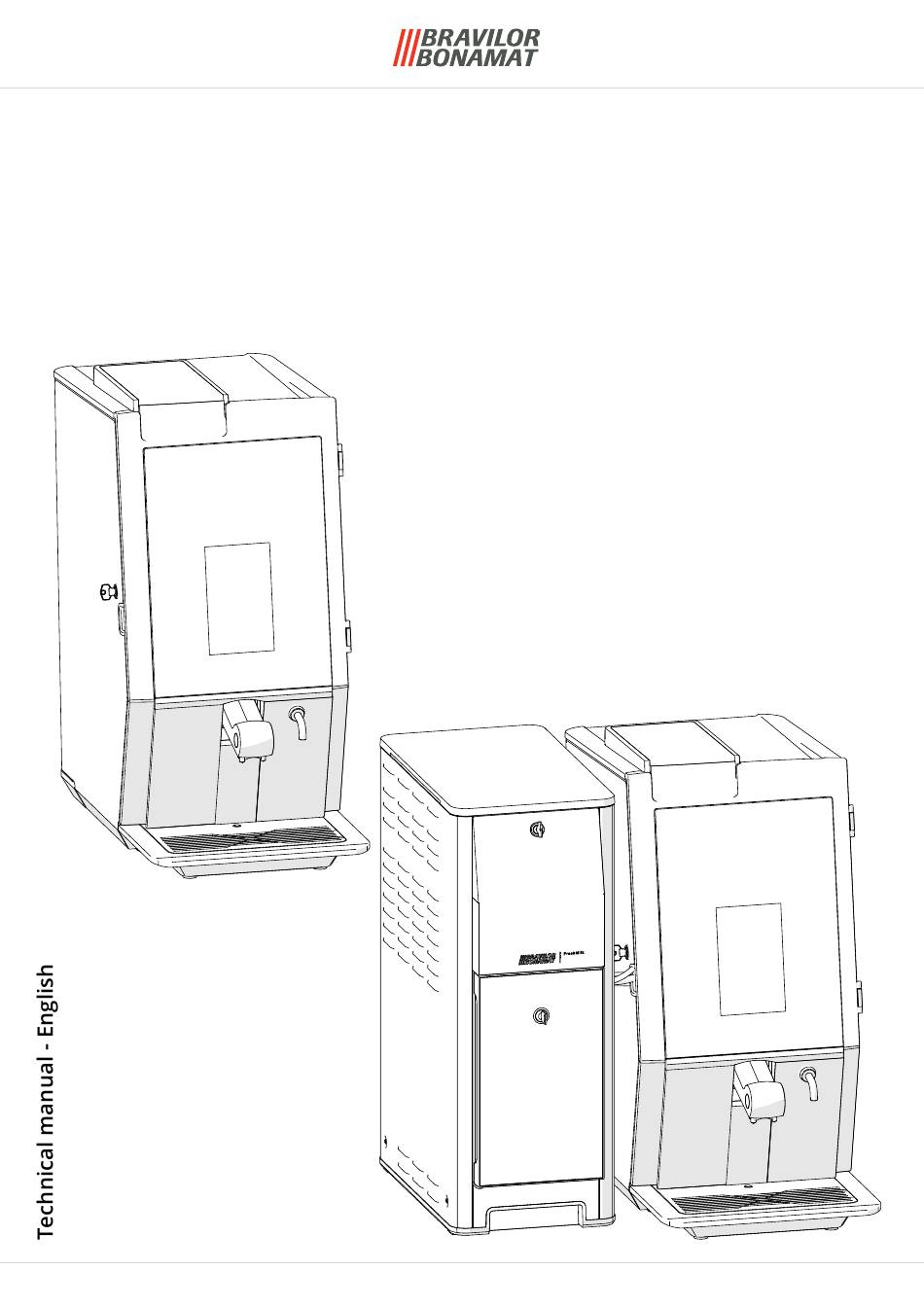

- Page 1 TECHNICAL MANUAL Esprecious (from version 2.0) FreshMilk (from version 3.0) Original document by manufacturer version 1.0 | 2023-07-21...
- Page 2 All rights reserved. No part of this document may be copied and/or published by means of printing, photocopying, microfilming or by any other means whatsoever without the prior written consent of the manufacturer. This also applies to the included drawings and/or diagrams. The information in this document is based on data that was available at the time the design, the material characteristics and the operating methods were published, meaning that this document is subject to change.
-
Page 3: Table Of Contents
2. Spare parts replacement Esprecious ........ - Page 4 Cabling diagram of the Esprecious 11L/21L ........
-
Page 5: Installation Requirements
1. Installation requirements To enable a smooth and simple installation of the Esprecious please ensure the customer has the following prepared: • Ensure the electrical supply is situated within 1 meter of the machines proposed location. • Ensure the power supply is correct for the ordered machine: •... -
Page 6: Spare Parts Replacement Esprecious
► The service panel is delivered without software, you need to download the software yourself on an SD-card from our website. When installing a new service panel or updating the software on an Esprecious you need to be sure that you use the correct software, this because we have different software versions available. -
Page 7: Remove The Speaker
2.2 Remove the speaker Step 1 • remove the serice panel as in Step 1 section 2.1 Step 2 • disconnect the wiring • pull the speaker towards you 2.3 Remove the mixer motor Step 1 • open the door and lid • close the “yellow” slider of the canister outlets • take the instant canisters out of the machine Step 3 •... -
Page 8: Remove The Canister Motor
Step 5 • remove the mixer • remove both seals and seal holder ► Consider to exchange the seals. Step 6 • remove the 2 screws • remove the mixer motor ► Consider to exchange the O-ring 2.4 Remove the canister motor Step 1 •... -
Page 9: Remove The Fan Motor
Step 4 • unhook the canister motors (up a little and towards you) • disconnect the wiring ► Remove the right motor first to create space, if the left motor needs to be replaced. ► When reassembling, make sure that the bus cabling is correctly connected (red to red and white to white), see the wiring diagram. -
Page 10: Remove The Complete Grinder
2.6 Remove the complete grinder ► Use a vacuum cleaner to remove all existing coffee beans. ► Wear gloves to protect your hands. ► Always replace both disks at the same time. ► When reassembling the machine, ensure that the grinding discs do not touch before switching on the machine. -
Page 11: Remove Grinder Parts
Step 6 ► The vibration dampers could be damaged during this procedure. • consider to exchange the vibration dampers 2.7 Remove grinder parts 2.7.1 Remove the grinding discs Step 1 • remove the canisters as in Step 1 section 2.6 Step 2 • remove the protective lid as in Step 2 section 2.6 Step 3... -
Page 12: Remove The Grinder Gear Wheel And Drive Belt
2.7.2 Remove the grinder gear wheel and drive belt Step 1 • remove the canisters as in Step 1 section 2.6 Step 2 • remove the protective lid as in Step 2 section 2.6 Step 3 • remove the grinding cap as in Step 3 section 2.7.1 •... -
Page 13: Remove The Brewer
2.8 Remove the brewer Step 1 • remove the back panel as in Step 1 section 2.4 Step 2 • disconnect the hose from the hot water valve • remove 2 screws from both pull reliefs • disconnect both bus cables Step 4 • pull the waste bin forward to remove it Step 5 •... -
Page 14: Remove The Mainboard
2.9 Remove the mainboard Step 1 • remove the back panel as in Step 1 section 2.4 Step 2 • remove the overflow hose to create space • disconnect the wiring Step 2 • press the snap finger and remove the backet with mainboard • detach the mainboard from the bracket ►... -
Page 15: Remove The (Optional) Interface Board
2.11 Remove the (optional) interface board Step 1 • remove the back panel as in Step 1 section 2.4 Step 2 • disconnect the wiring • remove the interface board ► The interface board is used with the Esprecious11/12 to link a payment system / telemetry and is optional. The Esprecious11L/21L includes the interface board as standard, for communication with the FreshMilk unit. -
Page 16: Remove The Safety Switch Bean Canister
2.14 Remove the safety switch bean canister Step 1 • open the door • remove the canisters as in Step 1 section 2.6 Step 2 • remove the 2 screws Step 3 • remove the back panel as in Step 1 section 2.4 • disconnect the wiring •... -
Page 17: Remove The Boiler (Parts)
2.16 Remove the boiler (parts) ► The boiler and their parts can be hot. 2.16.1 Reset the boiler thermostat Step 1 • remove the back panel as in Step 1 section 2.4 Step 2 • push both switches to reset 2.16.2 Remove the thermostat Step 1 •... -
Page 18: Remove The Hot Water Valve
2.16.4 Remove the hot water valve ► When the boiler is drained, hot water comes out of the drain hose, therefore take protective measures. Step 1 • remove the drip tray • pull out the drain hose • place a container under the drain hose •... -
Page 19: Remove The Pump Float Tank
2.17 Remove the pump float tank Step 1 • drain the boiler as in Step 1 section 2.16.4 Step 2 • disconnect the connector of the float from the wiring • remove the descaler inlet cap • disconnect the 3 hoses underneath the float tank • disconnect the aeration hose on top of the float tank • disconnect the wiring from the pump Step 3 •... -
Page 20: Remove The Beverage Outlet
2.19 Remove the beverage outlet Step 1 • remove the waste bin Esprecious 11 / 12 / 22 • remove the outlet hoses from the brewer and mix unit Esprecious 11L / 21L • remove the outlet hoses from the brewer... -
Page 21: Remove The Frother (11L / 21L)
2.20 Remove the frother (11L / 21L) Step 1 • remove the 4 hoses from the frother Step 2 • remove the 2 screws of the frother • remove the frother 2.21 Remove the waste bin safety switch Step 1 • remove the drip tray •... -
Page 22: Remove The Pump (Head)
2.22 Remove the pump (head) ► In some cases the head of the pump can be released by turning the screw on the backside of the motor of the high pressure pump. Step 1 • drain the boiler as in Step 1 section 2.16.4 Step 2 •... -
Page 23: Spare Parts Replacement Freshmilk
• see the hose schematics for the hose connections • curved nose pliers • combination-pliers ► The (cleaning) animations can be found on the Esprecious 11L / 21L website. These animations can also be found on our You-tube channel: https://www.youtube.com/user/BravilorBonamatBV/playlists 3.1 Replace the milk hose... -
Page 24: Remove The Peristaltic Pump(Motor)
Step 3 • open the pump cover • disconnect the milk hose • remove the milk hose Step 4 • calibrate the milk pump: programming > Milk unit > Service > Calibrate milk pump » a scale is required 3.2 Remove the peristaltic pump(motor) Step 1 •... -
Page 25: Remove The Mainboard
Step 2 • remove the 4 screws of the top panel • place the top panel in the hooks on the right-hand side Step 3 • disconnect the wiring from the power supply • remove the screw of the power supply • remove the power supply 3.4 Remove the mainboard Step 1 •... -
Page 26: Remove The Relay
3.6 Remove the relay Step 1 • remove both side panels as in Step 1 section 3.3 Step 2 • remove the top panel as in Step 2 section 3.3 Step 3 • disconnect the wiring of the relay • remove 2 screws of the relay • remove the relay 3.7 Remove the thermostat Step 1 •... -
Page 27: Remove The Inlet Valve
3.8 Remove the inlet valve Step 1 • remove the right side panel as in Step 1 section 3.3 Step 2 • remove the water supply hose • remove nut of inlet valve • remove the inlet valve • loosen the 2 hose from the inlet valve outside the machine ►... -
Page 28: Remove The Fan
3.11 Remove the fan Step 1 • remove both side panels as in Step 1 section 3.3 Step 2 • remove the top panel as in Step 2 section 3.3 • disconnect the wiring of the mainboard and the power supply • remove the top panel Step 3 •... -
Page 29: Steam Boiler Parts
3.12 Steam boiler parts ► The boiler may be hot and pressurised. ► The boiler must be depressurized by draining before removing parts. 3.12.1 Drain the steam boiler Step 1 • open the pump door as Step 1 in of section 3.1 Step 2 •... -
Page 30: Remove The Steam Valve
3.12.2 Remove the steam valve Step 1 • drain the steam boiler as in section 3.12.1 Step 2 • remove both side panels as in Step 1 section 3.3 Step 3 • remove the top panel as in Step 2 section 3.3 Step 4 • disconnect the hose from the steam valve Step 5 •... -
Page 31: Remove Complete Steam Boiler
3.12.4 Remove complete steam boiler Step 1 • drain the steam boiler as in section 3.12.1 Step 2 • remove both side panels as in Step 1 section 3.3 Step 3 • remove the top panel as in Step 2 section 3.3 Step 4 • open the pump door as Step 1 in of section 3.1... -
Page 32: Trouble Shooting
4. Trouble shooting 4.1 Esprecious machine errors code description detection suspected components 00000 communication error • all bus cables the bus systems circuit is bus system interrupted • canister motor • mixer motor • mainboard • touch screen 00001 canister motor runs •... - Page 33 code description detection suspected components 02102 short-circuit • temperature sensor a NTC measures a resistance that temperature sensor is lower than normal • wiring boiler • mainboard 02201 no pulse detection • scale inside water selector the light sensor receives not water selector sensor enough pulses for too long a •...
-
Page 34: Esprecious L (Freshmilk) Machine Errors
4.2 Esprecious L (FreshMilk) machine errors code description detection suspected components 00701 filling process steam the water inlet valve of the steam • water tap not open boiler takes too long boiler is opened for a short • water hose kinked period and the electrode inside •... -
Page 35: Coin Mechanism Errors
4.3 Coin mechanism errors code description 07001 coin mechanism missing 07002 coin mechanism defective 07003 coin mechanism blocked 07004 coin mechanism sabotaged 07005 communication error coin mechanism 07006 general error coin mechanism 07101 error in cashless device 4.4 Machine messages Message Reason of the message Procedure to reset the... -
Page 36: Other Problems
4.5 Other problems In addition to the messages and errors present in the machine, a number of other problems may occur; these problems are described below. 4.5.1 Machine related (Esprecious) Problem description Possible cause Check the following machine doesn't turn on no power •... -
Page 37: Coffee Related
Problem description Possible cause Check the following the waste bin needs to be the machine is used for more • consider to use the waste chute emptied multiple times a day drinks than specified and a big waste bin underneath the counter bean canister needs to be filled the machine is used for more... -
Page 38: Freshmilk Machine Related
Problem description Possible cause Check the following mixing bowl clogs up too much powder used • check the advise dosing of the packaging of the powder, use a scale to weight the amount of powder used low pressure pump calibration not •... - Page 39 (no message displayed) mainboard FreshMilk and interface FreshMilk and Esprecious board • connection cable (inside the Esprecious) from Interface board to the 6-pin connector • interface board (Esprecious) • mainboard FreshMilk milk drinks greyed out, cleaning perform a milk system cleaning •...
-
Page 40: Special Functions
5. Special functions 5.1 Esprecious 5.1.1 Master PIN-code ► The master PIN code can be used when the set security PIN code is forgotten. • The master PIN code to overrule the security PIN code is 1948. 5.1.2 Overriding the first install program ►... -
Page 41: Freshmilk
5.2 FreshMilk 5.2.1 Calibrate the air restriction Step 1 • open the pump door as Step 1 in of section 3.1 Step 2 (factory setting) • completely close the air restriction • turn the air control open 5 whole turns ► Use the factory setting as a starting point for the optimum setting. -
Page 42: Recipes (Ex-Factory)
6. Recipes (ex-factory) 6.1 Standard Esprecious beverages/recipes ► Only use instant ingredients that are suitable for vending machines (contains a flowing agent). Recipe Dosing Ingredient Ratio Partial Total sequence grams coffee beans espresso lungo / caffè crema coffee beans topping... -
Page 43: Standard Esprecious L (Freshmilk) Beverages/Recipes
6.2 Standard Esprecious L (FreshMilk) beverages/recipes ► Only use instant ingredients that are suitable for vending machines (contains a flowing agent). Recipe Dosing Ingredient Ratio Partial Total sequence grams coffee beans espresso lungo / caffè crema coffee beans milk cappuccino... -
Page 44: Premix Beverages
6.3 Premix beverages A premix is a customized blend of two or more ingredients. With premix 1 and/or premix 2 in the canisters, you can choose the following recipes: Recipe Dosing Ingredient Ratio Partial Total sequence grams coffee beans coffee + premix 1B premix 1 coffee beans coffee + premix 2B... -
Page 45: Esprecious Accessoires
» 7.270.610.101 bean canister Esprecious 21(L) and 22 (2x1.2 kg) • a canister lid with key/lock • a machine lid. The extension set will increase the Esprecious with 13 cm in height. Step 1 • open the door • open the lid •... -
Page 46: Conversion Kit Esprecious - 7.270.612.101
7.2 Conversion kit Esprecious - 7.270.612.101 This kit makes it possible to convert an Esprecious into an Esprecious L Step 1 • open the door • remove all the canisters • remove the back panel as in Step 1 section 2.4 Step 2 • remove the profile seal •... - Page 47 Step 5 RJ11 • connect the 2 cables using the coupler Step 6 • gently pull the coupled cable until it clicks into place ► Guide the coupling at the rear. Step 7 • install the interface board as in section 2.11 on p.11 • rewire the bus cables according to the model, refer to the diagrams in sections section 7.3.1...
- Page 48 Esprecious Step 11 • cut the hose to the required length and guide it down the correct way using the coupling • place the new drip tray in front of the Esprecious ► Install the hose without siphoning ► Ensure that the drip tray is correctly connected to the coupling. ► Proceed with the installation of the FreshMilk in accordance with the Quick Start Guide that is supplied with it.
-
Page 49: Connect A Mdb Device To Esprecious 11/21
7.3 Connect a MDB device to Esprecious 11/21 For the Esprecious to work properly, the machine’s main working parts must be connected in the correct sequence. 7.3.1 Cabling diagram of the Esprecious 11/21 • install the interface board, see section 2.11... -
Page 50: Waste Chute - 7.290.107.101
• carefully make the cut-out in the bin, following the template • smooth / sand the edges ► Do not exceed outline to prevent leaking. Step 2 • use a hammer to knock the push-through part out of the sheet of metal Step 3 • put the Esprecious in its final position and mark it... - Page 51 Step 4 • mark the location of the hole in the counter • remove the Esprecious to create a free workplace • cut out the hole in the counter ► Making a hole in your counter is your own responsibility. ► Protect the edges of the hole from moisture penetration.
- Page 52 © 2023-07-21 VHH...
