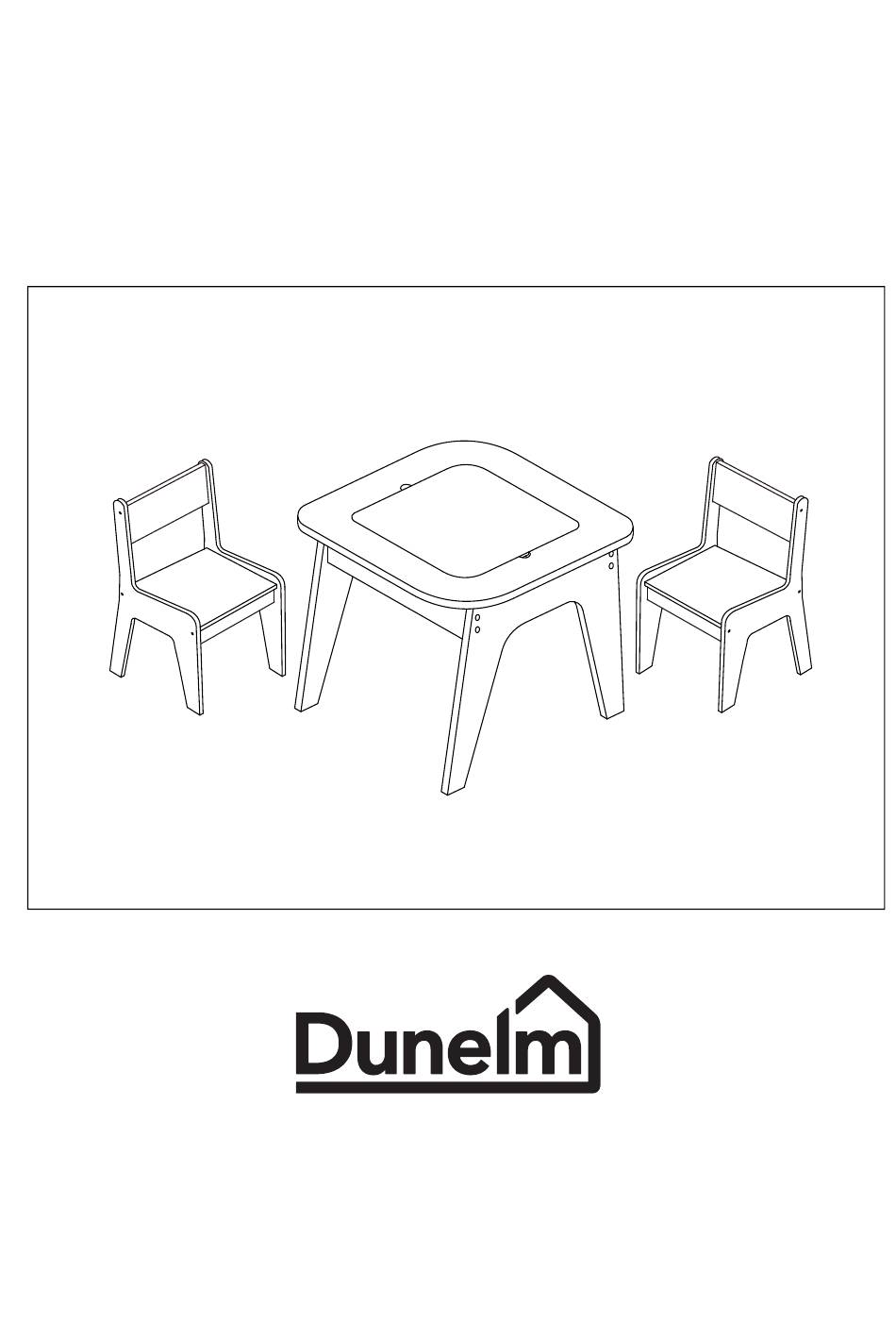

- Page 1 TABLE CHAIRS SET INSTRUCTIONS www.dunelm.com...
- Page 2 Thank you Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Component parts supplied Dimension Visual 53.8x48x1.5cm 47.7x9x1.2cm 48.7x42.9x0.5 cm 60x60x1.2cm 40x40x0.5cm 45x31x1.2cm 26.5x11.5x1.2cm 26.5x7x1.2cm 26.5x21x1.2cm www.dunelm.com...
- Page 4 45x31x1.2cm TOOLS REQUIRED: 1.Cross Screwdriver (not supplied) Parts and Fittings 6*40mm 10*10mm 12*10mm 6*38mm 6*25mm 15*12mm www.dunelm.com...
- Page 5 Step 1: Use Screw bolt Ax4pcs and screw nut Bx4pcs to fix slat Part 2x2pcs to side panel Part 1, and put cam lock nut Fx2pcs into the screw holes of side panel Part 1, Put Screw nuts Bx4pcs into the screw holes of slat Part 2x2pcs www.dunelm.com...
- Page 6 Step 4: Screw Cam lock bolt Dx8pcs on Step 5: Insert Cam lock nut C into slats the table top Part 4 Part 2x2pcs, Attached the table top Part 4 to side panels Part 1x2pcs and Slat Part 2x2pcs www.dunelm.com...
- Page 7 Screw nut Bx3pcs and wood dowel chair seat Part 9 to the chair side panel Ex5pcs to fix chair side panel Part 10 Part 6 to slat Part 7 and slat Part 8x2pcs and the chair seat Part 9 ×2 ×2 www.dunelm.com...
- Page 8 The Finished product www.dunelm.com...
- Page 9 Please contact our customer services line for recommended agents. Always follow fitting instructions carefully and retain them for future use. Do not use this item if any components are missing or damaged www.dunelm.com...
