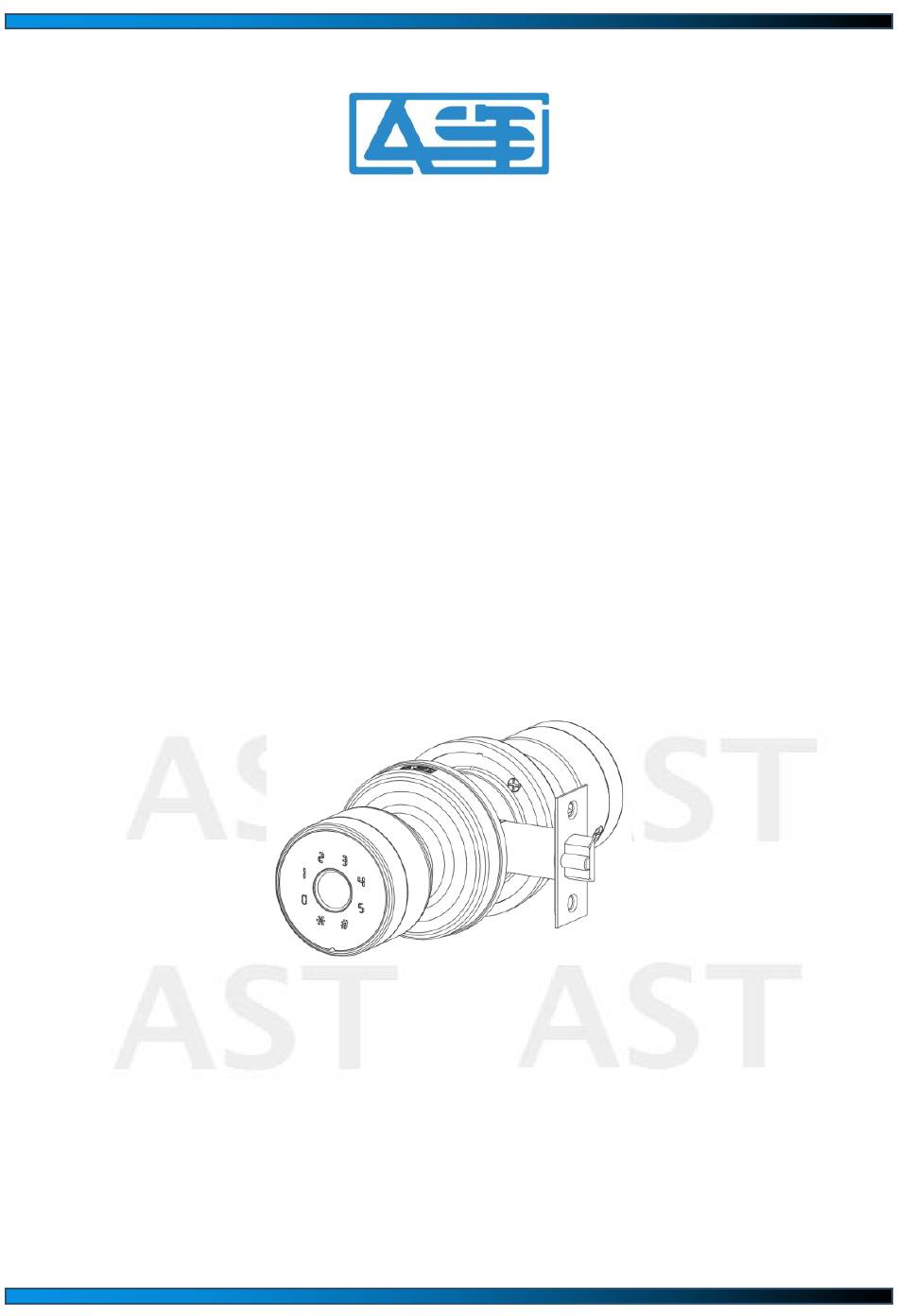

AST ES0001 Installation And Operation Manual

Electronic knob door lock
Hide thumbs Also See for ES0001:

Advertisement

Quick Links

Download this manual
Anland Security Technology
Installation and Operation Manual
Description: Electronic Knob Door Lock
Model No.: ES0001
Features: Fingerprint and PIN Code
Material: Zinc alloy furniture and SUS304 latch
Product Standard Referred: ANSI/BHMA A156.25
Thanks for choosing our premium quality product of smart home security with innovative design.
Please read this manual carefully before installation and use. For any query please contact us by email
customers-ast@anlandst.com.
Guangzhou Anland Security Technology (AST) bids to the expert of creating value for
customers in security and hardware!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES0001 and is the answer not in the manual?

Questions and answers

Related Manuals for AST ES0001

Summary of Contents for AST ES0001

  • Page 1 Thanks for choosing our premium quality product of smart home security with innovative design. Please read this manual carefully before installation and use. For any query please contact us by email customers-ast@anlandst.com. Guangzhou Anland Security Technology (AST) bids to the expert of creating value for customers in security and hardware!
  • Page 2 Our Vision Effective contribution on product value, innovation and customer focus Our Mission  Become customer’s reliable partner in innovation  Be the expert of creating value for customers in security and hardware Guangzhou Anland ST Co., Ltd...

  • Page 3: Parts Included In The Package

    1. PARTS INCLUDED IN THE PACKAGE Tools in need but not included in the package: ① Phillips screwdriver; ② Tape measure 2. PRODUCT CONFIGURATION AND INDICATING LIGHT 2.1. A configuration of product and part’s description are as below image. 2.2. There are different indicating lights during setting and operating 2.2.1 Add Fingerprint The Fingerprint reader light turns to blue as to indicate the lock is ready to input new...
  • Page 4 Fingerprint, please put your finger on the Fingerprint reader on Exterior Cover Assembly. 2.2.2. Fingerprint identifying or mobile phone APP unlocking Green light: success (the buzzer beeps once, and the Fingerprint reader light flashes green.) Red light: failed (the buzzer beeps twice，the Fingerprint reader light flashes red.) 2.2.3.
  • Page 5 4. CUT-OUT OF DOOR FOR INSTALLATION Please be noted that the Latch backset can be interchangeable (60mm/70mm)
  • Page 6 5. INSTALLATION OF LATCH ASSEMBLY AND STRIKE PARTS Set the backset of Latch Assembly to 60mm or 70mm to fit your door hole as above image, then insert the Latch Assembly into the door hole, and drive screw A to fix the Latch Assembly, then install Strike Box and Strike Plate with screw A into the door frame.
  • Page 7 Install Exterior Knob Module (with Touch pad and Fingerprint reader) as above image from inside of your door, and make sure the Spindle and Screw Stems go through the three holes of the Latch. Insert Interior Knob Module by aligning the two stems with the screw holes as above image, connect the cable by inserting the connector into the socket, and drive Screw B to fix Exterior and Interior Knob Modules.
  • Page 8 8. CHECKING OF FUNCTIONS 8.1. After the Lockset is installed, please check the functions by Internal Snib as below image, to make sure the lock’s mechanism is working properly. 8.2. Wake up the Touch pad and input the right PIN code (inputting 8 digits and click “#”...
  • Page 9 8.4. Press the Set button on the rosette of Interior Module for 8 seconds as above image, the buzzer will beep once and the Fingerprint reader will flash green. The lock will be reset to factory settings, then all the stored data will be wiped and new Fingerprint/PIN code will be required per the process of APP setting.
  • Page 10 in the APP Store (iOS) or Google Play (Android) to install the APP. 9.2. Register an account Register a account and endorse the statements, press “Agree” and “Sign Up” on the login screen if no objection as below images. Note: the first one to connect the Lockset by APP will be recognized as Master User.
  • Page 11 Choose the country where the Lockset will be used, enter your Email address to get verification code, set password, select permissions and press “Go to APP” to finish the registration as below images.
  • Page 12 9.3. Connect the Lockset to your APP Turn on the Bluetooth of your mobile phone, keep it close to the Lockset (2~7 meters), then touch the Fingerprint reader to motivate the lock, and press the “Add Device” on the APP screen. Prior to scanning nearby devices, please turn on the permission as below images of APP.
  • Page 13 9.4. Click “Add” and “+” to connect the Lockset you want to set up as below images...
  • Page 14 9.5. Press “ ”to rename the Lockset if you want. Now the Lockset is ready for use via APP.
  • Page 15 9.6. Control the Lockset via APP Click and drive the key icon “ ” from left to right “ ” position for unlocking the door as below images. 9.7. Member management and Fingerprints / PIN Code input Select “Member Management” on the APP screen. To click “Me” and follow the APP instructions to add Fingerprint (similar to add the PIN Codes).
  • Page 18 Click “+” to add more PIN Codes of member. Important Note: proper Fingerprint inputting is critical to access verification, most of the failures of Fingerprint identification are because of improper Fingerprint inputting, please make sure your finger is clean and positioned on Fingerprint reader precisely. 9.8.
  • Page 20 9.9. Setting Select “Settings” on the APP screen to turn on/off “Auto Lock” or set the time delay, or turn on/off “Do-Not-Disturb”.
  • Page 21 9.10. Device information setup Click the icon “ ” on the top right corner of the APP screen to check and set the relevant information。...

  • Page 22: Technical Specification

    11. POPULAR QUESTIONS AND ANSWERS Dose ES0001 lock work with third-party parts like Latch Assembly? It is recommended to use the original parts for best performance and prem iu m qual ity leve l .
  • Page 23 Tuya App, then try to connect again with the designated distance range. If the connection between Lockset and APP is still not successful, please contact our customer service (customers-ast@anlandst.com) for technical support. What notification will I receive when the battery voltage is low? When you use F ingerprint or mobile APP to unlock, the LED Indicator will flashes green and red as a warning signal.

  • Page 24: Fcc Warning

    12. FCC WARNING Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 25 Anland Security Technology Revision: NR Language: English Size: A5 (14.8 X 21.0 cm) Remark: this document may be subject to change without notice Guangzhou Anland ST Co., Ltd...
