SureLock
Automatic Garage Door Lock
Thank You for purchasing the SureLock Model SLGDL-7. We appreciate your
decision and want to make sure you are completely satisfied. If for any reason
you have questions during this process please do not hesitate to contact us:
PLEASE DO NOT RETURN SURELOCK TO THE STORE
First give us a chance to resolve ANY issues you may have.
We are here and available to assist you.
Operation and Installation Manual
SureLock Benefits / Features:
●Your AST SureLock model SLGDL-7, works with your garage door opener
to automatically lock your sectional roll-up garage door every time it's closed
and automatically unlock it when it's opened.
●Compatible with all residential garage door opener's.
●Operates using your garage door opener's existing remote controls, wall
switch/console and/or wireless keypad. (In short, SureLock provides added
security without changing the way you access your garage).
●SureLock mounts on your garage door track inside of your garage and
can be mounted on either side.
●SureLock requires only 2" of clearance between door track and first
obstruction such as a wall/cabinet.
●"Peace of Mind Security".
SureLock...protecting people and property from unnecessary risk.
This is where things get over simplified. To activate SureLock all you need
to do is activate the garage door opener using your existing remote control,
Wall switch/console or wireless keypad, this will simultaneously
activate SureLock.
SureLock's lock bar retracts out of the track during the entire garage door
open/close cycle. Then it automatically releases back into the track just above
the roller wheel to lock the garage door when closed. It really is that simple.
Again, if for any reason things don't go this simple for you, please don't
hesitate to contact us, see above for contact information.

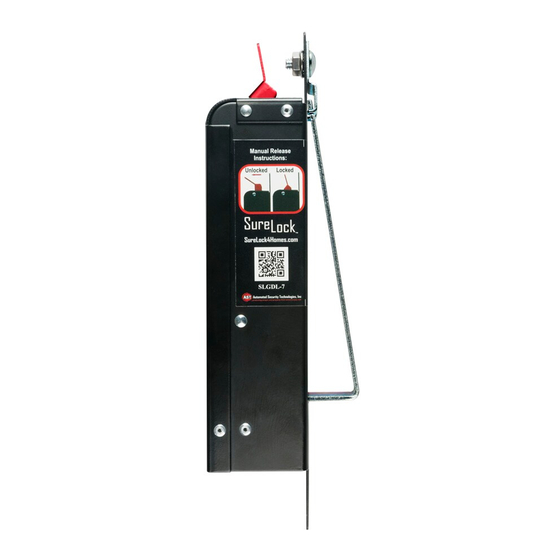

SureLock Manual Release Instructions
Locate the red manual release lever on top of SureLock and shift it away
from garage door track to manually unlock.
Note: The SureLock will remain in the unlocked position until the
manual release lever is shifted back towards the track
(normal operating position).
tech@SureLock4Homes.com
tech@ProductConceptsInc.com
(800) 843-5625 ex.711
Mon - Fri, 8am to 5pm (Pacific Time)
Mon – Fri, 8am to 5pm (Pacific Time)
Updates: Garage-Lock.com
Updates: SureLock4Homes.com
SureLock Operating Instructions
Model #: SLGDL-7
Advertisement
Table of Contents
Related Manuals for AST SureLock SLGDL-7
Summary of Contents for AST SureLock SLGDL-7
- Page 1 We are here and available to assist you. Operation and Installation Manual SureLock Benefits / Features: ●Your AST SureLock model SLGDL-7, works with your garage door opener to automatically lock your sectional roll-up garage door every time it's closed and automatically unlock it when it's opened.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION A Garage Door (Door) is a large, heavy object that moves with the help of springs under high tension and an electric motor. Since moving objects, springs under tension and electric motors can cause injuries, your safety and the safety of others depends on you reading and following the information in this manual. -
Page 3: Important Installation Instructions
WARNING IMPORTANT INSTALLATION INSTRUCTIONS To reduce the risk of injury or death: READ AND FOLLOW ALL SAFETY, INSTALLATION AND OPERATION INSTRUCTIONS. If you have any questions or do not understand any instruction, contact us directly. Email: tech@ProductConceptsInc.com Phone Number: (800) 843-5625 ex.711 Email: tech@SureLock4Homes.com 2. -
Page 4: Parts List
Drill 1/4” Hole Drill 1” Hole Using The Supplied Hole Saw Drill 1/4” Hole Parts List A: SureLock B: Red Manual Release Lever C: Lock Bar D: Lock Bar Hinge E: SureLock Wire (30') F: 1/4" Bolt (x2) G: 1/4" Nut (x2) H: Drill Hole Template I: SureLock Control Module... - Page 5 SureLock Installation Instructions Be sure to follow and complete all (18) steps listed 1. With garage door closed count the garage door rollers (wheels) inside the garage door track. You will be mounting the SureLock just above the second door/track roller up from the floor (Note: this can be done on either side of the garage door, it's your choice).
- Page 6 7. Now it's time to put the SureLock in place. While holding the SureLock on the outside of the track, insert the "short-end" of the Lock-Bar(C) through the 1" hole (Hole#2) in door track. With the Lock-Bar(C) pressed against inside of door track insert short end of the Lock-Bar© through the square hole in SureLock and vertically align SureLock so the internal Lock-Arm interlocks with the slots in the short-end of the Lock-Bar(C).
- Page 7 11. Now Place SureLock back into the Unlocked position – by shifting the Red Release Lever away from Door Track. 12. Next you will need to carefully route SureLock's Wiring(E) from SureLock all the way to the garage door opener. Making sure wire is free from any moving objects, simply secure in place using the supplied staples as needed along the wall, and route to the Garage Door Opener along the ceiling.
- Page 8 15. Next it is time to mount the SureLock Control Module. You must first identify the type of cover plate on the electrical outlet that your Garage Door Opener is plugged into. See below for types and follow the directions for your type of cover plate (A or B). A) Single screw in the center, securing cover plate: 1.
- Page 9 18. Optional: Backup Battery Harness Installation. If your Garage Door Opener is equipped with a back-up battery you will need to use the back-up battery harness equipped with Surelock. Opener Equipped with 12VDC Back-up Battery 1) Locate the back-up battery in the garage door opener and disconnect the two wires connecting the battery to the opener.
- Page 10 You have now provided your family with the added protection they deserve! Please let us know how you feel, do not hesitate in contacting us for any reason. We are here to help you in any way we can: AST / Product Concepts, Inc. Automated Security Technologies, Inc. Email: tech@ProductConceptsInc.com Phone Number: (800) 843-5625 ex.711...
-
Page 11: Warranty Limitation Of Liability
AST's option, repair or replacement of SureLock, or payment of the cost of having SureLock repaired or replaced by AST. Buyer shall pay the cost of returning SureLock to AST; AST shall pay the cost of returning the repaired or replaced SureLock to Buyer. - Page 12 Automatic Garage Door DeadBolt / Lock Automatic Garage Door Lock AST / Product Concepts Automated Security Technologies, Inc. Simi Valley Ca, 93065 2470 Stearns St. #249, Simi Valley, CA. 93063 www.Garage-Lock.com www.SureLock4Homes.com Updates: SureLock4Homes.com Updates: Garage-Lock.com Rev. 2 (171112)
