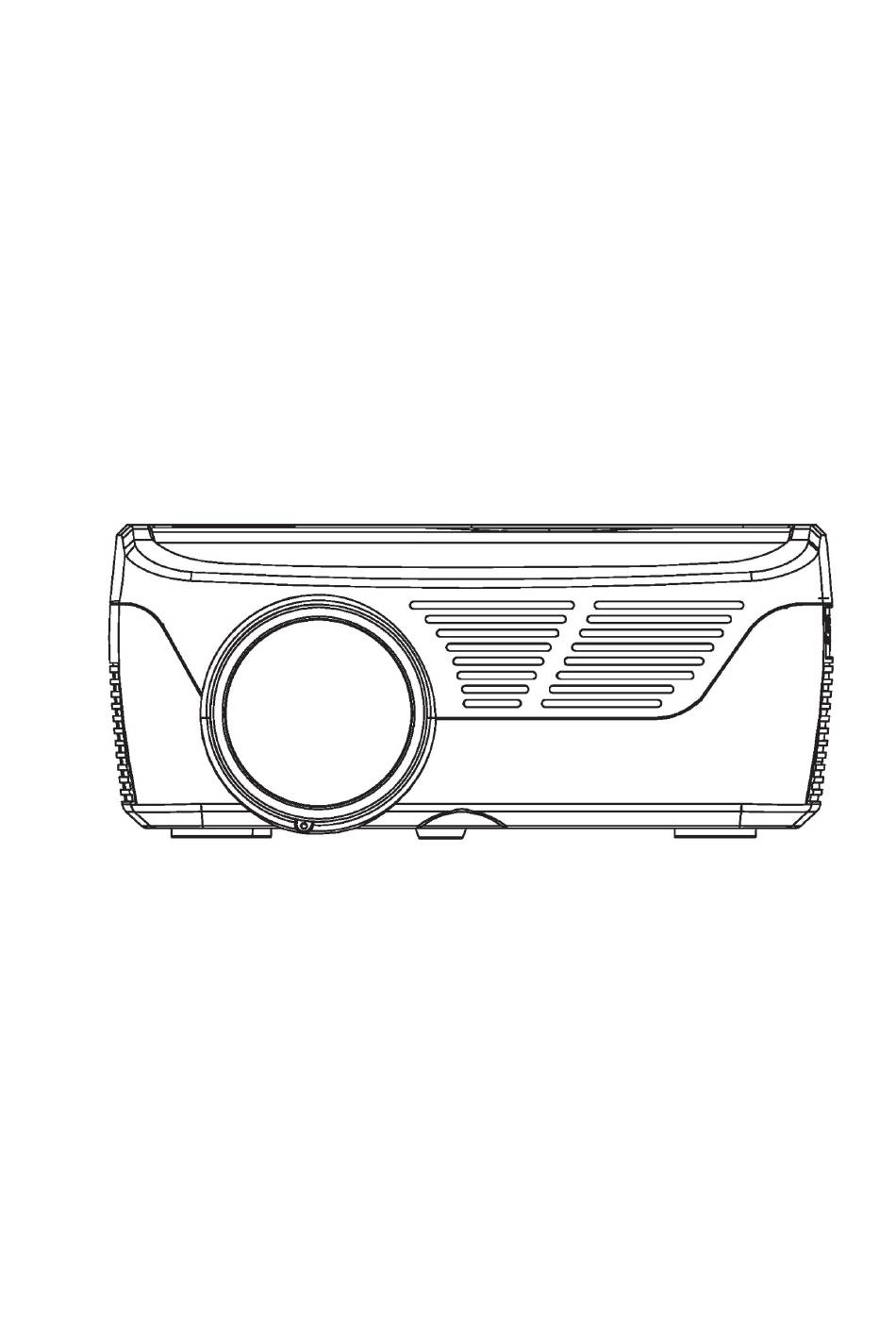

PJD713B
MODEL NO. :
Projector with DVD Player
INSTRUCTION MANUAL
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
Ideal for dark viewing environments for optimal performance.
Please note: Projector brightness is measured in ANSI lumens.
Your viewing environment is the deciding factor on how many lumens your projector
needs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJD713B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GPX PJD713B

Summary of Contents for GPX PJD713B

  • Page 1 PJD713B MODEL NO. : Projector with DVD Player INSTRUCTION MANUAL PLEASE READ BEFORE OPERATING THIS EQUIPMENT Ideal for dark viewing environments for optimal performance. Please note: Projector brightness is measured in ANSI lumens. Your viewing environment is the deciding factor on how many lumens your projector...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 3: Fcc Warning

    FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Warning

    disconnected from the unit. Remove all batteries from the battery compartment.  This unit employs a laser. The use of controls or adjustment or performance of procedures other than those specified here may result in exposure to hazardous radiation. Caution: - Any use of the controls or performing any of the procedures in a way other than those specified herein may result in hazardous radiation exposure.

  • Page 5: Table Of Contents

    Table of Contents Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - P1 Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - P1 FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P2 Caution - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P2 Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3...

  • Page 6: Remove & Close The Lens Cover

    Remove & Close The Lens Cover Remove the lens cover before using Close the lens cover when unit is not using Placing of Your Projector Your projector can be installed in four different configurations (see picture below): Front Table: Select this location with the projector placed near the floor in front of the screen.

  • Page 7: To Reduce Image Distortion

    To Reduce Image Distortion • Move the projector as close to the center of the screen as possible. • The light beam from the projector should be perpendicular to the screen for a rectangular or square image. Projection Distance and Screen Size Measure the distance between the projector and where you want to position the screen.

  • Page 8: Adjust The Vertical Location

    Adjust The Vertical Location Follow below picture to adjust the vertical location. Adjust The Focus And Keystone Follow below picture to adjust the focus and trapezoidal screen. Adjust the focus by turning the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible.

  • Page 9: Controls Of Remote

    Note: If you neglect to clean the air filter screen, it may lead to dust accumulation, resulting in poor internal heat dissipation (heat accumulation), leading to unit failure Controls of Remote Install / Remove Batteries of Remote Remove the battery compartment cover on the back of your remote by carefully sliding to open.

  • Page 10: Controls Of Projector

    Controls of Projector LENS / DOWN / Next / Previous ANGEL ADJ. Knob DVD Door IR Sensor DVD Open / Close Button Speaker DVD Menu KEYSTONE ADJ. Knob SOURCE Button AIR FILTER COVER POWER Button FOCUS ADJ. Knob POWER Indicator DVD SETUP Button RETURN Button...

  • Page 11: Install Power Adapter

    Install Power Adapter Follow below picture to connect power adapter Connect small end of adapter to DC IN jack on the side of the unit first and then plug the adapter body to power outlet. WARNING: Before connecting to the power supply, ensure that the supply corresponds to the information on the rating label at the back of the apparatus.

  • Page 12: Connect Hdmi Show The Image On Projector Screen

    Connect HDMI Show The Image On Projector Screen Refer to the following picture to connect a set top box, a BD/DVD player or a streaming player to the HDMI input. Turn off the unit before connect HDMI cable. After connection, press the button to turn on unit and power indicator will light GREEN Press the SOURCE button to select HDMI and press...

  • Page 13: Connect Audio Output (Aux Out / Line Out / Earphones)

    Connect Audio Output ( Aux Out / Line Out / Earphones) Follow the below picture to connect audio cable and device. Turn off the unit before connect an audio cable. After connect and turn on both units. Your projector sound from external device now. After using , turn off both unit Important Note: If there is no sound from the stereo audio output when playing media contents from a set...

  • Page 14: Using Tf Card (Micro Sd Card) And Usb Playback (Media Player)

    Using TF Card (Micro SD Card) and USB Playback (Media Player) Install USB / TF device: Press the button to turn off the unit before install USB / TF card. Install the USB device into USB port / Install the TF device into TF slot. After connect, press the button to turn on unit and the power indicator light GREEN.

  • Page 15: Using Bluetooth Playback (Transmitter)

    Using Bluetooth Playback (Transmitter) Pairing is the term used when two Bluetooth devices are connected wirelessly for the first time. This allows the devices to see each other and sets up a one to one communication channel between both devices. Bluetooth Connection 1.

  • Page 16: Using Projector Setup Menu 1

    Using Projector Setup Menu 1 Press /MENU button to enter projector menu. This Picture menu showed on right upper of view screen. to select different picture effect to Standard / Dynamic / Mild / User. Use to select and adjust Contrast / Brightness / Color / Sharpness digit If chose User item.

  • Page 17: Using Projector Setup Menu 3

    Using Projector Setup Menu 3 Press /MENU button to enter projector menu, press buttons to select OPTION menu. This OPTION menu showed on right upper of viewing screen. button to select different language. button to select Front Table / Front Ceiling / Rear Table / Rear Ceiling to select different Aspect Ratio 4:3 / 16:9 / Full …...

  • Page 18: Disc Handling

    5. Press button to fast search forward and rewind. 6. Press button to search next or previous file. 7. During playback, press the button to pause and press again to resume Disc handling: • Do not leave discs near heat sources, in direct sunlight, or in high humidity. •...

  • Page 19: Using Dvd Setup Menu

    3. The DVD is not placed steadily. After a period of operation，the internal parts are worn out and cannot be played normally 4. The projector can only be connected to a Bluetooth speaker not a smartphone. 5. Due to copyright issues，Netflix / Disney / Amazon prohibits playing movies directly from the projector.

  • Page 20: Language Setup

    (2) LANGUAGE SETUP In DVD stop mode, press DVD SETUP button to enter DVD SETUP menu, press buttons to select LANGUAGE SETUP. buttons to select different OSD Language English / Spanish / French , press button to confirm. buttons to select different Audio Language English / Spanish / French, press button to confirm.

  • Page 21: Video Setup

    (4) VIDEO SETUP In DVD stop mode, press DVD SETUP button to enter DVD SETUP menu, press buttons to select VIDEO SETUP buttons to select different Brightness 0 -12. Press button to confirm. buttons to select different Contrast 0 -12. Press button to confirm.

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide Before resorting the maintenance service, please kindly check by yourself with the following chart. No Image is Projected 1. Power light is on. If it is not on, check the projector is plugged into the or a "No Signal" mains, that the socket is switched on, and then presses the power message is displayed button on the projector.

  • Page 23: Specifications

    Specifications DVD Player DVD and DVD±R/RW CD,CD-R/RW and JPEG CD Support CD Player V5.3 BT Version Light Source Type Display Native Resolution 1280 x 720 RGB HDMI Input Supported 1080p , 1080i , 720p, 576i , 480p, and 480i Video Resolution. Power Consumption Included Adapter Input AC100-240V,50/60Hz...
