Service

Manual

SECTION

1. TECHNICAL SPECIFICATIONS ........................................................................................... 1

2. SERVICE HINTS AND TOOLS ............................................................................................. 2

3. UPDATE MICROPROCESSOR SOFTWARE PROCEDURE .............................................. 3

4. WIRING DIAGRAM ..............................................................................................................15

5. BLOCK DIAGRAM ...............................................................................................................17

6. SCHEMATIC DIAGRAM ......................................................................................................19

7. PARTS LOCATION ............................................................................................................. 23

8. EXPLODED VIEW AND PARTS LIST ................................................................................ 29

9. MICROPROCESSOR AND IC DATA .................................................................................. 33

10. ELECTRICAL PARTS LIST ................................................................................................. 38

11. ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE ............................... 47

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

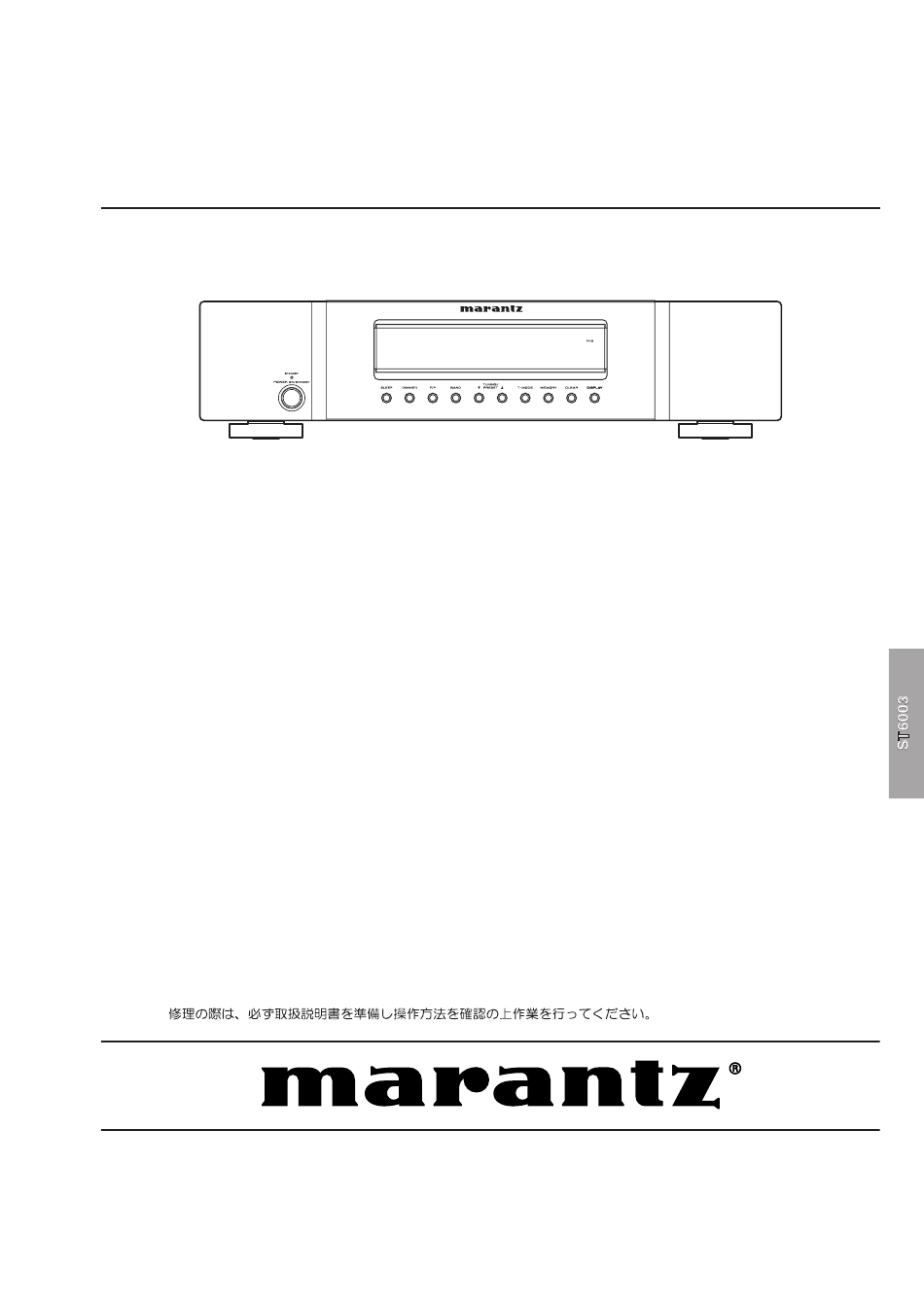

TUNER ST6003

ST6003

ST6003 /

F B/N1B

F N/N1SG

Tuner

PAGE

Part no. 90M04DW855010

First Issue 2008.07

Need help?

Do you have a question about the ST6003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marantz ST6003

Page 1: Table Of Contents
Service ST6003 / F B/N1B F N/N1SG Manual Tuner TUNER ST6003 TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................... 1 2. SERVICE HINTS AND TOOLS ..................... 2 3. UPDATE MICROPROCESSOR SOFTWARE PROCEDURE ..........3 4. WIRING DIAGRAM ......................15 5. BLOCK DIAGRAM .......................17 6.
Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
Page 3: Technical Specifications
In the event of difﬁ culty, refer to your directly to the nearest location to you the Marantz Authorized Service Statio please include the model and serial equipment together with a full descrip think is abnormal about the equipmen...
Page 4: Service Mode
2. SERVICE MODE 2. SERVICE MODE Microprocessor (IC21) and FLD Segment Check Mode. Microprocessor (IC21) and FLD Segment Check Mode. 本機に電源コードを接続します。 Connect the mains cord into the unit. ボタンを押し、本機の電源を入れ POWER ON/STANDBY button for turn on the POWER ON/STANDBY Press the ます。...
Page 5: Update Microprocessor Software Procedure
3. UPDATE MICROPROCESSOR SOFTWARE 3. UPDATE MICROPROCESSOR SOFTWARE PROCEDURE PROCEDURE マイコンのソフトウェアが更新された場合、下記の手順に従っ When microprocessor software was updated, update the てアップデートしてください。 software in the following procedure. 必要機器 Necessary Equipment またはで • Windows PC (OS: Windows2000 or WindowsXP) with • Windows PC (OS: Windows2000 WindowsXP) ポートのあるもの...
Page 6 をダブルクリックし、を FlashProg.exe Flash Programmer Double click FlashProg.exe, and launch the Flash 起動します。 Programmer. 注意をダブルクリックしても NOTE : When a Flash Programmer does not launch even if : FlashProg.exe Flash が起動しない場合は、 double-clicked FlashProg.exe, please refer to "[B] Programmer "[B] When a Flash を参照してください。...
Page 7 メニューバーからをクリックし、を選択 Setup Object file Click the Setup in the menu bar and select the Object します。 file. をクリックします。 Browse. Browse Click...
Page 8 をに変更します。 iHEX Format(*.h16,*.h20) Choose the iHEX Format(*.h16,*.h20) in Files of type. Files of type を選択し、をクリックしま Choose the SR4023_yymmdd-vv.h16, and click Open. SR4023_yymmdd-vv.h16 Open す。 NOTE : The yy is two digits of year. The mm is month. The 注意...
Page 9 からを選び、からを選択 TMP86FS49 in the Device, and choose the Device TMP86FS49 Series 870/C Choose the します。 870/C in the Series. をチェックします。 Address Option Check the Address Option. をクリックします。 Apply Click the Apply. そして、タブをクリックします。 And click Communication tab. Communication...
Page 10 から使用するポート番号を選択します。 Choose the Serial port number in the COM Port. COM Port にチェックを入れ、から Choose the 9600 in the Data Rare. 9600 Data Rate Manual Data Rare を選択します。 And Click OK. をクリックします。本機から電源ケーブルを外します。 Disconnect the mains cord from the unit. の...
Page 11 本機に電源ケーブルを接続します。 Connect the mains cord into the unit. と本機との間で自動的に通信が行われ、 The Flash Programmer communicates automatically. Flash Programmer 通信に成功すると操作が可能になります。 When communication succeeds between a unit and a をクリックします。 E (Erase) program, you can operate it. が通信接続に成功するとの左 Click E (Erase). (Flash Programmer WINDOW 下に"...
Page 12 をクリックし、アップデートを開始します。 P (Program) Click P (Program) to start update. ソフトウェアがマイコンに書き込まれます。 Software is written into the microprocessor. ソフトウェアの書き込みにかかる時間はおよそ分秒で The writing of software takes about 1 minute 15 seconds. す。アップデートが完了すると If the software is updated successfully, a dialog box "R006: Programming と書かれたダイアログボックスが...
Page 13 メニューバーのをクリックし、を選択します。 File in the menu bar and select the Exit. File Exit Click the 電源ケーブルを本機からはずし、その Disconnect mains cord from the unit, and then disconnect DATA UPDATE KIT のを本機から外します。 FFC of DATA UPDATE KIT from the unit. [B] When a Flash Programmer did not launch [B] When a Flash Programmer did not launch フォルダ内の...
Page 14 テキスト文の環境により異なりま "OpenFile=C:\...(PC Delete the text "OpenFile=C:\...(your PC setting)...\???. す。を削除します。 h16". )...\???.h16"...
Page 15 を上書き保存します。 Save the FlashProg.ini. FlashProg.ini テキストエディタを閉じます。 Close the text editor. を起動することが出来ますので Probably you can launch the Flash Programmer. Go to Flash Programmer 手順に戻ってください。 the [A] Update Procedure step 4. Update Procedure...
Page 16 Personal notes:...
Page 17: Wiring Diagram
4. WIRING DIAGRAM JPN : 100V 50Hz EUR : 230V 50Hz CN91 CN73(5P) BN73(5P) MAIN PWB T902 SUB TRANS CN92 FM/AM CN31 (17P : N VER.) T901 CN31 (15P : F VER.) TUNER MODULE POWER TRANS POWER PWB BN74(7P) CN81(17P) CN74(7P) TACT SW PWB FL81...
Page 18: Block Diagram
5. BLOCK DIAGRAM FM ANT 75Ohm FM/AM TUNER MODULE VFD ( DOT MATRIX :13 X 1 ) FM SIGNAL KEY CONTROL (IC81) CONTROL F/END 16.0 MHz 32.768H MHz AM LOOP AM SIGNAL FM/AM TUNER FM IF µ-PRO IC (IC21) AM RF, IF MPX IC REMOTE MPX OUT...
Page 19: Schematic Diagram
6. SCHEMATIC DIAGRAM FM/AM TUNER MODULE F VER. :15PIN NOT USE MAIN PWB N VER. :17PIN CN31 J351 F VERSION ONLY R359 C351 C352 AGND R_CH 4.7K AGND C355 R335 2.2/50V 2.2/50V R355 R360 R358 SHIELD 2.2/50V Q351 BK31 Q352 RS31 R357 AGND...
Page 20 TO/FROM MAIN PWB WF81 FRONT PWB FRONT PWB FGND F VER. ONLY N VER. ONLY RS81 RPM6936 FGND FGND VOUT FGND Q810 A102M FGND Q801 SEG07 C3875 FGND SEG08 J801 FGND GRID15 SEG09 STBY+5V R806 GRID14 R821 GRID16 SEG10 GRID13 SEG11 GRID12 SEG12...
Page 21: Parts Location
7. PARTS LOCATION MAIN A PWB MAIN B PWB Q302 Q352 Q207 Q331 Q332 Q211 Q301 Q351 IC31 Q702 IC24 Q202 IC74 IC21 IC23 IC72 IC71 Q206 Q201 Q205 Q209 Q208 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
Page 22 FRONT A PWB Q810 FRONT B PWB Q801 IC81 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
Page 23 TACT SW A PWB TACT SW B PWB POWER A PWB Q902 POWER B PWB 鉛フリー半田半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
Page 24: Exploded View And Parts List
8. EXPLODED VIEW AND PARTS LIST /F only CN91(1) /N only POWER PWB F only MAIN PWB TACT SW PWB CTB3+6FFB SCREW FRONT PWB S9 CTW3+8JFC SCREW (SG) CTW3+8JFZ SCREW (B) CTB3+10JFB SCREW CTB3+8JFB SCREW CTB4+6F SCREW CTW3+12JR SCREW CTW3+8JR SCREW CTB3+10JR SCREW...
Page 25 00MYJ04002640 00MYJ04002640 INLET ! R-301(21) AC INLET CJJ8A006ZW CN91(2) CORD WIRE ASSY CWB4F032180UK 943606002520S FPC FFC 15P 80MM CWC4C4A15B080B 943606002520S FPC FFC 15P 80MM CWC4C4A15B080B NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 26 FM POLE ANT T15011F-1 CSA1A018Z /N1SG 90M-ZA000220R ANTENNA FM POLE ANT T15011F-1 CSA1A018Z 90M-ZD000440R CONN. CORD CORD PIN CJS4M009X 00D9430097008 CONN. CORD CINCH CORD AUDIO CJS4N015Z NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 27: Microprocessor And Ic Data
1.3 Block Diagram T5CB5 1.3 Block Diagram 9. MICROPROCESSOR AND IC DATA IC21 : T5CB5 T5CB5 1.2 Pin Assignment Figure 1-2 Block Diagram (INT3/TC2) P15 P74(AIN12) /TC5) P16 PDO5/PWM5 P73(AIN11) /TC6) P17 PDO6/PWM6/PPG6 P72(AIN10) (SCL) P50 Page 4 P71(AIN9) (SDA) P51 P70(AIN8) P67(AIN7/STOP3) P66(AIN6/STOP2)
Page 28 P74 (AIN12) I/O (I) P75 (AIN13) I/O (I) P76 (AIN14) I/O (I) P77 (AIN15) I/O (I) REMOTE_SEL REMOTE SEL SW(ST6003) RDS LED RDS LED( ST6003) P41 (RXD2) I/O (I) VFD RS Front FL Driver RS P42 (TXD2) I/O (O) VFD RESET...
Page 29: Block Diagrams
IC21 : T5CB5 Port Setting Port Name STBY Name Note Act. init IC23 : RH5VT × × × CMOS Output (R • – Vref ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR Rev.3.2 S-808xxC Series Detector Threshold Hysteresis Block Diagrams IC24 : S80842CNY-X 1.
Page 30 NJU3430 NJU3430 IC28 : NJU3430 � � PIN CONFIGURATION PIN CONFIGURATION O S C O S C R S T C L K N J U 3 4 3 0 � � BLOCK DIAGRAM BLOCK DIAGRAM R ESET Instruction MK RA M Icon ∼...
Page 31: Terminal Description
NJU3430 NJU3430 IC28 : NJU3430 � � TERMINAL DESCRIPTION TERMINAL DESCRIPTION N o . S Y M B O L F U N C T I O N P o w e r S o u r c e = + 3 . 0 t o 5 . 5 V G N D = 0 V V F D D r i v i n g P o w e r S o u r s e...
Page 32: Electrical Parts List
10. ELECTRICAL PARTS LIST PARTS INFORMATION NOTE ON SAFETY FOR FUSIBLE RESISTOR : The suppliers and their type numbers of fusible resistors RESISTORS are as follows; 1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W 1. KOA Corporation 2) 00MGD05 ×...
Page 33 10K OHM 1/10W J CRJ10DJ103T FRONT R824 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T FRONT R825 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 34 00MDD95221300 CER. CAP. 220PF 50V JA CCUS1H221JA MAIN C205 00MDD95221300 CER. CAP. 220PF 50V JA CCUS1H221JA MAIN C207 00MDK98223300 CER. CAP. 0.022UF 50V KC CCUS1H223KC NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 35 00D2760794900 DIODE KDS160-RTK/P CVDKDS160RTKP MAIN D206 00D2760794900 00D2760794900 DIODE KDS160-RTK/P CVDKDS160RTKP MAIN D207 00D2760794900 00D2760794900 DIODE KDS160-RTK/P CVDKDS160RTKP MAIN D210 00D2760794900 00D2760794900 DIODE KDS160-RTK/P CVDKDS160RTKP NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 36 C3A206 MAIN J136 CORD SN95/PB5 0.6 C3A206 MAIN J137 CORD SN95/PB5 0.6 C3A206 MAIN J138 CORD SN95/PB5 0.6 C3A206 MAIN J139 CORD SN95/PB5 0.6 C3A206 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 37 00MBA10001000 TRS. KRA102M HVTKRA102MT MAIN Q207 90M-BA001450R 90M-BA001450R TRS. KRA107M HVTKRA107MT MAIN Q208 00MBA20001000 00MBA20001000 TRS. KRC102M HVTKRC102MT MAIN Q209 00MBA10001000 00MBA10001000 TRS. KRA102M HVTKRA102MT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 38 47K OHM 1/10W J CRJ10DJ473T MAIN R268 00MNN05473610 CHIP RES. 47K OHM 1/10W J CRJ10DJ473T MAIN R269 00MNN05473610 CHIP RES. 47K OHM 1/10W J CRJ10DJ473T NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 39 90M-DK100770R 90M-DK100770R CER. CAP. ! 0.0047UF 2.5KV CERAMIC KCKDKS472ME POWER C912 CER. CAP. 0.022UF 50V Z CCFT1H223ZF POWER C913 CER. CAP. 0.022UF 50V Z CCFT1H223ZF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 40 TACT SW PWB (CUP12115-3) TACT CN82 CONN. 3P STRAIGHT 20017WS-03 CJP03GA19ZY TACT D801 263710016400S 263710016400S L.E.D. SLI-325URT31W TP CVDSLI325URT31WT055 TACT S815 90M-SP001210R 90M-SP001210R SW SKHV10910G TACT CST1A012ZT NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 41: About Replace The Microprocessor With A New One
11. ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE When replaced of the µ-PRO (Microprocessor) or the Flash ROM, confirm contents of the following. Pos. After Description Remark Name replaced MAIN IC21 T5CB5(F ADD Z) MAIN CPU SR5023 After replaced A : Mask ROM (With software).
