Summary of Contents for Journey Upwalker Premium Lite

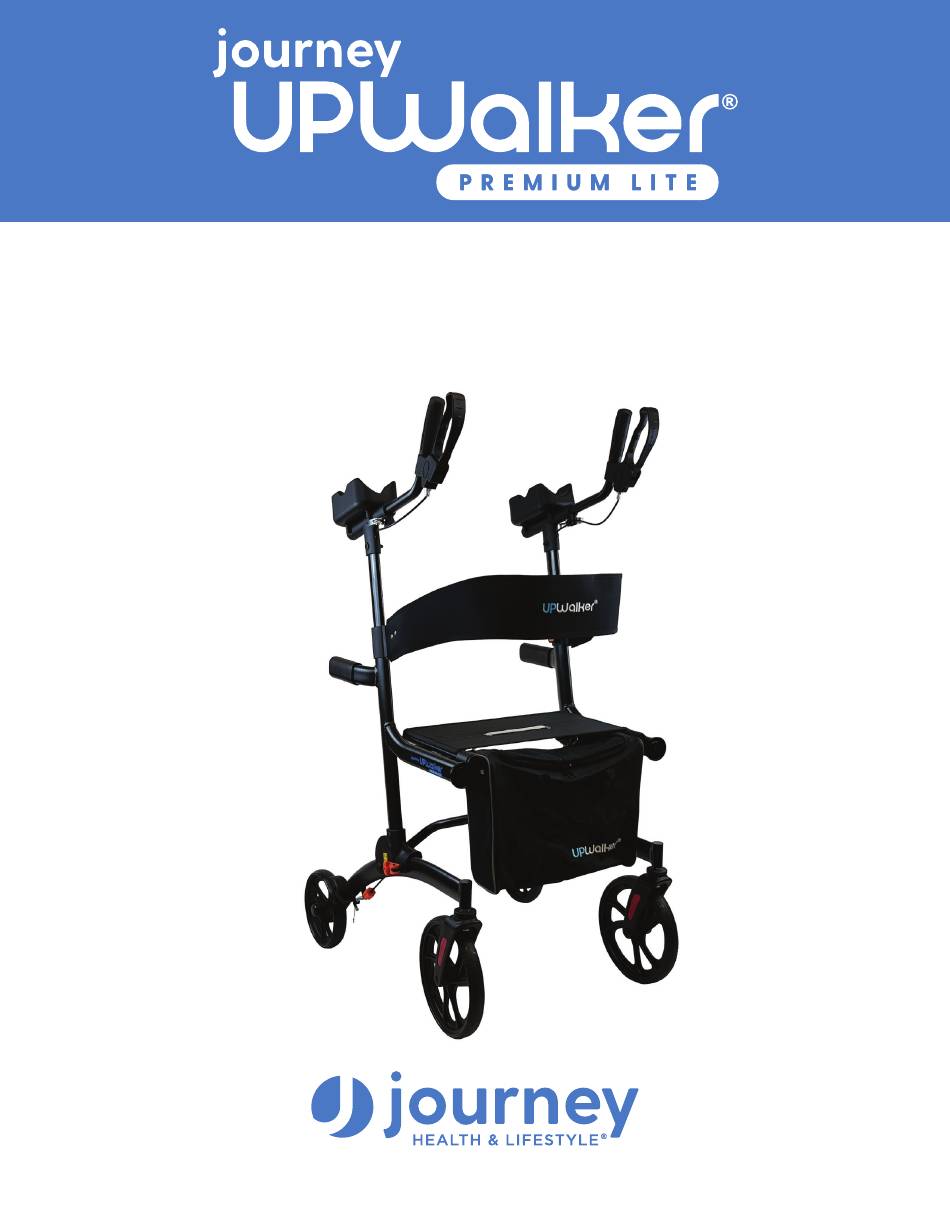

  • Page 1 PRODUCT MANUAL...
  • Page 2 • User assistance is recommended for customers with fall risk. • DO NOT use the UPWalker Premium Lite if there is apparent damage or if any parts are missing. • Care should be taken to ensure that height adjustment locks, handles, brakes or any other functional or moving parts are in good working order before operation.

  • Page 3: Product Description

    UPWalker Premium Lite Product Features II. PRODUCT DESCRIPTION Handgrip 9. Sit-to-stand handles 2. Parking/hand brake 10. Seat Beverage holder 11. Seat rail 4. Armrest support 12. 2 Motion activated safety lights Removable armrest 13. Personal item bag comfort pad 5. Luxury personal item bag 14.
  • Page 4 Dark Luster Champagne Silver Opening the UPWalker Premium Lite Place the UPWalker Premium Lite on all four wheels on a level floor (Figure 1). Standing behind the unit, hold each sit-to-stand assist handle and move outward in opposite directions to open frame (Figure 2).

  • Page 5: Armrest Height Adjustment

    III. INSTRUCTIONS FOR USE Armrest Height Adjustment Push in the upper portion of the light gray height adjustment tab (Figure 4) and, while keeping the tab depressed with one hand, use your other hand to hold the armrest pad ( centered over pad) to raise or lower the armrest to the desired height (Figure 5).
  • Page 6 III. INSTRUCTIONS FOR USE Removable Comfort Armrest Pads The armrest pads can be removed by pressing down on the circular clasp and pulling down the strings. The pads can be cleaned with household cleaners and sanitizers. (Figures 6-7). Attaching / Removing the Personal Item Bag The personal item bag has plastic clips which go over the seat rail extension on the front end of the walker (located at front end of the seat).
  • Page 7 Attaching / Removing the Backrest With the logo side of the backrest upright and facing the front of the UPWalker Premium Lite, slide the T-slot on the end of the backrest onto the respective mating T-ridge on the front of the frame under the armrests (Figure 12).
  • Page 8 III. INSTRUCTIONS FOR USE Motion Activated Lights The UPWalker Premium Lite comes with two unique motion–activated LED lights used for your safety when dark. The lights attach with a magnet to the front of the UPWalker (Figure 14). It can easily be removed by sliding off the magnet to charge the battery.
  • Page 9 III. INSTRUCTIONS FOR USE Attaching / Removing the Beverage Holder The beverage holder can be attached to either one of the handgrip tubes. First, unscrew the knob on U-shaped tube clamp and remove the beverage holder from the U-clamp. Then slide “U”...

  • Page 10: Adjusting Brakes

    III. INSTRUCTIONS FOR USE Using Brakes / Parking Brakes To apply the brakes while walking with the UPWalker Premium Lite, pull both brake handles evenly toward you (Figure 19). To set the parking brakes, while using one hand to hold the handgrip use the other hand to push the brake handle forward until it clicks in locked position (Figure 20).
  • Page 11 III. INSTRUCTIONS FOR USE Adjusting Brakes (contd.) Advanced Adjustments: If this adjustment does not achieve the desired braking strength, use the adjustment option on the brake handle end of the brake cable (Figure 23). If the brakes are too loose, use your fingers or pliers to turn the barrel adjuster nut counterclockwise a half rotation at a time until the...
  • Page 12 Sitting and Using Sit-to-Stand Handles To sit on the seat, set the parking brakes with the UPWalker Premium Lite positioned on a level surface. Sit with legs facing the rear using the sit-to-stand handles for assistance and backrest for support. You may sit with the armrests in either a raised or lowered position depending on your preference.

  • Page 13: Folding And Transporting

    III. INSTRUCTIONS FOR USE Folding and Transporting Folding your UPWalker Premium Lite for storage or Folding your UPWalker Premium transport: Lite for storage or transport: Lower the armrests to the l Lower the armrests to the lowest setting. Lift the seat owest setting.

  • Page 14: Warranty Information

    Warranty Information LifeWalker Mobility Products stands firmly behind our Journey Health & Lifestyle stands firmly behind our commitment to pro- commitment to provide premium quality products. Our vide premium quality products. Our standard warranties represent our confidence in the materials and workmanship of your new UPWalker Lite.

  • Page 15: Customer Support

    • A description of the defect or problem requiring service. • The date of your purchase and form of payment. • The product serial number. DO NOT return any products to Journey Health & Lifestyle without our • A description of the defect or problem requiring prior authorization.
  • Page 16 If you have any questions, call us at our toll free number: 1-800-958-8324...
