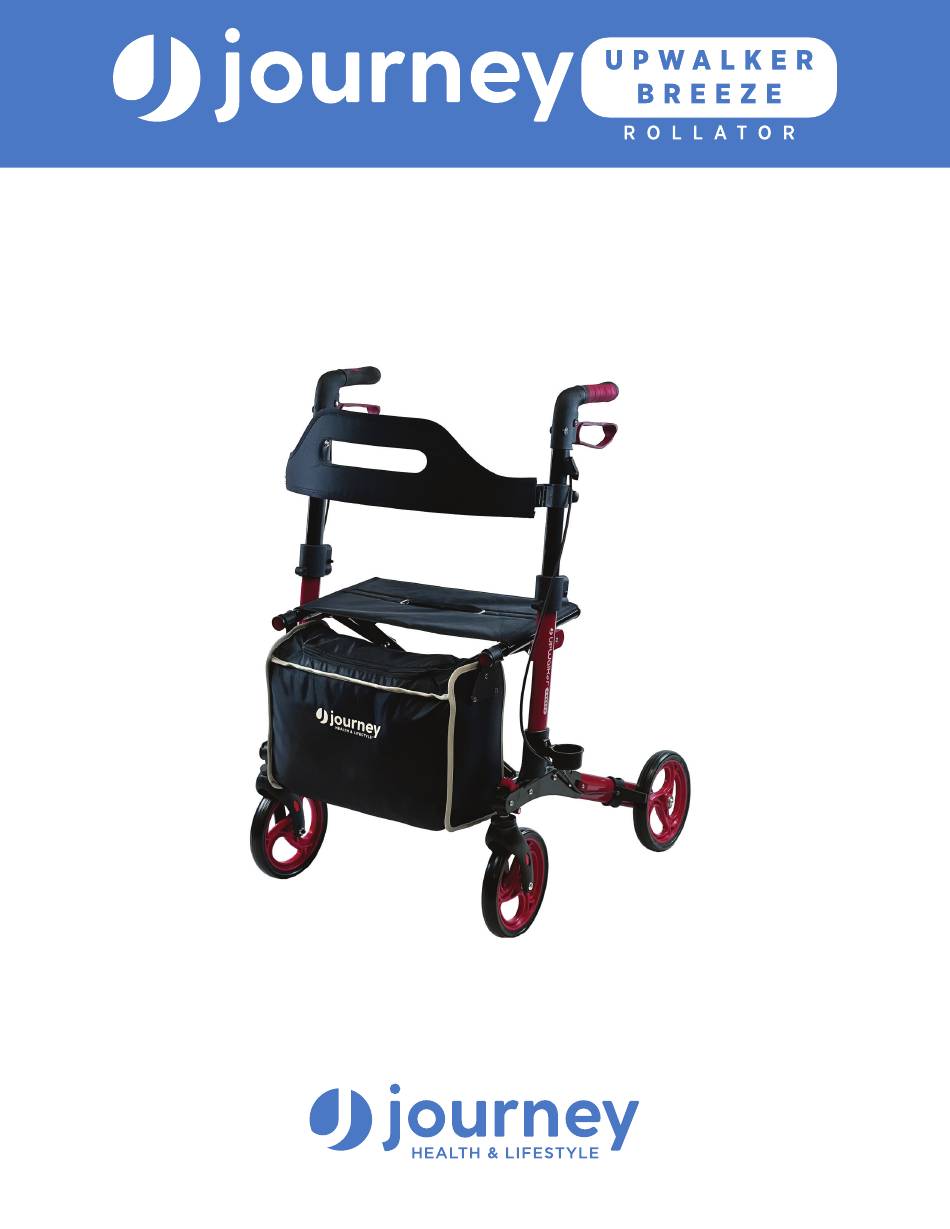

- Page 1 PRODUCT MANUAL GET STARTED ®...
- Page 2 TABLE OF CONTENTS Product Overview ..............3 Getting Started ..............4-6 Height Adjustment ..............7 Brake Adjustment ..............8 Storage & Transport ............... 9 Technical Specifications ............10 Maintenance & Warranty ............11...
- Page 3 Journey Customer Service. INTENDED USE The Journey UPWalker Breeze rollator has been designed to assist you when walking and / or carrying small items. This rollator is accompanied with a personal accessory bag. It is suggested to only utilize this bag when using or carrying objects.
- Page 4 Carefully remove all packaging, including the cardboard tubes covering the knurled tube part of the brake assembly. Check the product thoroughly for damage or obvious faults. WARNING! If you suspect the unit to be faulty, please do not use, but contact Journey Customer Service immediately. Handgrip Backrest Seat...
- Page 5 GETTING STARTED Our rollator is supplied partially assembled in its folded position. To unfold the rollator follow these instructions. Step 1: Remove the rollator out of the packaging and lay flat on the floor. Step 2: Unfold front wheels until you hear a click. Once secure, repeat on the other side. DO NOT USE THE ROLLATOR UNLESS THE WHEEL HAS SECURELY LOCKED INTO PLACE.
- Page 6 Step 6: When installing the bag, please note that the front of the bag bears the Journey Logo. Each end of the travel bag has a half circle clip meant to connect it to the rollator. Connect your travel bag to the front of the rollator, once complete repeat to the other side.
- Page 7 HEIGHT ADJUSTMENT Product Code: WA01083 HEIGHT ADJUSTMENT The height of the handgrips can be raised or The height of the handgrips can be raised or lowered to suit the user. lowered to suit the user. Height Adjustable To adjust the height of the handgrips, press To adjust the height of the handgrips, press the Button the height adjustment spring button (see...
- Page 8 BRAKE ADJUSTMENT Product Code: WA01083 BRAKE ADJUSTMENT Your rollator brake system will require periodic adjustment. To adjust the brakes loosen Nut B and then screw/unscrew Nut A. When adjusted re-tighten Nut B. If Nut A further adjustment is required then loosen Nut B the Locking Screw and then, using a pair of pliers, pull the cable down by...
- Page 9 STORING & TRANSPORT Step 1: While in upright position, remove arms, storage bag, and backrest. Step 2: Fold Breeze legs and wheels. Step 3: Place Breeze into carry bag with seat reflectors and front wheels facing upward. Step 4: Zip up bag. Step 5: Breeze is ready to transport or store.
- Page 10 TECHNICAL SPECIFICATIONS Product Code: WA01083 TECHNICAL SPECIFICATIONS Min height 31 inches Max height 38 inches Length 26 inches Width 25.4 inches Folded width 10.6 inches Folded height 13.4 inches Folded length 23.6 inches Min / Max seat height 21 inches Seat width 18.1 inches Seat depth...
- Page 11 Contact Journey Customer Service. 5. Monthly Checks - Check that no components are loose. Check the adjustment to your brakes (fig.
- Page 12 ® REGISTER Your Product and Get Helpful Info...
