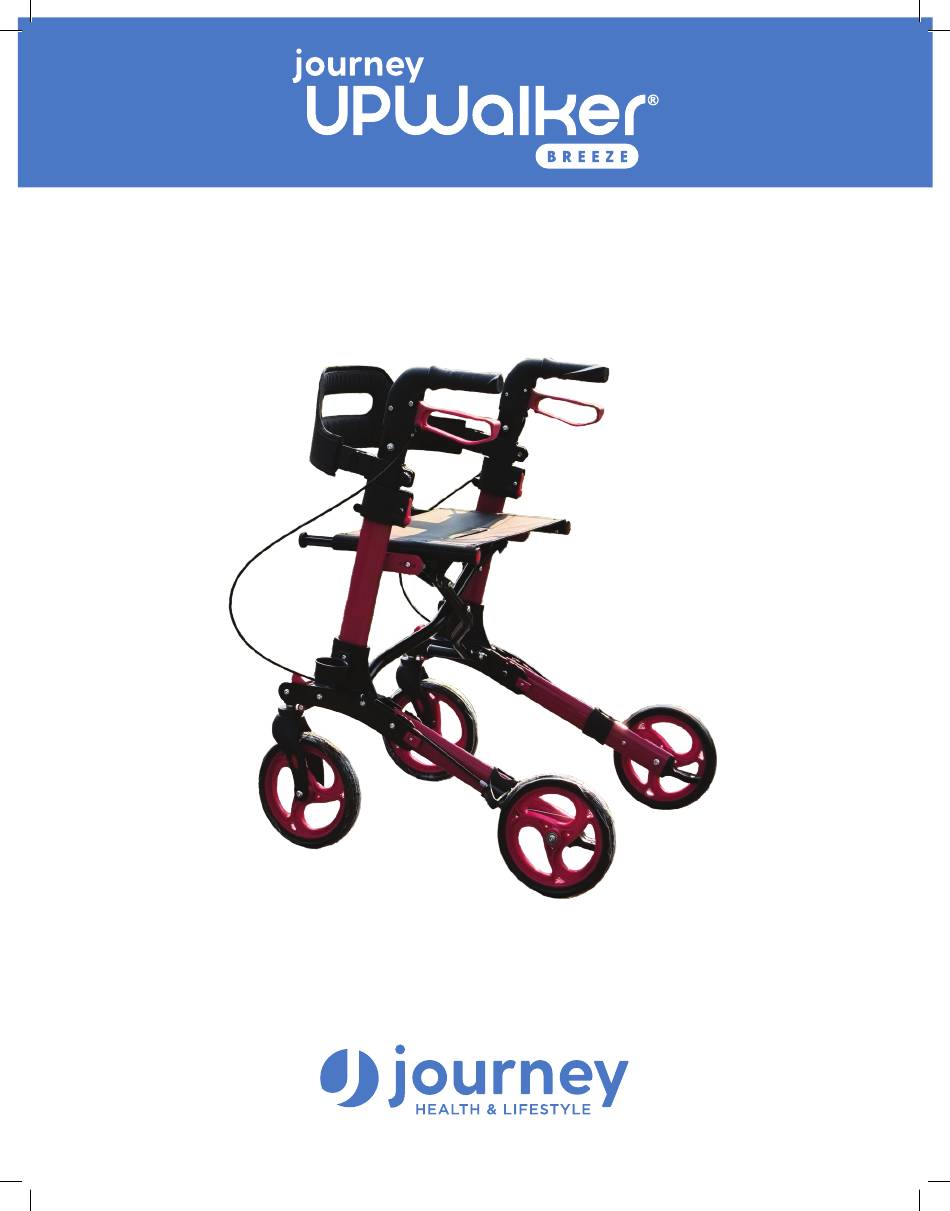

- Page 1 PRODUCT MANUAL ® www.shopjourney.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Overview ..............3 Getting Started ..............4-5 Height Adjustment ..............6 Brake Adjustment ..............7 Technical Specifications ............8 Maintenance & Warranty ............9... -
Page 3: Product Overview
INTENDED USE The Journey UPWalker Breeze rollator has been designed to assist you when walking and carrying small items using the bag provided. The bag was designed speci ically to it your rollator, please only use the bag supplied for your rollator. -
Page 4: Getting Started
Carefully remove all packaging, including the cardboard tubes covering the knurled tube part of the brake assembly. Check the product thoroughly for damage or obvious faults. WARNING! If you suspect the unit to be faulty, please do not use, but contact Journey Customer Service immediately. P. 3... - Page 5 GETTING STARTED Product Code: WA01083 ASSEMBLY INSTRUCTIONS (CONTINUED) Our rollator is supplied fully assembled in its folded position. To unfold the rollator follow these instructions. Step 1: Open the rollator by pulling the handles away from each other (see fig. 1) Step 2: Push down on the seat (see fig.
-
Page 6: Height Adjustment
HEIGHT ADJUSTMENT Product Code: WA01083 HEIGHT ADJUSTMENT The height of the handgrips can be raised or Height Adjustable lowered to suit the user. Spring Button To adjust the height of the handgrips, press the height adjustment spring button (see fig. 6). Raise or lower the handgrips to the desired user height. -
Page 7: Brake Adjustment
BRAKE ADJUSTMENT Product Code: WA01083 BRAKE ADJUSTMENT Your rollator brake system will require periodic adjustment. To adjust the brakes loosen Nut B and then screw/unscrew Nut A. When adjusted re-tighten Nut B. If Nut A further adjustment is required then loosen Nut B the Locking Screw and then using a pair of pliers pull the cable down by approximately... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Product Code: WA01083 TECHNICAL SPECIFICATIONS Min height 31 inches Max height 38 inches Length 26 inches Width 25.4 inches Folded width 10.6 inches Folded height 13.4 inches Folded length 23.6 inches Min / Max seat height 21 inches Seat width 18.1 inches Seat depth... -
Page 9: Maintenance & Warranty
Contact Journey Customer Service. 5. Monthly Checks - Check that no components are loose. Check the adjustment to your brakes (fig. - Page 10 ® www.shopjourney.com If you have any questions, call us at our toll free number: 1-800-958-8324...
