Pyramid 714EX Owner's Manual

SPECIFICATIONS:
CONTROL FREQENCIES 40Hz,150Hz, 400Hz,1KHz,3.5KHz,8KHz AND 15KHz
EQUALIZATION RANGE BOOST 12dB+/-3dB, CUT 12dB+/-3dB
INPUT SINGAL VOLTAGE 5V(High) / 800mV(Low)
FREQUENCY RESPONSE 20Hz~20KHz
DISTORTION
<0.01%
S/N RATIO
>60dB
CHANNEL SEPARATION >50dB
DIMENSION 178 X 25 X 141MM
CONSUMPTION 250mA
POWER SUPPLY 11-16DC NEGATIVE GROUND.
Due to our continuing efforts towards products improvement, the above specification are subject to change without notice.
CARE AND MAINTENANCE
Your Pyramid Stereo 7-Band Graphic / Equalizer is an example of superior design and craftsmanship. The following
suggestions will help you care for your equalizer / booster so you can enjoy it for years.
Keep the graphic / equalizer dry. If it
does get wet, wipe it dry immediately.
Liquids contain minerals that can
corrode electronic circuits.
Use and store the graphic / equalizer
o n l y i n n o r m a l t e m p e r a t u r e
e n v i r o n m e n t s . T e m p e r a t u r e
extremes can shorten the life of
electronic devices and distort or melt
plastic parts.
Handle the graphic / equalizer gently
and carefully. Dropping it can damage
the circuit boards and can cause it to
work improperly.
Keep the graphic / equalizer away
from dust and dirt, which can cause
premature wear of parts.
Wipe the graphic / equalizer with a
damp cloth occasionally to keep it
looking new. Do not use harsh
chemicals, cleaning solvents, or
strong detergents to clean the graphic
/ equalizer.
4.
Gold Series
OWNER S
MANUAL

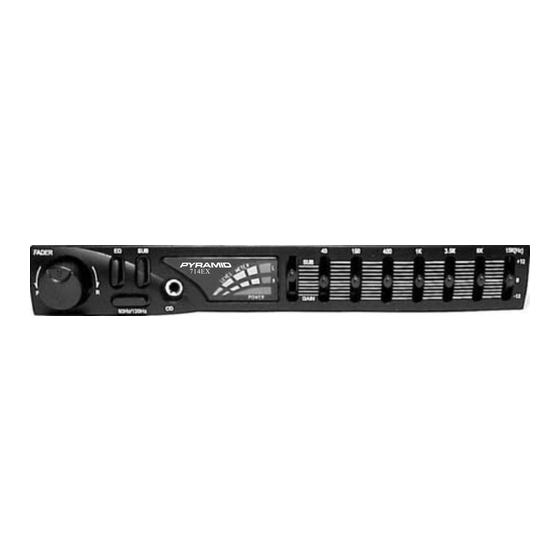

714EX
MODEL: 714EX
HALF-DIN
7 BAND PRE-AMP EQUALIZER
WITH SUB WOOFER OUTPUT
R
