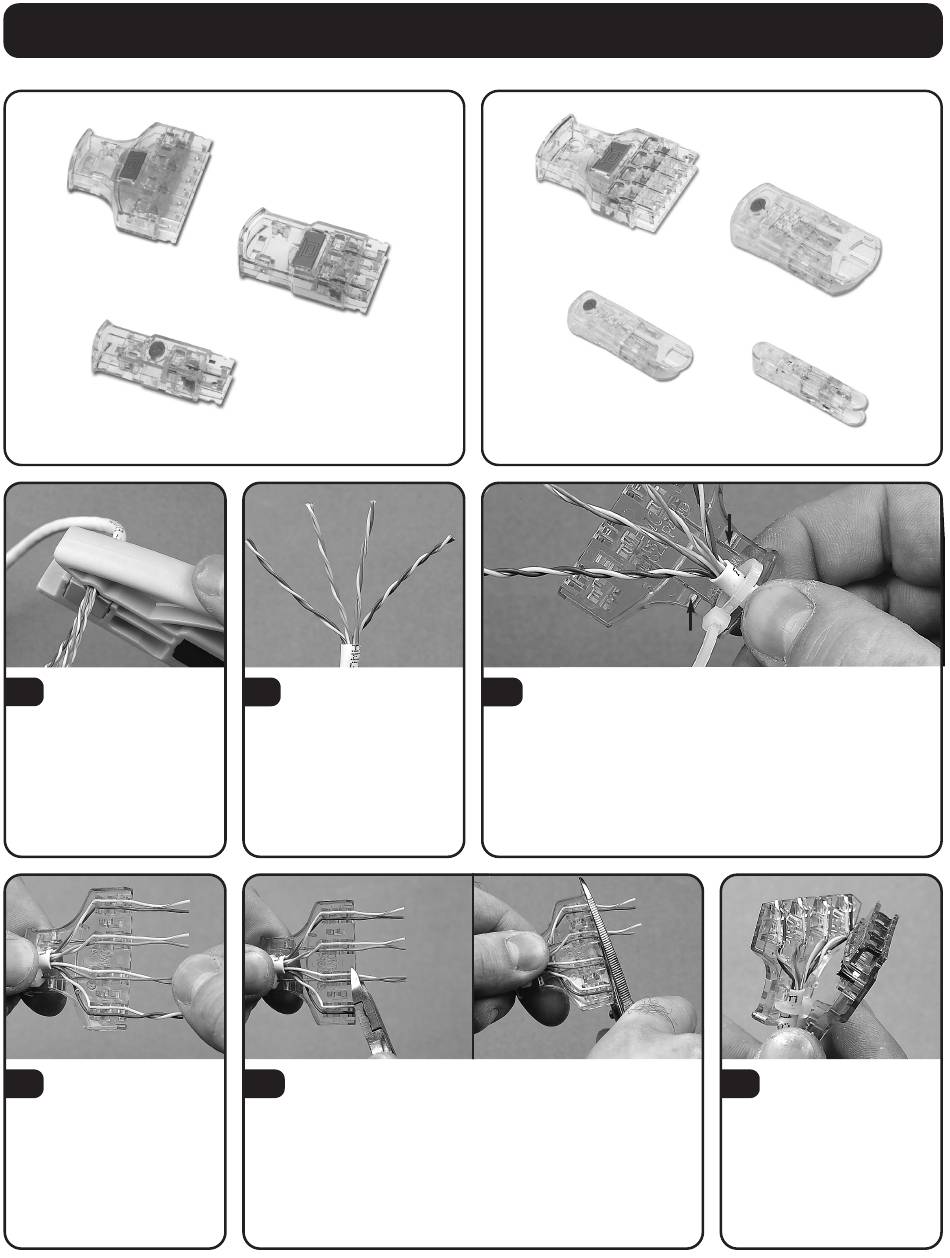

S210 ® Patch Plugs
Cut cable to desired length.
1
Strip back cable jacket a
minimum of 50mm (2 in.) using the
Siemon AllPrep ™ tool
(P/N: CPT-RGTP) or equivalent.
Insert each wire into the
4
appropriate channel in the
cover, maintaining twists as close as
possible, 13mm (0.5 in.) or less, to
point of termination.
® /S110 ® Patch Plug Instructions
Note: S210P4 Shown Throughout
Fan out individual pairs.
2
See wiring chart on back
page.
Using the Siemon diagonal cutters (P/N: CI-CUTTER), electrician's
5
scissors (P/N: CI-SCISSORS) or equivalent, trim wire ends flush with
front of housing cover. Wire tips should not protrude past the front surface
of the housing cover.
Note: A fairly flush cut is important to prevent interference in step 7. Angle the cutting
blade along the same angle as the front of the housing cover when trimming.
S110 ® Patch Plugs
Rib
Align the end of the cable jacket over the first rib in the cover as
3
shown. Jacket end should extend just beyond cable tie point*.
Lace cable tie through cover to secure cable, making sure tie latch is
positioned on either side of cable, trim cable tie flush to tie latch.
Do not over tighten cable tie.
*The S110P1 does not have a cable tie point. To ensure proper strain relief, extend the
cable jacket further into the plug. For unjacketed 1-pair cable, tubing (provided) should be
used for proper strain relief.
Note: S210 ™ version shown throughout.
Rib
Align latches on cover with
6
receptacle holes in base and
fit cover IDC slots over contact IDCs.
