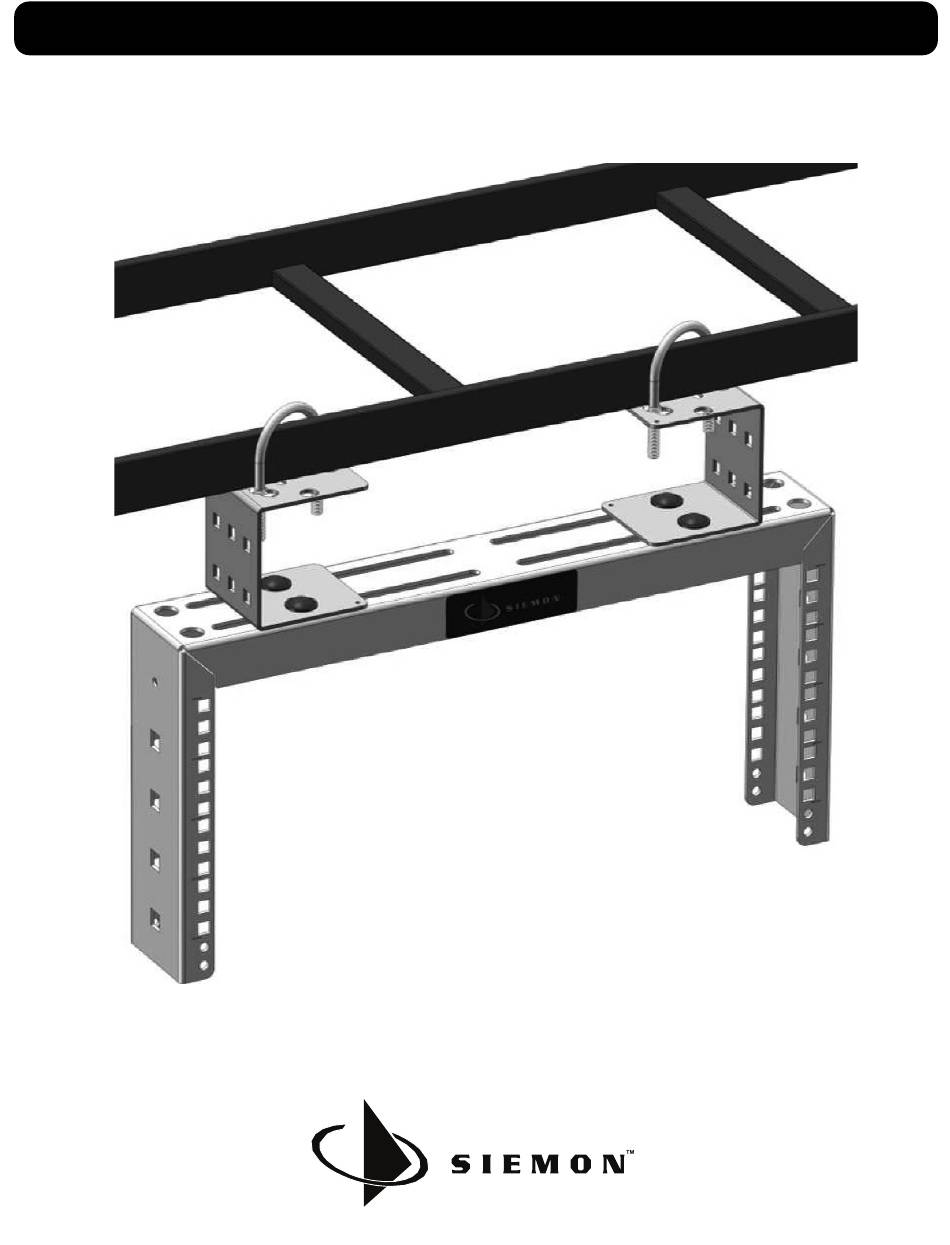

- Page 1 LADDER TRAY RACK INSTALLATIONS w w w. s i e m o n . c o m...
-
Page 2: Table Of Contents
Table of Contents Safety Information ........3 CTR Diagram . -
Page 3: Safety Information
Before loading equipment on to the cable tray rack, be sure to torque all mounting hardware provided with the rack to a setting of 75in-lbs. - The maximum load capacity of the cable tray rack should not exceed: CTR-02-01 - 9kg (20lbs) CTR-04-01 - 8kg (40lbs) CTR-06-01 - 27kg (60lbs) - The cable tray racks are intended to be installed in accordance with all applicable requirements of the National Electrical Code (NEC) and the local Authority Having Jurisdiction (AHJ). -
Page 4: Ctr Diagram
CTR-04-01 Diagram... -
Page 5: Hardware
HARDWARE TOOLS REQUIRED 1/2” Socket Wrench 1/2” Box Wrench... -
Page 6: Below Tray Installation - Parallel - Ladder Mounted
PARALLEL – BELOW CABLE TRAY (LADDER MOUNTED) Torque all hardware to 75in-lbs... -
Page 7: Below Tray Installation - Parallel - Rail Mounted
PARALLEL – BELOW CABLE TRAY (RAIL MOUNTED) Torque all hardware to 75in-lbs... -
Page 8: Side Wall Installation
SIDE WALL MOUNTED Torque all hardware to 75in-lbs... -
Page 9: Rack Bonding
RACK BONDING... -
Page 10: Notes
C. Never install this device in a wet location. D. Never install wiring during a lightning storm. Global Headquarters Watertown, Connecticut USA Tel: (1) 866-548-5814 For a complete listing of our global offices visit our web site www.siemon.com...
