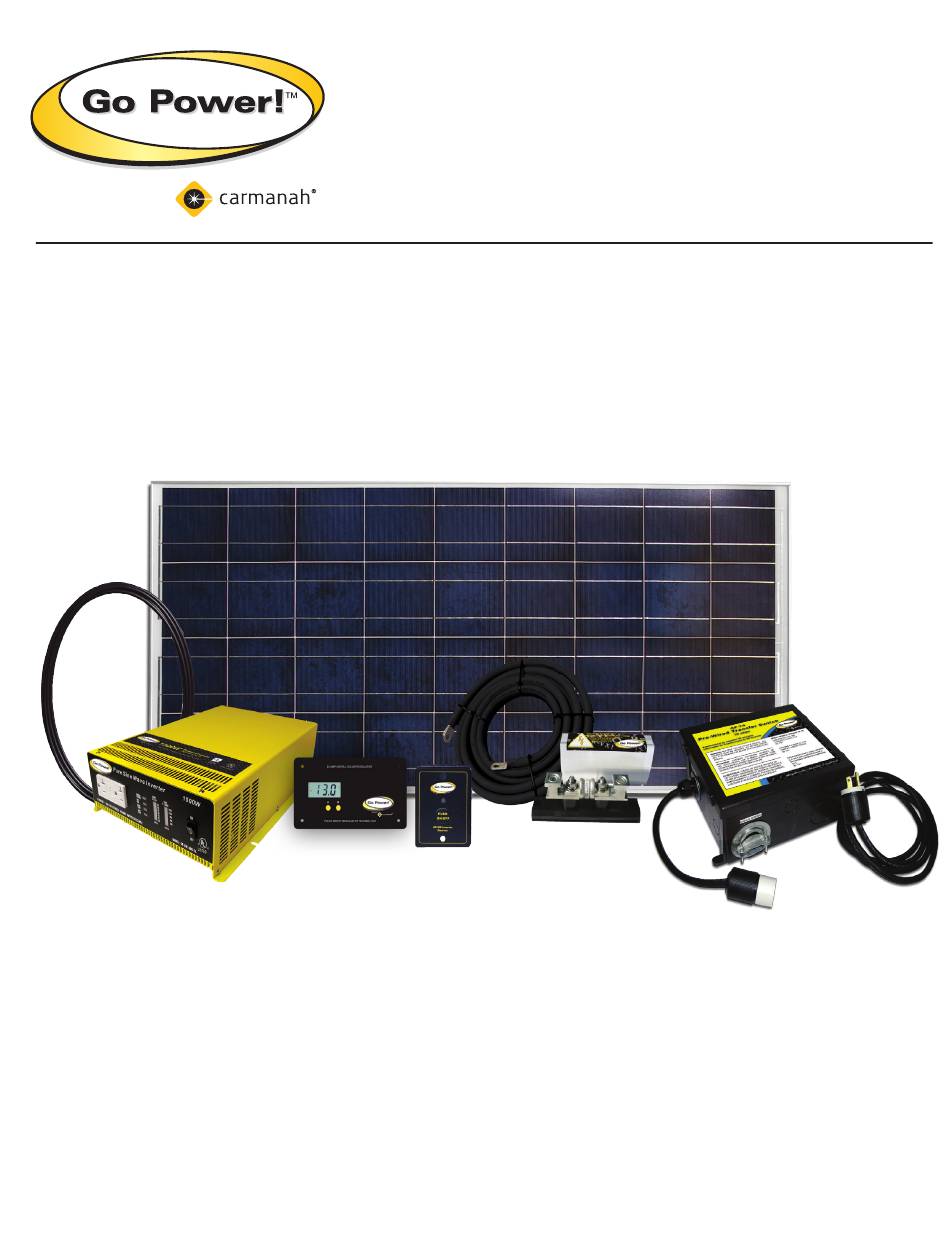

Weekender SW Kit shown here
Owner's Manual
Expansion Kits:
RV Solar Power Kits:
GP-RV-50E
GP-RV-50
GP-RV-80E
GP-RV-80
GP-RV-95E
GP-RV-95
GP-RV-125E
GP-RV-125
GP-RV-145E
GP-RV-145
Weekender SW
Weekender HD
Solar Elite

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Go Power! GP-RV-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carmanah Go Power! GP-RV-50

Summary of Contents for Carmanah Go Power! GP-RV-50

  • Page 1 Expansion Kits: RV Solar Power Kits: GP-RV-50E GP-RV-50 GP-RV-80E GP-RV-80 GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145E GP-RV-145 Weekender SW powered by Weekender HD Solar Elite Owner’s Manual Weekender SW Kit shown here...

  • Page 2: Table Of Contents

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E Table of Contents RV Installation Parts and Checklist 1.0 Installation Overview 1.1 How Does the Go Power! RV Solar Kit Work 1.2 Warnings 1.3 Tools Required (Additional tools may be required) 1.4 Weekender SW / Weekender HD / Solar Elite Installation 2.0 Wiring the Solar Module and Power Cable 2.1 GP RV-50–...

  • Page 3: Rv Installation Parts And Checklist

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Standard Kits Expansion Kits GP-RV-80E/95E/ GP-RV-50 GP-RV-80/95/125 /145 *Solar GP-RV-50E Solar BP75MONO Freedom Independence PART *Weekender HD or SW Elite 125 E/145E 01. Ring Terminal Battery Connector 02. Power Cable (7 m) 03. Tie Wrap 04. Interconnect cable 05. Positive MC Parallel Connector 06. Negative MC Parallel Connector 07. Connector & lock nut 08. #10/32 Well Nut 09. #10/32 Well Nut Bolt 10. #10/32 Well Nut Flat Washer...

  • Page 4: Installation Overview

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E 1.0 Installation Overview Congratulations on your purchase of a Go Power! RV Solar Power Kit. You have chosen a clean, quiet and sustainable way to provide power to your recreational vehicle. A Go Power! RV Solar Power Kit gives you the ability to dry camp while ensuring your batteries remain fully charged.

  • Page 5: Weekender Sw / Weekender Hd / Solar Elite Installation

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E 1.4 Weekender SW / Weekender HD / Solar Elite Installation Refer to specific product manuals included in kits for correct product installation (ex. inverters, chargers and remotes).

  • Page 6: Wiring Modules With Mc Cables

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E 3.0 Wiring Modules with MC Cables RV Kits with MC cables contain a potted or sealed junction box with a positive and negative MC con- nector.

  • Page 7: Using The Mounting Feet

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E 5.1 Using the Mounting Feet 1. Assemble the mounting feet onto the ends of the solar module using the 1/4” bolts, washers and nuts Solar as shown in Figure 2.

  • Page 8: Connecting To The Battery & Solar Array

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E 3. Wire the regulator as shown in the GP-PWM Manual. Use the leftover power cable to connect the Solar regulator to the batteries. Regulator 4.

  • Page 9: Warranty Return Procedure

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E 4. This warranty supersedes all other warranties and may only be modified by statement in writing, signed by Go Power! 5. Warranty terms effective as of July 4, 2005.
  • Page 10 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E Charge Rate: The current applied to a battery to restore its energy capacity. The battery manufacturer will usually have a recommended charge rate for their product. The rate is typically 10 – 20 percent of the amp hour capacity at the 20-hour rate.

  • Page 11: Diagrams

    Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Panel: A group of photovoltaic modules (or single module) mechanically mounted on a single frame. Parallel Connection: Electrical connection where the positive terminals of a number of devices are connected together, as are their negative terminals.
  • Page 12 GP-RV-50 Weekender SW GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 Solar Elite GP-RV-95 GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Diagram 1 www.gpelectric.com...
  • Page 13 GP-RV-50 Weekender SW GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E GP-RV-95 Solar Elite GP-RV-95E GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E Diagram 2 www.gpelectric.com...
  • Page 14 GP-RV-50 Weekender SW GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 Solar Elite GP-RV-95 GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Diagram 3 (MC3 & MC4 CABLES) (MC3 & MC4 CABLES) www.gpelectric.com...
  • Page 15 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Diagram 4 (MC4 - BRANCH-2M-1F) (MC4 - BRANCH-2F-1M) www.gpelectric.com...
  • Page 16 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E Diagram 5 (MC4 - BRANCH-2M-1F) (MC4 - BRANCH-2F-1M) OR (MC4 OUTPUT 10) www.gpelectric.com...
  • Page 17 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Diagram 6 www.gpelectric.com...
  • Page 18 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E Diagram 7 www.gpelectric.com...
  • Page 19 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80E GP-RV-80 GP-RV-95 Solar Elite GP-RV-95E GP-RV-125 GP-RV-125E GP-RV-145 GP-RV-145E Diagram 8 www.gpelectric.com...
  • Page 20 Weekender SW GP-RV-50 GP-RV-50E Weekender HD GP-RV-80 GP-RV-80E Solar Elite GP-RV-95E GP-RV-95 GP-RV-125E GP-RV-125 GP-RV-145 GP-RV-145E powered by © 2012 GO POWER!™ By Carmanah Technologies MOBI_MAN_GP-RV Install Kit Series_vI_Feb2012.indd www.gpelectric.com...
