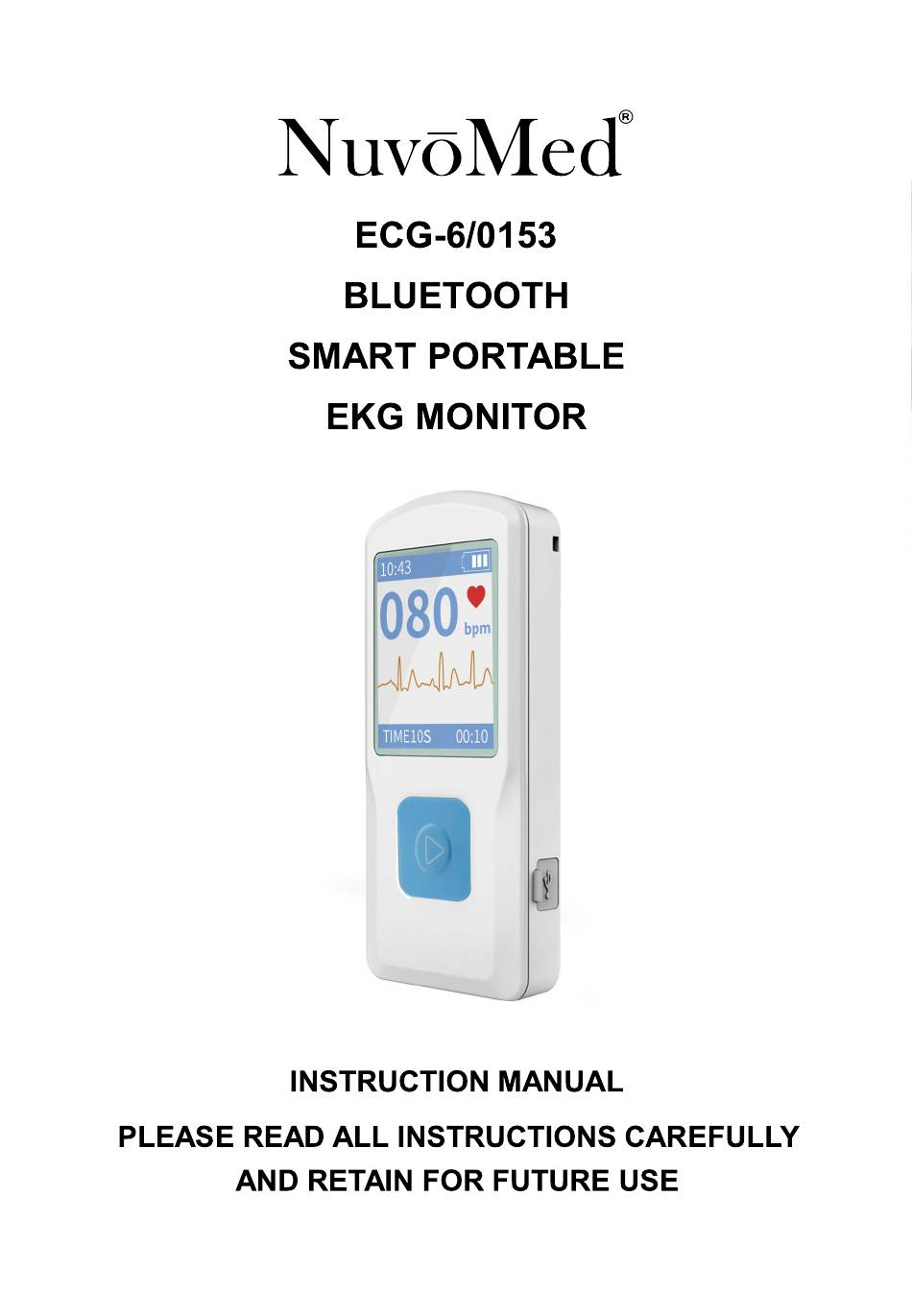

- Page 1 NuvoMed ECG-6/0153 BLUETOOTH SMART PORTABLE MONITOR INSTRUCTION MANUAL PLEASE READ INSTRUCTIONS CAREFULLY RETAIN FUTURE...
- Page 2 GETTING STARTED Remove the product from the box. Please retain all packaging until you have checked and counted all of the parts and the contents against the parts list. PACKAGE CONTEMS Portable Monitor USB Charging Cable Instruction manual FEATURES Large LCD ScreenTo View The ProcessandResults Multiple Leads: Hand-To-Hand (Lead I);...
- Page 3 Do not use or store the device in the following ambient conditions: Near fires or open flames. - Locations exposed to strong vibration. Locations exposed to strong electromagnetic fields. Do not disinfect the device in autoclave or gas sterilizer. If you observe skin allergies or skin damage, do not use this device.
- Page 4 battery is charging, the device will not record EKG. The following symbol will present on the use interface to remind the charging state, device cannot be opened in battery charging state. Lay the device in a cool and shady environment when you are not going to use it for a long period of time, and electrify per three months.
- Page 5 Instruction Some electronic devices are susceptible to electromagnetic interference sent by this equipment if inadequately shielded. Please use this equipment at least 20 cm or as far as you can from a TV set, radio or other automated office equipment so as to avoid interference. This device is a radio transmitter and receiver.
- Page 6 Description of Parts Display Screen On/Off B utton Metal Electrodes Micro USB Port OPERATING INSTRUCTIONS Charging the device The device can continuously work for more than 2 hours when battery is completely charged. The cycle life of the battery up to 200 times. Please rechargethe battery every time it drains out.
- Page 7 Battery display Indicator Description Full power Capacity: 3/4 Capacity: 1/2 Capacity: 1/4 Low power, it is recommended to recharge the battery. The device will automatically shut down. Operating Instructions to Use There are severalmeasurementmethods asshown below following pictures. Caution: Pleaseensurethat the electrodesfully contact the skin.
- Page 8 Measuring Operations Start-up Long press the On/Off button for 3 seconds, you will hear a beep sound and see the screen light-up. The device will keep level off when not being measured. Start measurement After start-up, the device will enter into a pre-sample interface. Please use the correct measurementmethod as guided, the EKG waveform and heart rate will display on the screen,as shown in Figure...
- Page 9 10:34 080! TIMEIOs 00:03 Figure 2: Formal SampleInterface The device will enter into case review interface after completing sampling. Case review interface displays the sampling start time and heart rate. See Figure 3. 10:51 2014-09-26 31/32 TOTAL: Figure 3: Case Review Interface When the device enters into case review interface, it will display the latest sampled case.
- Page 10 continue if the user holding the electrodeat both ends again when the device is under the case review interface. Auto power off The device will automatically shut down after no operations within I minute. PC Sync Software Operation and Communication The intended use of PC software: PC management software is intended to be used as supportive...
- Page 11 Click the button "Next", and the dialog box in Figure 5 shows up, then, if you click "Browse..." , you can set the installation path, otherwise the default installation path Monitor". Click the button "Next" again, and the dialog box showed in Figure 6 shows up.
- Page 12 Click "Finish" to end installation. Setup Wiwd Figure 9 Figure 10 Data Communication Start the software under the circumstance of no device connected, it will enterto the following interface shown as Figure 11.Turn on the device, insert to Micro USB port, click "New search". Then the software startsto searchthedevice, shown as Figure 12.
- Page 13 Figure 13 Operation Download case: double-click a case to download, or select multi-case, then click "Download selected" to download these cases, or click "Download all" to download all cases. Figure 14 Delete case: select a case or multi-case, then click "Delete selected"...
- Page 14 click "0K". During upgrading, please keep connection state between the computer and the device. Figure 16 Figure 17 Portable ECG Monitor Firmware upgrade succeeded. Figure 18 Set device parameters: Languages and sample time can be set by user. The interface for setting successis shown as Set Device Paren Language :...
- Page 15 PC management software can be operated in WIN 8/WINlO operating system, hereafter list the requirements of hardware of PC to run WIN 10/WIN 8 operating system. Hardware Specifications for the WIN 10 operating system Processor: I .0 GHz or faster Screen: above resolution Firmware: UEFI 2.3.l, support safety start...
- Page 16 64 bit (x64) Windows 8, 32 bit system hardware requirements Minimum Suggested Optimum configuration configuration configuration 2 GHz 2 GHz (support 2 GHz Central (support PAE, PAE, NX and multi-core processor NX and SSE2) SSE2) processor Memory 4 GB DDR3 Microsoft Direct Direct...
- Page 17 Android 9 & above or iOS 9.0 & above, and with Bluetooth 4.0 and above. Ensure Bluetooth is turned "ON" on your phone. Search for "Nuvomed " App on your phone's App Store / Google Playstore,then download andinstall theApp.
- Page 18 Data Communication Open the App, then, turn on the device. The App will start to search the EKG MONITOR via Bluetooth. NuvoMed EKG Monitor NuvoMed EKG Monitor NuvöMed NuvöMed PM105742 Cases Settings Settings Cases...
- Page 19 "EKG MONITOR" found, previous new measured data/information will be stored and displayed, including: time length, check time, heart rate. You can also review previous stored case data. NuvoMed EKG Monitor PMIO NuvöMed • 2023-05-10 "M 105742 No Abnormalities Cases Settings...
- Page 20 REMARK: Please note that the new measured data will only be uploaded one time to one smart device, when "Not uploaded" data is selected in "Configuration" — 19:22 e E < About Configuration Do you want to delete the data from the device after receiving O YES @ NO...
- Page 21 You can also alter the settings of EKG Monitor, including "Language", "Length of measurement" and ''Sound Control: ON/OFF". PMIO Language Chinese English Italian French Polish German Length of measurement Sound Control...
- Page 22 You can also set your own information including "Name", "Gender", "Birthday" on Report Settings — 19:22 m h; < About Report Settings Name Gender Male Birthday 1965-8-24 Synchronize If the synchronization switch is enabled, the information will be synchronized to the report...
-
Page 23: Troubleshooting
Troubleshooting and Solution If the device has a problem account, please look up the following sheet for solutions first, if not included in the following issues and you can not solve either, please contact with the customer service. Problem Cause Solution Start-up failure after Please recharge the... - Page 24 Maintenance, Transportation & Storage Cleaning and Disinfecting Turn device before cleaning. Rubbing alcohol appropriate for device disinfection, then air dry. Or just wipe it with a dry and clean cloth for cleaning. Do not allow any liquid to enter the device. Maintenance Any equipment maintenanceand upgradesmust be carried by the professionals who are trained and authorized by the company for...
- Page 25 Explanation of Symbols Symbol Description Symbol Description Follow Type BF instructions applied part Pulse rate (bpm) Bluetooth Power Covering IP22 button/function protection rate button WEEE disposal Atmospheric Humidity pressure limitation limitation Medical Device Store between complies with -400F and Directive 131OF(-400C 93/42/EEC and 550C)
-
Page 26: Specification
Keep away from Keep in a sunlight cool, dry place Do not use this equipment in Product code the MRI scan room Authorized representativein This side up the European community Fragile, handle with care TECHINCAL SPECIFICATION Normal Work Environment Operation environment •Temperature: 41 OF 1040F (+50C+-400C) .Relative humidity: 250/0400/0... - Page 27 Amplitude frequency characteristics:standard: I OHz;IHz - 20Hz; (+0.4dB, -3dB) Noise level: S30gV Input impedance: 250MQ CMRR: 260dB Scanning speed:25mm/s±5% Sampling rate: 250 dots/s HR measurement range: 30bpm - 300pbm, error: +1 bpm or 1% Battery voltage: DC 3.7V Type of protection against electric shock: internal power device Degree of protection against electric shock: Type BF applied part Degreeof waterproof: IP22 Display: 1.77"...
- Page 28 Electromagnetic Compatibility and Interference Guidance manufacturer's declaration electromagnetic emissions for all EQUIPMEM and SYSTEMS Guidance manufacturer's declaration electromagnetic emission The device is intended for use in the electromagnetic environment specified below. The customer of the user of the device should assure that it is used in such...
- Page 29 guidance test level Electrostatic ±8kV contact Floors should be discharge ±15kV wood, concrete or contact ceramic tile. If (ESD) IEC 61000-4-2 floors are covered with synthetic material, the relative humidity should be at least 30%. Power 30 A/m 30 A/m Mains power frequency quality should be...
- Page 30 recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance 80 MHz to 800 800 MHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation...
- Page 31 NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures,objectsand people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM...
- Page 32 80 MHz to 800 800 MHz to 2,7 (1-2-0 0,01 0,12 0,23 0,37 2,33 3,69 7,38 11,67 23,33 For transmittersrated at a maximum output power not listed above,the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
-
Page 33: Warranty
occur in a particular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. - Page 34 No charge will be applicable for such repair or replacement. SERVICE AND REPAIR: If service is required for this product, you should first contact Nuvomed Customer Service info@nuvomed.com or by calling 1-(888)-738-6886, Monday to Friday IOam to 6pm EST.
