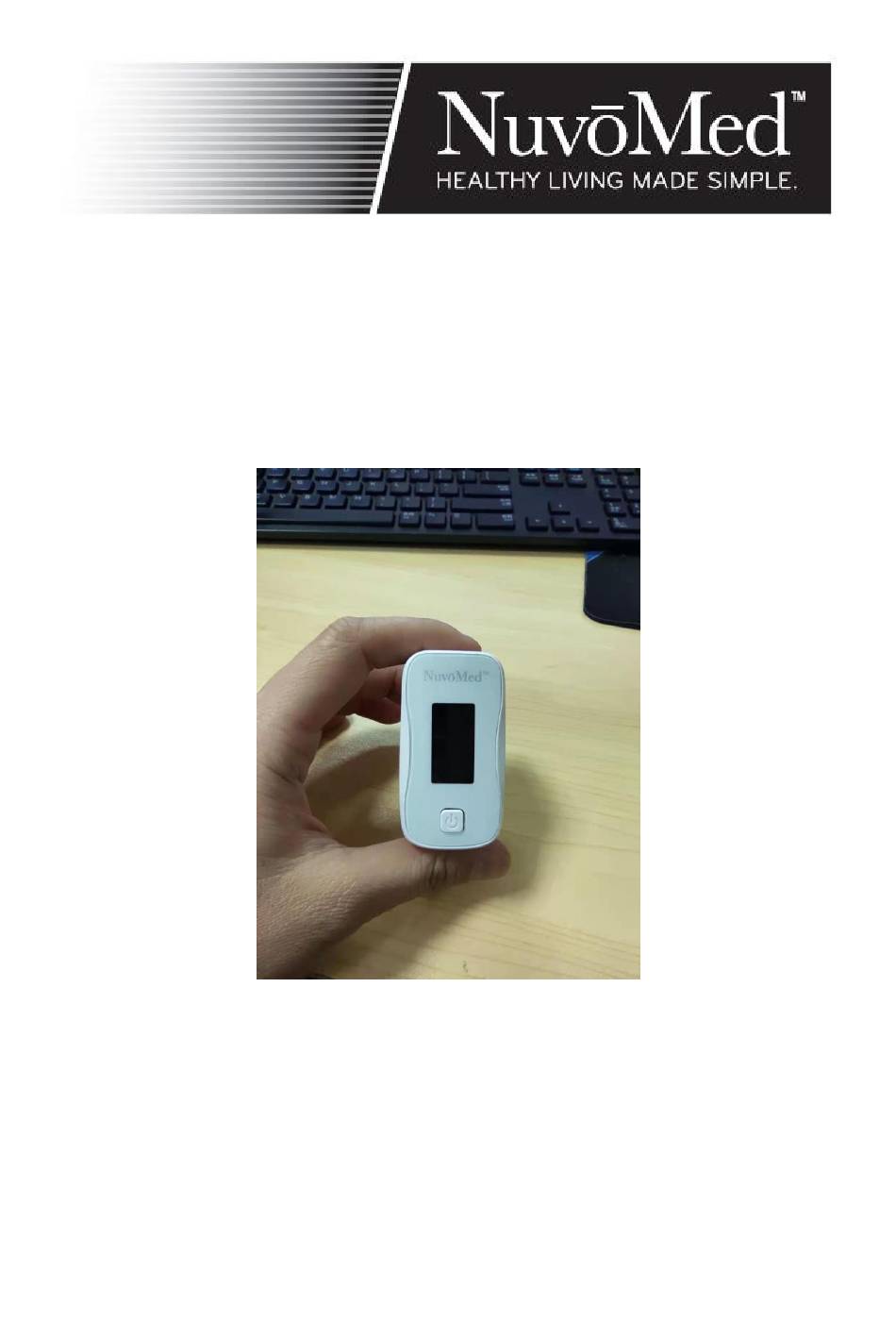

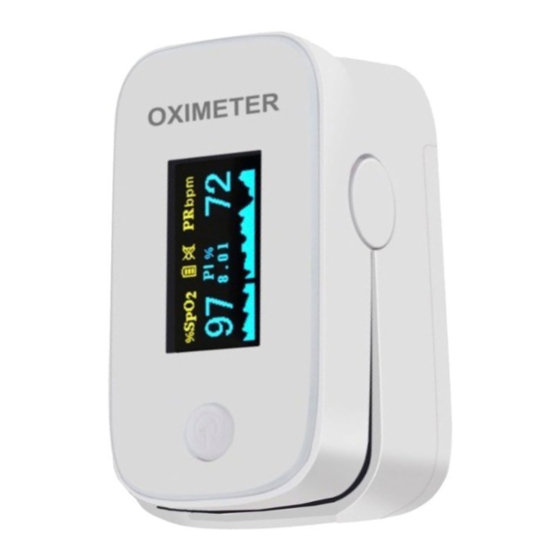

- Page 1 TOS-6/0925 Blood Oxygen Audible Fingertip Pulse Oximeter Instruction Manual Please read all instructions carefully and retain for future use...
-
Page 2: Troubleshooting
Introduction Know your Device Indications for Use Important Safety Information and Precautions Warning Preparation Parts Battery Warning Instructions for Use Set Up Your Device Measurement Setting of Parameter Care and Maintenance Troubleshooting Specifications EMC Declarations 9-11 Warranty Information... - Page 3 Know your Device Indications for Use The Pulse Oximeter, based on all digital technology, is intended for noninvasive spot-check measurement of functional oxygen saturation of arterial hemoglobin (SpO2). Advanced DSP algorithm can minimize the influence of motion artifact and improve measurement accuracy of low perfusion. The Oximeter can be used to measure human Hemoglobin Saturation and heart rate through finger.
-
Page 4: Battery Warning
Preparation Table 3.1.1 Parts Definition and Description Name Description Power Button Turn on the machine TFT Display Display the SP02 / PR data & Plethysmogram Note: • When battery power is at lowest level, the battery capacity indicates symbol of remind users of replacement of battery. - Page 5 Set Up Your Device Battery Installation 1. Press the tab on the battery cover at the back of this device, so as to lift it up and remove. 2. Insert 2 AAA (Included) alkaline batteries according to the +/– markings. Snap the battery cover on, ensuring it clicks into place.
- Page 6 ALM - Move the “*” symbol to the back of ALM, long press the power button to turn it ON/OFF. (Note: If the measured value exceeds the maximum or minimum value of SPO2 or PR, there will give off sound when ALM is turned on.) BEEP - Move the “*”...
- Page 7 Note: 1. ALM = 1 second delay after the incorrect result being detected. 2. The customer can preset the limit value to the 98 or 99 to check whether it is normal for ALM setting. Care and Maintenance • For regular maintenance, this device only needs to be wiped gently with a soft, dry cloth. •...
- Page 8 Model TOS-6/0925 Dimensions 56mm (L) x 30mm (W) x 30mm (D) Anti-electric Shock Type Internally Powered Equipment Anti-electric Shock Degree Type BF Equipment Type B Mode of Operation Continuous Operation Enclosure Degree of ingress protection: IP22 *IP22 means the outer body of the product can withstand the water dropping to the surface when the body deviate 15 degree from horizontal surface.
- Page 9 Manufacturer’s Declaration of the EMC Guidance and manufacturer´s declaration – electromagnetic emission –for all EQUIPMENT AND SYSTEMS Fingertip Pulse Oximeter is intended for use in the electromagnetic environment specified below. The user of this device should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic Environment - Guidance...
- Page 10 Guidance and manufacturer´s declaration – electromagnetic immunity – for EQUIPMENT and SYSTEM that are not LIFE-SUPPORTING This device is intended for use in the electromagnetic environment specified below. The user of this device should assure that it is used in such an environment. Immunity Test IEC 60601 Compliance...
- Page 11 Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM - for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING Recommended separation distances between portable and mobile RF communications equipment and this device. This device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
- Page 12 90 day warranty period and an additional one-month period. No charge will be applicable for such repair or replacement. SERVICE AND REPAIR: If service is required for this product, you should first contact Nuvomed Inc. Customer Service at info@nuvomed.us or by calling Toll-Free Number 1 (877) 612 5619, Monday to Friday 10am to 6pm EST.
