Shelbourne Reynolds HD700 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MAN-10200
HD700

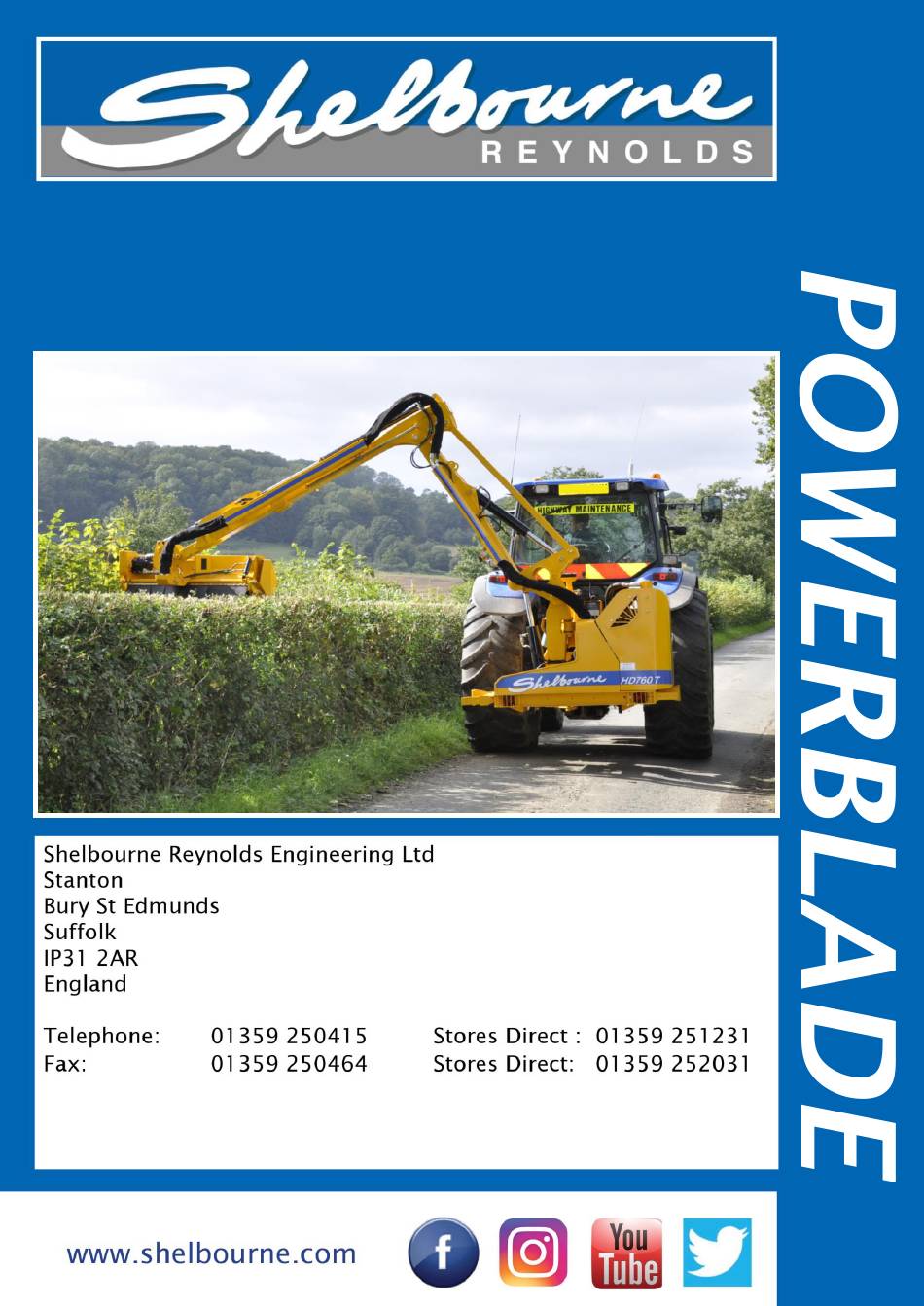

OPERATORS MANUAL
ORIGINAL INSTRUCTIONS
Issue 8
15/10/2020
Visit our website www.shelbourne.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD700 and is the answer not in the manual?

Questions and answers

Related Manuals for Shelbourne Reynolds HD700

Summary of Contents for Shelbourne Reynolds HD700

  • Page 1 MAN-10200 HD700 OPERATORS MANUAL ORIGINAL INSTRUCTIONS Issue 8 15/10/2020 Visit our website www.shelbourne.com...
  • Page 3 When the inspection is complete, THIS FORM MUST BE COPIED & RETURNED TO:- Shelbourne Reynolds within 30 days of delivery to customer, otherwise the invoice date to the dealer will be deemed to be the start date for the warranty period.
  • Page 4 ................. Privacy Notice Here at Shelbourne Reynolds Engineering Ltd we take your privacy seriously and will only use your personal information to administer your account and provide the products and services you have requested from us. We would occasionally like to contact you with details of other products you may be interested in, special offers we provide and details/invitations to shows, working demonstrations and open days, however this would be no more than once or twice per year.

  • Page 5: Ordering Spare Parts

    Dear Customer, Parts manuals are not supplied with this machine but they can be ordered from your Shelbourne Reynolds dealer or alternatively downloaded from the Shelbourne Reynolds website ( www.shelbourne.com ) Manuals are located through the Parts and Service section followed by Manuals and then to Powerblade Manuals. Here you will find Operators and Parts manuals for various years’...
  • Page 6 MAN- 00000 looking at the facing page or progressing through the manual to the next drawing. The drawings indicate the components by item numbers, which you will find, are repeated in the left-hand side of your parts listing, and therefore referring to the correct part.
  • Page 7 MAN- 00000 HD70T OR HD55 Inner boom – Right 1.5Mt Hyd. Adjustable Roller on KIT-08080R KIT-08120F hand build HD70T HD780T Inner boom – Left hand 1.2Mt Hyd. Adjustable Roller on KIT-08164L KIT-08120G build HD55 & HD62VFR HD780T Inner boom – Right hand 1.5Mt Hyd.
  • Page 9 MAN-00000 EC Declaration of conformity for machinery (Machinery Directive 2006/42/EC, Annex II, sub. A) Manufacturer: Shelbourne Reynolds Engineering Ltd. Address: Shepherds Grove Industrial estate, Stanton, Bury St Edmunds, Suffolk. England. IP31 2AR Name and address of the person (established in the European Community/EEA)
  • Page 10 MAN-00000...
  • Page 11 CONTENTS Section 1 INTRODUCTION FOREWORD IMPROVEMENTS AND CHANGES SERVICE PARTS MACHINE IDENTIFICATION POWERBLADE WARRANTY POLICY SECTION 2 SAFETY PROCEDURES ACCIDENT PREVENTION SAFETY SIGNS ACCIDENT PREVENTION BEFORE STARTING ACCIDENT PREVENTION WHEN COUPLING AND UNCOUPLING TO THE TRACTOR ACCIDENT PREVENTION WHEN USING THE PTO SHAFT ACCIDENT PREVENTION WHEN USING THE HYDRAULIC SYSTEM ACCIDENT PREVENTION WHEN OPERATING ACCIDENT PREVENTION WHEN REMOVING A FOREIGN...
  • Page 12 REMOVAL – TRIMMER WITH AXLE MOUNTING FRAME 5.15 5.16 REATTACHING THE MACHINE Section 6 CONTROLS HD700 ELECTRIC PROPORTIONAL CONTROLS HD700 ELECTRIC PROPORTIONAL CONTROLS – OPTIONS HD700 CONTROL BOX SETTINGS Section 7 OPERATION MOVING FROM TRANSPORT TO WORK POSITION STARTING THE ROTOR STOPPING THE ROTOR...
  • Page 13 HYDRAULIC HOSES ACCUMULATOR SAFE REMOVAL CARE OF THE ROTOR 8.10 FLAIL HEAD 8.11 BUSHES AND PINS 8.12 RECOMMENDED TORQUE FOR FASTENERS 8.13 STORAGE...

  • Page 15: Service Parts

    INTRODUCTION FOREWORD This manual will assist the operator in using the Shelbourne Reynolds Powerblade trimmer range of Heavy Duty (HD) trimmers to realise their full potential whilst indicating safe procedures. This manual should be used in conjunction with the manual of the tractor or prime mover.
  • Page 16 (the “Warranty”), it is the buyer’s responsibility to ensure that the selling dealer has completed the warranty registration details and that they are submitted to Shelbourne Reynolds Engineering Ltd. within 30 days from the date of delivery. Using the machine implies the knowledge and acceptance of these warranty terms.

  • Page 17: Repair Costs

    1) given notice in writing with full information regarding the failure, to Shelbourne (or the Shelbourne authorised dealer) during the Warranty Period, and within 15 days of the failure; 2) given Shelbourne (or the Shelbourne authorised dealer) a reasonable opportunity of examining the machine or the damaged or defective parts; 3) if requested by Shelbourne, returned the damaged or defective parts (via the original Shelbourne authorised dealer) within 30 days of notification of a defect;...

  • Page 18: Limitations Of Liability

    Manual, and only using Shelbourne genuine parts. Proof of service work may be requested prior to approval of any claim under the Warranty; 6) failure due to use of incorrect oil or lubricants, contamination of the oil, or oil which has served its useful life or failure to carry out proper maintenance as recommended in the Shelbourne Operators Manual;...

  • Page 19: Extended Warranty

    6) Any loss or costs arising from the inability to use the machine due to any defect with the machine, and during the time taken to repair or replace the machine; 7) The cost of hire or purchase of any replacement machine; 8) Recovery of broken-down machine;...

  • Page 20: Transfer Of Warranty

    Shelbourne giving prior written consent. 1.5.10 EXPORT CUSTOMERS If you are based outside of the UK, warranty terms and conditions outlined above may differ depending on your market. Please contact Shelbourne Reynolds Engineering Ltd. for further information.

  • Page 21: Safety Procedures

    The tractor manufacturers, operator manual safety precautions should also be adhered to when using a Shelbourne Reynolds Powerblade trimmer. The ‘Safe stop’ procedure is mentioned throughout this manual. It is extremely dangerous to carry out any work on a machine while it is under power. The most...

  • Page 22: Safety Signs

    SAFETY SIGNS The following safety signs appear on the machine and are for your safety and the safety of other people. Ensure that you identify each safety sign and understand its warning. These safety signs must be kept in a legible condition and must be replaced if missing or damaged.
  • Page 23 801422 01 De-pressurised Accumulator Accumulator contains (fully turn anti- highly pressurised oil. clockwise Before carrying out service work on lift service firstly lower head to the ground Pressurised (head will drop once Accumulator tap being turned anti- (fully turn clockwise) and then clockwise) de-pressurise system.
  • Page 24 800222 01 800217 01 800215 01 800213 01 Never reach into Stay a safe Never reach Check bolt / belts Flail area. distance from into the for tightness. Allow machine to the machine. crushing stop before working Danger from danger area as on it.
  • Page 25 ACCIDENT PREVENTION BEFORE STARTING Read the manual thoroughly. Read the tractor operators manual thoroughly. Ensure that the operator’s manual is handed to the customer. Ensure bystanders are at a safe distance when moving the Powerblade trimmer by overhead slinging or forklift. Ensure Powerblade trimmer stands are locked into correct position for transportation (see section 4).
  • Page 26 Ensure all tractor mesh/polycarbonate guards are suitable for the job, undamaged and well maintained. Ensure all tractor windows are closed at all times. Ensure correct stabilization system is selected for the size of tractor and Powerblade trimmer (see section 3 and 5). If assembling stabilizing or axle frame onto trimmer or tractor, use lifting equipment, be careful not to trap/pinch fingers, due to confined space.

  • Page 27: Accident Prevention When Using The Pto Shaft

    Ensure the Powerblade trimmer is sitting stable on level ground and cannot tip over in any direction, before coupling and after uncoupling. Ensure the Powerblade stands are locked into position (see section 4). Ensure to have read the tractor operators manual thoroughly and practice using the tractor controls (especially those relating to the 3 point linkage) prior to starting to couple the machine.
  • Page 28 Ensure that the PTO operator’s manual is handed to the customer and is supplied with the shaft. It is recommended to use appropriate PPE (Personnel Protective Equipment), wear gloves, close fitting clothing and ensure hair tied back when dealing with the PTO shaft. Use only the PTO shaft supplied with the Powerblade trimmer, which is intended for use with the machine.
  • Page 29 ‘Soft-seal’ couplings can hold high pressures even with the fitting partially unscrewed. ACCIDENT PREVENTION WHEN OPERATING. The Powerblade trimmer must not be put into operation until the user has been given proper initial instructions either by the dealer or by one of Shelbourne Reynolds' representatives or employees.
  • Page 30 It is the owner’s responsibility that anybody else who uses the machine is competent and has received instructions or training. The Powerblade trimmer may be used only if all safety devices, e.g. detachable guards, are fitted and in proper working order. Nuts and bolts should be checked at regular intervals and tightened if necessary.
  • Page 31 Do not go under or within any part of the Powerblade trimmer unless it is securely blocked or locked with a mechanical device. Follow the ‘SAFE STOP’ procedure before proceeding to leave the tractor seat for removing or opening any guards or clearing a blockage. Always ensure that safety screens are fitted to the tractor in such a way that the operator is protected from thrown debris or objects.
  • Page 32 Always adjust the driving speed to suit the driving conditions. Avoid fast turning when driving uphill, downhill or across a slope. Do not cut the far side of a hedge with the flails towards the operator. Ensure the cutting head adjustable nose is set correctly to control any debris (see section 7).
  • Page 33 Cutting head in contact with the ground Always be aware of your surroundings and operate accordingly. Be aware of confined areas and reduced heights. Bear in mind adverse weather conditions, such as snow, ice, wind and rain. Ensure always use the minimum reach necessary to make cut. Take particular care on slopes.
  • Page 34 If the Cutting head nose deflector requires adjustment, firstly stop the rotor, and position the booms and cutting head into a safe position for work to be carried out (see section 8.10). Follow the ‘SAFE STOP’ procedure before proceeding to leave the tractor seat.

  • Page 35: Accident Prevention When Leaving The Machine

    Ensure not to trap or entangle your fingers, hands, arms or any other body part as the flail rotor may be preloaded by the foreign object or build up of material within the cutting head. Ensure to avoid sharp edges of the flails as these may cause cuts or lacerations. Ensure not to trap or entangle your fingers or hands with the flails as they may move freely or unexpectedly within the Cutting head.
  • Page 36 Powerblade trimmer and may therefore adversely affect it's safe and reliable operation and your safety. Shelbourne Reynolds cannot therefore be held liable for damage or injury caused by the use of non-OEM replacement parts or accessories.

  • Page 37: Accident Prevention When Taking On Public Roads

    Ensure to avoid sharp edges of the flails as these may cause cuts or lacerations. Ensure positioned in a safe area when servicing or adjusting the machine. Ensure flail rotor and the flails are in a restrained position when sharpening the flail cutting edge.
  • Page 38 It’s recommended to disconnect all electrical, hydraulic connections and the PTO driveshaft from the Powerblade so that it cannot be inadvertently operated during road transport. Ensure lift cylinder is locked using the two taps located on the main lift cylinder (see section 7) Ensure the rear road lights are free of debris and are clearly visible.

  • Page 39: Noise Emissions

    2.14 PROPER USE Shelbourne Reynolds Powerblade trimmers are based on state-of-the-art technology and are manufactured in accordance with recognised safety requirements. Nevertheless the use of the machine does not preclude the risk of injury to the user or third parties and/or the risk of damage to the machine itself or to other materials or items of equipment.

  • Page 40: No Liability For Consequential Damage

    Any claims for damages not directly incurred by the Powerblade trimmer cannot be accepted. By the same token, Shelbourne Reynolds cannot be held liable for any consequential damage resulting from incorrect use of the machine.

  • Page 41: Specification And Description

    SECTION 3: SPECIFICATION AND DESCRIPTION DESCRIPTION The machine consists of a cutting head, which is positioned by a number of articulating booms, mounted to a frame, which carries the relevant control and drive systems. A double-skinned head shell (A) with a rotor (B) is fitted with a choice of cutting flails. This is driven by a hydraulic motor (C) mounted within the envelope of the head.

  • Page 42: Technical Specifications

    6 spline shaft and rotating in a clockwise direction is required. All HD700 trimmers are fully independent hydraulic machines. All HD700 machines are fitted with a rear lighting board; this should be connected to the standard 7-pin trailer plug. INTENDED USE The machine’s intended to be used on typical farms and highways for annual or...
  • Page 43 Standard Standard Note: For safety and stability Shelbourne Reynolds Ltd recommends the use of axle bracket mounting on HD762 VFR, HD767 VFR, HD770 T and HD780 T Trimmers. Where 3 point mounting is used it is important that the fitting instructions within section...
  • Page 44 Standard Standard Note: For safety and stability Shelbourne Reynolds Ltd recommends the use of axle bracket mounting on HD762 VFR, HD767 VFR, HD770 T and HD780 T Trimmers. Where 3 point mounting is used it is important that the fitting instructions within section...
  • Page 45 REACH DIMENSIONS HD755 HD760T HD762VFR Retracted Extended Straight Forward 1.5mt Max reach (A) head horizontal 5.56mt 4.90mt 6.03mt 6.05mt 5.55mt Max reach (B) head vertical 5.37mt 4.71mt 5.84mt 5.86mt 5.36mt Max height (C) head vertical 6.73mt 6.09mt 7.01mt 7.15mt 6.76mt Max height (D) head horizontal 5.72mt 5.08mt...
  • Page 46 All dimensions weights and other data are approximate. TECHNICAL SPECIFICATIONS OPTIONS The HD755, HD760T and HD770T machines can all be assembled to work on the left or right hand side of the tractor. A small number of parts would need to be replaced however this is a major job and could not be undertaken in the field.
  • Page 47 LH (Outboard) drive RH (Inboard) drive Cutting head choice of flails - ‘T’ flails, reversible Boot flail and shackle, (hedges and up cutting only (grass and light to medium occasional grass) hedges) Competition flail, up cutting only (grass and light to medium hedges)
  • Page 48 The Powerblade HD700 cutting head is available to a verge mowing specification. Options available include: 152mm (6”) diameter steel roller, 152mm diameter rubber roller, rubber flap protection kit, double skinned front nose and skid wear kit. Double skinned front nose...
  • Page 49 Highways kit option includes four piece chevron kit, magnetic arrow, two LED strobe lamps and two florescent boom transfer. This is recommended if working on public highways. Debris blower kit is available to be fitted at the rear of the Powerblade. Active electronic float (AEF): AEF uses the hydraulic roller cylinder to sense the amount of pressure the cutting head is applying to the ground.

  • Page 51: Handling And Transportation

    1. Use the forklift tine holes that are incorporated into the design of the Powerblade trimmer. Earlier build HD700 machines use the bolt on type brackets. Later build machines use the forklift shoes which have been incorporated into the design of the Powerblade stand.
  • Page 52 Ensure that the tines go through both slots in the front and back plates. Insert the tines as far as they can go, to get the trimmer as close to the forklift as possible. It is recommended that the head is parked as close to the rear of the trimmer to lessen overhanging weight and not exceed forklifts capacity.
  • Page 53 When transporting the Powerblade ensure: 1. Ensure that the two taps on the ports on the lift cylinder are closed, handles are positioned 90 degrees to fittings, to lock cylinder movement (see section 7). 2. Ensure the slew locking device is also fitted to lock of any slew movement (see section 7).

  • Page 55: Preparation For Use

    SECTION 5: PREPARATION FOR USE Refer to section 2 for safety procedures. Use the dealer pre-delivery/installation check and warranty registration form positioned at the front of this manual to check through the Powerblade trimmer. This section will help to expand on the pre-delivery/installation. CHOICE OF TRACTOR Refer to section 2.3 for accident prevention before starting.
  • Page 56 The Powerblade trimmer is suitable for a Category 2 tractor linkage and in most instances Category 3. Shelbourne Reynolds Engineering Ltd recommends that this be of good quality and in good condition. Check the condition of any quick release ball ends carefully, as they will be subjected to upward forces.
  • Page 57 Axle brackets to suit Shelbourne Reynolds Powerblade should be set at either 1000 or 1100 mm between centres. In fitting these brackets it may be required for the removal of the check chain bracket which in turn should be incorporated into the design of the axle bracket.
  • Page 58 Shelbourne Reynolds axle brackets supplied will be accompanied by the axle bracket parts and operators manual (MAN-10104) which will include specific instructions on how to fit the axle brackets to specific tractors. FITMENT OF 3 POINT LINKAGE STABILISER TO THE POWERBLADE Refer to section 2.4 for accident prevention when coupling and uncoupling to the...
  • Page 59 6. Keep unused components for when attaching the Powerblade to the tractor. Note pin item 14 not required for HD700 machines (HD800 only). FITMENT OF DRAWBAR KIT TO THE POWERBLADE Refer to section 2.4 for accident prevention when coupling and uncoupling to the tractor.
  • Page 60 See parts manual MAN – 10101, Kit-08283 for more details. 1 Fit item 1 to the trimmer main frame using item 5, 6 and 7. 2 Then fit item 4 into the clevis item 1 using the item 2 and 3. Ensure the smaller diameter end of the adjustable link is fitted into trimmer main frame.
  • Page 61 See parts manual MAN – 10101, Kit-08015 for more details. Ensure the machine is on a firm level site with plenty of room to conduct the fitting operation. Fitment of the axle frame stabiliser kit to the Powerblade trimmer. Note: Throughout this section item numbers mentioned are related to the above drawing KIT-08015.
  • Page 62 2. Once the correct width has been identified it’s important to work out the axle frames overall length required which will ultimately determine the distance between Powerblade and the tractor. Multiple holes in both item 1 and item 2 allow 70mm increments of the overall length of the axle frame assembly. The Powerblade should be as close as physically and practically possible to the rear of the tractor whilst maintaining sufficient gap that in all positions the Powerblade DOES NOT contact the tractor (e.g.
  • Page 63 drop arms as these are tractors specific (When ordering KIT-08015 supply tractor make and model). 6. Using appropriate lifting equipment connect the assembled axle frame to the Powerblade frame using pins 7 & 8. 7. Then connect the top link (item 10) into position ‘B’ between the trimmer main frame and the axle frame assembly.
  • Page 64 ATTACHMENT – 3 POINT LINKAGE STABILISER, TRACTOR TO POWERBLADE Refer to section 2.4 for accident prevention when coupling and uncoupling to the tractor. Throughout this section item numbers mentioned are related to the below drawing of KIT-08237. See parts manual MAN – 10101, Kit-08237 for more details. 1.
  • Page 65 Note: Some tractor lift arms may not be compatible to use the rear hole if the crank within the lift arm is too great. 3. For lift arms of the quick release ball end type fit the tractor balls to both sides of trimmer frame and add spacers for sideways movement as shown below.
  • Page 66 Ensure rocker item 8 and spacers items 10, 11 and 12 are in good condition. If either part is worn or irregular in shape it should be replaced immediately. These parts should be checked after 8 hours use, then checked and repeated as required peordically thereafter.
  • Page 67 12. Lengthen or shorten the top link so that on level ground the trimmer frame is vertical. This will also affect the angle of the cutting head in relation to the ground. 13. Lift or lower the tractor 3 point linkage to align the holes between the 3 point yoke and the 3 point shaft.
  • Page 68 17. Point 15 and 16 should be repeated once the trimmer is fully operational. In some cases it’s also required to place the head horizontal to the ground, close to the tractor tyre in the work position power the booms into the ground. This may then allow further adjustment to the tractor check chains and drop arms if required.
  • Page 69 1 Connect the larger diameter end of the adjustable link into the tractor drawbar clevis using the tractor drawbar pin. 2 Once connected decrease the adjustable link length as much as possible. In some cases it’s also required to place the head horizontal to the ground, close to the tractor tyre in the work position power the booms into the ground.
  • Page 70 ATTACHMENT – AXLE FRAME STABILISER, TRACTOR TO POWERBLADE Refer to section 2.4 for accident prevention when coupling and uncoupling to the tractor. See parts manual MAN – 10101, Kit-08015 for more details. 1. Remove the drop arm pin connecting the tractor’s drop arms to the lift arms. Lift arms should ideally be removed or otherwise secured so that they cause no obstruction.
  • Page 71 Ensure clearance maintained between the tractor and machine. 3. Connect the drop arms of the tractor into the drop links (item 12) attached to the axle frame assembly using the drop arm pin supplied with the tractor. Drop arms Drop arm Drop link (item 12) 4.
  • Page 72 Ensure not to leave the top link in an overextended position between the machine and tractor 7. The machine should then be slowly and carefully raised to a height that brings the tractor’s PTO shaft and the gearbox input shaft to the same approximate height, whilst checking at all times that if the lift arms are still attached they are fouling nothing.
  • Page 73 To adjust the lengths hold the Shorten the inner and outer Shorten the inner and outer Remove all sharp edges and half shafts next to each other guard tubes equally. Sliding profiles by the same burrs, grease the sliding . in the shortest working position length as the guard tubes.

  • Page 74: Connecting The Controls

    5.11 CONNECTING THE CONTROLS Controls should be mounted near-to-hand on the LH side of the tractor. Ideally the controls should move with the seat so that if the terrain is bumpy the seat and controls will move up and down together. All controls are supplied attached to a bracket.
  • Page 75 Route and secure the power lead into the tractor cab, terminating close to the controls armrest. Using the two 7 pin connector ends connect the machine end wiring loom to the joystick control box by joining the screw connectors together. Then connect the power supply, using the two 4 pin screw connectors.
  • Page 76 Parking stand on the boom side has third position required if operating close to the machine and tractor. Start the tractor at low to medium revs, engage the PTO to allow the oil to circulate for about 10 minutes without operating any other control valves. This will make sure that the oil is thoroughly filtered by passing it through the filters but the minimum of other components.
  • Page 77 5.14 REMOVAL – TRIMMER WITH 3-POINT LINKAGE ASSEMBLY Refer to section 2.9 for accident prevention when leaving the machine. 1. Select a firm and level site to park the machine. 2. Bring the head to a horizontal position approx. 1m from the wheel and 1m from the ground.
  • Page 78 6. The parking stands can now be swung down or lowered to their ‘parked’ positions (see previous section 5). Earlier machines may also need the forklift brackets fitting at this point (if required) see section 4. 7. Then lower the tractor linkage until the stands are in contact with the ground. Adjust the tractor top link to ensure all four stands are in full contact with the ground.
  • Page 79 14. Remove the top link pin between the tractor and 3-point linkage rocker. Then swing the 3 point assembly away from the tractor towards the trimmer main frame. Re- position the rocker (item 8) from the front of the 3 point yoke to the rear enabling it to connect between the trimmer main frame and the 3 point yoke.
  • Page 80 5. Detach the tractor drop arms from the drop links (item 12) by removing the drop link pin. Drop arms Drop arm Drop link (item 12) 6. Release the axle bracket latches, allowing the sub frame to be lowered clear of the tractor by extending the adjustable top link.
  • Page 81 CONTROLS Refer to section 2 for safety procedures. HD700 ELECTRIC PROPORTIONAL CONTROLS This system incorporates a serial link between the control unit in the cab and the control box on the machine. This reduces the amount of wiring and connections, improving reliability and as a spin-off gives useful diagnostics.
  • Page 82 These actions are proportional; that is small joystick displacements give slow cylinder movements and large displacements give faster cylinder movements. Shelbourne Reynolds Ltd or a Shelbourne Reynolds approved dealer will set-up the controls to the operators liking when the machine is delivered.
  • Page 83 Head rotation - twist joystick anti- clockwise to move head anti-clockwise Head rotation - twist joystick clockwise to move head clockwise Joystick Tele out or Tele In or twist VFR forward VFR back...
  • Page 84 In addition to the joystick, there are 8 additional buttons; each represented by a diagram. Their meanings are detailed below. Slew Forward: Rotates the arms into the work position next to the tractor. Slew Backward: Rotates the arms into the transport position behind the tractor. Slew to Tele button change To swap Slew control to Telescopic buttons and Telescopic control to Slew buttons.
  • Page 85 To return Slew control to Slew buttons and Telescopic control to Telescopic buttons. Press and Hold together the Slew Forward and Slew Reverse. See below message will be on the display screen. ATTENTION! TELE ↔ SLEW Press & hold Both slew buttons Rotor down cut: Engages the cutting head rotor in the down cut direction.
  • Page 86 Rotor down Cut Rotor stop Rotor up cut Controls display screen when starting the cutting head rotor: LED light positioned within the two cutting head buttons Warning 3 seconds before cutting head CHECK MACHINE IS start + buzzer SAFE TO START! sounding.
  • Page 87 Controls display screen when stopping the cutting head rotor: Warning for 25 CAUTION ! seconds + buzzer + ROTOR STOPPING light flashing Display screen to operator with ROTOR OFF AR OFF cutting head OFF HF OFF LF OFF Auto Return: If the arms are pushed back by an immovable object, an auto return function automatically return the arms to the work position next to the tractor once the object has passed or lifted clear off.
  • Page 88 ROTOR OFF AR OFF HF OFF LF ON Ensure when engaging for the first time of use to always have the cutting head just above or in contact with the ground. Ensure no person is with in the machine working area. Head Float: Allows the cutting head to follow the contours of the ground.
  • Page 89 + buzzer + light flashing HD700 ELECTRIC PROPORTIONAL CONTROLS - OPTIONS Hydraulic roller: Hydraulic roller uses the tractors double acting spool lever to move the roller up or down (see tractor manual for spool operation). This allows the operator to adjust the roller position without leaving the tractor cab.
  • Page 90 Narrow lane bracket: This uses the same hoses that control the hydraulic roller from the tractor spool. A directional control valve is positioned on the head allowing oil to be diverted between either the hydraulic roller or the narrow lane bracket. The control lever can be moved between two positions.
  • Page 91 The HD700 can be changed into the AEF mode by toggling a setting within the control box (See section 6.3). Once the control box has been switched into AEF mode the control box display will be changed to read as below.
  • Page 92 3. Press and hold the lift float button for one second to engage the AEF. The head float will also be automatically engaged when pressing the lift float button. Head float maybe turned OFF by pressing the head float button once. A solid LED light will indicate if the head float is ON.
  • Page 93 5. With the AEF now engaged the operator can now begin to move the tractor forwards. As the contours of the ground change the lift cylinder will be automatically operated trying to maintain the square filled black block between the two arrows. POWER FLOAT 6.
  • Page 94 REDUCE PTO RPM The rotor has to be manually restarted after the normal 25 seconds timed delay. HD700 CONTROL BOX SETTINGS Ensure the cutting head is in a safe position in contact with the ground and the PTO is disengaged before attempting to change any control settings.
  • Page 95 Increment setting value = Slew Forward (TOP ROW FAR LEFT) Decrement setting value = Rotor Forward (TOP ROW FAR RIGHT) JSTICK DEADBAND 15 = 20 Decrement Increment setting value = setting value = Press once to Press once change lower change higher number.
  • Page 96 Once the setting value has been changed the control display will automatically save and when no buttons are pressed for a few seconds the controls will exit the setup mode and the screen will default back to the Standard screen display. ROTOR OFF AR OFF HF OFF...
  • Page 97 H/A Clock / Anti-clock Clock HEAD ANGLE DIRECTION Standard – Active Active float Mode Active Active Lift 40bar 1-100bar DO NOT ADJUST Active Lower 25bar 1-100bar DO NOT ADJUST Lift Gain 0-250 DO NOT ADJUST Lower Gain 0-250 DO NOT ADJUST Lift I Min 0.17 1-100...

  • Page 99: Operation

    SECTION 7: OPERATION Refer to section 2 for safety procedures. MOVING FROM TRANSPORT TO WORK POSITION See section 2.7 for accident prevention when operating.  For 3 point linkage machines lower the tractor 3 point linkage so that the weight of the machine is carried by the stabiliser system.
  • Page 100 Across the hydraulic hose for transport position In line with hydraulic hose for work position  Lower the lift cylinder until the rocker is clear from the bump stop. Extend the reach cylinder so that when the slew cylinder is extended the trimmer head misses the tractor wheel/cab.

  • Page 101: Starting The Rotor

    STARTING THE ROTOR See section 2.7 for accident prevention when operating. With the tractor engine revs low, the PTO running and the head positioned as before. Check that all observers are clear of the Powerblade trimmer and tractor. Warn bystanders by sounding the horn of the tractor several times. Ensure your visibility is kept clear at all times.
  • Page 102 3. The reach cylinder can now be fully closed bringing the outer booms onto the bump stop on the inner boom. 4. The pad above the top link, the rocker bump stop should be adjusted to suit your tractor so that there is at least a 300mm gap between the booms and the rear of the tractor cab, otherwise the boom members will be subjected to considerable stress should the head/outer boom bounce.
  • Page 103 the front of the stabiliser frame and the recess in the nose part the weight is being carried on the link arms. Care must be taken that the positioning of this machine relative to the tractor does not cause the dimensions of the combination (maximum width 2.55mt) to make it ineligible to travel on the public highway.
  • Page 104 HD trimmers come with road lights as Standard so these should be connected when on the highway. Ensure head is not obscuring lights visibility. WORKING ON THE HIGHWAY See section 2.11 for accident prevention when taking on public roads When intending to operate on the highway consult the local Highways Department regarding notifications and approval, as rules and regulations will vary from area to area and with the class of highway.

  • Page 105: Wire Cutter

    Nose fully open position Rear roller fully down position Never remove the nose completely. Always keep the front and rear curtains in good condition. The rotor control can be engaged to up cut or down cut. Downwards cutting puts greater strain and shocks on the rotor and drive components and leaves a ragged finish.
  • Page 106 Note: active electronic float will not work if being bolted up. HD700 Powerblade trimmers also have an active electronic float option. This allows the head to follow the ground by the hydraulic roller sensing the different contours of the ground (see section 6) and the lift cylinder being operated automatically for the operator.
  • Page 107 If the hedge bounds a road it is suggested that the siding cuts on the non-road side are completed first, followed by the bottom on that side. The advantage here is that the hedge will be as thick as possible to resist debris flying through it onto the road. The side(s), top and then the bottom can then be cut from the roadside.
  • Page 108 Cutting head 1 meter If the obstruction has still not been removed it’ll need removing manually. Ensure that the cutting head is lowered to the ground or supported in such a way that hydraulic or mechanical failure cannot injure any personnel. Position the Cutting head vertically upright so the rotor can be accessed.
  • Page 109 On HD700 trimmer controls an auto-return function is fitted as standard. With auto- return switched on the machine senses if the booms have broken back and if so automatically returns them to the working position.

  • Page 110: Telescopic Arm

    7.15 TELESCOPIC ARM See section 2.7 for accident prevention when operating. Telescopic outer arms are an option on HD700 trimmers. These give an extra 1.2m (6.0mT), 1.5m (7.0T) or 1.83m (8.0T) of horizontal reach, which can be useful for high hedges, deep or wide ditches and banks, while still keeping a compact arrangement for close work when closed-in.
  • Page 111 7.17 NARROW LANE BRACKET See section 2.7 for accident prevention when operating. Narrow lane bracket is an option on all models. This feature allows the head to rotate up 53 degrees using the tractor spool valve (see section 6). Using the narrow lane bracket enables the operator to tuck the trimmer booms and head behind the tractor wheel when cutting the side of a hedge when working within narrow lanes.
  • Page 112 When the narrow lane bracket is not being used it can be locked in its fully closed position by inserting the locking pin and retaining with the pin into the hole nearest the pin handle. Locking pin To unlock the narrow lane bracket with draw the locking pin, then fit the retaining pin in the locking...
  • Page 113 Set the valve to fully open, fully anti-clockwise To ensure the fan is running smooth turn the tractor spools flow down to between 20 – 30 l/min or if the fan blower is hunting turn the tractor spool flow down until it runs smooth.
  • Page 114 Lowest height OHPLs are those carrying 11kV to 33kV at a minimum height of 5.2 meters above ground. HD700 trimmers are capable of reaching higher than 8 meters which means there is high risk of the machine being able to contact the wires.
  • Page 115 Exclusion zones are shown in shaded area below. Exclusion Exclusion zone Exclusion zone zones for high voltage low voltage (LV) pole with (HV) transformer Never allow any part of the machine to enter the exclusion zone. Operation of any part of the Powerblade or tractor within 10 meters horizontally of an OHPL is not recommended.
  • Page 116 See ‘Health & Safety Executive’ website for the following website address showing more information relating to overhead power lines http://www.hse.gov.uk/electricity/information/overhead.htm.

  • Page 117: Maintenance And Storage

    SECTION 8: MAINTENANCE AND STORAGE Refer to section 2 for safety procedures. LUBRICATION Refer to section 2.10 for accident prevention when servicing / adjusting the machine. Both rotor bearings should be greased every 10 hours (daily). All other grease nipples at the various pivots of booms, cylinders and roller bearings should be greased every 50 hours (or weekly).
  • Page 118 Universal Universal joint joint GEARBOX Refer to section 2.10 for accident prevention when servicing / adjusting the machine. The gearbox is prefilled with a Synthetic gear oil, grade SAE 75W-90. Brands of oil recommended are – Total SYN FE 75W90, BP Energear SHX SAE 75W- 90 or Mobilube SHC SAE 75W-90.

  • Page 119: Hydraulic Oil

    If a biodegradable oil is to be use, please contact Shelbourne Reynolds Ltd with the oil specification to check suitability. The interval at which the oil should be renewed will depend on the way in which the oil is worked and how well it is looked after.
  • Page 120 The machine is also fitted with an oil cooler located at the top of the oil tank. This should be cleaned out regularly using high pressure air as the cooler matrex may become blocked from dust and debris. To clean out the oil cooler unscrew the three M8 fasteners enabling the steel cover to be removed.

  • Page 121: Hydraulic Hoses

    after every 500 hours. Note that if the filter is allowed to become clogged then the oil will bypass the filter (to avoid the danger of the filter bursting) and could allow contaminants into the tank and hence into the system components. If another hydraulic component has failed then the return filter should also be renewed forthwith.
  • Page 122 ACCUMULATOR SAFE REMOVAL Refer to section 2.6 for accident prevention when using the hydraulic system The accumulator must be pressurised for the lift float to function correctly. If the tap has been moved to the de-pressurised position the head will constantly drop to the ground even if the lift float is not engaged.

  • Page 123: Flail Head

    Every machine has a rotor balance sheet supplied in its manual canister from new. If the balance sheet is missing contact Shelbourne Reynolds who hold a copy and will re-issue the balance sheet upon quoting the machine’s serial number.
  • Page 124 Flail attached onto the cutting head rotor with balance weights and longer flail bolt. Flail bolt longer versions used (105mm, 115mm & 130mm) Balance weight versions 20g (2mm), 30g (3mm) & 50g (5mm). Replace spacers, bolts and nuts exactly when replacing flails. The flails themselves should wear evenly and be replaced as a set.
  • Page 125 All HD700 cutting heads are belt driven, check the belt tension daily. This requires the removal of the drive cover. Loosen fixings to remove drive cover Note – Fixings are captive on drive cover A load of 5 Kgs (10lbs) should give a deflection of approximately 9mm at the mid span.
  • Page 126 8.11 BUSHES AND PINS Bushes protect all pivots that are subject to movements. In the unlikely event these are subjected to extreme wear they should be renewed promptly to reduce shocks, keep movements predictable and protect the underlying steel. 8.12 RECOMMENDED TORQUE SETTING FOR FASTENERS Refer to section 2.10 for accident prevention when servicing/adjusting the machine The table on the next page gives correct torque values for various size and grade of...
  • Page 127 8.13 STORAGE Refer to section 2.12 for accident prevention when cleaning and storing the machine Clean the machine thoroughly, making sure that high-pressure water does not contact bearings, seals or electrical components. Avoid washing paintwork at very close range or with very high pressure. Release the tension in the drive belts, but replace the drive cover to keep the light out.
