Shelbourne Reynolds Powermix Pro Express Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MAN-05005
9-25m
3

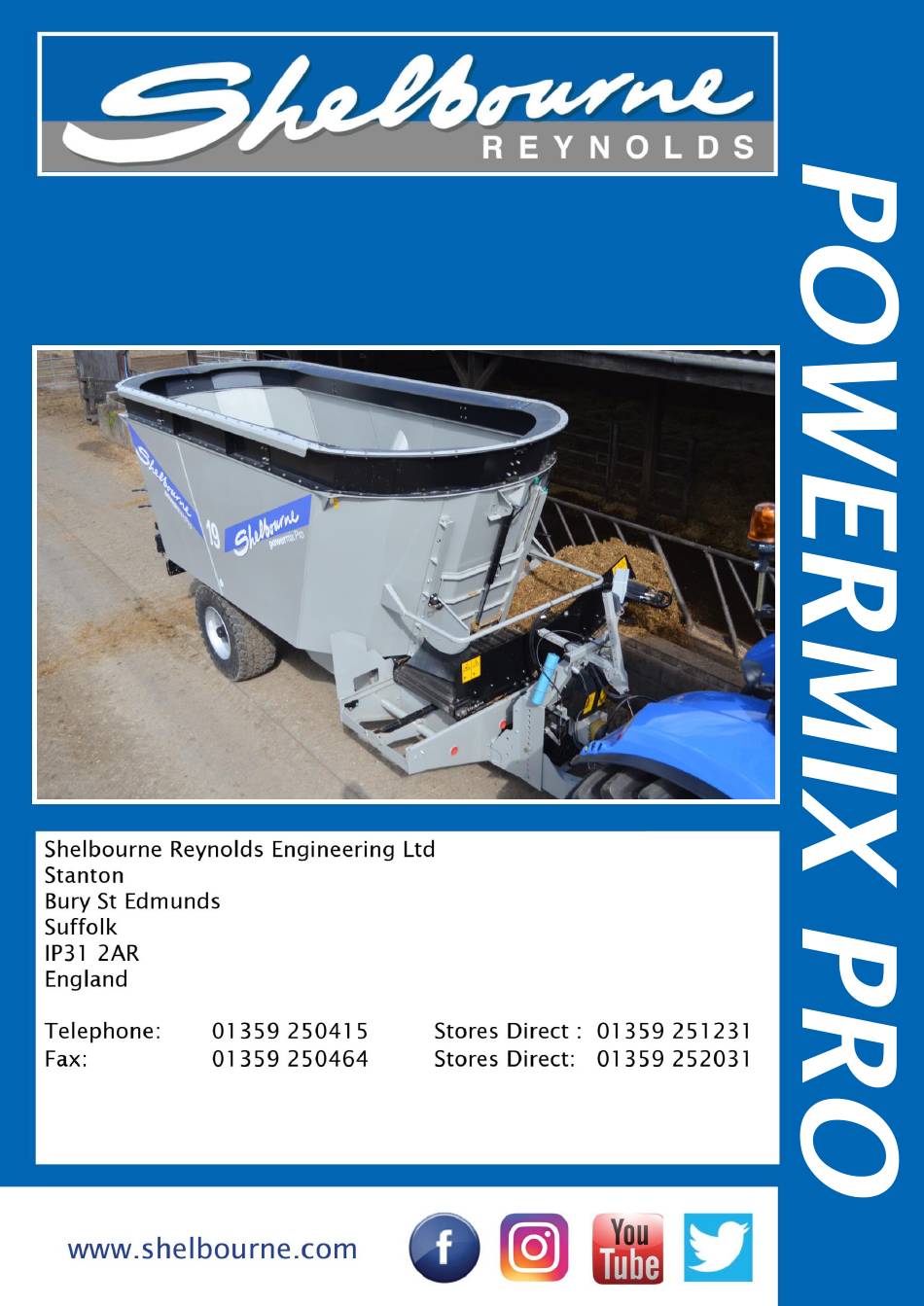

OPERATORS MANUAL
ORIGINAL INSTRUCTIONS
Issue 9
15/10/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powermix Pro Express and is the answer not in the manual?

Questions and answers

Related Manuals for Shelbourne Reynolds Powermix Pro Express

Summary of Contents for Shelbourne Reynolds Powermix Pro Express

  • Page 1 MAN-05005 9-25m OPERATORS MANUAL ORIGINAL INSTRUCTIONS Issue 9 15/10/2020...
  • Page 3 When the inspection is complete, THIS FORM MUST BE COPIED & RETURNED TO: - Shelbourne Reynolds within 30 days of delivery to customer, otherwise the invoice date to the dealer will be deemed to be the start date for the warranty period.
  • Page 4 ................. Privacy Notice Here at Shelbourne Reynolds Engineering Ltd we take your privacy seriously and will only use your personal information to administer your account and provide the products and services you have requested from us. We would occasionally like to contact you with details of other products you may be interested in, special offers we provide and details/invitations to shows, working demonstrations and open days, however this would be no more than once or twice per year.
  • Page 5 Dear Customer, Parts manuals are not supplied with this machine, but they can be ordered from your Shelbourne Reynolds dealer. Alternatively they can be downloaded from the Shelbourne Reynolds website www.shelbourne.com by clicking on the Parts and Service section of the website, and then selecting manuals followed by Powermix Manuals.
  • Page 6 The lists shown on the following pages highlight the optional build kits that also make up your exact configuration of machine. Non-current production highlighted Tick Part No. Description KIT-03579 Conveyor mounting kit (Single) Drive Options KIT-03582 Conveyor mounting kit (Twin) KIT-03594 Single speed drive kit (Popular) KIT-03634...
  • Page 7 Hyd braked axle tandem underslung KIT-03510 Alarm kit KIT-03583 bogie KIT-03933 Weigh cell system (Single) Hyd braked axle tandem underslung KIT-03694b bogie KIT-03941 Weigh cell system (DG) (Twin) Hyd braked axle tandem underslung KIT-03694 KIT-03943 Weigh cell system (DG) (Single) bogie TMR3610 Display C/W TMR tracker Lite Hyd braked axle tandem underslung...
  • Page 8 Hydraulic Options (up to 07/07/07) KIT-03436 Direct tractor connection (LH) KIT-03460 Direct tractor connection (LH Twin) KIT-03507 2 station spool valve (2 door op) KIT-03440 Direct tractor connection (RH) KIT-03574 Direct coupled hydraulics (1m side) KIT-03621 Manual lever spool valve (1m side) KIT-03613 Electric solenoid hydraulics (1m side) KIT-03434...
  • Page 9 EC Declaration of conformity for machinery (Machinery Directive 2006/42/EC, Annex II., sub. A) Manufacturer: Shelbourne Reynolds Engineering Ltd. Address: Shepherds Grove Industrial estate, Stanton, Bury St Edmunds, Suffolk. England. IP31 2AR Name and address of the person (established in the European Community/EEA)

  • Page 11: Table Of Contents

    CONTENTS Section 1 INTRODUCTION FOREWORD IMPROVEMENTS AND CHANGES SERVICE PARTS MACHINE IDENTIFICATION WARRANTY TERMS AND CONDITIONS TO THE PURCHASER Section 2 SAFETY PROCEDURES ACCIDENT PREVENTION DANGER / WARNING SYMBOLS ACCIDENT PREVENTION BEFORE STARTING THE MACHINE ACCIDENT PREVENTION WHEN COUPLING TO THE TRACTOR ACCIDENT PREVENTION WHEN USING THE HYDRAULIC SYSTEM ACCIDENT PREVENTION WHEN USING THE PTO SHAFT ACCIDENT PREVENTION WHEN OPERATING THE MACHINE...
  • Page 12 COUPLING AND UNCOUPLING ADJUSTING THE DRAWBAR HEIGHT CONNECTING THE HYDRAULIC SUPPLY CONNECTING THE POWER SUPPLY ADJUSTING THE PTO DRIVE SHAFT LENGTH COUPLING THE PTO DRIVE SHAFT TO THE TRACTOR ADJUSTING THE POSITION OF THE 2-SPEED GEAR CHANGE LEVER. ADJUSTING THE POSITION OF THE MANUAL LEVER CONTROL VALVE. RAISING / LOWERING THE PARKING STAND.
  • Page 13 Section 7 MAINTENANCE AND STORAGE CONNECTING THE DOOR SAFETY STRAP REPLACING THE AUGER BLADES CHECKING TYRE PRESSURES TIGHTENING WHEEL NUTS CHECKING THE AXLE HUB CAPS CHECKING THE WHEEL BEARINGS CHECKING BRAKE CLEARANCE AND WEAR. BOGIE SUSPENSION MAINTENANCE. STEERING AXLE MAINTENANCE AND ADJUSTMENT. 7.10 FRONT WEBBING CONVEYOR MAINTENANCE.

  • Page 15: Introduction

    IMPROVEMENTS AND CHANGES Shelbourne Reynolds Engineering are continually improving their products to meet the farmers needs and therefore reserve the right to make improvements and changes when practical to do so, without incurring any obligation to make changes and additions to equipment which has been sold previously.

  • Page 16: Service Parts

    (the “Warranty”), it is the buyer’s responsibility to ensure that the selling dealer has completed the warranty registration details and that they are submitted to Shelbourne Reynolds Engineering Ltd. within 30 days from the date of delivery. Using the machine implies the knowledge and acceptance of these warranty terms.
  • Page 17 service, to be free from defects in material and workmanship for a period of 12 months from the date of delivery to the original purchaser (the Warranty Period), subject to the terms set out in this warranty policy. No other warranty is given by Shelbourne regarding the machine, and no person has any authority to give any such warranty for or on behalf of Shelbourne, other than where given in writing signed by a director of Shelbourne.
  • Page 18 2) damage or depreciation caused by normal wear and tear; 3) the machine has been subjected to alteration, modification or fitment of non- genuine Shelbourne parts without the prior consent of Shelbourne; 4) accidental damage, including (but not limited to) damage caused by foreign objects (e.g.
  • Page 19 any kind whatsoever directly, consequential or contingent to any person or property caused by the use of the machine. Shelbourne shall not be liable for any consequential loss such as the following costs or types of loss (whether direct or indirect): 1) Loss of profit;...
  • Page 20 Shelbourne giving prior written consent. 1.5.10 EXPORT CUSTOMERS If you are based outside of the UK, warranty terms and conditions outlined above may differ depending on your market. Please contact Shelbourne Reynolds Engineering Ltd. for further information.

  • Page 21: Safety Procedures

    SECTION 2: SAFETY PROCEDURES ACCIDENT PREVENTION The following safety instructions are applicable for all sections of this manual. Accident prevention programmes can only avert accidents with the co-operation of the persons responsible for the operation of the equipment. For the safety of yourself and others, operate equipment with care and do not take unnecessary risks.

  • Page 22: Danger / Warning Symbols

    DANGER / WARNING SYMBOLS The following safety signs appear on the machine, they provide important instructions for safe work. – Take them into consideration for your safety and the safety of others. Ensure that you identify each symbol and understand its warning. Attached to the PTO guards are additional safety signs, refer to the driveshaft operators manual for their meaning.
  • Page 23 260060 01 260062 01 260061 01 Do not stand between It is dangerous to touch Stand a safe distance the tractor and the the conveyor belt when away from the machine machine whilst coupling it is operating. There is a when the conveyor is to the tractor.

  • Page 24: Accident Prevention Before Starting The Machine

    ACCIDENT PREVENTION BEFORE STARTING THE MACHINE. Read the manual thoroughly. If moving the Powermix by overhead lifting, use the designated lifting points. (See section 4.1). Ensure that the slings / chains are rated accordingly, and that the angles of the slings / chains are set in accordance to lifting regulations. Ensure bystanders are at a safe distance when the Powermix is being suspended above the ground while lifting and unloading.
  • Page 25 Only use the machine if you are a competent operator and fully trained. After the machine is sold it is the owner’s responsibility to ensure the machine is only used by competent and fully trained personnel. ACCIDENT PREVENTION WHEN COUPLING AND UNCOUPLING TO THE TRACTOR.

  • Page 26: Accident Prevention When Using The Hydraulic System

    ACCIDENT PREVENTION WHEN USING THE HYDRAULIC SYSTEM Ensure the machine is parked on a firm & level site and the ‘safe stop’ procedure is followed before connecting / disconnecting the hydraulic couplings. This is to ensure that the unit does not unexpectedly move while the operator or person is in close proximity to the machine.

  • Page 27: Accident Prevention When Using The Pto Shaft

    ACCIDENT PREVENTION WHEN USING THE PTO SHAFT In conjunction with the following safety measures, always refer to the safety manual supplied separately with the PTO shaft. Ensure the machine is parked on a firm & level site and the ‘safe stop’ procedure is followed before proceeding to fit / remove / grease or change the shearbolt on the PTO shaft.

  • Page 28: Accident Prevention When Operating The Machine

    ACCIDENT PREVENTION WHEN OPERATING THE MACHINE The Powermix must not be put into operation until the user has been given proper initial instructions either by the dealer or by one of ‘Shelbourne Reynolds' representatives or employees. PPE (Personnel Protective Equipment) is recommended while mixing / feeding certain ingredients due to skin irritation and inhalation of fine particles.
  • Page 29 Ensure the ‘safe stop procedure is employed before making any adjustments to the machine, this includes lowering / raising the conveyor Deflector, adjusting the side door chute, removing / replacing the lynch pins from the side door safety flap, altering the angle of the blade retarders and removing or replacing the fixed retarders. Ensure the door safety strap is fitted (see section 7.1) and the ‘safe stop’...

  • Page 30: Accident Prevention When Towing On Public Roads

    ACCIDENT PREVENTION WHEN TAKING ON PUBLIC ROADS UK road traffic regulations must be observed when towing the Powermix on the public highway. The Powermix must be in a road-worthy condition. Check the tyre pressures regularly. Incorrect tyre pressure will reduce the carrying capacity of the tyre as well as the life of the tyre.

  • Page 31: Accident Prevention When Changing A Wheel

    2.10 ACCIDENT PREVENTION WHEN CHANGING A WHEEL Position the machine on a flat hard standing surface capable of withstanding the loading of a jack. Where possible avoid changing a wheel near live traffic. Wear High visibility clothing and position warning signs / cones if a wheel needs to be changed near live traffic.

  • Page 32: Accident Prevention When Servicing Or Working On The Machine

    2.11 ACCIDENT PREVENTION WHEN SERVICING OR WORKING ON THE MACHINE Ensure the machine is parked on a firm & level site and the ‘SAFE STOP’ procedure is followed before servicing or working on the machine. This is to ensure that the unit does not unexpectedly move or start up while the operator or person is in close proximity to the machine The Powermix must be maintained and repaired only by persons who are familiar with...

  • Page 33: Accident Prevention When Cleaning And Storing The Machine

    The tyre should be inflated to its correct pressure, according to the tyre manufacturer's load/inflation specifications. Always stand outside the likely explosion trajectory when inflating a tyre. An inflation cage should be used when inflating large tyres. With respect to servicing or working with hydraulic components, refer to points listed in section 2.5.

  • Page 34: Noise Emissions

    2.14 PROPER USE The Shelbourne Reynolds Powermix is intended for use on typical farms and to be employed in cutting and/or mixing and discharging materials suitable for feeding to livestock. Any uses other than those for which the Powermix is intended, such as transportation, will automatically exempt Shelbourne Reynolds or the supplier from its / his liability in respect of ensuing damage.

  • Page 35: Liability For Consequential Damage

    Any claims for damages not directly incurred by the Powermix cannot be accepted. By the same token, Shelbourne Reynolds cannot be held liable for any consequential damage resulting from incorrect use of the Powermix.

  • Page 37: Specification

    SECTION 3: SPECIFICATION DESCRIPTION The machine consists of a mixing chamber (a) with a central auger/s (b). Fitted to the auger are horizontal knives (c). At the side, or front of the hopper is a door (d). The Powermix may be fitted with a front webbing conveyor (e). Located at the front is an adjustable towing eye (f), and an adjustable parking stand (g).

  • Page 38: Intended Use

    Right and Left hand of the machine as termed in this manual is for an operator sitting in the tractor seat looking forward. LH SIDE RH SIDE INTENDED USE The machine is intended to be used on typical farms employed in cutting and/or mixing and discharging materials suitable for feeding to livestock.

  • Page 39: Specification Table

    SPECIFICATION / TABLE Road POWERMIX Unladen Unladen Gross Max Axle Capacity Capacity Standard MIN H.P Speed Hydraulics Load Weight Drawbar Weight Drawbar Weight (Volume) (Weight) Tyre size Required 3000(psi max) Cells MODELS Weight Weight (km/h) (210 bar) 8680 kg 1074 kg 7606 kg 4900 kg 19139 lbs...
  • Page 40 POPULAR MODEL OVERALL DIMENSIONS Powermix Pro P o p u l a r s p e c i f i c a t i o n Above machine supplied with single axle fitted with 305/55R22.5 tyres 2458mm 2600mm 740mm 330mm 4605mm 2515mm 3105mm...
  • Page 41 EXPRESS MODEL OVERALL DIMENSIONS Powermix Pro E x p r e s s s p e c i f i c a t i o n Above machine supplied with single axle fitted with 305/55R22.5 tyres 2730mm 2350mm 5300mm 2515mm 1425mm 470mm 3690mm...

  • Page 42: Twin Auger Express Model (Tandem Axle) Overall Dimensions

    TWIN EXPRESS (Tandem axle) MODEL OVERALL DIMENSIONS Powermix Pro T w i n E x p r e s s s p e c i f i c a t i o n Above machine supplied with sprung loaded tandem axle fitted with 385/55R22.5 tyres. 2730mm 2350mm 7580mm...

  • Page 43: Twin Auger Express Model (Single Axle) Overall Dimensions

    TWIN EXPRESS MODEL (Single axle) OVERALL DIMENSIONS Powermix Pro T w i n E x p r e s s s p e c i f i c a t i o n Above machine supplied with a single axle fitted with 18R22.5 or 435/50 R19.5 tyres. 2730mm 2350mm 7580mm...

  • Page 45: Handling & Transportation

    SECTION 4 HANDLING & TRANSPORTATION Refer to section 2 for safety procedures. HANDLING Refer to section 2.3 – Accident prevention before starting the machine for safety procedures. The Powermix should only be moved by one of the following methods: By the use of a crane type-lifting device (Tele-handler, jib / gantry crane) Attaching to a tractor / towing vehicle If using method 1, firstly attach an appropriate overhead lifting device, with sufficiently rated slings / chains.

  • Page 46: Transportation

    If method 2 (attaching to a tractor / towing vehicle) is chosen to move the Powermix ensure the below procedure is followed: Refer to section 2.4 – Accident prevention when coupling & uncoupling to a tractor for safety procedures Secure the Powermix against rolling by applying the handbrake / positioning wheel chocks.

  • Page 47: Preparations For Use

    SECTION 5: PREPARATIONS FOR USE Refer to section 2 for safety procedures. The Powermix is delivered to the dealer fully assembled and the dealer is responsible for carrying out all the necessary PDI checks; however certain adjustments will need to be made to ensure it is set-up correctly to suit the customer’s tractor.

  • Page 48: Adjusting The Drawbar Height

    UNCOUPLING OF TRACTOR 1 Ensure all tractors hydraulic spool valves are in their neutral position, switch off the tractor and pull out the ignition key. (Safe stop procedure). 2 Ensure the handbrake on the Powermix is engaged. 3 Rotate the adjustable parking stand to its lower position. 4 Disconnect the auxiliary hydraulic couplings.
  • Page 49 To alter the height of the tow eye, follow the procedure as described below: 1. Lower the parking stand or parking jack as described in section 5.9 2. Secure the Powermix against rolling by applying the handbrake / positioning wheel chocks. 3.

  • Page 50: Connecting The Hydraulic Supply

    CONNECTING THE HYDRAULIC SUPPLY Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures. With a clean cloth wipe any dirt from the couplings before connecting to the tractors hydraulic system. Proceed to connect the hydraulic brake coupling and the auxiliary hydraulic couplings to the tractor via the 1/2 BSP male quick release couplings provided.

  • Page 51: Connecting The Power Supply

    CONNECTING THE POWER SUPPLY Refer to section 2.4 – Accident prevention when coupling & uncoupling to the tractor for safety procedures. Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. As standard the weighing and lighting circuits are wired into a single 7-pin lighting plug. Consequently the power for the weighing equipment is available when the sidelights of the tractor are turned on.

  • Page 52: Adjusting The Pto Drive Shaft Length

    ADJUSTING THE PTO DRIVE SHAFT LENGTH Refer to section 2.6 – Accident prevention when using the PTO shaft for safety procedures. The correct length of the PTO drive shaft may vary depending on the tractor in use. It may be necessary to shorten the PTO drive shaft. Follow the below procedure: To adjust the lengths hold the Shorten the inner and outer...

  • Page 53: Coupling The Pto Drive Shaft To The Tractor

    COUPLING THE PTO DRIVE SHAFT TO THE TRACTOR Refer to section 2.6 – Accident prevention when using the PTO shaft for safety procedures. 1. Clean and grease the PTO shaft on the tractor. 2. Ensure the Powermix is securely hitched to the tractor. 3.

  • Page 54: Adjusting The Position Of The 2-Speed Gear Change Lever

    ADJUSTING THE POSITION OF THE 2-SPEED GEAR CHANGE LEVER. Refer to section 2.4 – Accident prevention when coupling & uncoupling to the tractor for safety procedures. Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Once the Powermix has been attached to the tractor the 2-speed gear change lever may have to be moved to enable comfortable &...

  • Page 55: Adjusting The Position Of The Manual Lever Control Valve

    ADJUSTING THE POSITION OF THE MANUAL LEVER CONTROL VALVE Refer to section 2.4 – Accident prevention when coupling & uncoupling to the tractor for safety procedures. Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Refer to section 2.5 –...

  • Page 56: Raising / Lowering The Parking Stand

    RAISING / LOWERING THE PARKING STAND Refer to section 2.4 – Accident prevention when coupling & uncoupling to the tractor for safety procedures. Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Once the Powermix has been attached to the tractor the parking stand must be rotated to the raised position.

  • Page 57: Check Operation Of Weigh System

    5.10 CHECK OPERATION OF WEIGHING SYSTEM Refer to section 2.3 – Accident prevention before starting the machine, for safety procedures. Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Your Powermix may be supplied with a Digi-star or Dinamica Generale weighing system, it is important to check its operation and calibration settings before first use.
  • Page 58 The calibration number should be set as follows for Dinamica Generale displays: THREE LOAD CELL SINGLE AUGER MACHINE CALIBRATION NUMBER = 5005 FOUR LOAD CELL TWIN AUGER MACHINE CALIBRATION NUMBER = 6674 To check and adjust the calibration number on a Dinamica Generale display follow the procedure as described below: 1.

  • Page 59: Configuration Of The Auger Blades

    5.11 CONFIGURATION OF THE AUGER BLADES Refer to section 2.3 – Accident prevention before staring the machine, for safety procedures. Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Refer to section 7.1 – Connecting the door safety strap In order to configure the auger blades correctly you should consider a number of factors.
  • Page 60 Follow the below procedure when changing the angle of the auger blades: 1. Secure the Powermix against rolling by applying the handbrake / positioning wheel chocks. 2. Ensure the Powermix is detached from the tractor with the door fully raised. 3.

  • Page 61: Pre Operation Check List

    5.12 PRE OPERATION CHECK LIST Refer to section 2.3 – Accident prevention before staring the machine safety procedures. Refer to section 2.4 – Accident prevention when coupling & uncoupling to the tractor for safety procedures. Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures.

  • Page 63: Operating The Machine

    SECTION 6: OPERATING THE MACHINE Refer to section 2 for safety procedures. LOADING THE MACHINE Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Follow the below procedure when loading the machine: 1. Ensure the Powermix is correctly coupled to the tractor 2.

  • Page 64: Mixing / Ingredient Loading Sequence

    MIXING / INGREDIENT LOADING SEQUENCE Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Mixing time and loading sequence are important factors in producing a consistent mixed ration. Typically the loading sequence that provides the best result is based on loading the light forage ingredients first.

  • Page 65: Chopping Root Crops

    CHOPPING ROOT CROPS Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. The Powermix can be used to chop and incorporate a wide variety of root crops such as potatoes, sugar beet, fodder beet and carrots. The only way to successfully chop these ingredients down to a safe size that will not present a choking hazard is to chop them as a batch.

  • Page 66: Operating The Anti-Rotation Blades

    OPERATING THE ANTI-ROTATION BLADES Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. When processing baled forage or root crops, the anti-rotation blades can be employed. Their internal knifed edge will not only chop but will also assist the chopping by the auger blades by momentarily stalling the rotation of the feed in the mixing chamber, enabling the auger blades to cut the feed more aggressively as the auger rotates.

  • Page 67: Using The Fixed Anti-Rotation Plates

    USING THE FIXED ANTI-ROTATION PLATES Refer to section 2.3 – Accident prevention before staring the machine, for safety procedures. Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Refer to section 7.1 – Connecting the door safety strap Fixed anti-rotation plates can be used as an alternative to the anti-rotation blades as described in section 6.5.

  • Page 68: Auger Speeds And Drive Configurations

    AUGER SPEEDS & DRIVE CONFIGURATIONS SINGLE AUGER MACHINES Most single auger machines (9m -15m ), are specified with a single speed drive system, this provides an auger speed of 25.6 rpm, when the PTO shaft speed of the tractor is at 540 rpm. This speed is ideal for the majority of mixing and chopping situations.
  • Page 69 TWIN AUGER MACHINES All twin auger machines (16m -22m ), are specified with 2-speed drives. With this, 4 auger speeds are available: The 20 or 20.5 rpm auger speeds are suitable for the majority of mixing and chopping situations. Preferably run the tractor at 1000 rpm tractor PTO (20.5rpm auger speed) where possible, as this will decrease the torque seen at the PTO.

  • Page 70: Operating The 2-Speed Gearbox

    OPERATING THE 2-SPEED GEARBOX Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. In order to change the gear it is necessary to stop the PTO shaft of the tractor. After the PTO shaft has stopped the gear can be changed by means of operating a fixed linkage lever (Fig 8) or an adjustable cable operated hand lever (Fig 9).

  • Page 71: Feeding Procedure

    FEEDING PROCEDURE Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. There are potentially four ways to alter the amount of feed to be distributed. The forward speed, the amount the door has been opened, how fast the augers are rotating, and if a conveyor system is involved, how fast the conveyor belt is rotating.

  • Page 72: Operating The Front Elevating Web Conveyor

    6.10 OPERATING THE FRONT ELEVATING WEB CONVEYOR Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. The front elevating web conveyor has a unique 1 piece conveyor belt. The construction of which allows the conveyor system to effectively bend which enables the conveyor to feed either side and reach multiple feeding heights and distances.

  • Page 73: Operating The Conveyor Deflector

    6.11 OPERATING THE CONVEYOR DEFLECTOR Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. When the elevating web conveyor is fully extended to the left, the conveyor deflector must be located in the down position (top illustration). To lower the deflector, follow the below procedure: 1.

  • Page 74: Operating The Fixed Front Web Conveyor

    6.12 OPERATING THE FIXED FRONT WEB CONVEYOR Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. An alternative to the front elevating web conveyor is a fixed front web conveyor. The conveyor belt has the same construction as the elevating version but will not slide to the left or right and will not elevate.

  • Page 75: Side Delivery Option

    6.13 SIDE DELIVERY OPTION Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. The discharge door (a) is opened and closed via a hydraulic cylinder (b). To determine the opening height of the door, a pointer (c) moves along a scale (d) as the door is raised or lowered.

  • Page 76: Side Conveyor Option

    6.14 1m SIDE CONVEYOR OPTION Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. The feeding height of the conveyor is adjusted by the operation of the hydraulic lift cylinder (a). The rotation of the conveyor belt is via a single hydraulic motor (b).

  • Page 77: Direct Coupled Hydraulic Controls

    6.15 DIRECT COUPLED HYDRAULIC CONTROLS Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures. This hydraulic control system connects the conveyor motor, conveyor movement cylinder and feed door cylinder directly to the hydraulic spool valves of the tractor.

  • Page 78: Manual Lever Hydraulic Valve Controls

    6.16 MANUAL LEVER HYDRAULIC VALVE CONTROLS Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures. If this connection method is used, the pressure hose (a) is connected to a double acting hydraulic spool valve on the tractor and the return hose (b) is coupled to free flow return to tank.

  • Page 80: Semi-Electric Hydraulic Valve Controls

    6.17 SEMI-ELECTRIC HYDRAULIC VALVE CONTROLS Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures. If this connection method is used, the pressure hose (a) is connected to a double acting hydraulic spool valve on the tractor and the return hose (b) is coupled to free flow return to tank.
  • Page 81 h h h h h...

  • Page 82: All Electric Hydraulic Valve Controls

    6.18 ALL-ELECTRIC HYDRAULIC VALVE CONTROLS Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures. If this connection method is used, the pressure hose (a) is connected to a double acting hydraulic spool valve on the tractor and the return hose (b) is coupled to free flow return to tank.
  • Page 84 6.19 CALIBRATING THE PROPORTIONAL DRIVER Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Refer to section 2.5 – Accident prevention when using the hydraulic system for safety procedures. The proportional driver is used with the hard wired hand controller to set the minimum and maximum speeds of the conveyor belt.
  • Page 85 Imin adjust Imax adjust 2. Ensure the potentiometer is turned to minimum on the hand controller. 3. The Imin adjust parameter should already be selected when entering calibration mode for the first time. Confirmation of this will be that the Imin/imax LED will be blinking slowly and all other LED’s will be switched off.

  • Page 86: Operating The Handbrake

    6.20 OPERATING THE HANDBRAKE Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Single auger models (9-15 m ) are supplied with a ratchet type handbrake. (Shown below). To apply the handbrake, pull the handle in a clockwise direction until resistance and subsequent tightening of the cable occurs.

  • Page 87: Using The Inspection Ladder

    6.21 USING THE INSPECTION LADDER Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. The Powermix is equipped with a rear inspection ladder. The ladder is used to view the feed when deciding whether the mix has finished, or to tip small quantities of minerals into the machine.

  • Page 88: Using The Mineral Chute

    6.22 USING THE MINERAL CHUTE Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. As an option a mineral chute can be fitted to the RH rear of the machine. This is used to add small amount’s of minerals or other fodder additives to the mixing chamber while standing on the ground.

  • Page 89: Operating The Bogie With A Rear Steering Axle

    6.23 OPERATING THE BOGIE WITH A REAR STEERING AXLE (OPTION) Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. As an option on twin auger models, the tandem bogie may be specified with a rear steering axle.

  • Page 90: Shearbolt Replacement

    6.24 SHEARBOLT REPLACEMENT Refer to section 2.7 – Accident prevention when operating the machine, for safety procedures. Refer to section 2.6 – Accident prevention when using the PTO shaft for safety procedures. In the event of a drive overload the shear bolt in the PTO shaft will break and drive will cease.

  • Page 91: Maintenance And Storage

    .SECTION 7: MAINTENANCE AND STORAGE Refer to section 2 for safety procedures. CONNECTING THE DOOR SAFETY STRAP Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Before entering the mixing chamber through the front door opening, the door safety strap must be fitted.

  • Page 92: Replacing The Auger Blades

    REPLACING THE AUGER BLADES Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Refer to section 2.6 – Accident prevention when using the PTO shaft for safety procedures. Refer to section 2.4 – Accident prevention when coupling & uncoupling to the tractor for safety procedures.
  • Page 93 There is a high risk of severe injury from falling onto the blades. Refer to section 2.11, ‘Accident prevention when servicing the machine’, before entering the machine, remember that the floor of the machine will be very slippery, Particularly if wet and or polished with use. Approach the task with caution. Care must be taken when handling the blades.

  • Page 94: Checking Tyre Pressures

    CHECKING TYRE PRESSURES Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. To ensure maximum tyre life and performance, it is advisable to check the tyre pressures before initial use and regularly during use. If the machine has not been used for a long period, check the tyre pressures before putting the machine back into operation.

  • Page 95: Tightening Wheel Nuts

    TIGHTENING WHEEL NUTS Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Torque Torque Socket Number of studs, stud size and nut type (Nm) (lb/ft) size 8 studs, M18 x 1.5mm pitch, “Bec” taper cone 29mm 10 studs, M22 x 1.5mm pitch, “Bec”...

  • Page 96: Checking The Wheel Bearings

    CHECKING THE WHEEL BEARINGS Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Wheel bearings are subject to wear; their lifetime depends on the operating conditions, the load, the speed, the adjustment and lubrication. They should be checked after the first 1000km, before intensive use or every 3 months or 5,000km.

  • Page 97: Checking Brake Clearance And Wear

    Checking if the wheel bearings are damaged or worn: Lift the wheel of the ground. Turn in both directions slowly to check for any rough points or friction. Turn it at high speed to check for unusual noises, such as grating or knocking. If the bearing is damaged or worn, please consult your dealer.

  • Page 98: Bogie Suspension Maintenance

    BOGIE SUSPENSION MAINTENANCE Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. After the first laden journey, before intensive use, or every 3 months please ensure that you: Check and tighten the central support U-bolt nuts to 590Nm (Dia 27mm U-bolt).

  • Page 99: Steering Axle Maintenance And Adjustment

    STEERING AXLE MAINTENANCE AND ADJUSTMENT Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Steering axles should be maintained in the same way as standard axles (See sections 7.4 – 7.8), as well as carrying out the further points as described below: Before intensive use and every 3 months: Lubricate the Kingpins Tighten the screws and nuts and all parts mounted on the axle (chambers,...
  • Page 100 Check & adjusting the wheel alignment Align the wheels with the vehicle on a smooth, level surface. The wheel alignment must be adjusted with the locking cylinder pistons retracted. Measure the distance between the wheel rims at the front of the rims, and at the back of the rims: The distance should be the same Move the vehicles forward, so the wheels turn through 180 degrees, and repeat the check, to allow for distorted wheels.

  • Page 101: Front Webbing Conveyor Maintenance

    7.10 FRONT WEBBING CONVEYOR MAINTENANCE Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. It is important to keep the belt tensioned correctly to ensure the belt runs smoothly and to ensure the belts longevity. To tension the conveyor belt follow the below procedure: 1.

  • Page 102: Side Conveyor Maintenance

    7.11 1m SIDE CONVEYOR MAINTENANCE Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. As with any conveyor belt it is important that the belt is tensioned correctly to ensure smooth running and central tracking. With the belt slack mark 2 lines 500mm apart on the topside of the belt, along each edge.

  • Page 103: Greasing Schedule

    7.12 GREASING SCHEDULE Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. Ensure the machine has been greased as recommended in this section. Greasing the sliding tubes of the PTO shafts is particularly important & is often neglected due to their inaccessibility.
  • Page 104 MINERAL EP GEAR OIL ISO VG220 CHECK REGULARLY REAR AUGER GEARBOX ALSO MINERAL EP GEAR OIL ISO VG220 CHECK REGULARLY Recommended grease: Good quality Universal grease Lubrication Chart: LOCATION DESCRIPTION SCHEDULE CROSS BEARINGS IN PTO SHAFT GREASE AFTER EVERY 25 HOURS OR WEEKLY DOUBLE YOKE IN WIDE ANGLE SHAFT GREASE AFTER EVERY 25 HOURS OR WEEKLY PROFILE TUBE IN PTO SHAFT...

  • Page 105: Gearbox Oil Changes

    Attention: If the quantity of oil used during topping up is greater than 10% of the oil capacity then again check for leaks. LUBRICANT SPECIFICATION: Use mineral EP gear oil, grade ISO VG220. (Shelbourne Reynolds Part No – OIL-0075) Brands of recommended gear oil are: Mobil Spartan EP series 220 Lodexol Industrial gear oil 220...
  • Page 106 PLANETARY GEARBOX FILLER CAP The planetary gearbox should be topped up via the expansion tank located on the side wall of the hopper, shown left. The level of the oil should sit mid-way up the oil level gauge when the oil is cold. The oil level will rise a fall during operation and is dependent on the heat of the oil.
  • Page 107 The planetary gearbox contains 2 taper roller bearings. These are positioned in the housing above the oil level of the gearbox. Although the bearings are sealed and pre- packed with long life grease, a small amount of long life grease should be applied every 600 hours (or twice a year).
  • Page 108 2-SPEED GEARBOX CHANGING THE OIL IN THE PLANETARY GEARBOX’S  The first oil change should be done after 100 working hours.  Subsequent oil changes should take place after 1000 hours or at least once a year.  In order to avoid sludge deposits, change the oil whilst the gear unit is still warm. ...

  • Page 109: Storage And Cleaning

    7.14 STORAGE & CLEANING Refer to section 2.11 – Accident prevention when servicing or working on the machine for safety procedures. If the machine is to be kept outside, it should be parked with the door open to prevent water sitting in the bottom of the tub, and to prevent the doors hydraulic cylinder from rusting.
  • Page 110 Replace the oil in the planetary & 2-speed gearboxes. Check for play between the pivot bar and bushes of the suspension bogie. Check the condition of the suspension springs YEARLY Lubricate wheel bearings Use only genuine Shelbourne Reynolds parts to ensure longevity and performance.
