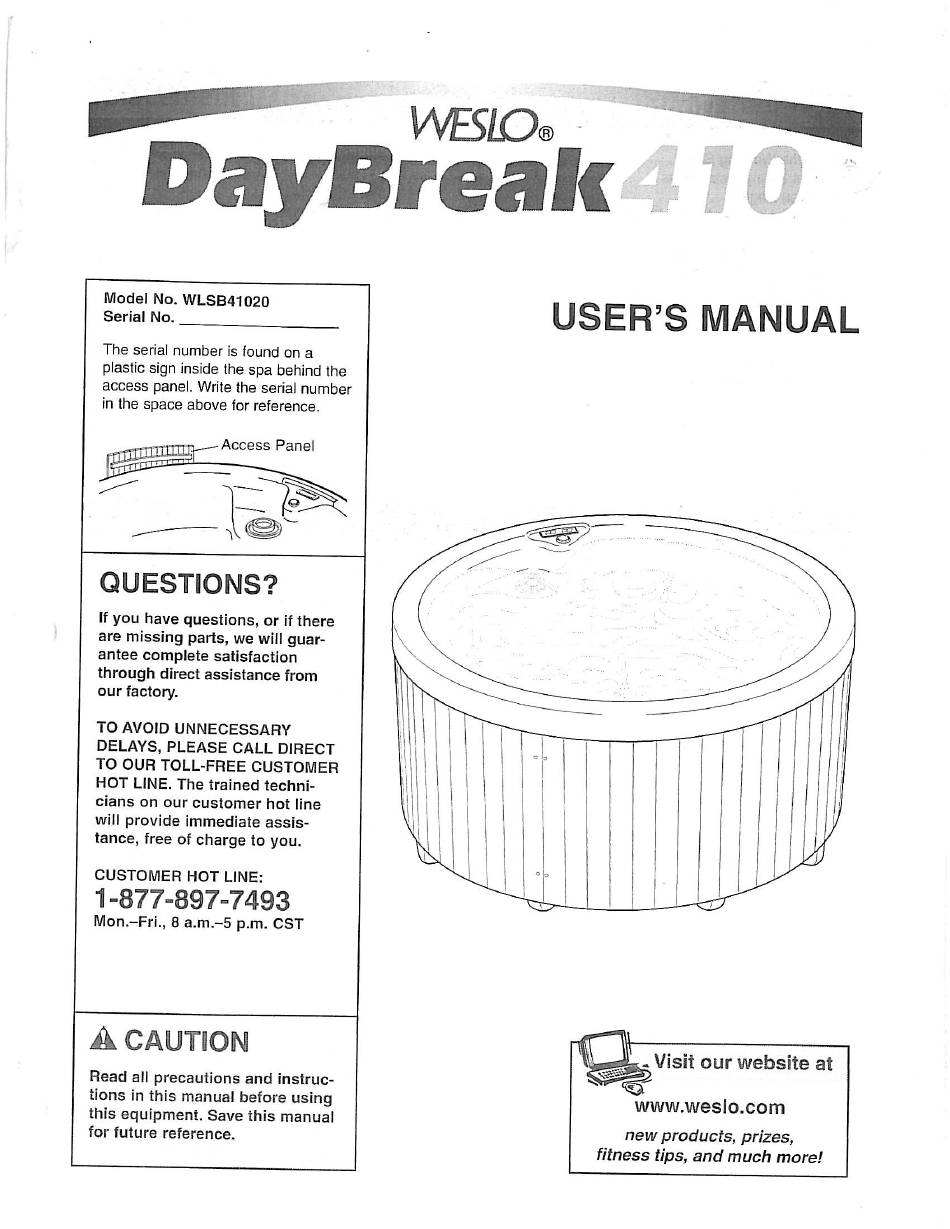

DayBrea1«
Model No. WLSB41020
Serial
No.
The serial number is found on a
plastic sign inside the spa behindthe
access panel. Write the serial number
in the space above for reference.
Access
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete
satisfaction
through
direct assistance
our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer
hot line
will provide
immediate
assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-877-897-7493
Mon.-Fri., 8 a.m.-5 p.m. CST
A CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future
reference.
ÆSLO@
Panel
from
USERS
MANUAL
Visit our website
www.weslo.com
new products,
fitness tips, and much more!
at
prizes,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DayBreak 410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weslo DayBreak 410

Summary of Contents for Weslo DayBreak 410

  • Page 1 CUSTOMER HOT LINE: 1-877-897-7493 Mon.-Fri., 8 a.m.-5 p.m. CST A CAUTION Visit our website Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Save this manual for future reference. new products, prizes, fitness tips, and much more!

  • Page 2: Table Of Contents

    • Spa heat speeds up the effect of alcohol, drugs, • Water attracts children. or medicine cause unconsciousness. • Always attach spa cover after each use. • Immediately leave spa if uncomfortable or sleepy. WESLO is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Safety Instructions

    Important Safety Instructions A WARNIN :To r educ e the r isk of d rownin electric shock, or s erious injury, read the f ol- lowingimportant p recautions before usingthehydrotherapy spa. READ AND FOLLOW ALL INSTRUCTIONS It is the responsibility of the owner to ensure 10.Never insert any object into any opening.
  • Page 4 29. WARNING—To reduce the risk of injury: The 21. DANGER—If you will be using the hydrother- water temperature should never exceed apy spa outside, do not bury the power cord. 1040F.Temperatures between 1000Fand 1040F Keep the power cord away from lawn mow- are considered to be safe for healthy adults.
  • Page 5 41. WARNING DECAL PLACEMENT: Locate the 36. If you feel pain or dizziness at any time while decals shown below and familiarize yourself using the hydrotherapy spa, discontinue use and contact a physician. with the information on the decals. 37. WARNING—To reduce the risk of injury: It is especially important for persons over the age WARNING of 35 or persons with pre-existing health...

  • Page 6: Before You Begin

    Before You Begin For your benefit, read this manual carefully before Congratulations for selecting the new WESLOØ DAY- using the DAYBREAK 410. If you have additional BREAK 410 hydrotherapy spa. The innovative DAY- questions, please call our Customer Service BREAK 410 allows you to enjoy all the benefits of Department toll-free at 1-877-897-7493, Monday hydrotherapy in the comfort and privacy of your home.

  • Page 7: Choosing A Location For The Hydrotherapy Spa

    Choosing a Location for the Hydrotherapy Spa Therearemanyfactorsto consider w henchoosing a location to set upthe hydrotherapy s pa.Thesefactorsvary depending onwhether y ouplanto usethe spainsideoroutside. W ehavelistedseveral f actorsyoumaywishto consider as you decide where to set up the spa. If you set up the hydrotherapy spa inside: If you set up the hydrotherapy spa outside: 1.

  • Page 8: Assembly

    Assembly Before beginning assembly, carefully read the ASSEMBLY REQUIRES THE FOLLOWING following information and instructions: TOOLS (not included): • Place all parts in a cleared area and remove the • One phillips screwdriver packing materials from the spa shell. Do not dis- pose of the packing materials until assembly is o You may also need a small amount of soap completed and the spa is operating.
  • Page 9 3. Removethe two warningdecals(seeWARNING DECALPLACEMENT on page5) fromthe spa shell. Using a damp cloth, wipe the spa shell clean. Before filling the spa, make sure that it is in the desired position and that there is room to easily service it. Once the spa is filled, it will have to be drained before it can be moved.
  • Page 10 3. Remove the two warning decals (see WARNING DECAL PLACEMENT on page 5) from the spa shell. Using a damp cloth, wipe the spa shell clean. Before filling the spa, make sure that it is in the desired position and that there is room to easily service it.

  • Page 11: Using The Hydrotherapy Spa

    Using the Hydrotherapy Spa TESTING AND TREATING THE WATER Thehydrotherap spaisdesigned t oseatfiveadults. Thespaholdsapproximately 2 25gallonsof waterand Thefirsttimeyouusethespa,youshouldtestand offers a heating system (800Fto 1040F),a filtration treat the water.You must also treat the water each system, t en hydrotherapy jets,anda powerful time you refill the spa.A teststripanda chemical whirlpool jet.

  • Page 12: Jet Layout Diagram

    Jet Layout Diagram See the diagram above. The function of each compo- D. The underwater light can be used for night opera- nent is explained below. tion (see USING THE CONTROLS on page 12). A. The ten hydrotherapy jets provide a relaxing E.

  • Page 13: Using The Controls

    Using the Controls Temperature Light Air Control Buttons Button Button Whirlpool/Diverter Light Button: Turns the underwater light on and off. See the diagram above. The function of each control is explained below: Temperature Buttons: Control the temperature set- ting of the water. The temperature setting can be from Air Control: Determines the amount of air flowing BOOFto 1040F.

  • Page 14: Maintenance

    Maintenance The hydrotherapy spa is designed to provide years of entirely. Use a non-silicone-based vinyl conditioner on enjoyment. Please follow the guidelines below to the cover after you clean it. This will help protect the cover from sun damage. properly maintain your spa. CHECKING CLEANING FILTER...
  • Page 15 ATTACHING AND REMOVING THE ACCESS PANEL MAINTAINING THE PROPER PH BALANCE To locate the access panel, see the drawing on page 6. The pH factor is a measure of the relative acidity or (Note: The slats on the access panel are narrower alkalinity in the water, and is measured on a scale of than the slats on the rest of the spa.) To removethe 1 to 14.
  • Page 16 Todrainthehydrotherapy s pa,followthe stepsbelow: WINTER USE AND CARE 1. Usingthe console,adjustthe temperatureto the The hydrotherapyspa is designed for year-round use. lowest setting. If you decide to store the spa for the winter, store it in 2. Shut off the circuit breaker or GFCI. a warm,dry location.Followthe steps belowto winter- 3.

  • Page 17: Troubleshooting

    Troubleshooting Mostproblems canbesolvedbyfollowingthesimplestepsbelow.Findthesymptom that applies,and follow the steps listed. If further assistance is needed, call our Customer Service Departmenttoll-free at' 1-877-897-7493, Monday through Friday, 8 a.m. until 5 p.m. Central Time. 36 hours for the water to reach the set temper- SYMPTOM: THE SPA WILL NOT OPERATE ature.
  • Page 18 10. SYMPTOM: THE SPA JET UNIT CONTINUES 12. SYMPTOM: THE CONSOLE DISPLAYS TO RUN AFTER IT HAS BEEN SHUT WORDS "COOL" OR "ICE" a. To turn the spa jets on low, press the jet button a. This is a normal function of the spa; no action once.

  • Page 19: Part List

    Part List—Model No. WLSB41020 R1003A Description Key No. Qty. Key No. Qty. Description Compression Fitting Assembly Strain Relief Access Panel Air Control Knob Whirlpool Jet 1/4" Lock Washer Inflatable Cover #10 x 1" Screw #8 x 5/8" Screw Push/Pull Movable Removable Collar Drain Plug...

  • Page 20: Exploded Drawing

    —Model No. WLSB41020 Exploded Drawing RI 003A 1 29 | 00 18—e...

  • Page 21: Ordering Replacement Parts

    1. The MODEL NUMBER of the product (WLSB41020) 2. The NAME of the product (WESLO@DAYBREAK 410) 3. The SERIAL NUMBER of the product (see the front cover of this manual) 4. The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING on pages 18 and 19).
