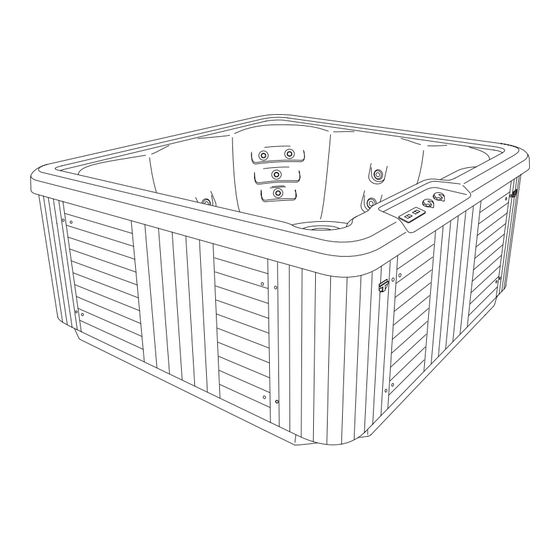

Weslo Daybreak 615blue User Manual

English manual
Hide thumbs

Advertisement

Table of Contents

Model No. WLSB61520
WLSG61520
Serial No.
The serial number is found on a plastic
sign inside the spa behind the access
panel. Write the serial number in the
space above for reference.
Access Panel
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-877-897-7493
Mon.–Fri., 8 a.m.–5 p.m. CST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Daybreak 615blue and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weslo Daybreak 615blue

Summary of Contents for Weslo Daybreak 615blue

  • Page 1 CUSTOMER HOT LINE: 1-877-897-7493 Mon.–Fri., 8 a.m.–5 p.m. CST CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Save this manual new products, prizes, for future reference. fitness tips, and much more!

  • Page 2: Table Of Contents

    Whenever the spa is moved, the sign must also be moved and reposted near the spa. If the sign becomes lost or illegible, call our toll-free Customer Hot Line at 1-877-897-7493 to obtain a replacement sign. Post the sign as described above. WESLO is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING: To reduce the risk of drowning, electric shock, or serious injury, read the fol- lowing important precautions before using the hydrotherapy spa. READ AND FOLLOW ALL INSTRUCTIONS 1. It is the responsibility of the owner to ensure 10.
  • Page 4 20. DANGER—Risk of electric shock. Keep all physician before using the hydrotherapy spa. electrical appliances such as radios, tele- Pregnant women should not use the spa if phones, televisions, and lights at least five the water temperature is above 100°F; the feet away from the water.
  • Page 5 35. WARNING: The spa jets produce a stream of water with relatively high pressure. Prolonged exposure of a localized area of the body may cause bruises to the skin. 36. The included warning sign must be posted where all users of the hydrotherapy spa can see and read it.

  • Page 6: Before You Begin

    Before You Begin Congratulations for selecting the WESLO ® DAYBREAK For your benefit, read this manual carefully before 615 hydrotherapy spa. The innovative DAYBREAK using the DAYBREAK 615. If you have questions 615 spa allows you to enjoy all the benefits of after reading the manual, call our Customer Service hydrotherapy in the comfort and privacy of your home.

  • Page 7: Choosing A Location For The Hydrotherapy Spa

    Choosing a Location for the Hydrotherapy Spa There are many factors to consider when choosing a location to set up the hydrotherapy spa. These factors vary depending on whether you plan to use the spa inside or outside. We have listed several factors you may wish to consider as you decide where to set up the spa.

  • Page 8: Assembly

    Assembly Before beginning assembly, carefully read the ASSEMBLY REQUIRES THE FOLLOWING following information and instructions: TOOLS (not included): • Place all parts in a cleared area and remove the • One (1) phillips screwdriver packing materials from the spa shell. Do not dis- pose of the packing materials until assembly is •...
  • Page 9 3. Locate the three pillows. Each pillow can be Pillow attached to the spa shell in a high position or a low position. To determine the high and low positions, Pillow Pillow attach one pillow to the spa shell, note its position, remove it, turn it 180°, and then re-attach it.

  • Page 10: Using The Hydrotherapy Spa

    Using the Hydrotherapy Spa The hydrotherapy spa is designed to seat five adults. the GFCI “test” button. The spa should shut off. Press The spa holds 295 gallons of water and offers a heat- the “reset” button. The spa should resume normal ing system (80°F to 104°F), a filtration system, and operation.

  • Page 11: Spa Shell Diagram

    Spa Shell Diagram Refer to the diagram above. The function of each way to help sanitize the spa with minimal chemical component is explained below. treatment. A. The four adjustable, directional jets can be pivot- H. The skimmer cleans the surface of the water. ed to direct their water flow.

  • Page 12: Using The Controls

    Using the Controls Console Display Air Control L Air Control M Temperature Light Temperature Up Button Button Button Down Button Refer to the diagram above. The function of each Air Controls: Determine the amount of air flowing control is explained below: through the spa jets during operation.

  • Page 13: Maintenance

    Maintenance The hydrotherapy spa is designed to provide years of MAINTAINING THE SPA COVER enjoyment. Please follow the guidelines below to properly maintain your spa. The spa cover should be cleaned monthly. To clean the spa cover, use water and a non-abrasive cleaner MAINTENANCE SCHEDULE on the entire cover.
  • Page 14 WATER CHEMISTRY ATTACHING AND REMOVING ACCESS PANEL CAUTION: The chemicals used to maintain the pH To locate the access panel, refer to the drawing balance of the water and to sanitize the water can below. Turn off the power to the spa. To remove the be dangerous.
  • Page 15 To drain the hydrotherapy spa, follow the steps below: WINTER USE AND CARE 1. Using the console, adjust the temperature to the The hydrotherapy spa is designed for year-round use. lowest setting. If you decide to store the spa for the winter, store it in 2.

  • Page 16: Troubleshooting

    Troubleshooting Most problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1-877-897-7493, Monday through Friday, 8 a.m. until 5 p.m. Central Time. 1.
  • Page 17 b. A clamp or seal inside the pump compartment 12. SYMPTOM: THE CONSOLE DISPLAYS THE may be loose. Check inside the pump compart- WORDS “COOL” OR “ICE” ment for excess water and watch the pump unit while it is operating to see if water drips from a.

  • Page 18: Part List

    Part List—Model No. WLSB61520/WLSG61520 R0902A Key No. Qty. Description Key No. Qty. Description Thermometer Fitting Air Control Knob Access Panel Cover Ring Face Ring Nozzle Housing Small Rotator Nozzle Retainer Ring Short Panel 1/4” Washer Pivot Ring Rotator #10 x 2” Sheet Metal Screw Light Cover, Red Filter Cover Light Cover, Blue...

  • Page 19: Exploded Drawing

    Exploded Drawing— Model No. WLSB61520/WLSG61520 R0902A...

  • Page 20: Ordering Replacement Parts

    Friday, 8 a.m. until 5 p.m. Central Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: • The MODEL NUMBER of the product (WLSB61520 or WLSG61520) • The NAME of the product (WESLO ® DAYBREAK 615 hydrotherapy spa) •...
