User Instructions

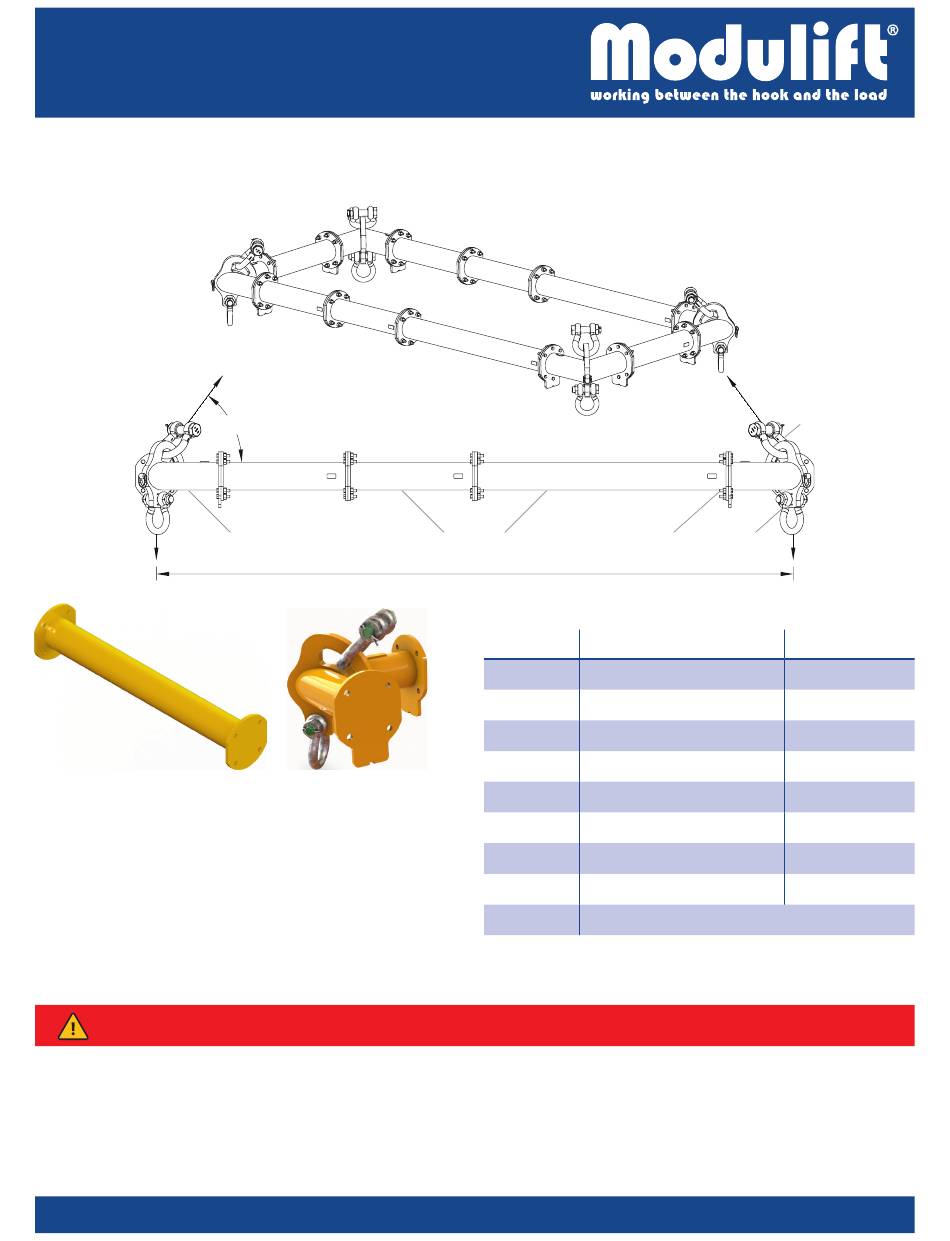

CMOD 6 Spreader Frame
The CMOD Spreader Frame is modular in span and every frame consists of 4 Corner Units,
with intermediate Struts that can be bolted into the assembly to achieve different spans.
CMOD 6 has an assembled span ranging from 18" by 18" to 102" by 102" in 4" increments.
Assembled
Frame
= Base
α
to sling
angle (BSA)
Strut
CMOD 6 Frame Specification
Rated at a maximum of 8 tonnes SWL.
Please see Table 2 for SWL at specific spans.
'Base to Sling' angle,
Corner Units are rated at 2 tonnes each
(8 tonnes combined capacity).
Bolt tightening torque: 44 Pound-Foot. Spanner size required: 17mm.
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
WARNING!
Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in 'ASME B30.20 - 2013' .
Never exceed stated SWL
The top sling length is critical to the safe use of the spreader
Modulift UK Ltd tel: 011 44 1202 621511 email: sales@modulift.com www.modulift.com
Fig. 1 – Typical CMOD
Spreader Frame Assembly
α
P1
Span
Corner Unit
, no less than 45 degrees.
α
– Adhere to SWL in Table 2 for particular sling angle used.
P2–P6
Table 1 – Component List
Part Ref.
Description
P1
Corner Unit
P2
40" Strut
P3
24" Strut
P4
12" Strut
P5
8" Strut
P6
4" Strut
P7
8.5t Shackle
P8
6.5t Shackle
P9
M10 x 30, Grade 8.8, HT Bolts, Nuts & Washers
– Ensure you refer to the correct table.
P7
P9
P8
Weight/item
23 lbs
(length 9" each)
18 lbs
12 lbs
8 lbs
6 lbs
5 lbs
5.7 lbs
3.9 lbs
