Modulift CMOD 24 User Instructions

User Instructions
CMOD 24 Spreader Frame
The CMOD Spreader Frame is modular in span and every frame consists of 4 Corner Units,
with intermediate Struts that can be bolted into the assembly to achieve different spans.
CMOD 24 has an assembled span ranging from 4ft by 4ft to 20ft by 20ft in 1ft increments.
Assembled
Frame
α
P1
Strut
CMOD 24 Frame Specification
Rated at a maximum of 30 tonnes SWL.
● ●
Please see Table 2 for SWL at specific spans.
'Base to Sling' angle,
● ●
Corner Units are rated at 7.5 tonnes each
● ●
(30 tonnes combined capacity).
Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
● ●
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
● ●
WARNING!
Personnel using this system should be suitably trained, competent and have a clear
● ●
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in 'ASME B30.20 - 2013' .
● ●
Never exceed stated SWL
● ●
The top sling length is critical to the safe use of the spreader
● ●
Modulift UK Ltd tel: 011 44 1202 621511 email: sales@modulift.com www.modulift.com

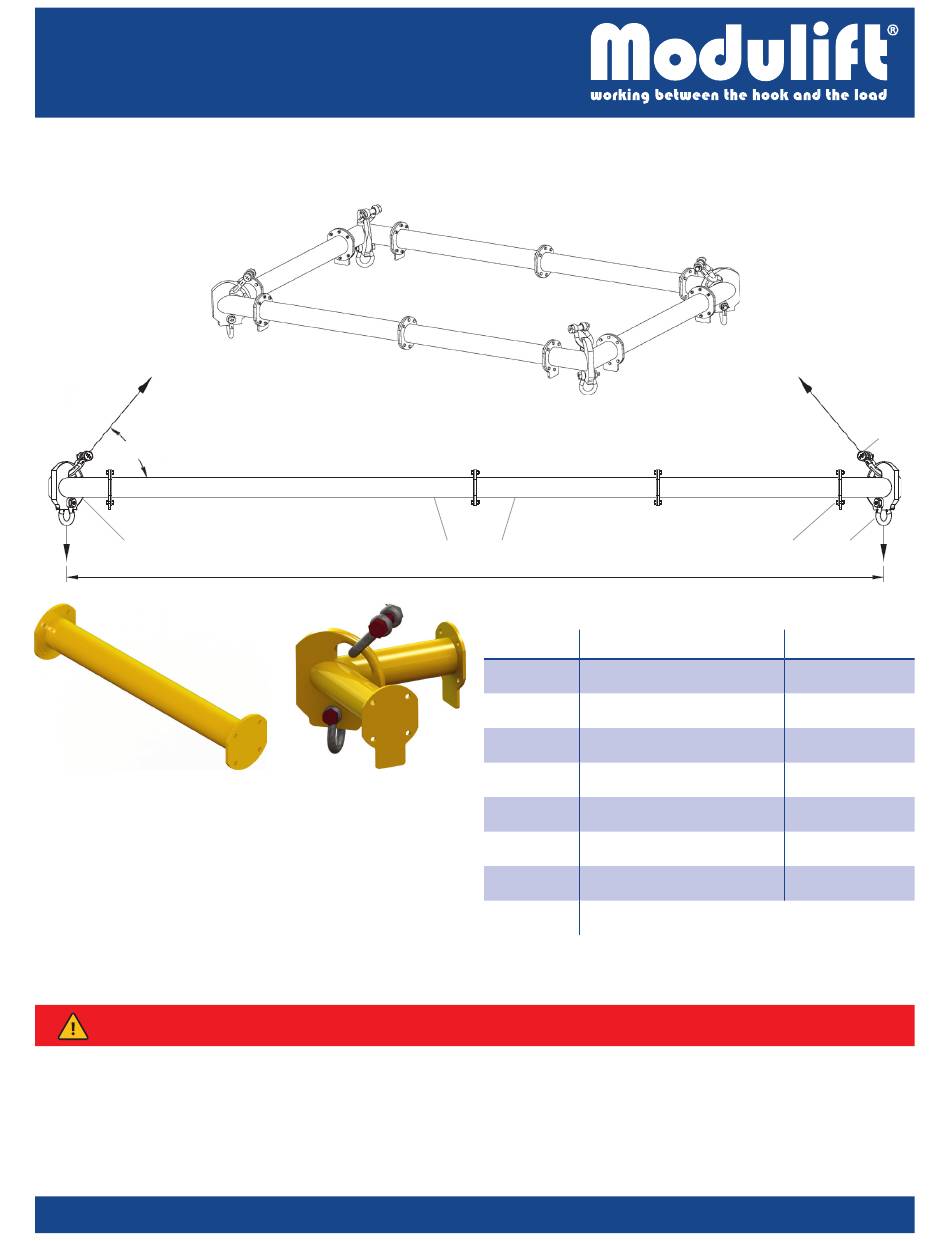

Fig. 1 – Typical CMOD Spreader Frame Assembly
= Base to sling angle (BSA)
α
Span
Corner Unit
, no less than 45 degrees.
α
– Adhere to SWL in Table 2 for particular sling angle used.
P2–P5
Table 1 – Component List
Part Ref. Description
P1 Corner Unit
P2 6ft Strut
P3 4ft Strut
P4 2ft Strut
P5 1ft Strut
P6 17t Shackle
P7 12t Shackle
P8
M20 x 50, Grade 8.8, HT Bolts, Nuts & Washers
– Ensure you refer to the correct table.
P8 P7
Weight/item
130 lbs
(length 2ft each)
80 lbs
56 lbs
37 lbs
26 lbs
18 lbs
11 lbs
P6
