LumaPro 2YKT2 Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Cord Reel
Operation
Pull desired length of cord from reel. Tug slightly on cord to engage lock. To disengage
lock, pull slowly on cord until clicking stops then allow cord to slowly retract back into
housing.
WARNING! DO NOT OVERLOAD!
Check the amperage of the tool(s) to be plugged into the cord reel plug/lamp.
Do not exceed electrical rating marked on the product.
Circuit Breaker Operation
(Models with circuit breaker)
Circuit breaker will trip if unit is overloaded. If circuit breaker trips, remove overload, turn
switch located in handle to "OFF" position, wait two minutes, then reset by pushing button
on circuit breaker located on power cord. Turn handle switch to "ON" position. If unit
continues to trip when load is plugged in, the tool or appliance you are attempting to plug
in may be defective and require repair by a qualified electrician.

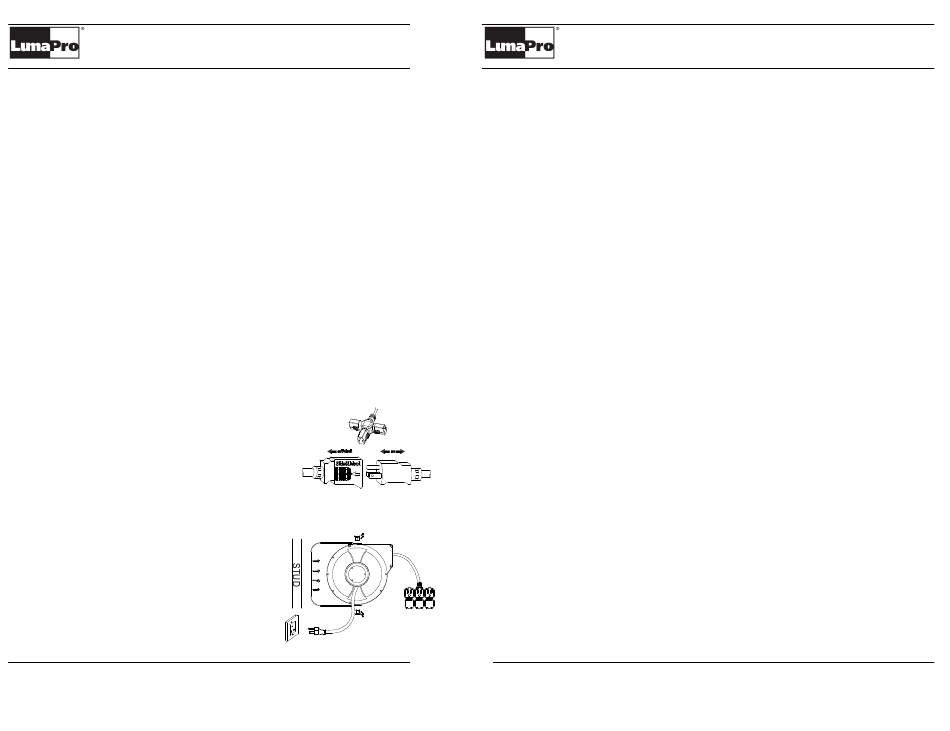

Locking Female Tap Operation
(Models with locking female tap)
Plug Nema 5-15P plug into the locking receptacle.
To Unlock, slide outward, as shown on the direction of arrow,
by grasping the sliding housing on the receptacle
Polarized Plug Instruction
This cord reel is intended for use only with 3-wire grounded
outlets. It is equipped with a POLARIZED plug and is
intended to be mated with a 3-wire receptacle in only one
way. DO NOT attempt to defeat this safety feature by
removing the ground pin. The receptacle on lamp or plug is
POLARIZED and intended to mate with a Polarized plug in
only one way.
Manufactured for Grainger International, Inc.
100 Grainger Pkwy., Lake Forest, IL 60045 U.S.A
2YKT2, 2YKT6, and 2YKT7
4
Operating Instructions and Parts Manual
Cord Reel
Instruction Manual
Read all instructions before using this device.
Save these instructions.
WARNING!
Electrical cord reels can be hazardous!
•
Misuse can result in fire, damage and death by electric shock!
•
For indoor use only.
•
Fully extend cord before using outlet.
•
For use with 110 – 125V, 60Hz circuits only.
•
Do not allow lamp to lay on floor.
•
Do not use this device in hazardous locations where explosion proof cord reels and/or
•
lamps are required.
Do not use this device under or around vehicles where explosive fumes and/or liquids may
•
be present.
Do not use in wet location. Do not immerse the reel, cord or plug/lamps into water or other
•
liquids.
Do not overload (see electrical ratings on product).
•
Do not use an extension cord between the cord reel and the wall outlet.
•
Do not allow cord to retract by itself, as damage to cord end fittings may occur from
•
excessive rewind speed.
Do not use solvents (gasoline, paint thinner, etc.) to clean any part of this device (see how
•
to clean in "Maintenance" section)
Always disconnect power to this cord reel when not in use or when changing lamps.
•
Manufactured for Grainger International, Inc.
100 Grainger Pkwy., Lake Forest, IL 60045 U.S.A
Printed in Indonesia – Form# 335
2YKT2, 2YKT6, and 2YKT7
Cord Reel
1
