Operating Instructions
49WJ37
Please read and save these instructions. Read through this owner's manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.

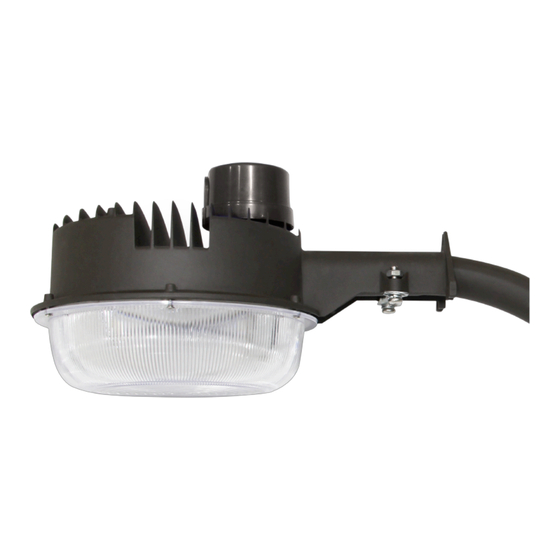

LED Barn Light
Description
LumaPro LED Barn Light with prismatic lens replicate the form and function of 150 watt
high-pressure sodium or 175-watt metal halide fixtures, while using just 35 watts. The Barn
Light operates at 120-277 volts, and can mount to walls or sealed junction boxes. It is ideal
for outdoor lighting applications in areas that require a wide distribution of light
including driveways, yards, properties and work areas.
49WJ37
CONSTRUCTION
• Includes black 3-pin photocontrol and mounting arm
• Replaces up to 175W MH
• Rated for ≥100,000-hour TM-21 L70 Lifetime @ 25°C
• Universal 120-277V power supply
• 5-year warranty
Specifications and Dimensions
Dimensions (in)
Model
Volts
Watts
CCT
Lumens
CRI
H" x W" x D"
49WJ37 120-277V
35W
5000K
3,325
78
7.67" x 9.50" x 14.76"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 49WJ37 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LumaPro 49WJ37

  • Page 1 LED Barn Light Description LumaPro LED Barn Light with prismatic lens replicate the form and function of 150 watt high-pressure sodium or 175-watt metal halide fixtures, while using just 35 watts. The Barn Light operates at 120-277 volts, and can mount to walls or sealed junction boxes. It is ideal for outdoor lighting applications in areas that require a wide distribution of light including driveways, yards, properties and work areas.
  • Page 2: General Safety Information

    LumaPro Operating Instructions 49WJ37 LED Barn Light General Safety Information • To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels.
  • Page 3: General Wiring Diagram

    LumaPro Operating Instructions 49WJ37 LED Barn Light General Wiring Diagram CAUTION: Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply. Direct Mounting Instructions Inspect components to ensure that male and female port threads and sealing surfaces are free of burs, nicks and scratches or any foreign material.
  • Page 4 LumaPro Operating Instructions 49WJ37 LED Barn Light Arm Mounting Instructions Inspect components to ensure that male and female port threads and sealing surfaces are free of burs, nicks and scratches or any foreign material. Inspect mounting arm; if split-arm is provided, use supplied nut and bolt to assemble arm as shown in Fig.
  • Page 5: Limited Five-Year Warranty

    LumaPro Operating Instructions 49WJ37 LED Barn Light Warranty LIMITED FIVE-YEAR WARRANTY Should this product fail to perform satisfactorily due to a defect or poor workmanship within FIVE YEAR from the date of purchase, return it to the place of purchase and it will be replaced, and free of charge.
  • Page 6: Instrucciones De Funcionamiento

    Luz LED de granero Descripción Luz de granero LED LumaPro con lentes prismáticos imita la forma y función de los aparatos de haluro de metal de 175 vatios o sodio de alta presión de 150 vatios y solo usa 34 vatios. La Luz de granero opera a 120-277 voltios y puede montarse en pared o cajas de conexión selladas.
  • Page 7: Información General De Seguridad

    Instrucciones de operación de LumaPro 49WJ37 Luz LED de granero Información general de seguridad • Para reducir el riesgo de muerte, lesiones personales o daño a la propiedad debido a incendio, descargas eléctricas, piezas que se desprenden, cortes/abrasiones, y otros peligros, lea todas las advertencias e instrucciones incluidas en la caja de accesorios y en todas las etiquetas del aparato.
  • Page 8 Instrucciones de operación de LumaPro 49WJ37 Luz LED de granero Diagrama de cableado general PRECAUCIÓN: Desconecte la electricidad en el fusible o disyuntor antes de conectar el aparato al suministro eléctrico. Instrucciones para el montaje directo Inspeccione los componentes para asegurarse de que los cables de puerto macho y hembra y las superficies de sellado estén libres de rebabas, muescas y grietas...
  • Page 9 Instrucciones de operación de LumaPro 49WJ37 Luz LED de granero Instrucciones para el montaje con brazo Inspeccione los componentes para asegurarse de que los cables de puerto macho y hembra y las superficies de sellado estén libres de rebabas, muescas y grietas o material extraño.
  • Page 10: Spécifications Et Dimensions

    étable DEL Description Le luminaire pour étable DEL de LumaPro et son diffuseur prismatique reproduit la forme et la fonction des luminaires au sodium haute pression de 150 Watts ou des halogénures métalliques de 175 Watts en n’utilisant que 34 Watts. Ce luminaire pour étable utilise un voltage de 120 à...
  • Page 11: Consignes Générales De Sécurité

    LumaPro – Mode d’emploi 49WJ37 Luminaire pour étable DEL Consignes générales de sécurité • Lire tous les avis et toutes les consignes, notamment ceux et celles qui se trouvent sur le boîtier et sur toutes les étiquettes du luminaire afin d’éviter tout risque de décès, de dommage corporel ou de dégâts matériels causés par un incendie, une décharge...
  • Page 12 LumaPro – Mode d’emploi 49WJ37 Luminaire pour étable DEL Diagramme de câblage général AVERTISSEMENT: Couper l’électricité au niveau des fusibles ou du disjoncteur avant de connecter le luminaire à une source de courant. Instructions pour une installation directe 1. Inspecter les éléments et s’assurer que les raccords mâles et femelles et les surfaces d’installation sont sans entailles et bavures, et exempts de tout matériau.
  • Page 13: Garantie

    LumaPro – Mode d’emploi 49WJ37 Luminaire pour étable DEL Instructions pour une installation à l’aide du bras de support 1. Inspecter les éléments et s’assurer que les raccords mâles et femelles et les surfaces d’installation sont sans entailles et bavures, et exempts de tout matériau.
