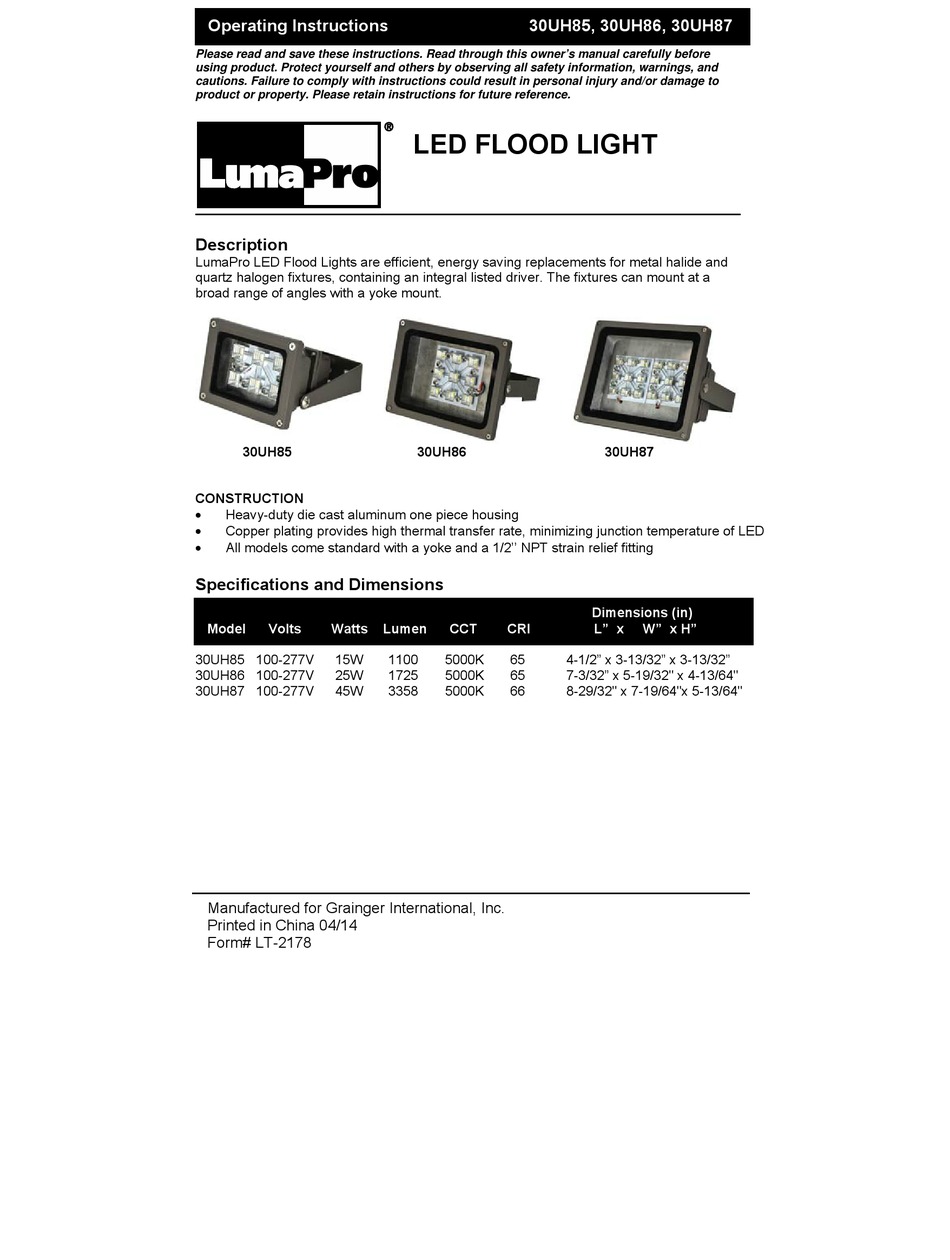

LumaPro 30UH85 Operating Instructions

Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.

Description

LumaPro LED Flood Lights are efficient, energy saving replacements for metal halide and
quartz halogen fixtures, containing an integral listed driver. The fixtures can mount at a
broad range of angles with a yoke mount.
30UH85

CONSTRUCTION


Heavy-duty die cast aluminum one piece housing

Copper plating provides high thermal transfer rate, minimizing junction temperature of LED

All models come standard with a yoke and a 1/2'' NPT strain relief fitting

Specifications and Dimensions

Model Volts Watts
30UH85 100-277V 15W
30UH86 100-277V 25W
30UH87 100-277V 45W
Manufactured for Grainger International, Inc.
Printed in China 04/14
Form# LT-2178
30UH85, 30UH86, 30UH87
LED FLOOD LIGHT
30UH86
Lumen CCT CRI
1100 5000K 65
1725 5000K 65
3358 5000K 66
30UH87
Dimensions (in)
L" x W" x H"
4-1/2" x 3-13/32" x 3-13/32"
7-3/32" x 5-19/32" x 4-13/64"
8-29/32" x 7-19/64"x 5-13/64"
