User Manual

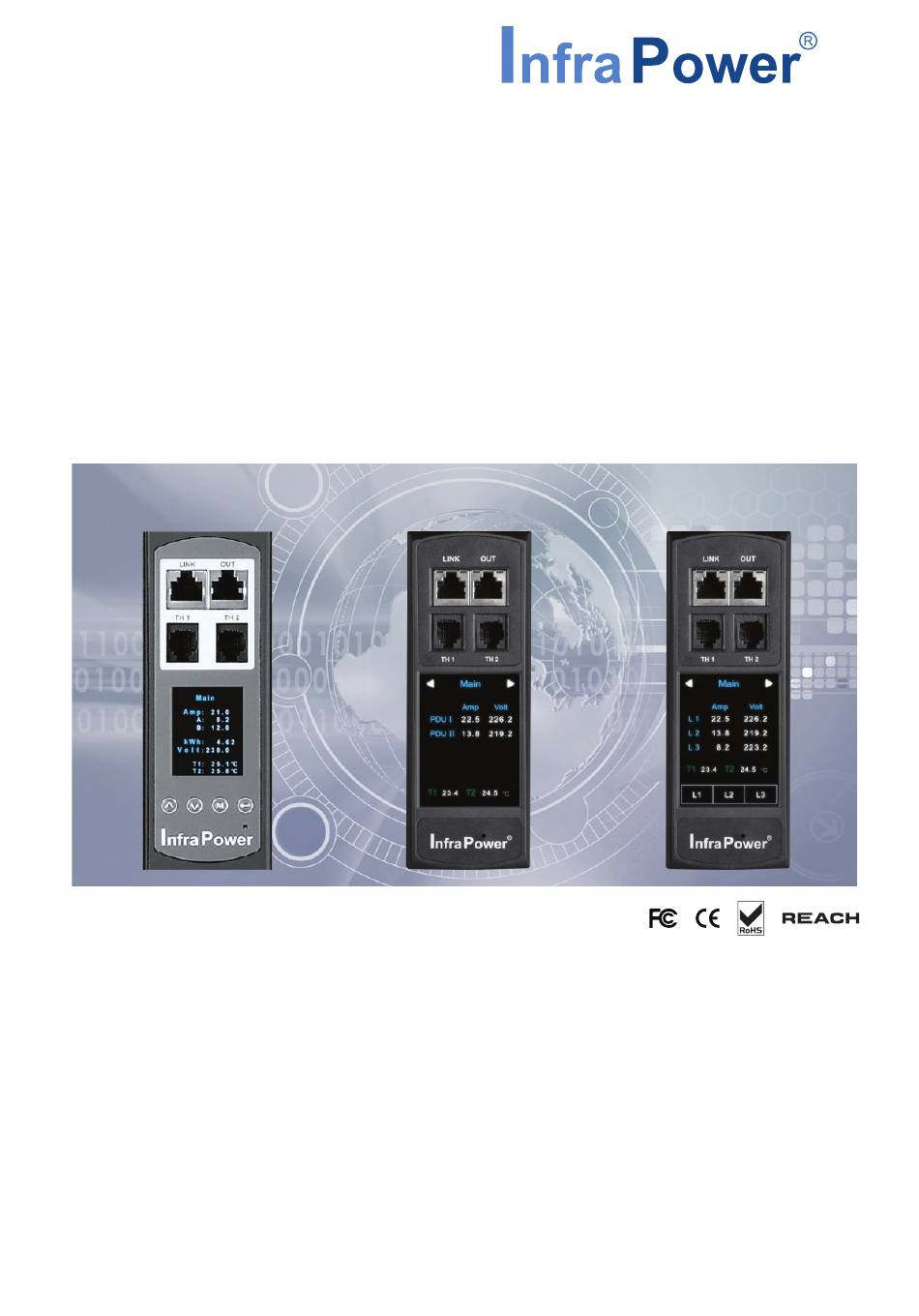

PPS-03-S, IP dongle GUI & SNMP
InfraPower Intelligent PDU
1-Phase
1-Phase
3-Phase
Dual Feed
Designed and manufactured by Austin Hughes
UM-PPS-03-S-Q225V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPS-03-S and is the answer not in the manual?

Questions and answers

Related Manuals for Infrapower PPS-03-S

Summary of Contents for Infrapower PPS-03-S

  • Page 1 Inspired by Your Data Center User Manual PPS-03-S, IP dongle GUI & SNMP InfraPower Intelligent PDU 1-Phase 1-Phase 3-Phase Dual Feed Designed and manufactured by Austin Hughes UM-PPS-03-S-Q225V1 www.austin-hughes.com...

  • Page 2: Legal Information

    ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-PPS-03-S-Q225V1 www.austin-hughes.com...

  • Page 3: Table Of Contents

    < 1.4 > Initial Network Confi guration of IP dongle < 1.5 > First time login < 1.6 > Remote PDU Level & ID Setting < 1.7 > PPS-03-S IP Dongle GUI P.10 < 1.8 > System P.16 < 1.9 >...

  • Page 4: Ip Dongle Specifi Cation

    - Press the reset button and release instantly to reboot IP dongle. - Press and hold the reset button for 15 seconds to reset IP dongle to factory default InfraPower PPS-03-S Features Capacity IP Dongle Group ( Just 1 for 32 PDU levels )
  • Page 5 > Common SNMP MIBs (Management Information Base) across all iPDU families USB Wifi Port > Optionally connect via a Wifi kit (IPD-WIFI) complying with 802.11 g/n/ac Remote Management Protocols > HTTP(S); SSH Command Line Interface; Telnet; SMTP; IPv6/IPv4 UM-PPS-03-S-Q225V1 www.austin-hughes.com...

  • Page 6: Ip Dongle Installation & Meter ( Pdu ) Cascade

    • Detachable design • Daisy chain by Cat 5e / 6 cable • Max. cable length 300M (984 ft) • One IP dongle connect Max. 32 x 1-Phase & 3-Phase InfraPower PDU LINK Cat 5e / 6 cable Cat 5e / 6 cable...

  • Page 7: Meter ( Pdu ) Level Setting

    ( III ) For 2.8″ LCD Meter ( With touchscreen function ) Setup Level Level PDU Level Level Group : Buzzer Level : Screen Sensor Outlet ON Cancel Enter Cancel Enter For PDU with fi rmware version V37 or above UM-PPS-03-S-Q225V1 www.austin-hughes.com...

  • Page 8: Initial Network Confi Guration Of Ip Dongle

    IP address : 192.168.11.1 Subnet Mask : 255.255.0.0 Subnet Mask : 255.255.0.0 Gateway : N/A Gateway : N/A 4. Open a web browser to enter the assigned IPv4 address into the address bar to access the login page. UM-PPS-03-S-Q225V1 www.austin-hughes.com...

  • Page 9: First Time Login

    “ Apply “ to change the default password. 5. The login screen displays again. Input the login name and new password and click “ Login “ to login the IP dongle GUI ( PPS-03-S ) 6. The IP dongle GUI similar to the following image displays.

  • Page 10: Remote Pdu Level & Id Setting

    2. Open a browser and type the IP address of the IP dongle. 3. The login screen displays. Input the login name and new password and click “ Apply “ to login PPS-03-S 4. In < Status >, click “ Search ” to start PDU searching.
  • Page 11 < 1.6 > Remote PDU Level & ID Setting Assign a unique “ Level “ , “ Name “ and “ Location “ to each PDU and ensure to check the register box. Then Click “ Apply “. UM-PPS-03-S-Q225V1 www.austin-hughes.com...
  • Page 12 < 1.6 > Remote PDU Level & ID Setting 7. After the PDU level setting is complete, “ Status “ page will display the PDU with proper level. UM-PPS-03-S-Q225V1 www.austin-hughes.com...

  • Page 13: Pps-03-Sip Dongle Gui

    < 1.7 > PPS-03-S IP Dongle GUI Each IP dongle ( IPD-03-S ) provides FREE built-in GUI, PPS-03-S, which allows user, via a web browser, to manage the PDUs over a TCP/IP Ethernet network remotely. Each web browser window supports only one IP dongle ( IPD-03-S ). If user installs more IP dongles, multi- windows will be required.
  • Page 14 < 1.7 > PPS-03-S IP Dongle GUI In < Details >, - Change “ Name ” and “ Location ” of PDU & Click “ Apply ” - Change “ Alarm amp. ‘, “Rising alert amp. “ & “ Low alert amp “ of PDU’s circuits & click “ Apply “.
  • Page 15 < 1.7 > PPS-03-S IP Dongle GUI You can also switch ON / OFF multiple outlets in < Details >. - Tick the check box of the outlets you want to switch ON / OFF - Click “ ON “ or “ OFF “...
  • Page 16 < 1.7 > PPS-03-S IP Dongle GUI In < Outlet setting >, - Change PDU’s outlet name - Change “ Power up sequence delay ” of PDU’s outlet ( Switched PDU only ) - Change “ Alarm amp. ”, “ Rising Alert amp.” & “ Low alert amp. ” of PDU’s outlet ( Outlet Measurement PDU only ) - Click “...
  • Page 17 < 1.7 > PPS-03-S IP Dongle GUI In < Sensor Status >, - View status, location, latest reading & alarm setting of Temp. & Humid sensors. - View status & location of Door sensor & Smoke sensor The GUI will not show the status / reading if sensors are NOT installed & activated.
  • Page 18 < 1.7 > PPS-03-S IP Dongle GUI In < Sensor Setting >, - Default Sensor setting : Deactivate - “ Activate ” sensors ONLY when they are connected - Change “ Location ” , “ Rising alert Setting “ & “Alarm Setting ” of Temp. & Humid sensors - Change “...

  • Page 19: System

    - Set the “ Date & Time “ of the IP dongle ( by “ Manually “ or “ NTP server “ ). Default is “ Manually “ - Tick “ Force HTTPS ” to provide data transmission security. Default Web Access is “ HTTP “ - Click “ Apply ” to fi nish the above settings UM-PPS-03-S-Q225V1 www.austin-hughes.com P.16...

  • Page 20: Network

    - Enter the IP address of “ Primary DNS ”. Default is “ 8.8.8.8 ” - Enter the IP address of “ Secondary DNS ”. Default is “ “0.0.0.0 ” - Click “ Apply ” to fi nish the above settings UM-PPS-03-S-Q225V1 www.austin-hughes.com P.17...

  • Page 21: Wifi Network Confi Guration

    PDU dongle IPD-03-S is well connected to the iPDU and powered on. Login IPD-03-S web UI via LAN 1/ LAN 2 to confi gure the WIFI network. 3rd party WIFI kit is not compatible to InfraPower. Make sure IPD-WIFI has been used for the WIFI network connection.
  • Page 22 < 1.10> Wifi Network Confi guration Step 3. Select the appropriate network from the pull down menu of “ ESSID “ Step 4. Select “ PSK “ from Authentication. For PEAP or TLS , please refer to < 1.17 > 802.1X authentication. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.19...
  • Page 23 Step 6. Select “ DHCP “ to “ OFF “. Default is “ ON “ Step 7. Enter “ IPv4 address “ , “ IPv6 address “ , “ Subnet mask “ , “ Gateway “ & Click “ Apply “ to fi nish the above settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.20...
  • Page 24 Then, connect the USB wireless adapter to the IP dongle. ( Details please refer to < 1.19 > Optional Accessories - Wifi Kit ) Step 2. Click “ Scan Wifi “ to search the available WiFi network UM-PPS-03-S-Q225V1 www.austin-hughes.com P.21...
  • Page 25 < 1.10> Wifi Network Confi guration Step 3. Select the appropriate network from the pull down menu of “ ESSID “ Step 4. Select “ PSK “ from Authentication. For PEAP or TLS , please refer to < 1.17 > 802.1X authentication. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.22...
  • Page 26 < 1.10> Wifi Network Confi guration Step 5. Input “ Password ” for authentication Step 6. Select “ DHCP “ to “ ON “. Default is “ ON “ Step 7. Click “ Apply “ to fi nish the above settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.23...
  • Page 27 Step 8. Select “ Firmware “ from the left navigation pane Step 9. Record the “ MAC address “ of the Wifi kit Step 10. Assign an IP address of the Wifi kit from your DHCP server. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.24...

  • Page 28: Login

    < 1.11 > Login For security purpose, users log in to PPS-0S-S MUST be authenticated. PPS-03-S provides the following authentication methods: - Local User on PPS-03-S - Lightweight Directory Access Protocol (LDAP) - Remote Access Dial-In User Service (Radius) protocol You can perform the authentication confi...
  • Page 29 - Input “ Group Member Attribute “ & “ Group Entry Object Class “ if you deselect “ Group searching with memberOf attribute “ - Input “ Group Search Subfi lter “. This fi eld is optional. - Click “ Apply “ to save the settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.26...
  • Page 30 “ Group searching with memberOf attribute “ - Input “ Group Search Subfi lter “. This fi eld is optional. - Input the “ Domain “ of the AD server. - Click “ Apply “ to save the settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.27...
  • Page 31 ( groups ) are allowed to log in PPS-03-S. By default, PPS-03-S has two built-in roles – AH_Admin and AH_Guest. Users with AH_Admin role having all privileges in PPS-03-S and users with AH_Guest role only having Read only privileges in PPS-03-S.
  • Page 32 4. Input the description of the role. This fi eld is optional. 5. Select the privilege of this role. ( Read Only / Read and Write ) 6. Click “ Apply “ to fi nish the role creation. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.29...
  • Page 33 2. Add user account admin to the AH_Admin group. 3. Add user account AD user to the AH_Guest group. 4. Now, user account admin can log in PPS-03-S with full privilege and user account AD user can log in PPS-03-S with Read-only privilege.
  • Page 34 - Input “ Timeout “. Default is 2 in second. - Input “ Retries “. Default is 0. - Input “ Shared secret “ - Input “ Confi rm shared secret “. - Click “ Apply “ to save the settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.31...

  • Page 35: Snmp Setup

    Step 3. Enter the confi gured IP Dongle address into the address bar. Step 4. Enter “ Login name “ & “ Password “. • Default login name: 00000000 Step 5. Select the SNMP from the left navigation pane UM-PPS-03-S-Q225V1 www.austin-hughes.com P.32...
  • Page 36 Step 16. Input “ Trap Station IP “ , “ Trap Port “ & “ Trap Community “ of Station 1 Step 17. Repeat Step 14 & 15 for Station 2 & 3 Step 18. Click “ Apply “ to fi nish the SNMP v1 / v2 settings UM-PPS-03-S-Q225V1 www.austin-hughes.com P.33...
  • Page 37 Step 3. Enter the confi gured IP Dongle address into the address bar. Step 4. Enter “ Login name “ & “ Password “. • Default login name: 00000000 Step 5. Select SNMP from the left navigation pane Step 6. The SNMP Settings window appears as below: UM-PPS-03-S-Q225V1 www.austin-hughes.com P.34...
  • Page 38 Step 21. Input the “ Trap Station IP “ & “ Trap port “ Step 22. Repeat step 12 to 20 for User 2 & 3 Step 23. Click “ Apply “ to fi nish the SNMP v3 settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.35...
  • Page 39 After enable SNMP, you can click “ SNMP Traps “ to go to the “ SNMP Traps Setting “ page Below is the default setting for each PDU SNMP trap. You can set the SNMP trap option and Click “ Apply “ to fi nish the settings. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.36...

  • Page 40: Notifi Cation

    Step 7. Enter the “ Alarm Interval ”. ( Min. 10, Max. 60 mins ) Step 8. Enter the alarm recipient email account in “ Recipient 01 ” Step 9. Repeat step 8 for other recipients Step 10. Click “ Apply “ to fi nish the alarm email server setting UM-PPS-03-S-Q225V1 www.austin-hughes.com P.37...

  • Page 41: Syslog

    < 1.14 > Syslog In < Syslog > , you can view the latest 2000 device and system log UM-PPS-03-S-Q225V1 www.austin-hughes.com P.38...

  • Page 42: Ip Dongle Firmware Upgrade

    Step 5. Enter the confi gured IP Dongle address into the Address bar. Step 6. Enter “ Login name “ & “ Password “. • Default login name: 00000000 Step 7. Select the Firmware from the left navigation pane UM-PPS-03-S-Q225V1 www.austin-hughes.com P.39...
  • Page 43 fi rmware version IPD-03-FW-V1.1 or above ) from the specifi c path in the pop up window and Click “ Open ” Step 10. Click “ Upgrade ” to start the upgrade process. It takes a few minutes to complete. Step 11. Once complete, UI will return to the login page. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.40...

  • Page 44: Bulk Firmware Upgrade

    Step 5. Make sure all of the IP Dongles use DHCP as the IP confi guration method and have been directly connected to the network. The default IP confi guration of IP Dongle is “ DHCP ” UM-PPS-03-S-Q225V1 www.austin-hughes.com P.41...
  • Page 45 fi rmware upgrade in the “ fwupdate.cfg ” fi le. You can change the username and password for bulk fi rmware upgrade via SSH. See Con fi guration of username / password for bulk fi rmware upgrade. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.42...
  • Page 46 Confi guration of username / password for bulk fi rmware upgrade Step 1. Access the SSH using putty Step 2. Input the login name and password to login the CLI. Step 3. Select “ (U) Firmware upgrade ” and “ Enter ” UM-PPS-03-S-Q225V1 www.austin-hughes.com P.43...
  • Page 47 Step 4. Select “ (5) Change fi rmware upgrade authentication ” and “ Enter ” Step 5. Select “ (1) Change authentication name ” or “ (2) Change authentication password ” to change the username or password for bulk fi rmware upgrade purpose. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.44...
  • Page 48 - Click “ Add ” to add a new vendor class. - Specify a unique name for this vendor class and type the binary codes of “ InfraPower ” in the New Class dialog. The vendor class is named “ InfraPower ” in this illustration.
  • Page 49 ” in the “ Option name ” fi eld. Leave the String fi eld blank. Step 3. Add four options to the new vendor class “ InfraPower ” in the same dialog. The fourth option is an optional item if the UDP port you set for the TFTP server is NOT 69.
  • Page 50 - Click “ Add “ to add the third option. Type “ update-magic ” in the Name fi eld, select String as the data type, and type 3 in the Code fi eld and Click “ OK “. UM-PPS-03-S-Q225V1 www.austin-hughes.com...
  • Page 51 - Specify a policy name and click “ Next “. The policy is named “ InfraPower ” in this illustration. - Click “ Add “ to add a new condition - Select the vendor class “ InfraPower ” in the Value fi eld, click “ Add “ and then “ OK “. UM-PPS-03-S-Q225V1 www.austin-hughes.com...
  • Page 52 ” fi eld. - Select the “ InfraPower ” in the “ Vendor class ” fi eld, select ” 001 update-server ” from the Available Options list, and type your TFTP server’s IPv4 address in the “ String value ”...
  • Page 53 DHCP and the one stored in the IP Dongle. Therefore, you must modify the magic code’s value in DHCP when intending to execute the “ fwupdate.cfg ” commands next time. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.50...
  • Page 54 - Select “ 004 update-port ” from the Available Options list, and type UDP port number you set for the TFTP server in the “ String value ” fi eld. Port number 69 is used in this illustration. - Click “ Next “ and “ Finish “ to complete the setup. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.51...
  • Page 55 fi rmware upgrade. Eighth row is the fi rmware version you want to upgrade, it MUST be the same as the fi lename of the fi rmware stored in the folder under the root directory of the TFTP server. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.52...

  • Page 56: 802.1X Authentication

    Otherwise, the authentication will fail while the RADIUS server verifi es the validity of the certifi cate. You can go the System of IP Dongle to set up the date and time of the IP Dongle. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.53...
  • Page 57 Please follow the procedures below to setup the 802.1X authentication in IP Dongle. < 802.1X authentication for Wired network > Step 1. Login the IP Dongle WEBUI and go the Network. Step 2. Click the Authentication pull down menu and you will see the authentication method. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.54...
  • Page 58 “ Private key ”, “ Private key password ” and “ CA certifi cate ”. ( Certifi cate, private key and CA certifi cate are in PEM format ) Click “ Apply ” to save the confi guration. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.55...
  • Page 59 < 1.17 > 802.1X authentication < 802.1X authentication for Wireless network > Step 1. Login the IP Dongle WEBUI and go to Network. Click the Authentication pull down menu and you will see the authentication method UM-PPS-03-S-Q225V1 www.austin-hughes.com P.56...
  • Page 60 “ ON ” from DHCP. If you select “ OFF ” from DHCP, please input the “ IPv4 address ”, “ Subnet mask ” and “ Gateway ”. Click “ Apply ” to save the confi guration. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.57...
  • Page 61 If you have the DHCP server to assign the IP address to the Wireless network, select “ON” from DHCP. If you select “ OFF ” from DHCP, please input the “ IPv4 address ”, “ Subnet mask ” and “ Gateway ”. Click “ Apply ” to save the confi guration. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.58...

  • Page 62: Command Line Interface Access

    You can change the following settings via CLI access : i. System settings Change temperature display unit : change the temp unit to be displayed in the PPS-03-S Change system RTC date time : set the system time of the IP Dongle Change network settings : change the IP settings of the IP Dongle Change features &...

  • Page 63: Optional Accessories - Wifi Kit

    802.11a/g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n : HT20 reach up to 72.2Mbps, HT40 reach up to 150Mbps 802.11ac : VHT20 reach up to 86.7Mbps, VHT40 reach up to 200Mbps, VHT80 reach up to 433.3Mbps Security WPA2 - Personal WPA2 - Enterprise UM-PPS-03-S-Q225V1 www.austin-hughes.com P.60...
  • Page 64 Inset and screw the antenna to the USB wireless adapter. Fix the antenna in place & lift it up. Step < 2 > ■ Take out the membrane from the PDU dongle, and the WIFI USB port will be found. Step < 3 > ■ Connect the USB wireless adapter (with antenna) to PDU dongle UM-PPS-03-S-Q225V1 www.austin-hughes.com P.61...
  • Page 65 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. t All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2025 Austin Hughes Electronics Ltd. All rights reserved. UM-PPS-03-S-Q225V1 www.austin-hughes.com P.62...
