Summary of Contents for Umbrosa ECLIPSUM UX

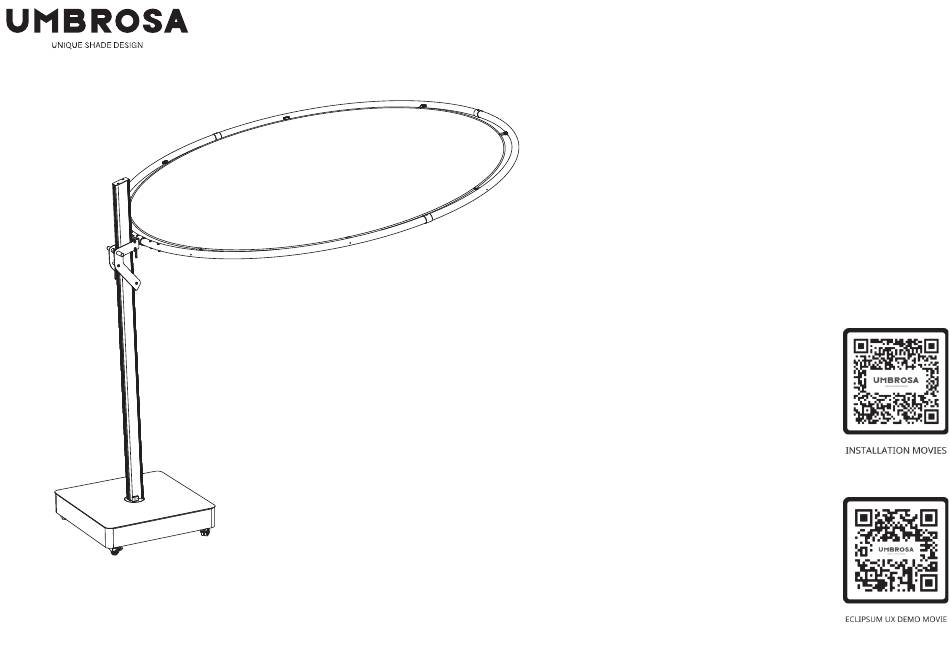

  • Page 1 ECLIPSUM UX...
  • Page 2 Prior to assembly it is important to decide on the location of the umbrella and to respect the following instructions: - Choose a location that is level and sturdy. - Avoid any sloping of soft ground. - Consider a location that will maximize the umbrella’s 360° rotating function (if available) - Two-person team is recommended for assembly UMBROSA /...
  • Page 3: Before You Start

    BEFORE YOU START UMBROSA DEALER UMBROSA /...
  • Page 4 All mounting kits and supports for inground tting and installation on hard surfaces should only be installed by a licensed contractor duly quali ed to perform the installation. Umbrosa assumes no liabilities and expressly disclaims any responsibilities for injuries or damages arising from or related to the failure of buyer to have any kit or tting installed by a licensed professional contractor.
  • Page 5 INDEX BASE AND MOUNTING OPTIONS LARGE TILE BASE UX CONCRETE ANCHOR GROUND MOUNTING ECLIPSUM INSTALLATION USER INSTRUCTIONS TIPS AND MAINTENANCE WARRANTY AND SPARE PARTS UMBROSA /...
  • Page 6 INSTALLATION DIMENSIONS 10,5 cm / 4.13” 165 cm / 5’ 5” 7,425 cm / 2.92” Ø10 mm / 0.4” 270 cm / 8’ 10” 300 cm / 9’ 10” Ø14 cm 5.5” Ø16 cm 6.3” UMBROSA /...
  • Page 7 LARGE TILE BASE UX INSTALLATION S4 + S6 TOP PLATE UX FRAME BASETOPPLATEUX BASEFRAMEUX UX BASE WHEEL WHEEL PLATE NUT PLATE M6 BOLT M6x20 M 10x25 MACOMU005D MABASMOB03 MABOLI0200 UMFIXG0021_V1 MABOLI0560 MABOLI0145 UMBROSA /...
  • Page 8 LARGE TILE BASE UX INSTALLATION SEE UMBRELLA BOX UMBROSA /...
  • Page 9 TILE THICKNESS 38 mm 45 mm ” ” SMALL CONCRETE TILES example: 10x10 cm / 0.4”x0.4” max. thickness = 4 cm / 1.75” SMALLER CONCRETE TILE example: 30x30 cm / 12”x12” max. thickness = 4 cm / 1.75” UMBROSA /...
  • Page 10 LARGE TILE BASE UX INSTALLATION *CORNER CUT TUTORIAL OPTION 1: BREAK CORNER 7.6 cm / 3” 7.6 cm / 3” OPTION 2: CUT CORNER UMBROSA /...
  • Page 11 LARGE TILE BASE UX INSTALLATION UMBROSA /...
  • Page 12 LARGE TILE BASE UX INSTALLATION USE PACKAGING TO PROTECT TOP PLATE UMBROSA /...
  • Page 13 LARGE TILE BASE UX INSTALLATION SEE UMBRELLA BOX SEE UMBRELLA BOX UMBROSA /...
  • Page 14 Les dimensions indiquées sont seulement à titre informatif. La responsabilité nale incombe à l’installateur. Die Maße sind nur informativ. Der Installateur trägt die Verantwortung für die Ausführung. Los tamaños son sólamente informativos. El instalador es responsable del acabado nal. Dimensioni sono indicative. La responsabilità nale spetta sempre all’installatore. UMBROSA /...
  • Page 15 CONCRETE ANCHOR INSTALLATION UMBROSA /...
  • Page 16 CONCRETE ANCHOR INSTALLATION GRASS GRAVEL TILES 10 cm / 4” 4 cm / 1 ” UMBROSA /...
  • Page 17 CONCRETE ANCHOR INSTALLATION SEE UMBRELLA BOX COVER UMBROSA /...
  • Page 18 CONCRETE ANCHOR INSTALLATION SEE UMBRELLA BOX UMBROSA /...
  • Page 19: Ground Mounting

    Ø14 SHADE Not included - Niet inbegrepen - Pas inclus Nicht inbegri en - No incluido - Non incluso SEE UMBRELLA BOX CONCRETE WOOD METAL example: example: example: DIN 7991 M10 DIN 7997 Ø8 mm DIN 7991 M10 UMBROSA /...
  • Page 20 Ø14 SHADE Not included - Niet inbegrepen - Pas inclus Nicht inbegri en - No incluido - Non incluso SEE UMBRELLA BOX CONCRETE WOOD METAL example: example: example: DIN 7991 M10 DIN 7997 Ø8 mm DIN 7991 M10 UMBROSA /...
  • Page 21 ECLIPSUM UX INSTALLATION MAPROEC0N2022 HETUBE011 HETUBE012 ECLIPSUMCOVERN-* HECONNECTOR MABOLI0360 UM-ROTATIONDISC160 HECOME007W S3 + S4 S5 + S6 MAKEY00030 MAKEY00050 MAPLAAU140 MACOME2022 UMFIXS140G88 MAKEY00040 MAKEY00060 UMBROSA /...
  • Page 22 ECLIPSUM INSTALLATION 1’ 1’’ OPTIONAL OPTIONAL UMBROSA /...
  • Page 23 ECLIPSUM INSTALLATION UMBROSA.COM FRONT FRONT UMBROSA /...
  • Page 24 ECLIPSUM INSTALLATION UMBROSA /...
  • Page 25 ECLIPSUM INSTALLATION USE A CLOTH TO PROTECT THE COATED PARTS DURING INSTALLATION POSITION THE PART WITH THE HOLE FACING DOWN ASSEMBLE ALL THE BOLTS LOOSE. DO NOT YET TIGHTEN THE BOLTS! UMBROSA /...
  • Page 26 ECLIPSUM INSTALLATION TIP! USE 8 PLANKS (NOT INCLUDED) WITH THE SAME THICKNESS (+ 18 MM) TO SUPPORT THE ARCS DURING INSTALLATION TO CREATE A FLAT ASSEMBLY. DO NOT YET TIGHTEN! UMBROSA /...
  • Page 27 ECLIPSUM INSTALLATION TIGHTEN WELL TIGHTEN ALL BOLTS WHEN FULL CIRCLE IS ASSEMBLED TIGHTEN WELL CHECK BOLTS EVERY 3 MONTHS AND TIGHTEN WHEN LOOSE UMBROSA /...
  • Page 28 ECLIPSUM INSTALLATION UMBROSA /...
  • Page 29 ECLIPSUM INSTALLATION UMBROSA /...
  • Page 30 ECLIPSUM INSTALLATION UMBROSA /...
  • Page 31 Doing so may cause damage to your umbrella. Canopy can only be closed safely when it is not tilted. CAUTION: Never force the ribs. UMBROSA / If you experience any resistance, make sure all ribs are freed manually to facilitate opening.
  • Page 32 360° 360° UMBROSA / CAUTION: Do not use rotating function during winds. Doing so may cause damage to your umbrella. CAUTION: Do not use tilt function during winds. Doing so may cause damage to your umbrella. Canopy can only be closed safely when it is not tilted.
  • Page 33 TIPS > 30 KM/H > 5 BEAUFORT min 30° UMBROSA /...
  • Page 34: Maintenance

    MAINTENANCE Maintenance instructions on website Onderhoudsinstructies op webpagina 40° Nettoyage et guide d’entretien sur le site web Pflegehinweise auf der Webseite Instrucciones de mantenimiento en el sitio web Istruzioni di mantenimento sul sito UMBROSA /...
  • Page 35 “stainless steel polishers”. Edelstahl bleibt nur frei von Korrosion, wenn dieser gut und Präventiv behandelt wird. Umbrosa emp ehlt regelmäßig die Ober äche zu reinigen und zu schützen.
  • Page 36: Warranty

    Conditions de garantie sur le site Web Garantiebedingungen auf der Webseite Garantiebedingungen auf der Webseite Condiciones de garantía en el sitio web Condiciones de garantía en el sitio web Condizioni di garanzia sul sito Condizioni di garanzia sulla pagina web UMBROSA /...
  • Page 37: Spare Parts

    MASPR00022 MADECI0034 * COLOR CODES * COLOR CODES HUFIXLOCL02 ARCHITECTURE ANODISED _R9018 _NANOD MABOLI0710 FULL BLACK FULL BLACK _R9005 _R9005 UM-ROTATIONDISC160 SAND PAPYRUS _SAND _R9018 ** COLOR CODES UMFIXS140G88 MABOLI0710 GREY _R7047 FULL BLACK _R9005 MADECI0032 PAPYRUS _R9018 UMBROSA /...
  • Page 38 HETUBA011_* MACOME020_** * COLOR CODES * COLOR CODES ARCHITECTURE ANODISED _R9018 _NANOD FULL BLACK FULL BLACK _R9005 _R9005 SAND PAPYRUS _SAND _R9018 ** COLOR CODES ECLIPSUM CONNECTOR _** GREY _R7047 HETUBA012_* HETUBA012_* FULL BLACK _R9005 PAPYRUS _R9018 HECOME007W UMBROSA /...
  • Page 39 SPARE PARTS ECLIPSUM MABOLI0132 MAACCIE01213 MABOLI0360 UMBROSA /...
  • Page 40 MADECI0037 MABOLI0330 MACOME024 HEBOOMERANG MADECPA010_* HEPLAA02_** MADECI0037 MABOLN0031 MABOLI0240 MACASIE014 MACASIE011 * COLOR CODES * COLOR CODES HEPLAA01_** ARCHITECTURE BLACK _R9018 FULL BLACK WHITE _R9005 SAND _SAND ** COLOR CODES MADECPA010_* GREY _R7047 FULL BLACK _R9005 PAPYRUS _R9018 UMBROSA /...
  • Page 41 SPARE PARTS LARGE TILE BASE UX MAPLAAU140_* MABOLIG0145 BLACK/ BLACBASETOPPLATEUX (4x) PAPYRUS/ PAPYBASETOPPLATEUX MACOMU300 (4x) UM-BASEWHEELS-TYPE1 MABASMOB03 (4x) BLACK/ BLACFRAMEUX PAPYRUS/ PAPYFRAMEUX MACOMU005D (4x) MABOLI0200 UMFIXG0021_V1 (16x) (4x)
  • Page 42 This technical sheet remains subject to possible changes. Of course we do our best to eliminate all mistakes, but Umbrosa is not responsible for the errors in the documentation of products.
