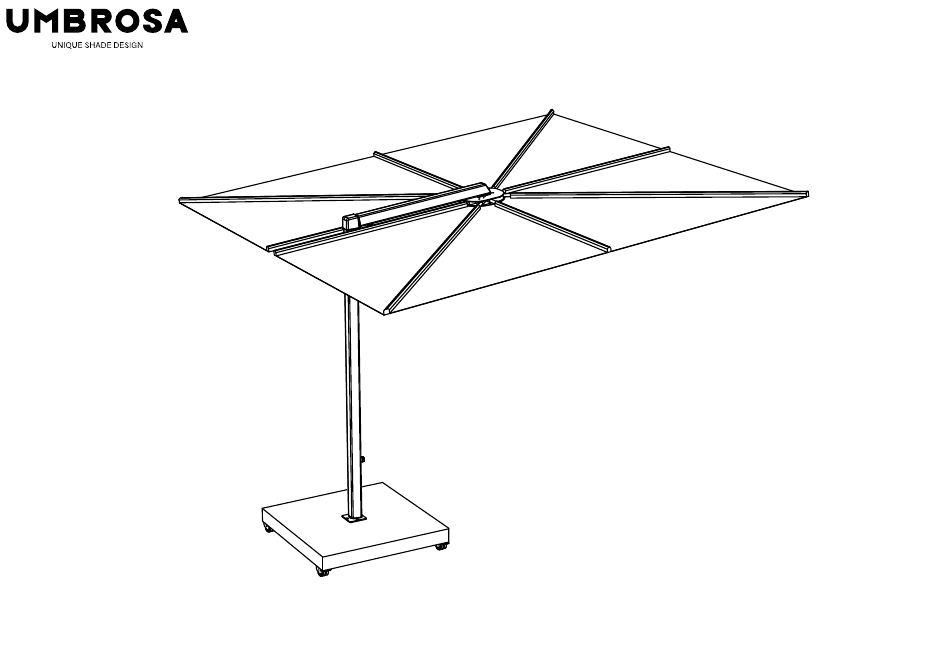

  • Page 1 NANO UX...
  • Page 2 Prior to assembly it is important to decide on the location of the umbrella and to respect the following instructions: - Choose a location that is level and sturdy. - Avoid any sloping of soft ground. - Consider a location that will maximize the umbrella’s 360° rotating function (if available) - Two-person team is recommended for assembly UMBROSA /...

  • Page 3: Before You Start

    BEFORE YOU START UMBROSA DEALER UMBROSA /...
  • Page 4 All mounting kits and supports for inground tting and installation on hard surfaces should only be installed by a licensed contractor duly quali ed to perform the installation. Umbrosa assumes no liabilities and expressly disclaims any responsibilities for injuries or damages arising from or related to the failure of buyer to have any kit or tting installed by a licensed professional contractor.
  • Page 5 INDEX NANO UX BASE INSTALLATION CONCRETE ANCHOR INSTALLATION BASEPLATE INSTALLATION NANO UX INSTALLATION USER INSTRUCTIONS TIPS AND MAINTENANCE WARRANTY AND SPARE PARTS UMBROSA /...
  • Page 6 INSTALLATION DIMENSIONS FLOOR PLATE 215 mm / 8.5” SUPPORT 64 cm / 2’ 1.2” 100 cm / 3’ 3.4” 130 mm / 5.1” 105 mm / 4.1” 250 cm / 8’ 2.4” 355 cm / 11’ 7.8” UMBROSA /...
  • Page 7 NANO UX BASE INSTALLATION MABOLG0010 MABOLG0030 MABASPROT1 MAFIXTOFNANO-* UMBROSA /...
  • Page 8 NANO UX BASE INSTALLATION Concrete, ceramic or stone tiles: 2 TILES 3 TILES TOTAL THICKNESS MIN 7 cm / 2.75” MAX 9 cm / 3.5” min 38 cm / 15” max 40,2 cm / 15.75” UMBROSA /...
  • Page 9 NANO UX BASE INSTALLATION M8 x 70 TIGHTEN WELL UMBROSA /...
  • Page 10 NANO UX BASE INSTALLATION UMBROSA /...
  • Page 11 Les dimensions indiquées sont seulement à titre informatif. La responsabilité nale incombe à l’installateur. Die Maße sind nur informativ. Der Installateur trägt die Verantwortung für die Ausführung. Los tamaños son sólamente informativos. El instalador es responsable del acabado nal. Dimensioni sono indicative. La responsabilità nale spetta sempre all’installatore. UMBROSA /...
  • Page 12 CONCRETE ANCHOR INSTALLATION SHADE SHADE UMBROSA /...
  • Page 13 CONCRETE ANCHOR INSTALLATION GRASS GRAVEL TILES 10 cm 4 cm 3.9” 1.6” UMBROSA /...
  • Page 14 CONCRETE ANCHOR INSTALLATION UMBROSA /...

  • Page 15: Baseplate Installation

    BASEPLATE INSTALLATION INFIXBSL0B000000 Not included - Niet inbegrepen - Pas inclus Nicht inbegri en - No incluido - Non incluso Ø8 mm DIN 7991 M10 DIN 7991 M10 UMBROSA /...
  • Page 16 NANO UX INSTALLATION MAPROPL250SQ_FL S3 + S5 MAKEY00030 MAKEY00050 UMBROSA /...
  • Page 17 NANO UX NANO INSTALLATION 2 TILES M10 x 90 UMBROSA /...
  • Page 18 NANO UX INSTALLATION METAL UMBROSA /...
  • Page 19 NANO UX INSTALLATION M8 x 60 TIGHTEN WELL UMBROSA /...
  • Page 20 NANO UX INSTALLATION UMBROSA /...
  • Page 21 NANO UX INSTALLATION UMBROSA /...
  • Page 22 USER INSTRUCTIONS ROTATE POLE UMBROSA / CAUTION: Do not use rotating function during winds. Doing so may cause damage to your umbrella.
  • Page 23 OPEN AND CLOSE CANOPY CAUTION: Never force the ribs. UMBROSA / If you experience any resistance, make sure all ribs are freed manually to facilitate opening.
  • Page 24 OPEN AND CLOSE CANOPY UMBROSA /...
  • Page 25 TILT CANOPY CAUTION: Do not use tilt function during winds. UMBROSA / Doing so may cause damage to your umbrella. Canopy can only be closed safely when it is not tilted.
  • Page 26 TIPS > 30 KM/H > 5 BEAUFORT min 30° UMBROSA /...

  • Page 27: Maintenance

    Maintenance instructions on website Onderhoudsinstructies op website 40° Nettoyage et guide d’entretien sur le site web Pflegehinweise auf der Webseite Instrucciones de mantenimiento en el sitio web Istruzioni di mantenimento sul sito UMBROSA UMBROSA WATER REPELLENT SPRAY MAINTENANCE KIT UMBROSA /...
  • Page 28 “stainless steel polishers”. Edelstahl bleibt nur frei von Korrosion, wenn dieser gut und Präventiv behandelt wird. Umbrosa emp ehlt regelmäßig die Ober äche zu reinigen und zu schützen.

  • Page 29: Warranty

    Conditions de garantie sur le site Web Garantiebedingungen auf der Webseite Garantiebedingungen auf der Webseite Condiciones de garantía en el sitio web Condiciones de garantía en el sitio web Condizioni di garanzia sul sito Condizioni di garanzia sulla pagina web UMBROSA /...
  • Page 30 SPARE PARTS NANO UX MABOLI0480 MACOMPL12* (2X) MACOMPL11* MABOLI0802 (2X) HNSPAPRFA101_* MACOMPL10* MANUTI00080 (2X) ISO4029 M6x12 HPLFIXLOCK02_* HPLPLAS01_* HPLFIXLOCK02.PARTD_* MACOMPL02* HNSPAPOLA110_* HNSPAFIX0_* * COLOR CODES PAPYRUS WHITE _9018 BLACK _9005 HPLFIXLOCK01_* UMBROSA /...
  • Page 31 SPARE PARTS NANO UX HPLTUBA_012 (LONG) (4x) HPLTUBA_013 (SHORT) (3x) MACOMS008B MACOMS184 HPLTUBA_013_CORNER (2x) MADECAS01 MABOLI0950 UMBROSA /...
  • Page 32 This technical sheet remains subject to possible changes. Of course we do our best to eliminate all mistakes, but Umbrosa is not responsible for the errors in the documentation of products.
