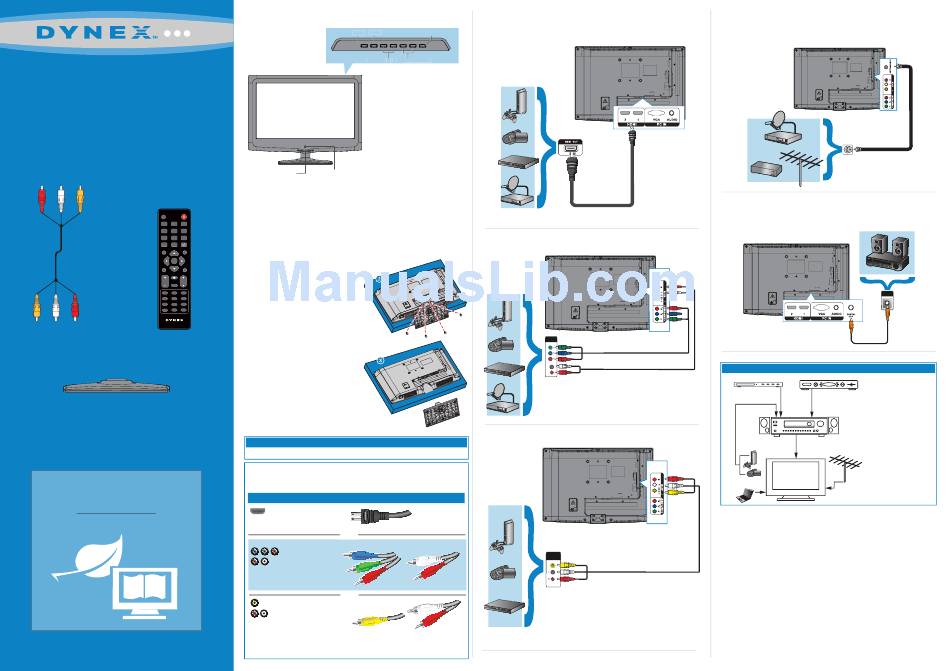

Dynex DX-15E220A12 Quick Setup Manual

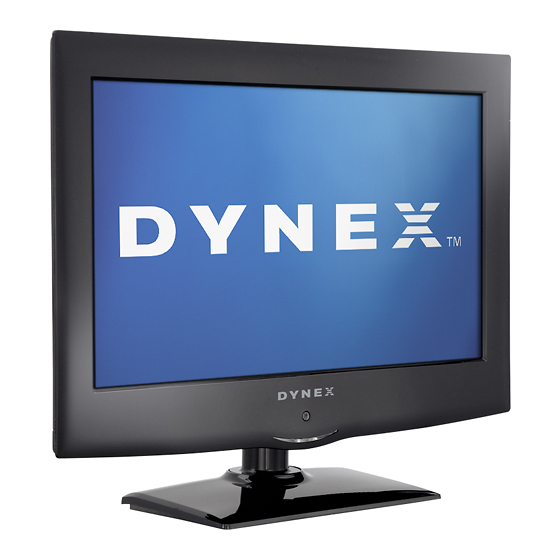

15" LED-LCD TV 720p

QUICK SETUP GUIDE

DX-15E220A12
POWER
INPUT
1 2 3
4 5
6
7 8 9
RECALL
. 0
INFO GUIDE
ENTER
MENU EXIT
MUTE
VOL
CH
FAVORITE
VIDEO HDMI TV
COMP MTS/SAP VGA
ZOOM SLEEP CH-LIST
PICTURE AUDIO CCD
DX-RC01A-12
AV cable
Remote control and
two AAA batteries
TV stand and two screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service, enter your model number
in the Product Search field, then click Search.

Front features

Input Input Menu Menu
INPUT MENU CH▼ CH▲ VOL- VOL+ POWER
Channel Channel ▼ ▼ / / ▲ ▲ Volume - /+ Volume - /+
Power indicator Remote control sensor

Installing the stand

1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the stand to the stand column on the TV with the two screws provided.

Installing a wall-mount bracket

1 Carefully place your TV screen
face-down on a cushioned, clean
surface to protect the screen from
damages and scratches.
2 Remove the four screws that secure the
stand column to the TV, then remove the
stand column.
3 Attach the wall-mount bracket to your TV
using the mounting holes on the back of
your TV. See the instructions that came
with the wall-mount bracket for
information on how to correctly hang
your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.

Identifying cables

Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Cable connector
Video quality
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver or game station
Power button
Using HDMI (best)
Using component cables (better)
USB HDMI 2
AUDIO/VIDEO
Using composite cables (good)
USB HDMI 2
AUDIO/VIDEO

Connecting an antenna/cable wall jack

Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the back
of your TV and to the Antenna/Cable wall jack.
PC / DVI DIGITAL
USB HDMI 2 HDMI 1 / DVI VGA AUDIO IN OUTPUT

Connecting a Home Theater System

Using digital audio
HDMI 1 / DVI VGA PC / DVI AUDIO IN DIGITAL OUTPUT
Connecting a home theater system with multiple devices
Blu-ray player/DVD player/VCR
AV receiver
Game console
or camera
Computer
VGA PC / DVI DIGITAL
HDMI 1 / DVI AUDIO IN OUTPUT
USB HDMI 2 HDMI 1 / DVI VGA AUDIO IN PC / DVI DIGITAL OUTPUT
USB HDMI 2 HDMI 1 / DVI VGA PC / DVI AUDIO IN DIGITAL OUTPUT
DIGITAL
AUDIO IN
Cable or satellite TV box
We recommend that you connect
the AV receiver's HDMI OUT jack
to your TV's HDMI IN (ARC) jack.
In the following situations, the
HDMI cable routes Dolby Digital
audio to the AV receiver, so you do
not need to connect a separate
digital audio cable:
• Have a game console connected
to one of your TV's HDMI IN jacks.
• When you watch a program
through an antenna or cable
TV connected to the ANT IN jack.
Antenna or
cable TV
(no box)
