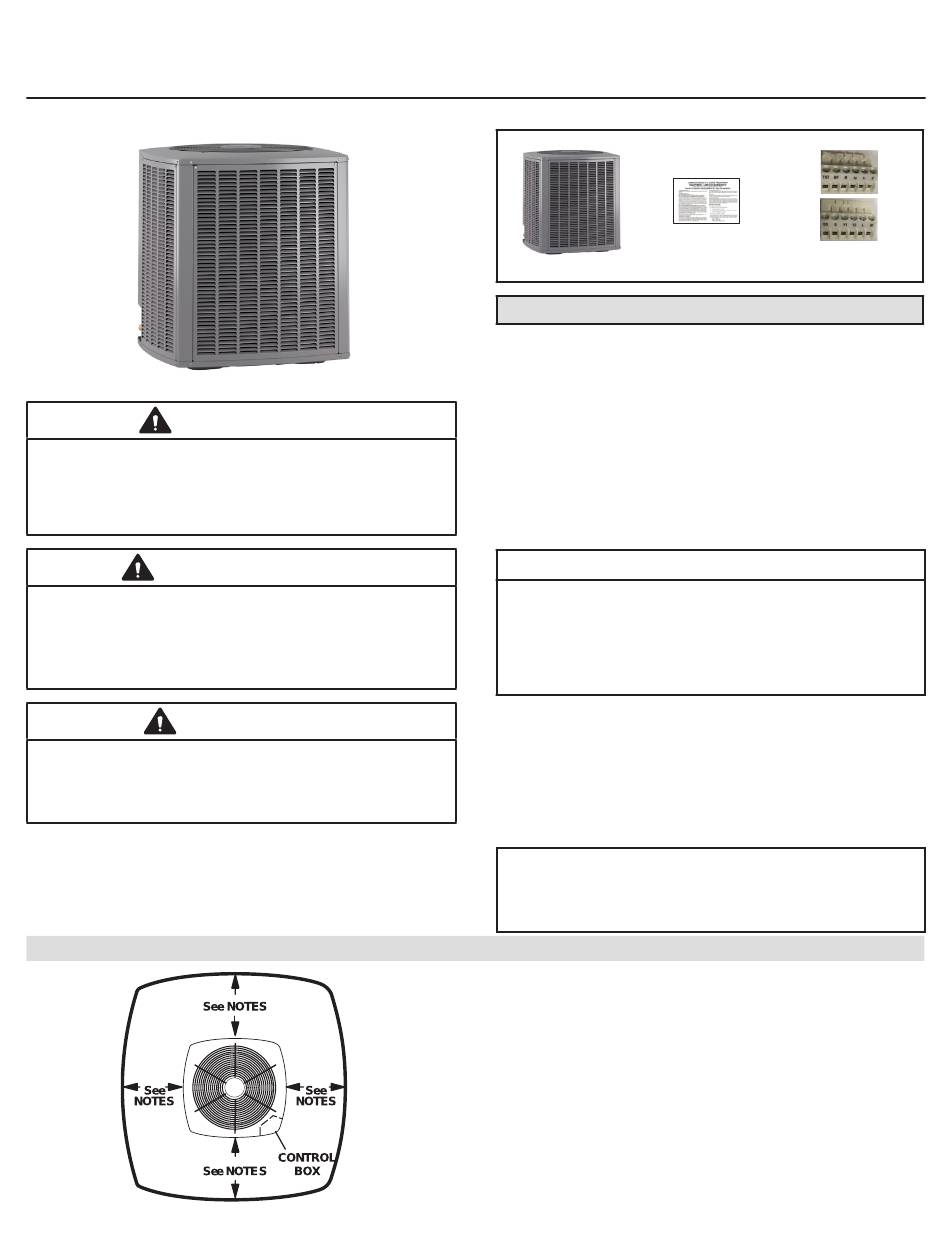

INSTALLATION INSTRUCTIONS
A7HP19V
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, or service agency.
IMPORTANT
The Clean Air Act of 1990 bans the intentional venting of
refrigerant (CFCs, HCFCs and HFCs) as of July 1, 1992.
Approved methods of recovery, recycling or reclaiming
must be followed. Fines and/or incarceration may be
levied for noncompliance.
CAUTION
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
IMPORTANT: Special procedures are required for
cleaning the all-aluminum coil in this unit. See page 21 in
this instruction for information.
SETTING THE UNIT – Clearances
508530-01
This manual must be left with the homeowner for future reference
Service clearance of 30 in. (762 mm) must be maintained on one of
the sides adjacent to the control box.
Clearance to one of the other three sides must be 36 in (914 mm).
Clearance to one of the remaining two sides may be 12 in. (305mm)
and the final side may be 6 in.(152 mm).
A clearance of 24 in. (610 mm) must be maintained between two units.
48 in. (1219 mm) clearance required on top of unit.
OUTDOOR UNIT
General
This A7HP19V outdoor air conditioner with all-aluminum
coil is designed for use with R454B refrigerant only. This
unit must be installed with an approved indoor air handler
or coil. For AHRI Certified system match-ups and expanded
ratings, visit AlliedConnect™. The A7HP19V variable
capacity unit may be installed with an S40 communicating
thermostat or a standard 24VAC non-communicating heat
pump thermostat. See field wiring diagrams for wiring
details. These instructions are intended as a general guide
and do not supersede local codes in any way. Consult
authorities having jurisdiction before installation.
Charging information is given on the charging
procedure sticker on the unit access panel. For more
in-depth information, consult the Installation and
Service Procedures manual on www.alliedratings.com
or through the Technical Support department at 1-800-
448-5872.
NOTE – This unit A7HP19V is a PARTIAL UNIT
AIR CONDITIONER, complying with PARTIAL UNIT
requirements of this Standard, and must only be connected
to other units that have been confirmed as complying
to corresponding PARTIAL UNIT requirements of this
Standard, UL 60335-2-40/CSA C22.2 No. 60335-2-40, or
UL 1995/CSA C22.2 No 236.
*P508530-01*
Issue 2438
Heat Pump - R454B
PACKING LIST
WARRANTY
CERTIFICATE
CONNECTORS (2)
NOTICE!
(P) 508530-01
RAST 6-PIN
Page 1 of 31
