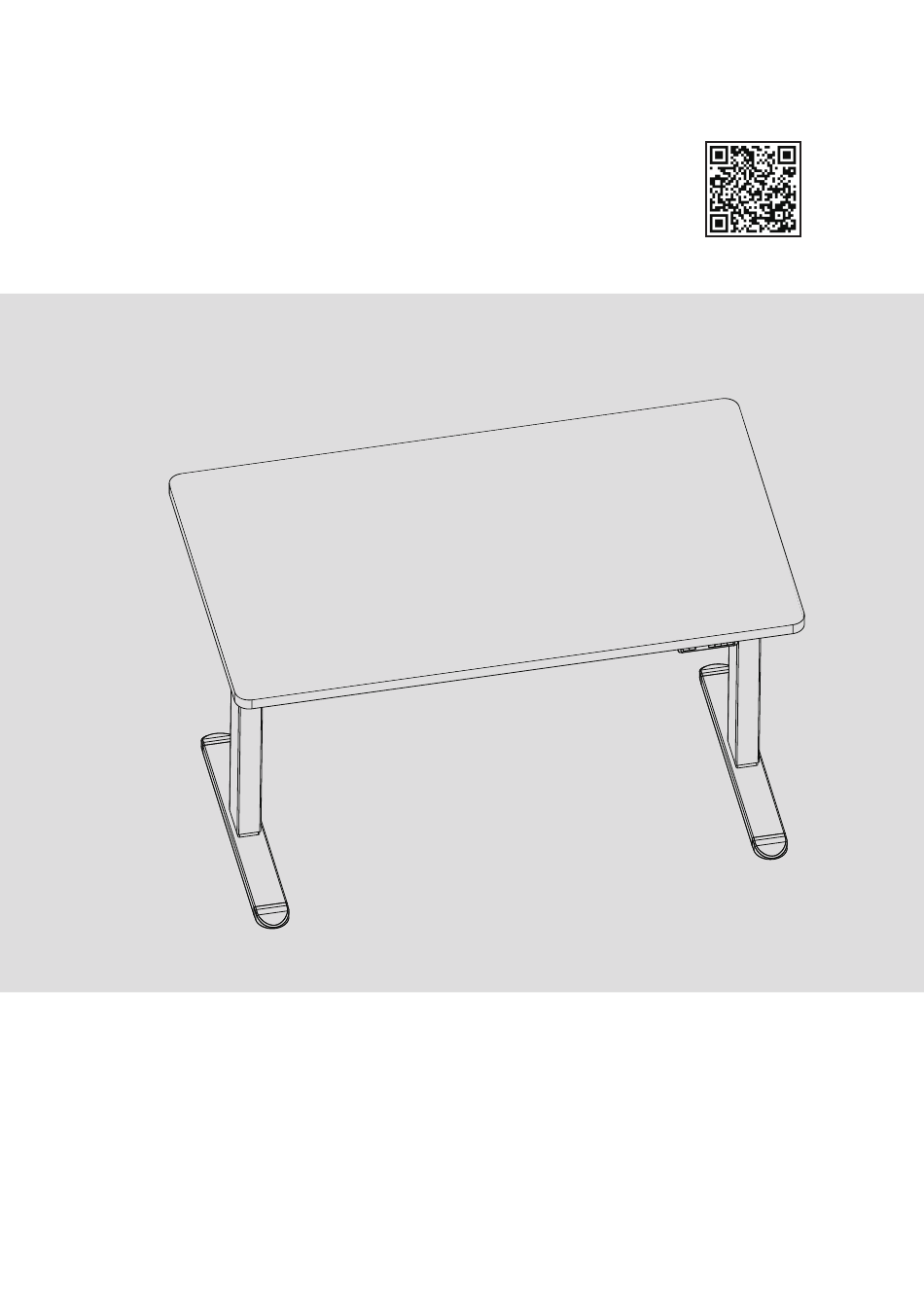

- Page 1 STANDING DESK MODEL: SD-LEG-M1-BK/WH Instruction video USER MANUAL Please read this manual carefully before assembling and using the product. Please retain this manual for future reference.
- Page 2 Secure it! Preventing furniture tip-over accidents WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been supplied with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
-
Page 3: Safety Information
SAFETY INFORMATION Basic precautions should always be followed when using this product. Read all instructions before the desk. Failure to comply with or observe all instructions and warnings regarding the use of this product may result in serious property damage or body injury. DANGER: To reduce the risk of electric shock, always unplug the electrical outlet before cleaning, or before putting on or removing parts. -
Page 4: Parts And Hardware
PARTS AND HARDWARE PARTS Leg A x1 Leg B x1 Beam x1 Bracket x1 Drive Draft x1 Foot x2 Adaptor x1 Adaptor holder x1 Controller x1 HARDWARE Rubber cushion Plastic pad 5mm Allen key 4mm Allen key ST3.5*19 screw x2+1 ST4.8*25 screw ST4.8*19 screw M6*40 screw... -
Page 5: Assembly Steps
ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 1 Loose 4 screws on the beam(3). 4mm Allen key Attach the legs (1)(2) to the beam (3) with four M8x50mm screws (I) and fasten them with the 5mm Allen key (C). M8*50 screw x4 5mm Allen key STEP 2... - Page 6 ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 3 Attach the brackets (5) to the beam (3) with four M6x12mm screws (J) with the 4mm Allen key (D). M6*12 screw x4 4mm Allen key STEP 4 Next, attach the rubber cushions (A) and plastic pad s (B) to the brackets (5) and beam (3). Rubber cushion x12 Plastic pad x12...
- Page 7 ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 5 Place the adaptor holder (9) on the beam and put th e adaptor (8) in it. STEP 6 A. Turn the desk frame over and place it on the tabletop. Attention: This step needs two persons to operate.
- Page 8 ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 6 Take note of direction of the drive shaft. The thinner end should point towards the non-motor leg side. Loosen the two plastic screws on the drive shaft (6) to adjust the length. To non-motor leg side Plastic screw...
- Page 9 ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 7 Connect the controller (7) to the adaptor (6). Then connect the controller (7) to the legs. Finally, connect the power plug to the adaptor (6). STEP 8 The earphones holder is an optional attachment. Use two ST4.8*19 screws (18).
- Page 10 OPERATING INSTRUCTIONS ACTIVATION AND RESET After assembly , the control system of the standing desk needs to be activated before use. NOTE: If the desk frame does not seemed to be working properly with the same activation process. CAUTION:Do not operate the desk frame unless the handset /control box have been fixe d horizontally under the desktop.
-
Page 11: Error Codes
METRIC AND IMPERIAL DIGITAL DISPLAY CONVERSION For the digit on the display, it is set based on metric digit. Following are the steps to exchange the digit between metric and imperial digit. 1.Long press S for 15 seconds or more until the display shows S-X and X flashes. 2.Press ↑...
