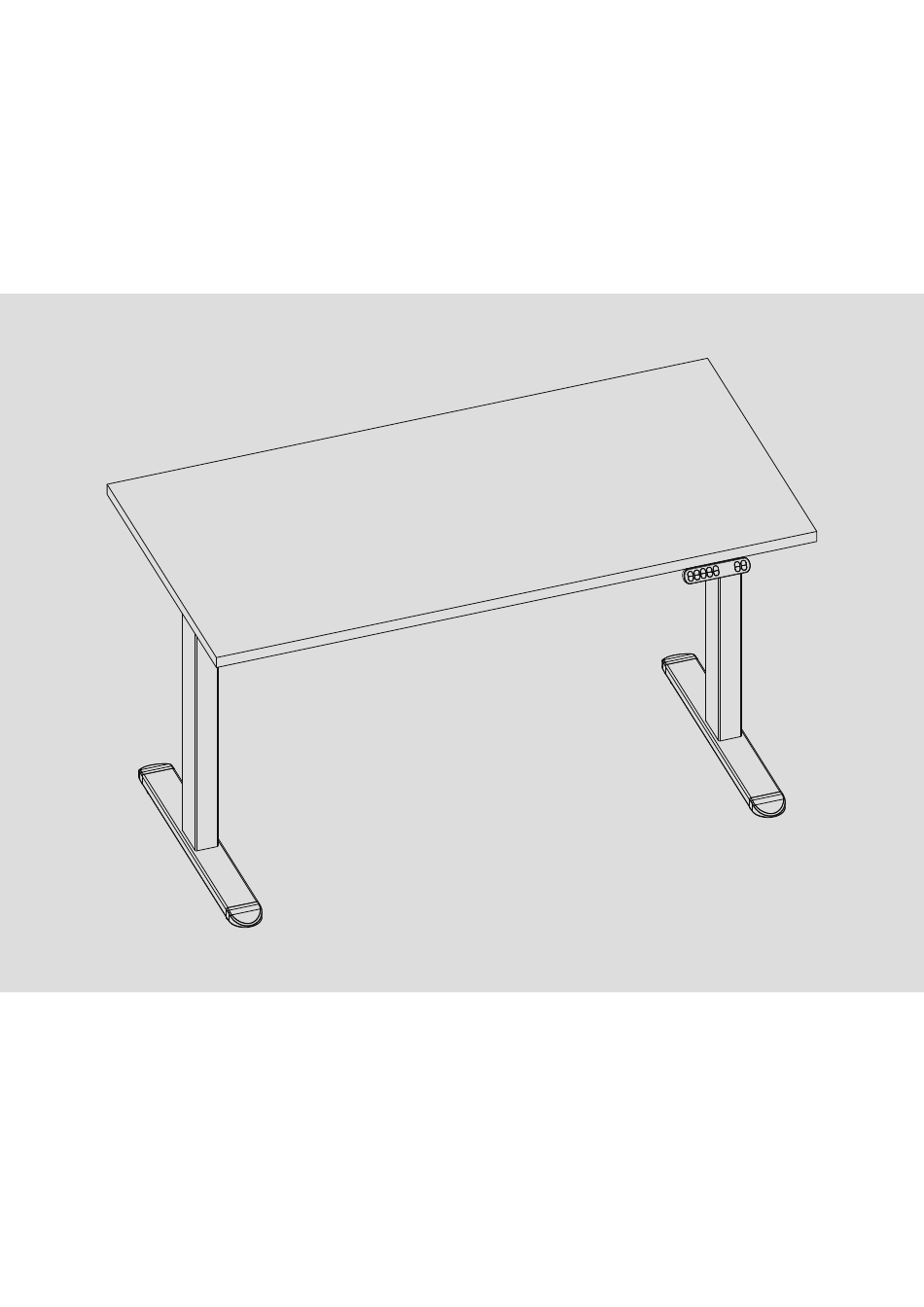

STANDING DESK
MODEL: SD-LEG-120M-BK/WH
USER MANUAL
Please read this manual carefully before assembling and using
the product. Please retain this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-LEG-120M-BK and is the answer not in the manual?

Questions and answers

Related Manuals for Oikiture SD-LEG-120M-BK

Summary of Contents for Oikiture SD-LEG-120M-BK

  • Page 1 STANDING DESK MODEL: SD-LEG-120M-BK/WH USER MANUAL Please read this manual carefully before assembling and using the product. Please retain this manual for future reference.

  • Page 2: Safety Information

    SAFETY INFORMATION Basic precautions should always be followed when using this product. Read all instructions before the desk. Failure to comply with or observe all instructions and warnings regarding the use of this product may result in serious property damage or body injury. DANGER: To reduce the risk of electric shock, always unplug the electrical outlet before cleaning, or before putting on or removing parts.

  • Page 3: Parts And Hardware

    PARTS AND HARDWARE Name Name 4mm Allen key Foot M4*35 Screw Bracket M6*10 Screw Beam M6*35 Screw Drive shaft Rubber Cushion Controller ST3.5*16 Screw Motor ST4.8*16 Screw 2.5mm Allen key PARTS HARDWARE...

  • Page 4: Assembly Steps

    ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 1 Attach the motor(7) on the drive shaft(5) (with arrow label), insert the drive shaft(5) into the leg(1), then fix the motor(7) on the leg(1) with two M4*35mm screws(10) and fasten them with 2.5mm Allen Key(8). Drive Shaft Attach the beam(4) to the leg(1) with twelve M6*10mm screws(11) and fasten them with 4mm Allen Key(9).
  • Page 5 ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 3 Attach the brackets(3) to the legs(1) with four M6*10mm screws(11) and fasten them with the 4mm Allen key(9). Next, attach the rubber cushions(13) to the brackets(3). STEP 4 Turn the desk frame over and place it on the tabletop.
  • Page 6 ASSEMBLY STEPS (Attention: Some steps need 2 persons to operate.) STEP 5 Connect the leg cables and power cords to the controller(6).
  • Page 7 OPERATING INSTRUCTIONS Handset Interface UP Button ∧ DOWN Button ∨ Setting Button M Height Memory Button 1 Height Memory Button 2 Height Memory Button 3 Height Memory Button 4 Initialization Operation When the system is abnormal, or the handset displays "RST", it is necessary to initialize the standing desk. The initialization operation is to press and hold <∨>...

  • Page 8: Error Code

    ERROR CODES ERROR CODE POSSIBLE CAUSE ACTION The sensor encounters an obstacle Release the button and restart. and stops functioning. Protection when the main power supply Reconnect power. is running,below 20V. Power on reset. Wait for motor to cool. Temperature of motor is high or running Let system rest for at least 18 mins.

This manual is also suitable for:

Sd-leg-120m-wh
