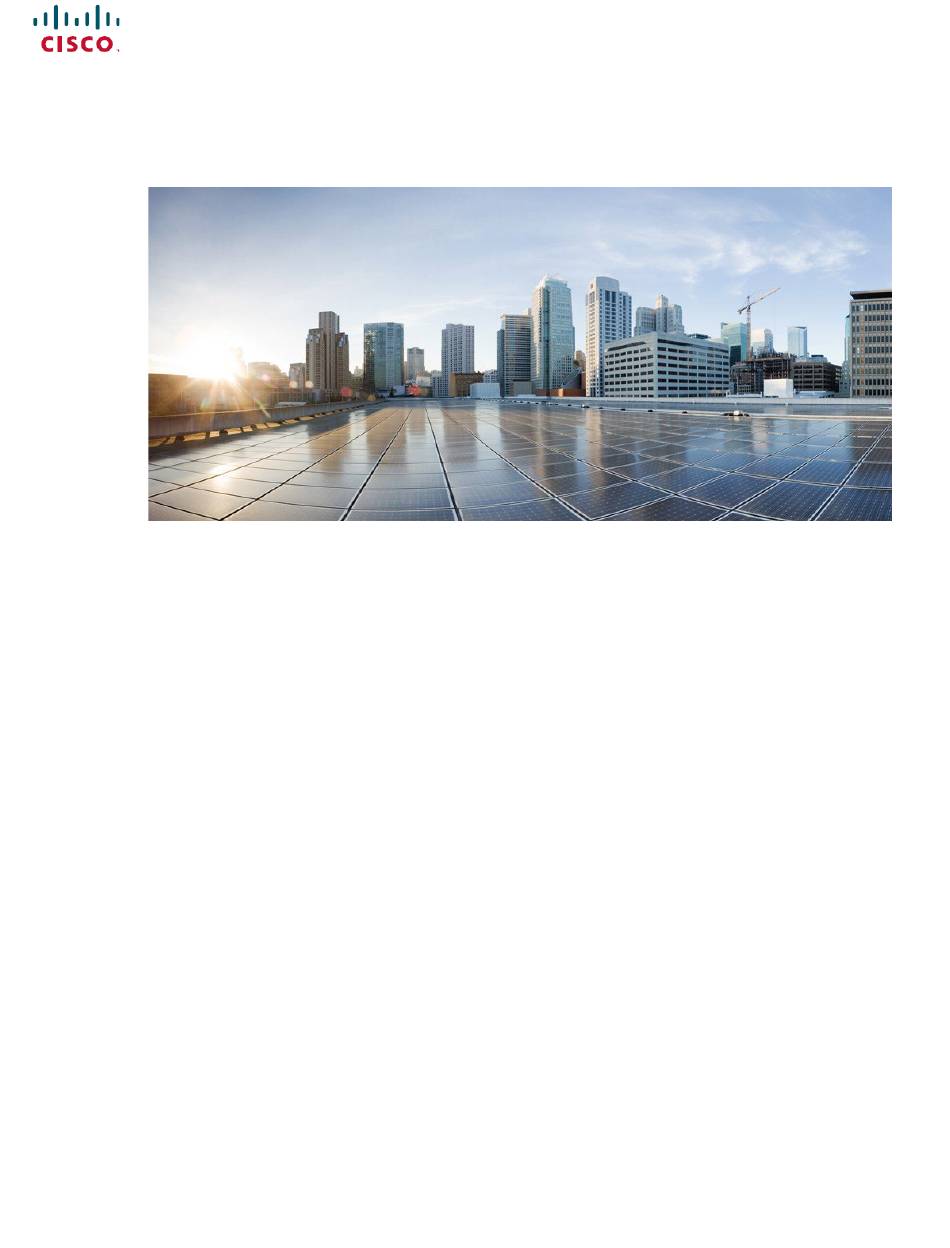

Cisco Catalyst IW9165E Rugged Access Point and Wireless Client
Hardware Installation Guide
First Published: 2023-08-04
Last Modified: 2023-08-04
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883

Advertisement

loading
Need help?

Need help?

Do you have a question about the Catalyst IW9165E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cisco Catalyst IW9165E

Summary of Contents for Cisco Catalyst IW9165E

  • Page 1 Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide First Published: 2023-08-04 Last Modified: 2023-08-04 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883...
  • Page 2 Ethernet (PoE) Ports Antennas and Radios Supported External Antennas Unpacking Your Access Point C H A P T E R 2 Package Contents Unpacking the Access Point Cisco Orderable Accessories Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 3 VCCI Statement for Japan Statement 191—Voluntary Control Council for Interference (VCCI) Class A Warning for Japan ステートメント191—日本向け VCCI クラスA に関する警告 Guidelines for Operating Cisco Catalyst Access Points in Japan Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 4 This Device Meets the Industry Canada Guidelines for Exposure to Radio Waves Cet appareil est conforme aux directives internationales en matière d'exposition aux fréquences radioélectriques Additional Information on RF Exposure Declaration of Conformity Statements Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 5 It includes the following sections: About this Guide This guide provides instructions to install your Cisco Access Point and provides links to resources that can help you configure it. This guide also provides mounting instructions and troubleshooting information. Conventions This document uses the following conventions for notes, cautions, and safety warnings.
  • Page 6 Cisco Bug Search Tool (BST) is a gateway to the Cisco bug-tracking system, which maintains a comprehensive list of defects and vulnerabilities in Cisco products and software. The BST provides you with detailed defect information about your products and software.
  • Page 7 The IW9165E can also operate as a Wi-Fi client in Workgroup Bridge (WGB) mode, which allows it to connect to a Cisco access point infrastructure, and Universal WGB (uWGB) mode, which allows it to connect to a third-party access point infrastructure. Both of these modes help bridge the wired clients that are behind the WGB to the access point on the infrastructure side.
  • Page 8 • Reset button Connectors and Ports The following figures show the available ports on the AP front panel. Figure 1: IW9165E Front Panel DC power input Digital I/O Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 9 Pin 2 Not assigned Pin 3 White (+ Positive Terminal) Pin 4 Not assigned M12-RJ45 Adapter M12-RJ45 adapter (Cisco PID: IW-ACC-M12ETH=) can be used to support M12 X-coded connector. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 10 Power Sources M12 X-code port by using M12-RJ45 adapter can support up to 2.5G rate. Note The M12 spacer (Cisco PID: IW-ACC-M12SPCR2= ) is required when using the M12 adapter. Note Figure 3: M12-RJ45 Adapter (Cisco PID: IW-ACC-M12ETH=) The following table shows the M12-RJ45 adapter pinouts.
  • Page 11 The Ethernet cable must be a shielded, outdoor rated, Category 5e (CAT 5e) or better cable. Category 6A (CAT 6A) cable is needed for 5G rate. The AP senses the Ethernet and power signals and automatically switches internal circuitry to match the cable connections. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 12 About Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Antennas and Radios Antennas and Radios The Cisco Catalyst IW9165E Rugged Access Point and Wireless Client configuration is: • IW9165E-x The IW9165E access point has four RP-SMA jack connectors to support multiple antenna options, such as the self-identifying antennas (SIA) on designated two SIA ports, dual-band antennas, and single-band antennas.
  • Page 13 Cisco Aironet 2.4/5 GHz 8 dBi 7.1 (H) 7.8 (H) (x4) 4-Element Dual-Polarized Patch Antenna, Self-Identifying AIR-ANT5114P2M-N= — — N male (x2) Cisco Aironet 5 GHz 13 dBi Dual-Port Dual-Polarized Directional Panel Antenna Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 14 The following table shows the external GNSS antennas supported by IW9165E. Table 4: Supported GNSS Antenna Frequencies Supported Connector Description ANT-GNSS-OUT-TNC= 1560 - 1608 MHz TNC male Outdoor Active GNSS Antenna with 15-ft. integrated cable Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 15 About Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Supported External Antennas Frequencies Supported Connector Description IW-ANT-GNSS-SMA= 1559 - 1610 MHz SMA male Indoor/outdoor active GNSS antenna with 10-ft. integrated cable Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 16 Return the packing material to the shipping container and save it for future use. Step 3 Verify that you have received all items ordered. If any item is missing or damaged, contact your Cisco representative or reseller for instructions. Cisco Orderable Accessories Order the following accessories separately from Cisco: •...
  • Page 17 30 ft. LMR-600-DB, N(m)-STR to N(m)-RA CAB-L240-10-Q-N= 10 ft. LMR-240-FR/CMR, N(m)-STR to QMA(m)-RA CAB-L240-15-Q-N= 15 ft. LMR-240-FR/CMR, N(m)-STR to QMA(m)-RA CAB-L240-20-Q-N= 20 ft. LMR-240-FR/CMR, N(m)-STR to QMA(m)-RA • Lightning Arrestors Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 18 Lightning Arrestor kit, TNC(f) to TNC(f) • Power adapter and power injectors when PoE is not available Power Supply Description IW-PWRADPT-MFIT4P= Power Adapter, AC-DC, Micro-Fit 4-Pin connector IW-PWRINJ-60RGDMG= Power Injector, 60W, outdoor 5GE Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 19 The AP may face issues while booting if you use an unterminated console cable (not plugged into any device or terminal) or a console cable that is more than one meter in length. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 20 Figure 5: IW9165E Mounting Bracket Step 2 Align the mounting brackets (1) over the mounting holes (3) so that the larger holes on the brackets extend out over the access point. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 21 Figure 8: Attaching the DIN Rail Bracket for Vertical Mounting DIN mounting bracket Screws from kit Mounting holes Position the access point with the ground lug facing down for vertical mounting. Note Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 22 Once the bracket is attached to the access point, it can be mounted onto the DIN Rail. Attaching the Bracket onto the DIN Rail To attach the Cisco IW9165E with the bracket to a DIN rail, follow these steps. Refer to the following figure for details of a completed attachment.
  • Page 23 Installation Considerations Cisco recommends that you bulkhead mount the lightning arrestor so it can be installed as a wall-feed through on the wall of the protected space.
  • Page 24 Cisco recommends a high-quality, low-loss cable for use with the lightning arrestor. Grounding the Access Point In all installations, after mounting the access point, you must properly ground the unit before connecting power cables. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 25 Connect the supplied ground lug to the access point ground connection point using the supplied screws. Apply supplied oxide inhibitor between the ground lug and the access point ground connection. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 26 Step 3 Ensure that the antennas are connected, and that ground is attached to the AP before you apply power to the AP. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 27 Connect a shielded outdoor-rated Ethernet (CAT5e or better) cable between the power injector and the AP's PoE-in connector. Step 5 Connect the Ethernet cable to the AP PoE-In port. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 28 If you keep the Reset button pressed for more than 60 seconds, the button is assumed as being faulty and no Note changes are made. Checking the Access Point LEDs The location of the AP status LED is shown in Connectors and Ports, on page Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 29 Solid Green Normal operating condition with at least one wireless client associated with the unit. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 30 In the state of requesting IP address from DHCP server. (Provisioning) mode: Fallback Limbo Amber This status indicates that the IP address is retrieved (Provisioning) from DHCP server. mode: DHCP Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 31 Performing Site Surveys, on page 32 Safety Instructions The translated warnings are available in the Translated Safety Warnings for Cisco Catalyst Access Points, which is available on Cisco.com. IMPORTANT SAFETY INSTRUCTIONSThis warning symbol means danger. You are in a situation Warning that could cause bodily injury.
  • Page 32 The FCC, with its action in, has adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC-certified equipment. When used with approved Cisco antennas, Cisco Catalyst products meet the uncontrolled environmental limits found in IEEE C95.3. Proper operation of this radio device according to the instructions in this publication results in user exposure substantially below the FCC recommended limits.
  • Page 33 Code, Article 810, Canada: Canadian Electrical Code, Section 54). Statement 280 • Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the size and type of antenna that you are about to install •...
  • Page 34 • Data rates: Sensitivity and range are inversely proportional to data bit rates. The maximum radio range is achieved at the lowest workable data rate. A decrease in receiver sensitivity occurs as the radio data increases. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 35 • Have you configured the APs before you go onsite? It is always easier to resolve configurations or device problems first. • Do you have the proper tools and equipment to complete your survey? Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 36 Declaration of Conformity Statements, on page 42 Manufacturers Federal Communication Commission Declaration of Conformity Statement Access Point Models Certification Number IW9165E–B LDKIW9165E Manufacturer: Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 37 This is a Class A product based on the standard of the VCCI Council. If this equipment is used in a domestic Warning environment, radio interference may occur, in which case, you may be required to take corrective actions. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 38 あります。この場合には使用者が適切な対策を講ずるよう要求される ことがあります。 VCCI-A Guidelines for Operating Cisco Catalyst Access Points in Japan This section provides guidelines for avoiding interference when operating Cisco Catalyst access points in Japan. These guidelines are provided in both Japanese and English. English Translation This equipment operates in the same frequency bandwidth as industrial, scientific, and medical devices such as microwave ovens and mobile object identification (RF-ID) systems (licensed premises radio stations and unlicensed specified low-power radio stations) used in factory production lines.
  • Page 39 This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 40 This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. For more details, contact Cisco Corporate Compliance. The frequency and the maximum transmitted power in EU are listed below: 2402-2480MHz (LE): 9.92 dBm...
  • Page 41 This section contains information on compliance with guidelines related to RF exposure. Generic Discussion on RF Exposure The Cisco products are designed to comply with the following national and international standards on Human Exposure to Radio Frequencies: • US 47 Code of Federal Regulations Part 2 Subpart J •...
  • Page 42 Cisco Catalyst IW9165E Rugged Access Point and Wireless Client Hardware Installation Guide...
  • Page 43 Additional Information on RF Exposure You can find additional information on the subject at the following links: • Cisco Systems Spread Spectrum Radios and RF Safety white paper at this URL: http://www.cisco.com/warp/public/cc/pd/witc/ao340ap/prodlit/rfhr_wi.htm • FCC Bulletin 56: Questions and Answers about Biological Effects and Potential Hazards of Radio Frequency Electromagnetic Fields •...
