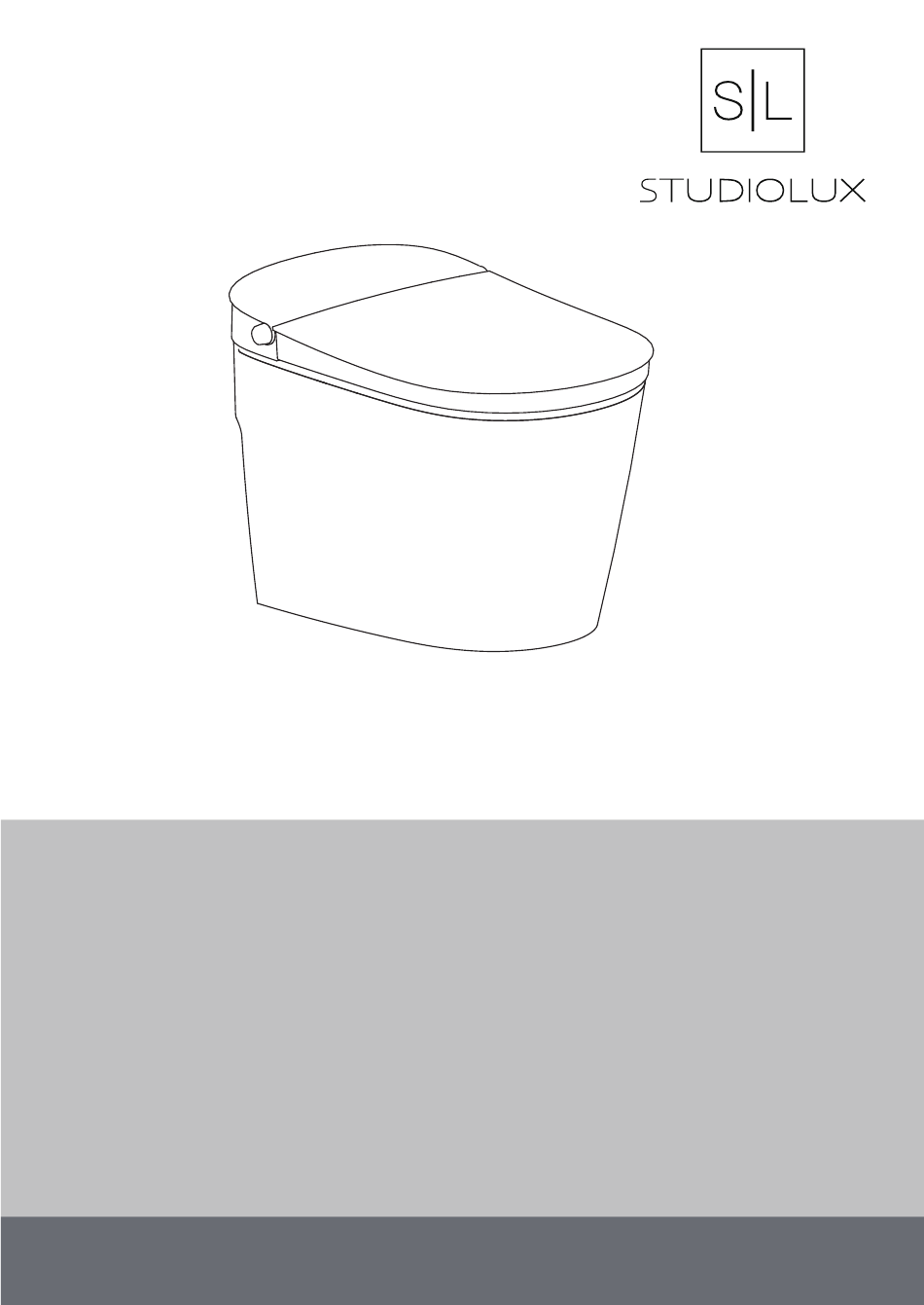

- Page 1 MODEL：SLi1010 Installation instructions and manuals Installation instructions for skilled technicians! After installation, please hand over the installation instructions to the user.
- Page 2 IMPORTANT SAFEGUARDS READ ALL INSTRUCTION BEFORE USING When using the electronic product, especially in the presence of children, basic safety precautions should always be followed, including the following. Please read all instructions before use. DANGER-Reduce the risk of electric shock 1.Do not use while bathing.
-
Page 3: Fcc Supplier's Declaration Of Conformity
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Supplier’s Declaration of Conformity Poduct name：TANKLESS TOILET Model number：SLi1010 Suppliers Name：STUDIOLUX Suppliers Address:US Office 30131 Town Center Dr Suite 298... - Page 4 Suggestions on water supply connection Technical drawings and power cord connections suggest 701mm/27.6in Pit spacing 305mm/12in NOTE: It is necessary to install the provided angle stop in an accessiable area for quick shutoff in case of an emergency. The power outlet can be installed on either left or right. *This product is suitable for AC120V/60HZ power supply.
-
Page 5: Grounding Instructions
Grounding instructions This product should be grounded. In the case of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape path for the current. This product is equipped with a power cord with a ground wire and a properly grounded plug. The plug must be plugged into a properly installed and grounded socket. -
Page 6: Precautions Before Use
Precautions before use In order to avoid personal injury and property damage to users and other people, please read the following safety precautions carefully and strictly observe them. After reading, please keep this manual in a drawer where you can access easily. ☆It is strictly forbidden to disassemble, repair or transform the product by yourself, otherwise it may cause fire or electric shock. - Page 7 ☆This appliance is provided with a protective device that may make the appliance inoperable under some abnormal conditions(such as immersion of the appliance). If the appliance becomes inoperable,contact the STUDIOLUX service team. ☆Do not let children play with this product.
-
Page 8: List Of Materials
1.List of materials MODEL：SLi1010 Installation instructions and manuals Installation instructions for skilled technicians! After installation, please hand over the installation instructions to the user. Installation card User manual (Warranty card） Product Material Number:1606106910-001 Material Number:1606107278-001 Angle Valve Multitap nut Material Number:1403K140056-3... -
Page 9: Installation
3.Installation ＋ Electric drill (including Adjustable wrench Silicone Marking pen Tape Philips screwdriver Glass 4.5mm bit & 10mm bit) 3. 1 In st a ll the A d a pt er N ut , Angle Stop 1. After external thread of water outlet pipe is wrapped with Teflon sealing gasket Teflon tape tape, adapter nut need install sealing gasket ,tighten the adapter nut... -
Page 10: Product Function
3.3 Install the Water Supply Hose Large end facing ball valve As shown in the figure, install water supply line to Angle stop. 1) If the water inlet pressure is greater than 30psi, please install the flow limiting plate in the angle stop; 2) Only use the accessory parts that are shipped with the product for installation;... -
Page 11: Part Identification
5.Part identification 工作时(臀洗、妇洗、烘干)，按下旋钮执行停止命令。 Cover rubber pad Cover Trim cover Flush button Trim strip Heated seat Rear cover Seat sensor Night light Angle stop Knob Toilet bowl Side indicator light... - Page 12 6.cleansing filter screen Close Pull power plug off and turn unscrew the plug and Close Clean the filter screen off the water supply remove the filter screen. Close Install filter and Plug in Turn on the water tighten plug 7. Removal and installation of Seat Seat removal （1）Pull power plug (2) Open the cover &...
-
Page 13: Cleaning And Maintenance
8.Cleaning and maintenance Cleaning the Cover & Seat: Cleaning the toilet bowl: Turn off the water supply. Notices: Use a soft and wet cloth to clean the Clean the toilet bowl with product (Wring out a cloth) cleaner and flush the cleaner Notices: within 3 minutes. -
Page 14: Warranty Card
Warranty card Product model Manufacturing number Customer name Sales company Date of purchase The 2nd copy send back... - Page 15 Maintenance record Maintenance personnel Date of maintain Maintenance items Maintenance company signature There may be differences between the contents of this manual and the real object. Please refer to the real object.If the products and attachments have any update, we will not notice. 1606107278-001 1.0 Type of Flush valve:FCS-6-KM-3 US Office...
