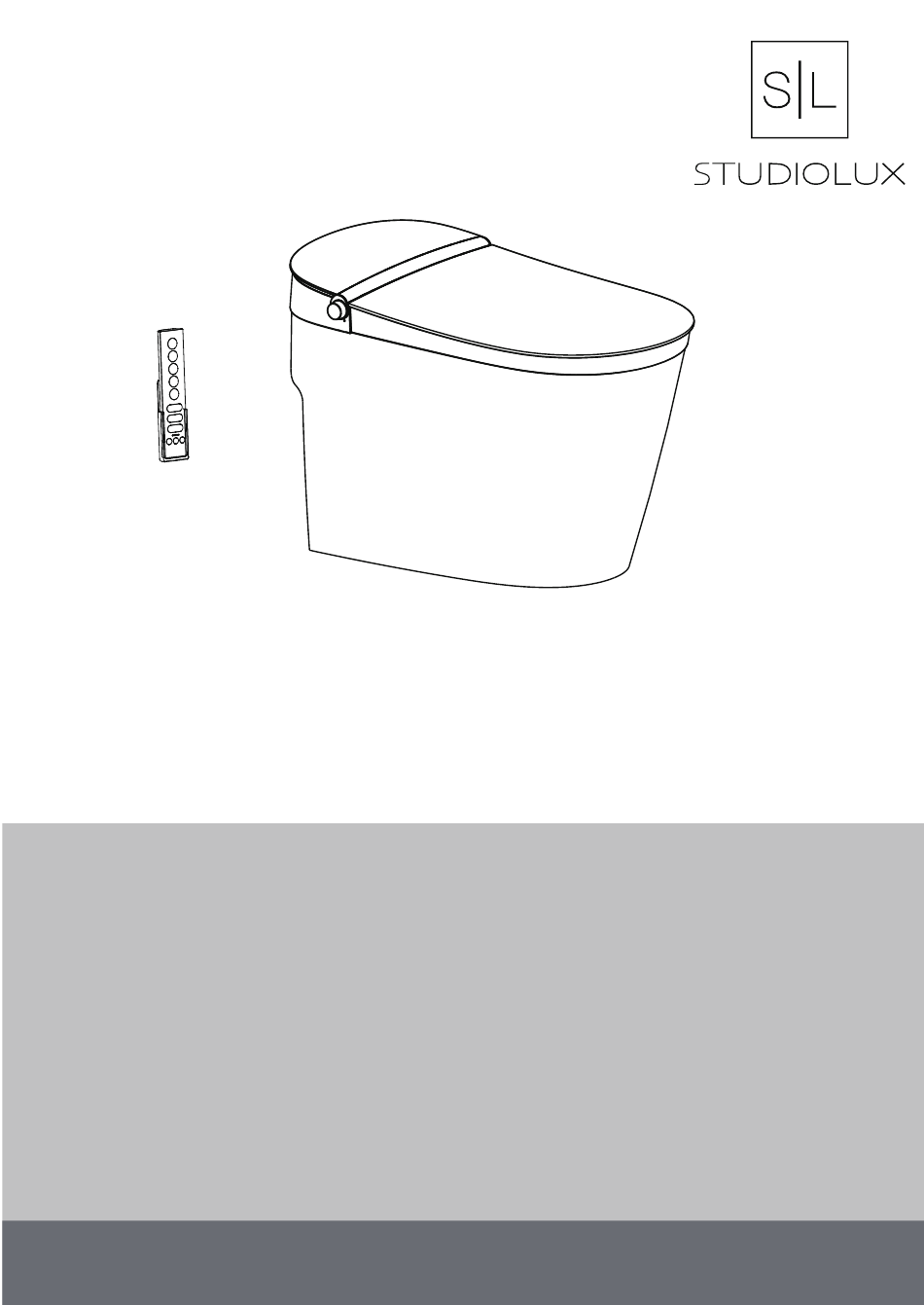

- Page 1 MODEL：SLi5400 Installation instructions and manuals Installation instructions for skilled technicians! After installation, please hand over the installation instructions to the user.
- Page 2 IMPORTANT SAFEGUARDS READ ALL INSTRUCTION BEFORE USING When using the electronic product, especially in the presence of children, basic safety precautions should always be followed, including the following. Please read all instructions before use. DANGER-Reduce the risk of electric shock 1.Do not use while bathing.
-
Page 3: Fcc Supplier's Declaration Of Conformity
ISED Warning statements in User Manual This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. - Page 4 Suggestions on power line and water supply connection Technical drawings and power cord connections suggest 701mm/27.6in Pit spacing 305mm/12in NOTE: It is necessary to install the provided angle stop in an accessiable area for quick shutoff in case of an emergency. The power socket can be installed on either left or right.
-
Page 5: Grounding Instructions
Grounding instructions This product should be grounded. In the case of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape path for the current. This product is equipped with a power cord with a ground wire and a properly grounded plug. The plug must be plugged into a properly installed and grounded socket. -
Page 6: Precautions Before Use
Precautions before use In order to avoid personal injury and property damage to users and other people, please read the following safety precautions carefully and strictly observe them. After reading, please keep this manual in a drawer where you can access easily. ☆Do not touch the power plug with wet hand, otherwise it may cause electric shock. - Page 7 ☆This appliance is provided with a protective device that may make the appliance inoperable under some abnormal conditions(such as immersion of the appliance). If the appliance becomes inoperable,contact the STUDIOLUX service team. ☆Do not let children play with this product.
-
Page 8: List Of Materials
1.List of materials MODEL：SLi5400 Installation instructions and manuals Installation instructions for skilled technicians! After installation, please hand over the installation instructions to the user. User manual (Warranty card） Installation card Product Material Number:1606106910-001 Material Number:1606107474-001 Remote control & Holder &expansion screw set... -
Page 9: Installation
3.Installation ＋ Electric drill (including Marking pen Adjustable wrench Silicone Glass Tape Philips screwdriver 4.5mm bit & 10mm bit) 3.1 In stal l the A dapt er Nut , Ang le St op 1. After external thread of water outlet hose is wrapped with Teflon Teflon tape sealing gasket tape, adapter nut need install sealing gasket ,tighten the adapter nut... - Page 10 3.3 Install the Water Supply Hose Large end facing As shown in the figure, install water supply line to angle stop. ball valve E-bidet bra ide d hose 1) If the water inlet pressure is greater than 30psi, please install the flow limiting plate in the angle stop; 2) Only use the accessory parts that are shipped with the product for installation;...
-
Page 11: Connecting Remote Control
Open the angle stop，only turn gray tab Connecting remote control Power on half way and check flush, if the flush is GROUNDED too weak gradually increase gray tab, if OUTLET too strong lower gray tab. GROUNDING PIN GROUNDED OUTLET BOX Connecting Remote Control Long press the stop key Power on... -
Page 12: Button Operations
4. Side button description 1. Side button operation Knob definition Knob function Press the knob Rotate clockwise and counterclockwise When sitting, press knob to start automatic rear cleansing function. 15 seconds of rear cleaning at Automatic rear fixed position→30 seconds of oscillate cleaning→rear cleaning at fixed position then stop (From cleansing start m pressing knob to stop spraying will take about 60 seconds), and the wand automatic retract →120 seconds of dry. -
Page 13: Part Identification
5.Part identification Cover rubber pad Cover Serial mumber DO NOT REMOVE needed for Remote control body Power plug warranty purpose! Remote control bracket Trim cover Flush button Trim strip Heated seat Rear cover Seat sensor Angle stop Nozzle Knob Toilet bowl Side indicator light... -
Page 14: Remote Control Instructions
6.Remote control instructions ● Rear cleansing/Front cleansing When sitting, press button or button, enter the rear cleansing or front cleansing mode, press the button again to enter the oscillated cleansing mode. The cleansing cycle which stops automatically after 3 minutes; or press button to stop the cleansing function. - Page 15 ● Nozzle position adjustment Press button to adjust the wand between 5 different position. Press once to move up one level .Once the highest level is reached, press again to move back one level. The indicator light will display accordingly. ●...
- Page 16 Note 1. When the automatic open and close function of the product is turned on, the product can identify the person moving within a certain distance from the ceramic front. This process is called microwave motion induction;When the Sensor range product recognizes that the person is moving within the microwave induction distance, the cover will not automatically turn off.
- Page 17 7.cleansing filter screen Close Pull power plug off and turn unscrew the plug and Close Clean the filter screen off the water supply remove the filter screen. Close Install filter and Plug in Turn on the water supply tighten plug 8.
-
Page 18: Cleaning And Maintenance
E-bidet installation (3) Place the gasket on both sides of （1）connect and tight the three (2) Align the location hole of E-bidet braided hoses to E-bidet by wrench, the E-bidet lock the screw and insert with toilet bowl guide pillar, press into then insert the hose and install the the rubber pads. -
Page 19: Troubleshooting
12.Troubleshooting Frequently asked questions. (FAQ) Please read the following questions carefully, and refer to the instructions. If the product still does not work contact your local sales dealer or contact the manufacturer. Tips: If there is water leakage, immediately turn off the water supply and pull the power plug. The following reasons may cause product's malfunction. - Page 20 Issue Solution Cause Seat temperature is Is seat temperature set to“off” or Reset the seat temperature to a higher not warm enough on the lowest setting? setting. during usage. Heated Seat Reset the seat temperature to a lower Seat temperature is Is seat temperature set on the setting.
-
Page 21: Warranty Card
Warranty card Product model Manufacturing number Customer name Sales company Date of purchase The 2nd copy send back... - Page 22 Maintenance record Maintenance personnel Date of maintain Maintenance items Maintenance company signature There may be differences between the contents of this manual and the real object. Please refer to the real object.If the products and attachments have any update, we will not notice. 1606107474-001 1.0 Type of Flush valve:FCS-6-KM-3 US Office...
